Data Matrix Generator in Blazor Barcode Component

Data Matrix

DataMatrix is a two-dimensional (2D) barcode that encodes data using a grid of black and white modules. It supports high-density data storage and includes built-in error correction, enabling accurate data recovery even when the symbol is partially damaged.

The Barcode Generator supports generating Data Matrix symbols with different encoding modes and symbol sizes based on the input data.

Data Matrix Encoding Modes

Encoding	Description
ASCII	Encodes standard ASCII characters.
ASCIINumeric	Encodes numeric data efficiently by storing two digits per codeword.
Base256	Encodes binary data and extended character sets.
Auto	Automatically selects the most efficient encoding mode based on the input data.

Supported Symbol Sizes

Data Matrix barcodes support both square and rectangular symbol formats. The Barcode Generator automatically determines the appropriate symbol size based on the amount of data being encoded.

Square symbols: 10×10 to 120×120 modules
Rectangular symbols: 8×18 to 16×48 modules

This allows efficient encoding of both small and large amounts of data while maintaining reliable scanning performance.

@using Syncfusion.Blazor.BarcodeGenerator

<SfDataMatrixGenerator Width="200" Height="150" Value="SYNCFUSION"></SfDataMatrixGenerator>

Note:: Data Matrix supports encoding numeric, alphanumeric, and binary data.

Encoding Modes

The Barcode Generator supports the following Data Matrix encoding modes:

Encoding	Description
`Auto`	Automatically selects the most efficient encoding mode based on the input data.
`ASCII`	Encodes standard ASCII characters and mixed content.
`ASCIINumeric`	Optimized for numeric data and provides compact encoding.
`Base256`	Encodes binary data and extended character sets.

The following example demonstrates how to generate a Data Matrix barcode using different encoding modes:

@using Syncfusion.Blazor.BarcodeGenerator

<!-- Automatic encoding selection -->
<SfDataMatrixGenerator Width="200" Height="150" Value="Hello123" Encoding="DataMatrixEncoding.Auto">
</SfDataMatrixGenerator>

<!-- ASCII encoding -->
<SfDataMatrixGenerator Width="200" Height="150" Value="PRODUCT" Encoding="DataMatrixEncoding.ASCII">
</SfDataMatrixGenerator>

<!-- Numeric encoding -->
<SfDataMatrixGenerator Width="200" Height="150" Value="1234567890" Encoding="DataMatrixEncoding.ASCIINumeric">
</SfDataMatrixGenerator>

Encoding Mode Guide

Encoding	Best For	Example
Auto	General purpose	“PRODUCT-2024”
ASCII	Text and mixed data	“Order #12345”
ASCIINumeric	Numbers only (compact)	“1234567890”
Base256	Binary or special bytes	Image data, binary files

GS1 Data Matrix

GS1 Data Matrix is a standardized Data Matrix barcode format that uses GS1 Application Identifiers (AIs) to encode structured business information such as product identifiers, batch numbers, expiration dates, and serial numbers.

The EnableGS1 property enables GS1-compliant Data Matrix barcode generation.

Allowed Input Characters: GS1 Data Matrix supports numeric, alphanumeric, and supported special characters. Data is encoded using GS1 Application Identifiers (AIs), enabling structured business information such as product identifiers, batch numbers, expiration dates, and serial numbers to be stored within a compact barcode.

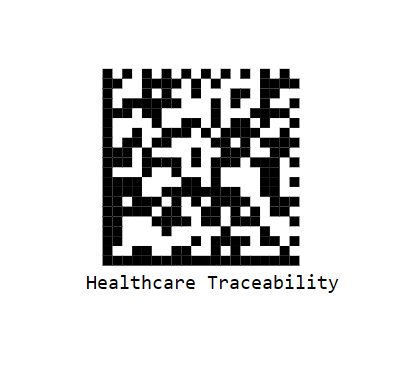

The following example demonstrates how to generate a GS1 Data Matrix barcode:

@using Syncfusion.Blazor.BarcodeGenerator

<SfDataMatrixGenerator Width="300px" Height="250px" Value="(01)09506000134369(17)280131(10)LOT001" EnableGS1="true" >
    <DataMatrixGeneratorDisplayText Text="Healthcare Traceability" />
</SfDataMatrixGenerator>

Note: The Barcode Generator validates the input data before generating the barcode. If the input data is invalid or cannot be encoded using the selected settings, the OnValidationFailed event is triggered.

Common Validation Errors

Error	Cause	Solution
Data too long	Exceeds symbol capacity	Reduce data or change encoding
Empty value	No data provided	Supply at least one character
Invalid encoding	Unsupported encoding mode	Use Auto, ASCII, ASCIINumeric, or Base256
Invalid character for mode	Character not allowed in selected mode	Change encoding or data

@using Syncfusion.Blazor.BarcodeGenerator

<SfDataMatrixGenerator Width="200px" Height="150px" Value="SYNCFUSION" EnableGS1="true" OnValidationFailed="@OnValidationFailed"></SfDataMatrixGenerator>

@code
{
    public void OnValidationFailed(ValidationFailedEventArgs args)
    {
        Console.WriteLine($"Data Matrix validation error: {args.Message}");
        // Example errors:
        // - "The data is too long for the specified Data Matrix symbol size."
        // - "Data Matrix accepts valid ASCII characters."
    }
}

Data Matrix Customizations

The Data Matrix component provides comprehensive customization options to modify the appearance and behavior of generated barcodes. This section covers all available properties that can be used to customize Data Matrix codes.

Data Matrix Color Customization

The barcode appearance can be customized by changing the colors. The component provides two main color properties:

Foreground Color

The ForeColor property specifies the line and text color of the Data Matrix barcode. By default, it is set to black.

@using Syncfusion.Blazor.BarcodeGenerator

<SfDataMatrixGenerator Width="200" Height="150" ForeColor="red" Value="SYNCFUSION"></SfDataMatrixGenerator>

Customizing Blazor Barcode Color in Data Matrix Generator

Background Color

The BackgroundColor property specifies the background color of the Data Matrix barcode. By default, it is set to white. This is useful when you need to match the barcode with the surrounding environment or create custom designs.

@using Syncfusion.Blazor.BarcodeGenerator

<SfDataMatrixGenerator Width="200" Height="150" BackgroundColor="lightyellow" ForeColor="darkblue" Value="SYNCFUSION"></SfDataMatrixGenerator>

Data Matrix Dimension Customization

The dimensions of the barcode can be adjusted using the Height and Width properties. Both properties accept string values with % and px units. By default, both are set to 100%.

@using Syncfusion.Blazor.BarcodeGenerator

<SfDataMatrixGenerator Width="300px" Height="250px" Value="SYNCFUSION"></SfDataMatrixGenerator>

Margin Customization

The Margin property specifies the space to be left around the Data Matrix barcode. It accepts a DataMatrixMargin object with the following properties:

Property	Description	Default Value
`Left`	Space from the left side	10
`Right`	Space from the right side	10
`Top`	Space from the top side	10
`Bottom`	Space from the bottom side	10

@using Syncfusion.Blazor.BarcodeGenerator

<SfDataMatrixGenerator Width="250" Height="200" Value="SYNCFUSION">
    <DataMatrixMargin Left="20" Top="20" Right="20" Bottom="20"></DataMatrixMargin>
</SfDataMatrixGenerator>

Display Text Customization

The barcode display text can be fully customized using the DisplayText property. The DataMatrixGeneratorDisplayText component provides comprehensive text customization options.

Text Content

The Text property specifies the textual description to display with the Data Matrix code. By default, it is an empty string.

@using Syncfusion.Blazor.BarcodeGenerator

<SfDataMatrixGenerator Width="200" Height="150" Value="SYNCFUSION">
    <DataMatrixGeneratorDisplayText Text="Text"></DataMatrixGeneratorDisplayText>
</SfDataMatrixGenerator>

Customizing Blazor Barcode Text in Data Matrix Generator

Font Configuration

The Font property specifies the font style of the display text. By default, it is set to monospace.

@using Syncfusion.Blazor.BarcodeGenerator

<SfDataMatrixGenerator Width="200" Height="150" Value="SYNCFUSION">
    <DataMatrixGeneratorDisplayText Text="Product Code" Font="Arial"></DataMatrixGeneratorDisplayText>
</SfDataMatrixGenerator>

Text Alignment

The Alignment property specifies the horizontal alignment of the text. It accepts the following values: Left, Center, or Right. By default, it is set to Center.

@using Syncfusion.Blazor.BarcodeGenerator

<SfDataMatrixGenerator Width="300" Height="150" Value="SYNCFUSION">
    <DataMatrixGeneratorDisplayText Text="Product Code" Alignment="Alignment.Left"></DataMatrixGeneratorDisplayText>
</SfDataMatrixGenerator>

Text Position

The Position property specifies the vertical position of the text relative to the Data Matrix code. It accepts Top or Bottom. By default, it is set to Bottom.

@using Syncfusion.Blazor.BarcodeGenerator

<SfDataMatrixGenerator Width="200" Height="150" Value="SYNCFUSION">
    <DataMatrixGeneratorDisplayText Text="Product Code" Position="TextPosition.Top"></DataMatrixGeneratorDisplayText>
</SfDataMatrixGenerator>

Text Visibility

The Visibility property controls the visibility of the display text. By default, it is set to true. Set it to false to hide the text.

@using Syncfusion.Blazor.BarcodeGenerator

<SfDataMatrixGenerator Width="200" Height="150" Value="SYNCFUSION">
    <DataMatrixGeneratorDisplayText Visibility="false"></DataMatrixGeneratorDisplayText>
</SfDataMatrixGenerator>

Text Margin

The Margin property specifies the space between the text and the Data Matrix barcode. It accepts a DataMatrixTextMargin object with the following properties:

Property	Description	Default Value
`Left`	Space from the left side	0
`Right`	Space from the right side	0
`Top`	Space from the top side	0
`Bottom`	Space from the bottom side	0

@using Syncfusion.Blazor.BarcodeGenerator

<SfDataMatrixGenerator Width="250" Height="200" Value="SYNCFUSION">
    <DataMatrixGeneratorDisplayText Text="Product Code">
        <DataMatrixTextMargin Left="0" Top="10" Right="0" Bottom="10"></DataMatrixTextMargin>
    </DataMatrixGeneratorDisplayText>
</SfDataMatrixGenerator>

Dynamic Property Updates

The Data Matrix Generator supports dynamic updates to barcode properties at runtime. When a property value is modified, the Data Matrix barcode is automatically refreshed to display the latest changes. This enables interactive customization of the barcode appearance and content.

Update Data Matrix Properties Dynamically

The following example demonstrates how to dynamically update Data Matrix properties such as the value, colors, size, encoding mode, and display text.

@using Syncfusion.Blazor.BarcodeGenerator
@using Syncfusion.Blazor.Inputs
@using Syncfusion.Blazor.DropDowns

<div style="margin: 20px;">
    <div style="margin-bottom: 10px;">
        <label>Data Matrix Value: </label>
        <SfTextBox @bind-Value="@DataMatrixValue" Placeholder="Enter data"></SfTextBox>
    </div>

    <div style="margin-bottom: 10px;">
        <label>Foreground Color: </label>
        <input type="color" @bind="@ForeColor" />
    </div>

    <div style="margin-bottom: 10px;">
        <label>Background Color: </label>
        <input type="color" @bind="@BackgroundColor" />
    </div>

    <div style="margin-bottom: 10px;">
        <label>Encoding Mode: </label>
        <SfDropDownList TValue="DataMatrixEncoding" TItem="DataMatrixEncoding" DataSource="@EncodingModes" @bind-Value="@EncodingMode">
            <DropDownListFieldSettings Text="ToString" Value="ToString"></DropDownListFieldSettings>
        </SfDropDownList>
    </div>

    <div style="margin-bottom: 10px;">
        <label>Size (px): </label>
        <SfSlider @bind-Value="@DataMatrixSize" Min="100" Max="300" Step="10"></SfSlider>
        <span>@DataMatrixSize px</span>
    </div>

    <div style="margin-bottom: 10px;">
        <label>Display Text: </label>
        <SfTextBox @bind-Value="@DisplayTextValue" Placeholder="Enter display text"></SfTextBox>
    </div>
</div>

<!-- Data Matrix that updates in real-time as properties change -->
<div style="margin-top: 30px; padding: 20px; border: 1px solid #ccc;">
    <SfDataMatrixGenerator Width="@($"{DataMatrixSize}px")"
                           Height="@($"{DataMatrixSize}px")"
                           Value="@DataMatrixValue"
                           ForeColor="@ForeColor"
                           BackgroundColor="@BackgroundColor"
                           Encoding="@EncodingMode">
        <DataMatrixGeneratorDisplayText Text="@DisplayTextValue" Visibility="@(!string.IsNullOrEmpty(DisplayTextValue))"></DataMatrixGeneratorDisplayText>
    </SfDataMatrixGenerator>
</div>

@code
{
    private string DataMatrixValue = "31117013206375";
    private string ForeColor = "black";
    private string BackgroundColor = "white";
    private int DataMatrixSize = 200;
    private string DisplayTextValue = "Inventory Code";
    private DataMatrixEncoding EncodingMode = DataMatrixEncoding.Auto;
    private List<DataMatrixEncoding> EncodingModes = new() { DataMatrixEncoding.Auto, DataMatrixEncoding.ASCII, DataMatrixEncoding.ASCIINumeric, DataMatrixEncoding.Base256 };
}
