Data labels in ASP.NET Core Maps Component

18 Nov 20181 minute to read

Data labels provide information to users about the shapes of the Maps component. It can be enabled by setting the Visible property of the MapsDataLabelSettings to true.

Adding data labels

To display data labels in the Maps, the LabelPath property of MapsDataLabelSettings must be used. The value of the LabelPath property can be taken from the field name in the shape data or data source. In the following example, the value of the LabelPath property is the field name in the shape data of the Maps layer.

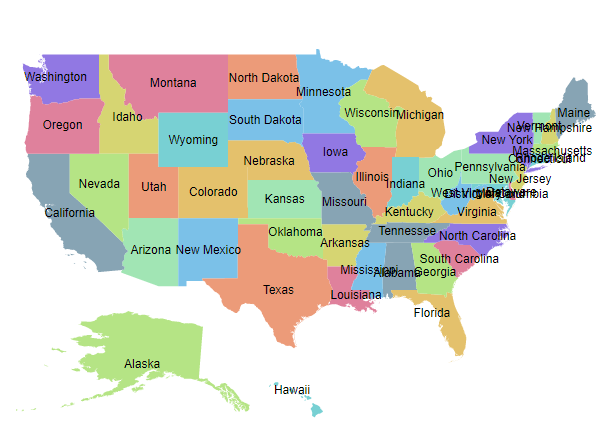

Setting label path value

In the following example, the value of LabelPath property is set from the field name in the data source of the layer settings.

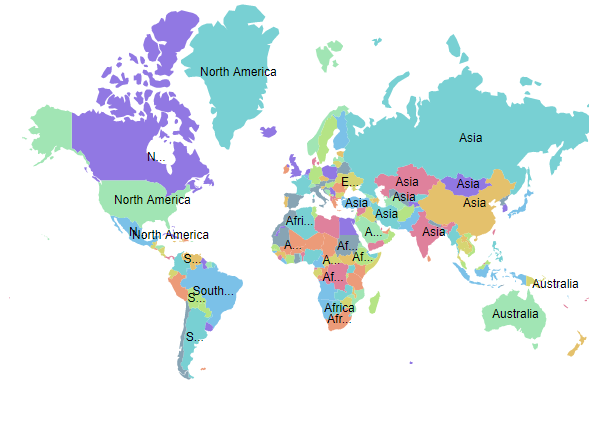

Setting label path value from datasource

Customization

The following properties are available in the MapsDataLabelSettings to customize the data label of the Maps component.

  • Border - To customize the color, width and opacity for the border of the data labels in Maps.
  • Fill - To apply the color of the data labels in Maps.
  • Opacity - To customize the transparency of the data labels in Maps.
  • TextStyle - To customize the text style of the data labels in Maps.

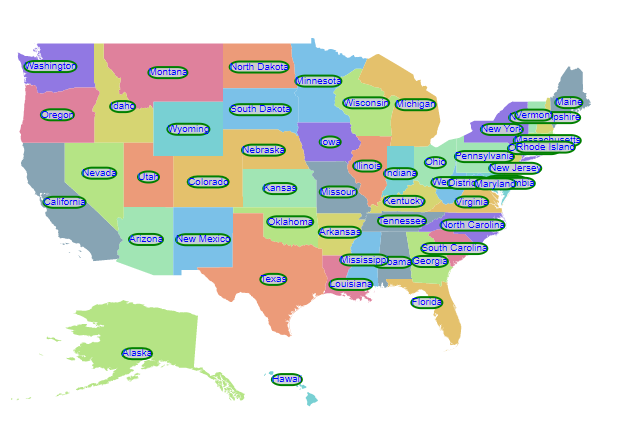

Data label customization

Label animation

Smart labels

The Maps component provides an option to handle the labels when they intersect with the corresponding shape borders using the SmartLabelMode property. The following options are available in the SmartLabelMode property.

  • None
  • Hide
  • Trim

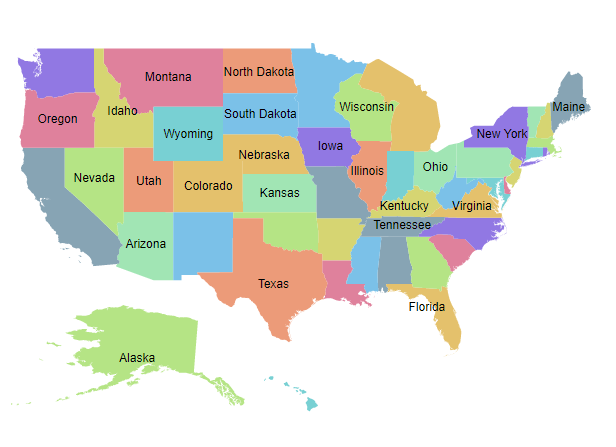

Smart labels

Intersect action

The Maps component provides an option to handle the labels when a label intersects with another label using the IntersectionAction property. The following options are available in the IntersectionAction property.

  • None
  • Hide
  • Trim

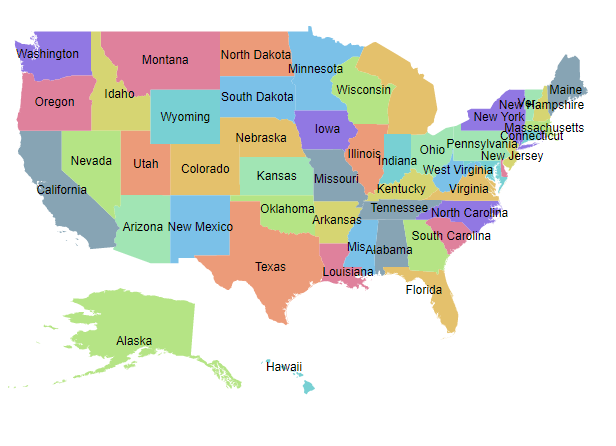

Intersect action

Adding data label as a template

The data label can be added as a template in the Maps component. The Template property of MapsDataLabelSettings is used to set the data label as a template. Any text or HTML element can be added as the template in data labels.

NOTE

The properties of data label such as, SmartLabelMode , IntersectionAction, AnimationDuration, Border, Fill, Opacity and TextStyle properties are not applicable to Template property. The styles can be applied to the label template using the CSS styles of the HTML element.

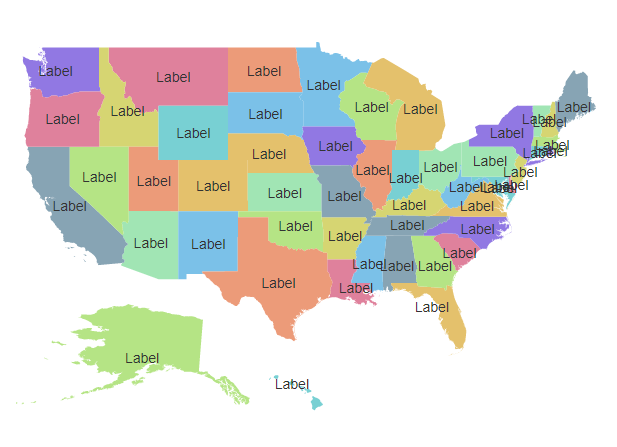

Intersect action
