Column Chart in Angular Charts

A column chart is ideal for comparing values across different categories, where the data is displayed vertically and the height of each column represents the value.

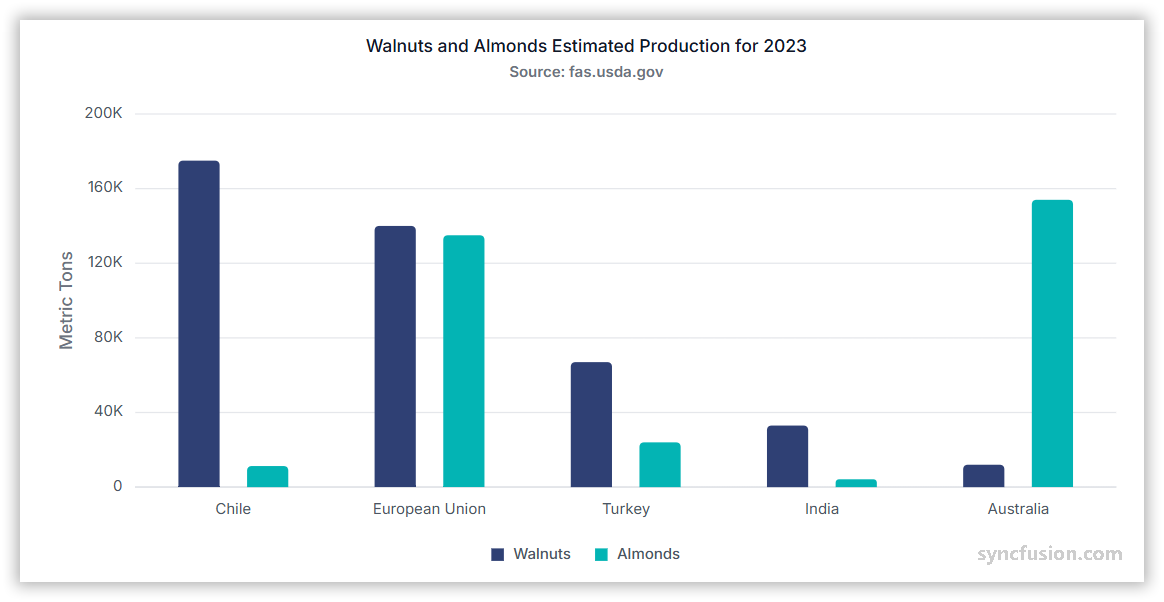

Column chart showing data trends

Creating a column chart

To render a column series in your chart:

  1. Set the series type: Define the series type as Column in your chart configuration.
  2. Provide ColumnSeriesService: Add ColumnSeriesService to your module’s providers array so the chart can render the column series.
import { ChartModule } from '@syncfusion/ej2-angular-charts'
import { CategoryService, ColumnSeriesService } from '@syncfusion/ej2-angular-charts'


import { Component, OnInit } from '@angular/core';
import { columnData } from './datasource';

@Component({
imports: [
         ChartModule
    ],

providers: [CategoryService, ColumnSeriesService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" [primaryXAxis]='primaryXAxis' [primaryYAxis]='primaryYAxis' [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='Column' xName='country' yName='gold' name='Gold'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public title?: string;
    primaryYAxis: any;
    ngOnInit(): void {
        this.chartData = columnData;
        this.primaryXAxis = {
           valueType: 'Category',
           title: 'Countries'
        };
        this.title = 'Olympic Medals';
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
export let columnData: Object[]= [
             { country: "USA", gold: 50 },
             { country: "China", gold: 40 },
             { country: "Japan", gold: 70 },
             { country: "Australia", gold: 60 },
             { country: "France", gold: 50 },
             { country: "Germany", gold: 40 },
             { country: "Italy", gold: 40 },
             { country: "Sweden", gold: 30 }
        ];

Binding data with series

You can bind data to the chart using the dataSource property within the series configuration. To display the data correctly, map the fields from the data to the chart series xName and yName properties.

import { ChartModule } from '@syncfusion/ej2-angular-charts'
import { CategoryService, ColumnSeriesService } from '@syncfusion/ej2-angular-charts'


import { Component, OnInit } from '@angular/core';
import { columnData } from './datasource';

@Component({
imports: [
         ChartModule
    ],

providers: [CategoryService, ColumnSeriesService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" [primaryXAxis]='primaryXAxis' [primaryYAxis]='primaryYAxis' [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='Column' xName='country' yName='gold' name='Gold'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public title?: string;
    primaryYAxis: any;
    ngOnInit(): void {
        this.chartData = columnData;
        this.primaryXAxis = {
           valueType: 'Category',
           title: 'Countries'
        };
        this.title = 'Olympic Medals';
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
export let columnData: Object[]= [
             { country: "USA", gold: 50 },
             { country: "China", gold: 40 },
             { country: "Japan", gold: 70 },
             { country: "Australia", gold: 60 },
             { country: "France", gold: 50 },
             { country: "Germany", gold: 40 },
             { country: "Italy", gold: 40 },
             { country: "Sweden", gold: 30 }
        ];

Series customization

The following properties can be used to customize the appearance of the Column series.

Solid fill

The fill property determines the color applied to the series.

import { ChartModule } from '@syncfusion/ej2-angular-charts'
import { CategoryService, ColumnSeriesService } from '@syncfusion/ej2-angular-charts'


import { Component, OnInit } from '@angular/core';
import { columnData } from './datasource';
@Component({
imports: [
         ChartModule
    ],

providers: [CategoryService, ColumnSeriesService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" [primaryXAxis]='primaryXAxis' [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='Column' xName='country' yName='gold' fill='blue'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public title?: string;
    ngOnInit(): void {
        this.chartData = columnData;
        this.primaryXAxis = {
           valueType: 'Category',
           title: 'Countries'
        };
        this.title = 'Olympic Medals';
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
export let columnData: Object[]= [
             { country: "USA", gold: 50 },
             { country: "China", gold: 40 },
             { country: "Japan", gold: 70 },
             { country: "Australia", gold: 60 },
             { country: "France", gold: 50 },
             { country: "Germany", gold: 40 },
             { country: "Italy", gold: 40 },
             { country: "Sweden", gold: 30 }
        ];

Gradient fill

The fill property can apply an SVG gradient to a column series. Define the gradient within an SVG <defs> element using a unique ID, and assign it to the series in the url(#gradientId) format. Place the following SVG element in your application’s index.html file, inside the <body> element and outside the <app-container> element.

<svg>
    <defs>
        <linearGradient id="gradient">
            <stop offset="0%" style="stop-color:blue;stop-opacity:5" />
            <stop offset="50%" style="stop-color:violet;stop-opacity:5" />
        </linearGradient>
    </defs>
</svg>
import { ChartModule } from '@syncfusion/ej2-angular-charts'
import { CategoryService, ColumnSeriesService } from '@syncfusion/ej2-angular-charts'


import { Component, OnInit } from '@angular/core';
import { columnData } from './datasource';

@Component({
imports: [
         ChartModule
    ],

providers: [CategoryService, ColumnSeriesService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" [primaryXAxis]='primaryXAxis' [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='Column' xName='country' yName='gold' name='Gold' fill='url(#gradient)'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public title?: string;
    ngOnInit(): void {
        this.chartData = columnData;
        this.primaryXAxis = {
           valueType: 'Category',
           title: 'Countries'
        };
        this.title = 'Olympic Medals';
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
export let columnData: Object[]= [
             { country: "USA", gold: 50 },
             { country: "China", gold: 40 },
             { country: "Japan", gold: 70 },
             { country: "Australia", gold: 60 },
             { country: "France", gold: 50 },
             { country: "Germany", gold: 40 },
             { country: "Italy", gold: 40 },
             { country: "Sweden", gold: 30 }
        ];

Opacity

Control the transparency level of the column fill using the opacity property. Values range from 0 (completely transparent) to 1 (completely opaque).

import { ChartModule } from '@syncfusion/ej2-angular-charts'
import { CategoryService, ColumnSeriesService } from '@syncfusion/ej2-angular-charts'


import { Component, OnInit } from '@angular/core';
import { columnData } from './datasource';

@Component({
imports: [
         ChartModule
    ],

providers: [CategoryService, ColumnSeriesService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" [primaryXAxis]='primaryXAxis' [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='Column' xName='country' yName='gold' name='Gold' opacity='0.5'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public title?: string;
    ngOnInit(): void {
        this.chartData = columnData;
        this.primaryXAxis = {
           valueType: 'Category',
           title: 'Countries'
        };
        this.title = 'Olympic Medals';
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
export let columnData: Object[]= [
             { country: "USA", gold: 50 },
             { country: "China", gold: 40 },
             { country: "Japan", gold: 70 },
             { country: "Australia", gold: 60 },
             { country: "France", gold: 50 },
             { country: "Germany", gold: 40 },
             { country: "Italy", gold: 40 },
             { country: "Sweden", gold: 30 }
        ];

Border

Use the border property to customize the width, color, and dashArray of the series border.

import { ChartModule } from '@syncfusion/ej2-angular-charts'
import { CategoryService, ColumnSeriesService } from '@syncfusion/ej2-angular-charts'


import { Component, OnInit } from '@angular/core';
import { columnData } from './datasource';

@Component({
imports: [
         ChartModule
    ],

providers: [CategoryService, ColumnSeriesService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" [primaryXAxis]='primaryXAxis' [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='Column' xName='country' yName='gold' name='Gold' [border]='border'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public title?: string;
    public border?: Object;
    ngOnInit(): void {
        this.chartData = columnData;
        this.primaryXAxis = {
           valueType: 'Category',
           title: 'Countries'
        };
        this.border = { width: 2, color: '#FFA500', dashArray: '2,5' };
        this.title = 'Olympic Medals';
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
export let columnData: Object[]= [
             { country: "USA", gold: 50 },
             { country: "China", gold: 40 },
             { country: "Japan", gold: 70 },
             { country: "Australia", gold: 60 },
             { country: "France", gold: 50 },
             { country: "Germany", gold: 40 },
             { country: "Italy", gold: 40 },
             { country: "Sweden", gold: 30 }
        ];

Column spacing and width

Column spacing

Use the columnSpacing property in the series to adjust the space between columns.

import { ChartModule } from '@syncfusion/ej2-angular-charts'
import { CategoryService, ColumnSeriesService } from '@syncfusion/ej2-angular-charts'


import { Component, OnInit } from '@angular/core';
import { columnData } from './datasource';

@Component({
imports: [
         ChartModule
    ],

providers: [CategoryService, ColumnSeriesService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" [primaryXAxis]='primaryXAxis' [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='Column' columnSpacing='0.5' xName='country' yName='gold'></e-series>
            <e-series [dataSource]='chartData' type='Column' xName='country' columnWidth='0.25' yName='silver'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public title?: string;
    ngOnInit(): void {
        this.chartData = columnData;
        this.primaryXAxis = {
           valueType: 'Category',
           title: 'Countries'
        };
        this.title = 'Olympic Medals';
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
export let columnData: Object[]= [
        { country: 'USA', gold: 50, silver: 75 },
        { country: 'China', gold: 40, silver: 20 },
        { country: 'Japan', gold: 70, silver: 45 },
        { country: 'Australia', gold: 60, silver: 14 },
        { country: 'France', gold: 50, silver: 18 },
        { country: 'Germany', gold: 40, silver: 26 },
        { country: 'Italy', gold: 40, silver: 35 },
        { country: 'Sweden', gold: 30, silver: 47 },
        ];

Column width

Use the columnWidth property in the series to adjust the width of the columns.

import { ChartModule } from '@syncfusion/ej2-angular-charts'
import { CategoryService, ColumnSeriesService } from '@syncfusion/ej2-angular-charts'


import { Component, OnInit } from '@angular/core';
import { columnData } from './datasource';

@Component({
imports: [
         ChartModule
    ],

providers: [CategoryService, ColumnSeriesService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" [primaryXAxis]='primaryXAxis' [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='Column' xName='country' yName='gold' name='Gold' [columnWidth]='0.75'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public title?: string;
    ngOnInit(): void {
        this.chartData = columnData;
        this.primaryXAxis = {
           valueType: 'Category',
           title: 'Countries'
        };
        this.title = 'Olympic Medals';
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
export let columnData: Object[]= [
             { country: "USA", gold: 50 },
             { country: "China", gold: 40 },
             { country: "Japan", gold: 70 },
             { country: "Australia", gold: 60 },
             { country: "France", gold: 50 },
             { country: "Germany", gold: 40 },
             { country: "Italy", gold: 40 },
             { country: "Sweden", gold: 30 }
        ];

Column width in pixels

Use the columnWidthInPixel property in the series to define the exact width of the columns in pixels. This property ensures that each column maintains the specified width, providing a uniform appearance throughout the chart.

import { ChartModule } from '@syncfusion/ej2-angular-charts'
import { CategoryService, ColumnSeriesService } from '@syncfusion/ej2-angular-charts'


import { Component, OnInit } from '@angular/core';
import { columnData } from './datasource';

@Component({
imports: [
         ChartModule
    ],

providers: [CategoryService, ColumnSeriesService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" [primaryXAxis]='primaryXAxis' [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='Column' xName='country' yName='gold' name='Gold' [columnWidthInPixel]='10'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public title?: string;
    ngOnInit(): void {
        this.chartData = columnData;
        this.primaryXAxis = {
           valueType: 'Category',
           title: 'Countries'
        };
        this.title = 'Olympic Medals';
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
export let columnData: Object[]= [
             { country: "USA", gold: 50 },
             { country: "China", gold: 40 },
             { country: "Japan", gold: 70 },
             { country: "Australia", gold: 60 },
             { country: "France", gold: 50 },
             { country: "Germany", gold: 40 },
             { country: "Italy", gold: 40 },
             { country: "Sweden", gold: 30 }
        ];

Grouped column charts

Use the groupName property to group data points in column charts. Series that share the same groupName are rendered side by side for each category, making it easy to compare different datasets.

import { ChartModule } from '@syncfusion/ej2-angular-charts'
import { CategoryService, ColumnSeriesService } from '@syncfusion/ej2-angular-charts'


import { Component, OnInit } from '@angular/core';
@Component({
imports: [
         ChartModule
    ],

providers: [CategoryService, ColumnSeriesService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart style='display:block;' [primaryXAxis]='primaryXAxis' [primaryYAxis]='primaryYAxis'>
	    <e-series-collection>
	        <e-series groupName="A" [dataSource]='data' type='Column' xName='x' yName='y' name='UK' width='2'> </e-series>
		    <e-series groupName="B" [dataSource]='data1' type='Column' columnWidth='0.6' xName='x' yName='y' name='Germany' width='2'> </e-series>
		    <e-series groupName="A" [dataSource]='data2' type='Column' xName='x' yName='y' name='France' width='2'> </e-series>
		    <e-series groupName="B" [dataSource]='data3' type='Column' xName='x' columnWidth='0.6' yName='y' name='Italy' width='2'> </e-series>
	    </e-series-collection>
	</ejs-chart>`
})
export class AppComponent implements OnInit {
  public data?: Object[];
  public data1?: Object[];
  public data2?: Object[];
  public data3?: Object[];
  public primaryXAxis?: Object;
  public primaryYAxis?: Object;
    ngOnInit(): void {
        this.primaryXAxis = {
            majorGridLines: { width: 0 },
            minorGridLines: { width: 0 },
            majorTickLines: { width: 0 },
            minorTickLines: { width: 0 },
            interval: 1,
            lineStyle: { width: 0 },
            valueType: "Category"
        };
        this.primaryYAxis = {
            title: "Sales",
            lineStyle: { width: 0 },
            majorTickLines: { width: 0 },
            majorGridLines: { width: 1 },
            minorGridLines: { width: 1 },
            minorTickLines: { width: 0 },
            labelFormat: "{value}B"
        };
    this.data = [
    { x: "2014", y: 111.1 },
    { x: "2015", y: 127.3 },
    { x: "2016", y: 143.4 },
    { x: "2017", y: 159.9 }
  ];
  this.data1 = [
    { x: "2014", y: 76.9 },
    { x: "2015", y: 99.5 },
    { x: "2016", y: 121.7 },
    { x: "2017", y: 142.5 }
  ];
  this.data2 = [
    { x: "2014", y: 66.1 },
    { x: "2015", y: 79.3 },
    { x: "2016", y: 91.3 },
    { x: "2017", y: 102.4 }
  ];
  this.data3 = [
    { x: "2014", y: 34.1 },
    { x: "2015", y: 38.2 },
    { x: "2016", y: 44.0 },
    { x: "2017", y: 51.6 }
  ];
}

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
export let columnData: Object[]= [
             { country: "USA", gold: 50 },
             { country: "China", gold: 40 },
             { country: "Japan", gold: 70 },
             { country: "Australia", gold: 60 },
             { country: "France", gold: 50 },
             { country: "Germany", gold: 40 },
             { country: "Italy", gold: 40 },
             { country: "Sweden", gold: 30 }
        ];

export let data1: Object[] = [
             { x: 'Jan', low: 0.7, high: 6.1 }, { x: 'Feb', low: 1.3, high: 6.3 }, { x: 'Mar', low: 1.9, high: 8.5 },
             { x: 'Apr', low: 3.1, high: 10.8 }, { x: 'May', low: 5.7, high: 14.40 }, { x: 'Jun', low: 8.4, high: 16.90 },
             { x: 'Jul', low: 10.6,high: 19.20 }, { x: 'Aug', low: 10.5,high: 18.9 }, { x: 'Sep', low: 8.5, high: 16.1 },
             { x: 'Oct', low: 6.0, high: 12.5 }, { x: 'Nov', low: 1.5, high: 6.9  }, { x: 'Dec', low: 5.1, high: 12.1 }
        ];
export let data2: Object[] =[
             { x: 'Jan', low: 1.7, high: 7.1 }, { x: 'Feb', low: 1.9, high: 7.7 }, { x: 'Mar', low: 1.2, high: 7.5 },
             { x: 'Apr', low: 2.5, high: 9.8 }, { x: 'May', low: 4.7, high: 11.4 }, { x: 'Jun', low: 6.4, high: 14.4 },
             { x: 'Jul', low: 9.6, high: 17.2 }, { x: 'Aug', low: 10.7, high: 17.9 }, { x: 'Sep', low: 7.5, high: 15.1 },
             { x: 'Oct', low: 3.0, high: 10.5 }, { x: 'Nov', low: 1.2, high: 7.9 }, { x: 'Dec', low: 4.1, high: 9.1 }
        ];
export let stackedData: Object[] = [
              { x: '2014', y: 111.1, y1: 76.9, y2: 66.1, y3: 34.1 },
              { x: '2015', y: 127.3, y1: 99.5, y2: 79.3, y3: 38.2 },
              { x: '2016', y: 143.4, y1: 121.7, y2: 91.3, y3: 44.0 },
              { x: '2017', y: 159.9, y1: 142.5, y2: 102.4, y3: 51.6 },
              { x: '2018', y: 175.4, y1: 166.7, y2: 112.9, y3: 61.9 },
              { x: '2019', y: 189.0, y1: 182.9, y2: 122.4, y3: 71.5 },
              { x: '2020', y: 202.7, y1: 197.3, y2: 120.9, y3: 82.0 }
        ];
export let percentData: Object[] = [
             { x: '2006', y: 900, y1: 190, y2: 250, y3: 150 },
             { x: '2007', y: 544, y1: 226, y2: 145, y3: 120 },
             { x: '2008', y: 880, y1: 194, y2: 190, y3: 115 },
             { x: '2009', y: 675, y1: 250, y2: 220, y3: 125 },
             { x: '2010', y: 765, y1: 222, y2: 225, y3: 132 },
             { x: '2011', y: 679, y1: 181, y2: 135, y3: 137 },
             { x: '2012', y: 770, y1: 128, y2: 152, y3: 110 },
        ];

Cylindrical column chart

To render a cylindrical column chart, set the columnFacet property to Cylinder in the chart series. The default value is Rectangle. This property transforms regular columns into cylindrical shapes.

import { ChartModule } from '@syncfusion/ej2-angular-charts'
import { CategoryService, ColumnSeriesService, TooltipService } from '@syncfusion/ej2-angular-charts'


import { Component, OnInit } from '@angular/core';
import { cylindricalData } from './datasource';

@Component({
imports: [
         ChartModule
    ],

providers: [CategoryService, ColumnSeriesService, TooltipService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" [primaryXAxis]='primaryXAxis' [primaryYAxis]='primaryYAxis' [title]='title' [tooltip]='tooltip'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='Column' columnFacet= 'Cylinder' xName='country' yName='gold' tooltipMappingName='tooltipMappingName'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public title?: string;
    public primaryYAxis?: Object;
    public tooltip?: Object;
    ngOnInit(): void {
        this.chartData = cylindricalData;
        this.primaryXAxis = {
            valueType: 'Category',
            interval: 1
        };
        this.primaryYAxis = {
            minimum: 0,
            maximum: 80,
            interval: 10,
            title: 'Medal Count'
        };
        this.title = 'Olympic Gold Medal Counts - RIO';
        this.tooltip = { enable: true, header: "<b>${point.tooltip}</b>", format: "Gold Medal: <b>${point.y}</b>" };
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
export let columnData: Object[] = [
        { country: "USA", gold: 50 },
        { country: "China", gold: 40 },
        { country: "Japan", gold: 70 },
        { country: "Australia", gold: 60 },
        { country: "France", gold: 50 },
        { country: "Germany", gold: 40 },
        { country: "Italy", gold: 40 },
        { country: "Sweden", gold: 30 }
];

export let data1: Object[] = [
        { x: 'Jan', low: 0.7, high: 6.1 }, { x: 'Feb', low: 1.3, high: 6.3 }, { x: 'Mar', low: 1.9, high: 8.5 },
        { x: 'Apr', low: 3.1, high: 10.8 }, { x: 'May', low: 5.7, high: 14.40 }, { x: 'Jun', low: 8.4, high: 16.90 },
        { x: 'Jul', low: 10.6, high: 19.20 }, { x: 'Aug', low: 10.5, high: 18.9 }, { x: 'Sep', low: 8.5, high: 16.1 },
        { x: 'Oct', low: 6.0, high: 12.5 }, { x: 'Nov', low: 1.5, high: 6.9 }, { x: 'Dec', low: 5.1, high: 12.1 }
];
export let data2: Object[] = [
        { x: 'Jan', low: 1.7, high: 7.1 }, { x: 'Feb', low: 1.9, high: 7.7 }, { x: 'Mar', low: 1.2, high: 7.5 },
        { x: 'Apr', low: 2.5, high: 9.8 }, { x: 'May', low: 4.7, high: 11.4 }, { x: 'Jun', low: 6.4, high: 14.4 },
        { x: 'Jul', low: 9.6, high: 17.2 }, { x: 'Aug', low: 10.7, high: 17.9 }, { x: 'Sep', low: 7.5, high: 15.1 },
        { x: 'Oct', low: 3.0, high: 10.5 }, { x: 'Nov', low: 1.2, high: 7.9 }, { x: 'Dec', low: 4.1, high: 9.1 }
];
export let stackedData: Object[] = [
        { x: '2014', y: 111.1, y1: 76.9, y2: 66.1, y3: 34.1 },
        { x: '2015', y: 127.3, y1: 99.5, y2: 79.3, y3: 38.2 },
        { x: '2016', y: 143.4, y1: 121.7, y2: 91.3, y3: 44.0 },
        { x: '2017', y: 159.9, y1: 142.5, y2: 102.4, y3: 51.6 },
        { x: '2018', y: 175.4, y1: 166.7, y2: 112.9, y3: 61.9 },
        { x: '2019', y: 189.0, y1: 182.9, y2: 122.4, y3: 71.5 },
        { x: '2020', y: 202.7, y1: 197.3, y2: 120.9, y3: 82.0 }
];
export let percentData: Object[] = [
        { x: '2006', y: 900, y1: 190, y2: 250, y3: 150 },
        { x: '2007', y: 544, y1: 226, y2: 145, y3: 120 },
        { x: '2008', y: 880, y1: 194, y2: 190, y3: 115 },
        { x: '2009', y: 675, y1: 250, y2: 220, y3: 125 },
        { x: '2010', y: 765, y1: 222, y2: 225, y3: 132 },
        { x: '2011', y: 679, y1: 181, y2: 135, y3: 137 },
        { x: '2012', y: 770, y1: 128, y2: 152, y3: 110 },
];
export let cylindricalData: Object[] = [
        { country: "USA",       gold: 50, tooltipMappingName: 'USA' },
        { country: "Japan",     gold: 70, tooltipMappingName: 'Japan' },
        { country: "Australia", gold: 60, tooltipMappingName: 'Australia' },
        { country: "France",    gold: 50, tooltipMappingName: 'France' },
        { country: "Italy",     gold: 40, tooltipMappingName: 'Italy' },
        { country: "Sweden",    gold: 55, tooltipMappingName: 'Sweden' }
]

Empty points

Data points with null or undefined values are considered empty points. Use the emptyPointSettings configuration on the series to control how empty points are rendered.

Mode

Use the mode property to define how empty points are handled. Available modes are Gap (default), Zero, Average, and Drop.

import { ChartModule } from '@syncfusion/ej2-angular-charts'
import { CategoryService, ColumnSeriesService } from '@syncfusion/ej2-angular-charts'


import { Component, OnInit } from '@angular/core';
import { columnData } from './datasource';

@Component({
imports: [
         ChartModule
    ],

providers: [CategoryService, ColumnSeriesService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" [primaryXAxis]='primaryXAxis' [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='Column' xName='country' yName='gold' name='Gold' [emptyPointSettings]='emptyPointSettings'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public title?: string;
    public emptyPointSettings?: Object;
    ngOnInit(): void {
        this.chartData = columnData;
        this.primaryXAxis = {
           valueType: 'Category',
           title: 'Countries'
        };
        this.emptyPointSettings = { mode: 'Gap' };
        this.title = 'Olympic Medals';
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
export let columnData: Object[] = [
     { country: "USA",       gold: 50 },
     { country: "China",     gold: 40 },
     { country: "Japan",     gold: 70 },
     { country: "Australia", gold: null },
     { country: "France",    gold: 50 },
     { country: "Germany",   gold: 40 },
     { country: "Italy",     gold: 40 },
     { country: "Sweden",    gold: 30 }
 ];

Fill

Use the fill property to customize the fill color of empty points in the series.

import { ChartModule } from '@syncfusion/ej2-angular-charts'
import { CategoryService, ColumnSeriesService } from '@syncfusion/ej2-angular-charts'


import { Component, OnInit } from '@angular/core';
import { columnData } from './datasource';

@Component({
imports: [
         ChartModule
    ],

providers: [CategoryService, ColumnSeriesService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" [primaryXAxis]='primaryXAxis' [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='Column' xName='country' yName='gold' name='Gold' [emptyPointSettings]='emptyPointSettings'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public title?: string;
    public emptyPointSettings?: Object;
    ngOnInit(): void {
        this.chartData = columnData;
        this.primaryXAxis = {
           valueType: 'Category',
           title: 'Countries'
        };
        this.emptyPointSettings = {  mode: 'Average',
            fill: 'red' };
        this.title = 'Olympic Medals';
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
export let columnData: Object[] = [
     { country: "USA",       gold: 50 },
     { country: "China",     gold: 40 },
     { country: "Japan",     gold: 70 },
     { country: "Australia", gold: null },
     { country: "France",    gold: 50 },
     { country: "Germany",   gold: 40 },
     { country: "Italy",     gold: 40 },
     { country: "Sweden",    gold: 30 }
 ];

Border

Use the border property to customize the width and color of the border for empty points.

import { ChartModule } from '@syncfusion/ej2-angular-charts'
import { CategoryService, ColumnSeriesService } from '@syncfusion/ej2-angular-charts'


import { Component, OnInit } from '@angular/core';
import { columnData } from './datasource';

@Component({
imports: [
         ChartModule
    ],

providers: [CategoryService, ColumnSeriesService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" [primaryXAxis]='primaryXAxis' [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='Column' xName='country' yName='gold' name='Gold' [emptyPointSettings]='emptyPointSettings'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public title?: string;
    public emptyPointSettings?: Object;
    public border?: Object;
    ngOnInit(): void {
        this.chartData = columnData;
        this.primaryXAxis = {
           valueType: 'Category',
           title: 'Countries'
        };
        this.emptyPointSettings = {  mode: 'Average',
            fill: 'red',  border: { width: 2, color: 'green' }};
        this.title = 'Olympic Medals';
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
export let columnData: Object[] = [
     { country: "USA",       gold: 50 },
     { country: "China",     gold: 40 },
     { country: "Japan",     gold: 70 },
     { country: "Australia", gold: null },
     { country: "France",    gold: 50 },
     { country: "Germany",   gold: 40 },
     { country: "Italy",     gold: 40 },
     { country: "Sweden",    gold: 30 }
 ];

Corner radius customization

Series corner radius

The cornerRadius property on the chart series customizes the corner radius for column series. You can customize each corner using the topLeft, topRight, bottomLeft, and bottomRight properties of the CornerRadius model.

import { ChartModule } from '@syncfusion/ej2-angular-charts'
import { IPointRenderEventArgs } from '@syncfusion/ej2-charts'
import { CategoryService, ColumnSeriesService } from '@syncfusion/ej2-angular-charts'


import { Component, OnInit } from '@angular/core';
import { columnData } from './datasource';

@Component({
imports: [
         ChartModule
    ],

providers: [CategoryService, ColumnSeriesService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" (pointRender)='pointRender($event)' [primaryXAxis]='primaryXAxis' [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='Column' xName='country' yName='gold' name='Gold' [cornerRadius]='cornerRadius'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public title?: string;
    public cornerRadius?: Object;
    ngOnInit(): void {
        this.chartData = columnData;
        this.primaryXAxis = {
           valueType: 'Category',
           title: 'Countries'
        };
        this.cornerRadius = {topRight: 10 , topLeft: 10};
        this.title = 'Olympic Medals';
    }
    public pointRender(args: IPointRenderEventArgs)  {
            args.fill = '#009cb8';
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
export let columnData: Object[] = [
     { country: "USA", gold: -50 },
     { country: "China", gold: 40 },
     { country: "Japan", gold: -70 },
     { country: "Australia", gold: 60 },
     { country: "France", gold: -50 },
     { country: "Germany", gold: -40 },
     { country: "Italy", gold: 40 },
     { country: "Sweden", gold: 30 }
];

Individual point corner radius

The corner radius can be customized for individual points by binding the pointRender event on the chart component and setting the cornerRadius property in its event argument.

import { ChartModule } from '@syncfusion/ej2-angular-charts'
import { IPointRenderEventArgs } from '@syncfusion/ej2-charts'
import { CategoryService, ColumnSeriesService } from '@syncfusion/ej2-angular-charts'


import { Component, OnInit } from '@angular/core';
import { columnData } from './datasource';

@Component({
imports: [
         ChartModule
    ],

providers: [CategoryService, ColumnSeriesService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" (pointRender)='pointRender($event)' [primaryXAxis]='primaryXAxis' [primaryYAxis]='primaryYAxis' [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='Column' xName='country' yName='gold' name='Gold'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public title?: string;
    primaryYAxis: any;
    ngOnInit(): void {
        this.chartData = columnData;
        this.primaryXAxis = {
           valueType: 'Category',
           title: 'Countries'
        };
        this.title = 'Olympic Medals';
    }
    public pointRender(args: IPointRenderEventArgs)  {
        if (args.point.index === 1) {
            args.cornerRadius = { topLeft: 10, bottomLeft: 0, topRight: 10, bottomRight: 0 };
        }
        if (args.point.index === 4) {
            args.cornerRadius = { topLeft: 10, bottomLeft: 0, topRight: 10, bottomRight: 0 };
        }
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
export let columnData: Object[]= [
             { country: "USA", gold: 50 },
             { country: "China", gold: 40 },
             { country: "Japan", gold: 70 },
             { country: "Australia", gold: 60 },
             { country: "France", gold: 50 },
             { country: "Germany", gold: 40 },
             { country: "Italy", gold: 40 },
             { country: "Sweden", gold: 30 }
        ];

Events

Use the following events on the chart component to customize the column series or individual data points before they are rendered.

Series render

The seriesRender event fires once per series before it is rendered and allows you to customize series properties such as data, fill, and name.

import { ChartModule } from '@syncfusion/ej2-angular-charts'
import { ISeriesRenderEventArgs } from '@syncfusion/ej2-charts'
import { CategoryService, ColumnSeriesService } from '@syncfusion/ej2-angular-charts'


import { Component, OnInit } from '@angular/core';
import { columnData } from './datasource';

@Component({
imports: [
         ChartModule
    ],

providers: [CategoryService, ColumnSeriesService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" (seriesRender)='seriesRender($event)' [primaryXAxis]='primaryXAxis' [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='Column' xName='country' yName='gold' name='Gold'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public title?: string;
    ngOnInit(): void {
        this.chartData = columnData;
        this.primaryXAxis = {
           valueType: 'Category',
           title: 'Countries'
        };
        this.title = 'Olympic Medals';
    }
    public seriesRender(args: ISeriesRenderEventArgs)  {
        args.fill = '#ff6347';
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
export let columnData: Object[]= [
             { country: "USA", gold: 50 },
             { country: "China", gold: 40 },
             { country: "Japan", gold: 70 },
             { country: "Australia", gold: 60 },
             { country: "France", gold: 50 },
             { country: "Germany", gold: 40 },
             { country: "Italy", gold: 40 },
             { country: "Sweden", gold: 30 }
        ];

Point render

The pointRender event fires for every data point before it is rendered, allowing per-point customization such as color or corner radius.

import { ChartModule } from '@syncfusion/ej2-angular-charts'
import { IPointRenderEventArgs } from '@syncfusion/ej2-charts'
import { CategoryService, ColumnSeriesService } from '@syncfusion/ej2-angular-charts'


import { Component, OnInit } from '@angular/core';
import { columnData } from './datasource';

@Component({
imports: [
         ChartModule
    ],

providers: [CategoryService, ColumnSeriesService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" (pointRender)='pointRender($event)' [primaryXAxis]='primaryXAxis' [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='Column' xName='country' yName='gold' name='Gold'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public title?: string;
    ngOnInit(): void {
        this.chartData = columnData;
        this.primaryXAxis = {
           valueType: 'Category',
           title: 'Countries'
        };
        this.title = 'Olympic Medals';
    }
    public pointRender(args: IPointRenderEventArgs)  {
            args.fill = '#009cb8';
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
export let columnData: Object[]= [
             { country: "USA", gold: 50 },
             { country: "China", gold: 40 },
             { country: "Japan", gold: 70 },
             { country: "Australia", gold: 60 },
             { country: "France", gold: 50 },
             { country: "Germany", gold: 40 },
             { country: "Italy", gold: 40 },
             { country: "Sweden", gold: 30 }
        ];

Troubleshooting

  • If the column series does not render, ensure ColumnSeriesService is registered in the providers array of the component or module.
  • If a property such as cornerRadius or columnWidthInPixel has no effect, verify that you are using a compatible version of @syncfusion/ej2-angular-charts and that the property is placed on the chart series element.

See Also
