Empty Points

1 Apr 20164 minutes to read

The Data points that uses the null or undefined as value are considered as empty points. Empty data points are ignored and not plotted in the Chart. When the data is provided by using the Points property, you can set the IsEmpty to true to specify that the particular point is an empty point.

  • cshtml
  • @(Html.EJ().Chart("chartContainer")
    	   // ...
            . Series(sr =>{

                 //Using empty points
                 sr.Points(pt => {
                     pt.X("0").Y(210).Add(); pt.X("1").Y(0).Add();
                    pt.X("2").Y(150).Add(); pt.X("3").Y(180).IsEmpty(true).Add();
                    pt.X("4").Y(170).Add(); pt.X("5").Y(200).Add();
                    pt.X("6").Y(140).IsEmpty(true).Add();
                    pt.X("7").Y(120).Add(); pt.X("8").Y(140).Add();
                 }).Add();
                 // ...
             })

           // ...
        )

    Click here to view the online demo sample for empty points.

    EmptyPointSettings

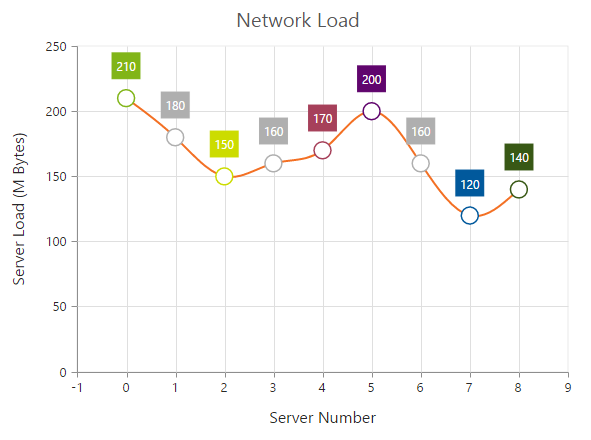

    You can customize the empty points visibility and change its DisplayMode (Gap, Zero and Average) using EmptyPointSettings option.

  • cshtml
  • @(Html.EJ().Chart("chartContainer")
    	   // ...
            . Series(sr =>{

                 //Using empty points
                 sr.Points(pt => {
                     pt.X("0").Y(210).Add(); pt.X("1").Y(0).Add();
                    pt.X("2").Y(150).Add(); pt.X("3").Y(180).IsEmpty(true).Add();
                    pt.X("4").Y(170).Add(); pt.X("5").Y(200).Add();
                    pt.X("6").Y(140).IsEmpty(true).Add();
                    pt.X("7").Y(120).Add(); pt.X("8").Y(140).Add();
                 })// visible the EmptyPointSettings
                       .EmptyPointSettings(e => e.Visible(true)
                                 .DisplayMode(ChartEmptyPointMode.Average)
                    ).Add();
                 // ...
             })

           // ...
        )

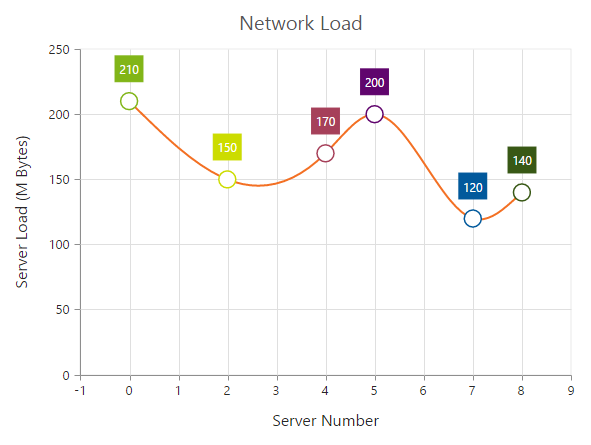

    If the Visible property of EmptyPointSettings is false, then the empty points has been dropped and chart will be rendered without empty points.

    Customizing Styles

    Empty points color and border can be customized using Style property of EmptyPointSettings.

  • cshtml
  • @(Html.EJ().Chart("container")
    	  // ...
          . Series(sr =>{

                 .EmptyPointSettings(e => e.Visible(true)
                       .Style(s => sl.Color("Pink")
                       .Border(b => b.Color("gray").Width(2)))
                   .Add();
                 // ...
           })

          // ...
      )
