Zooming

29 Aug 20171 minute to read

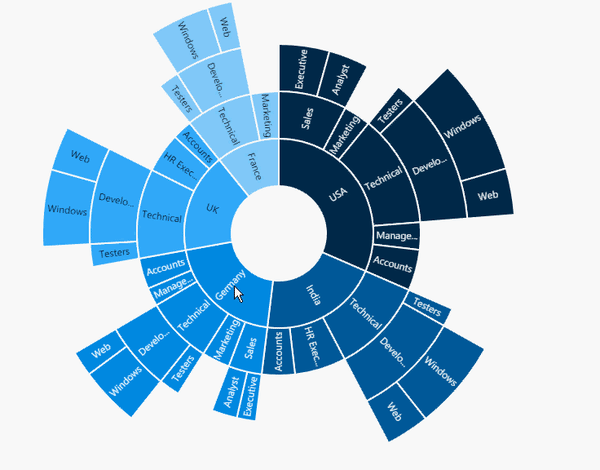

Sunburst chart provides zooming (drill down) experience with animation for both mouse and touch enabled devices. It allows you to virtualizing the large sets of data into minimum data view.The zooming is achieved by using the property of zoomSettings

The following code shows how to initialize the zooming.

  • JS
    • <ej:SunburstChart  ID="container" runat="server">
<ZoomSettings Enable="true" />
</ej:SunburstChart>

    Zooming toolbar

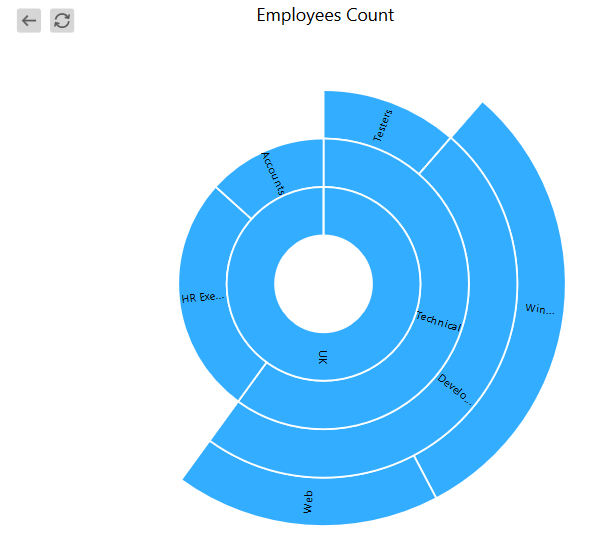

    By default, zooming toolbar will be enabled while zooming the segment.It contains both back and reset option.
    You can align the zooming toolbar position by using ToolbarHorizontalAlignment and ToolbarVerticalAlignment property.

  • JS
    • <ej:SunburstChart  ID="container" runat="server">
<ZoomSettings Enable="true" ToolbarHorizontalAlignment="left" />
</ej:SunburstChart>

    Click here to view the Zooming sample of the Sunburst Chart.
