Highlight

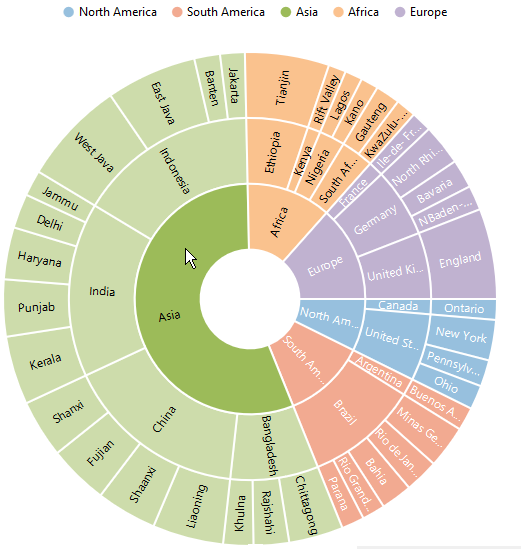

SunburstChart provides highlighting support for the points on mouse hover. To enable the highlighting , set the Enable property to true in the HighlightSettings.

  • html
  • <ej:SunburstChart  ID="container" runat="server">
    <HighlightSettings Enable="true" />
    </ej:SunburstChart>

    Highlight Display mode

    You can customize the highlighted segment appearance by using color or opacity. You can choose between color or opacity using the Type property in the highlight Settings.

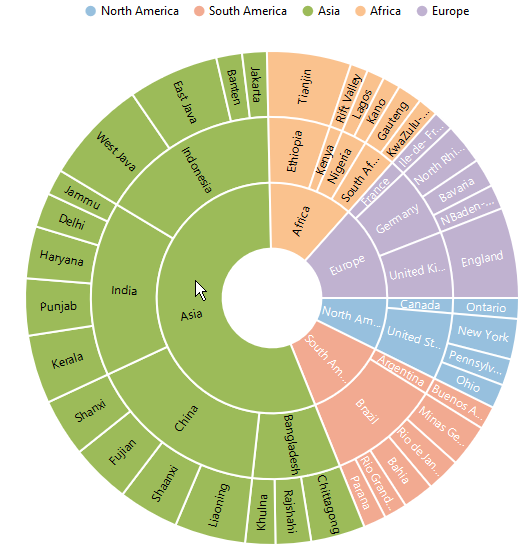

    • HighlightByColor – To display the highlighted segment appearance using color.
    • HighlightByOpacity – To display the highlighted segment appearance using opacity.
  • html
  • <ej:SunburstChart  ID="container" runat="server">

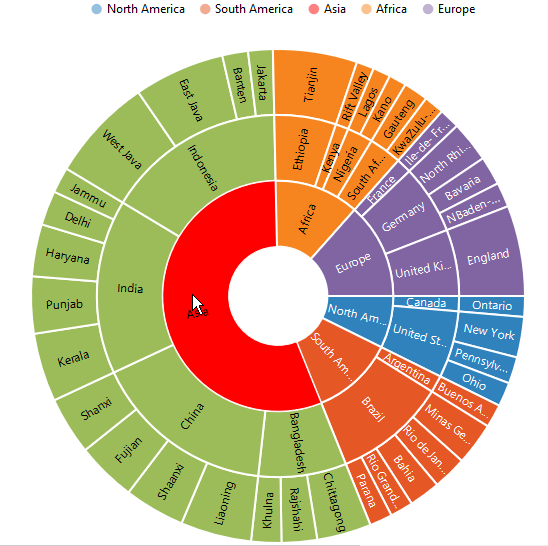

    <HighlightSettings Enable="true" Type="Color" Color="Red" />
    </ej:SunburstChart>

    Highlight Mode

    Sunburst chart provides multiple option to represent the highlighted categories. You can highlight the segment categories by using the Mode property in highlightSettings

    • Child – To highlight the child of selected parent.
    • All – To highlight the entire categories in group.
    • Parent – To highlight the parent of selected child.
    • Single - To highlight single item in the category.

    Child

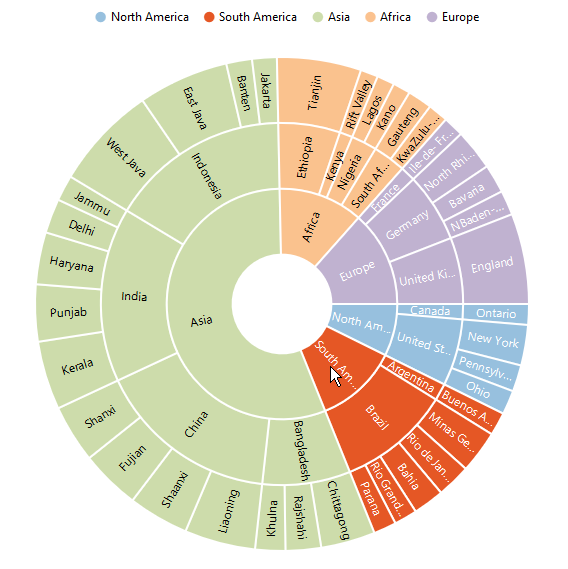

    The following code shows how to set the highlight type as child

  • html
  • <ej:SunburstChart  ID="container" runat="server">
    <HighlightSettings Enable="true" Mode="Child" />
    </ej:SunburstChart>

    Parent

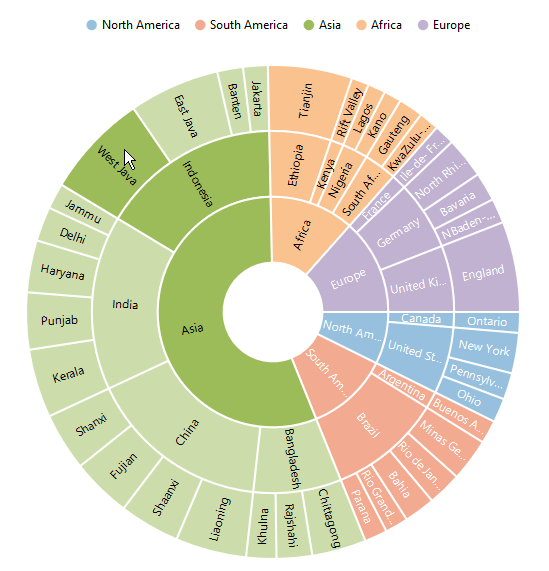

    The parent mode can be enabled by using the below code

  • html
  • <ej:SunburstChart  ID="container" runat="server">
    <HighlightSettings Enable="true" Mode="Parent" />
    </ej:SunburstChart>

    Point

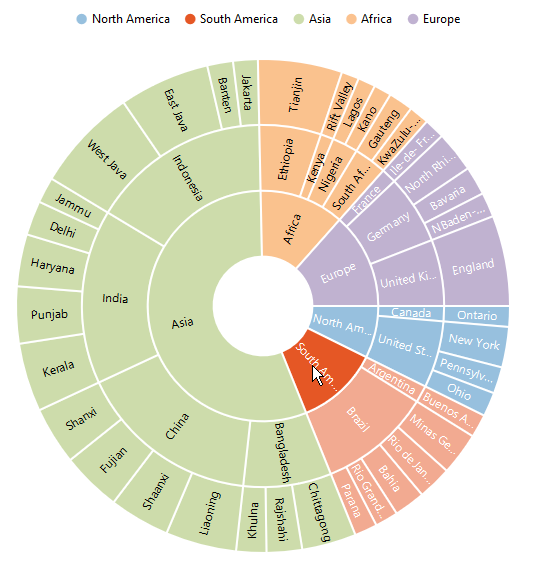

    To highlight the particular segment, the point mode of the highlight settings is used.

  • html
  • <ej:SunburstChart  ID="container" runat="server">
    <HighlightSettings Enable="true" Mode="Point" />
    </ej:SunburstChart>

    All

    The following code snippet is used for the all mode of highlight settings

  • html
  • <ej:SunburstChart  ID="container" runat="server">
    <HighlightSettings Enable="true" Mode="All" />
    </ej:SunburstChart>

    Click here to view the Highlighting sample of the Sunburst Chart.
