Selection

21 Apr 20171 minute to read

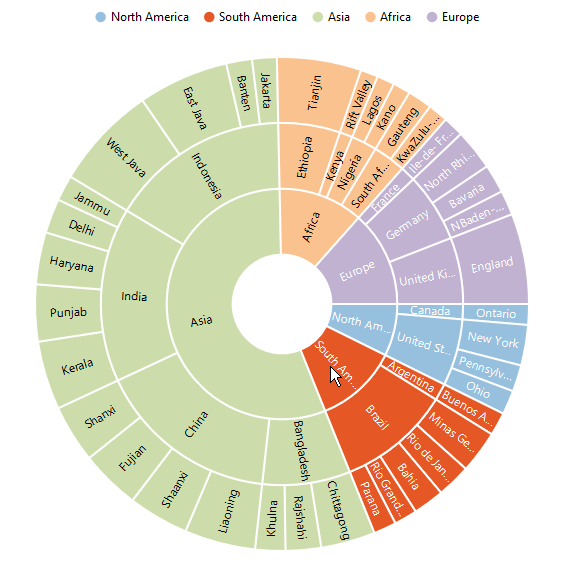

SunburstChart provides selection support for the points on mouse click. To enable the selection , set the Enable property to true in the e-sunburstchart-selection-settings.

  • CSHTML
    • <ej-sunburstchart id="SunburstChart" >
<e-sunburstchart-selection-settings enable="true" ></e-sunburstchart-selection-settings>
</ej-sunburstchart>

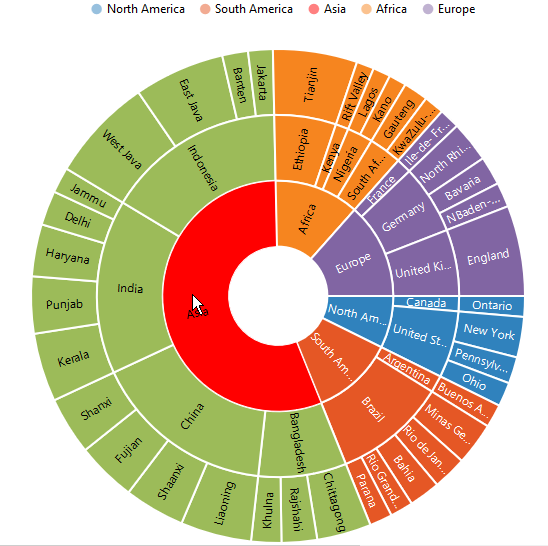

    Selection Display mode

    You can customize the selected segment appearance by using color or opacity. You can choose between color or opacity using the type selection Settings.

    • selectionByColor – To display the selected segment appearance using color.
    • selectionByOpacity – To display the selected segment appearance using opacity.
  • CSHTML
    • <ej-sunburstchart id="SunburstChart" >
<e-sunburstchart-selection-settings enable="true" color="red" type="@SunburstSelectionType.Color"></e-sunburstchart-selection-settings>
</ej-sunburstchart>

    Selection Mode

    Sunburst chart provides multiple option to represent the selected categories. You can select the segment categories by using the Mode property in selectionSettings

    • Child – To selection the child of selected parent.
    • All – To selection the entire categories in group.
    • Parent – To selection the parent of selected child.
    • Single - To selection single item in the category.

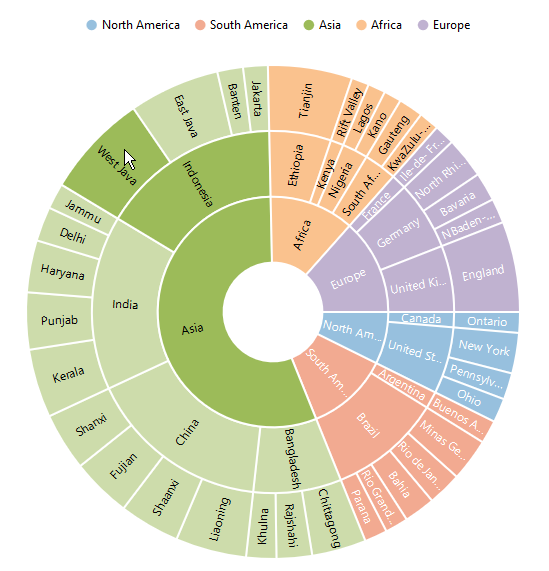

    Child

    The following code shows how to set the selection type as child

  • CSHTML
    • <ej-sunburstchart id="SunburstChart" >
<e-sunburstchart-selection-settings enable="true" mode="@SunburstSelectionMode.Child">
</e-sunburstchart-selection-settings>
</ej-sunburstchart>

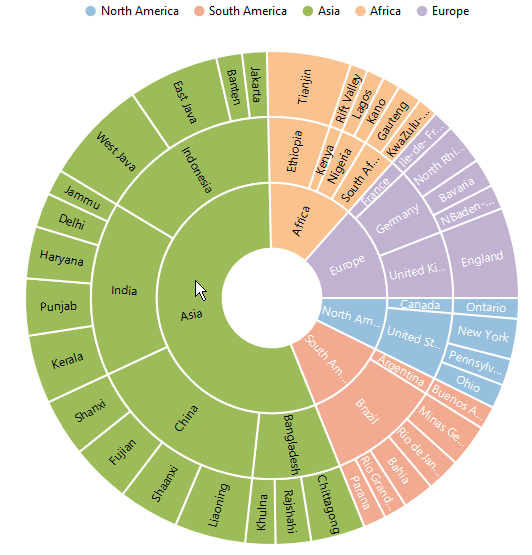

    Parent

    The parent mode can be enabled by using the below code

  • CSHTML
    • <ej-sunburstchart id="SunburstChart" >
<e-sunburstchart-selection-settings enable="true" mode="@SunburstSelectionMode.Parent">
</e-sunburstchart-selection-settings>
</ej-sunburstchart>

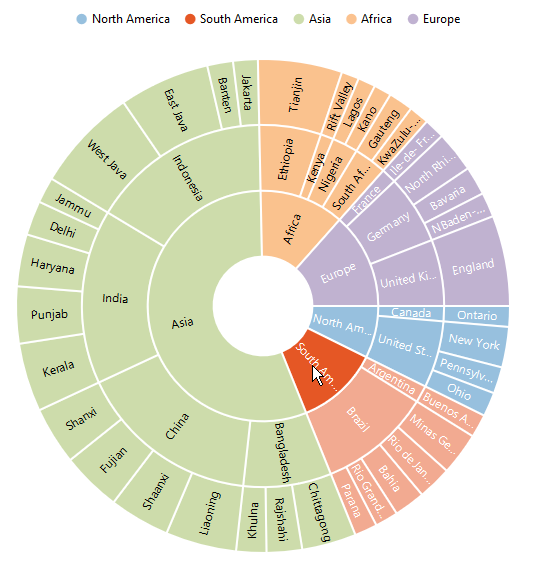

    Point

    To selection the particular segment, the point mode of the selection settings is used.

  • CSHTML
    • <ej-sunburstchart id="SunburstChart" >
<e-sunburstchart-selection-settings enable="true" mode="@SunburstSelectionMode.Point">
</e-sunburstchart-selection-settings>
</ej-sunburstchart>

    All

    The following code snippet is used for the all mode of selection settings

  • CSHTML
    • <ej-sunburstchart id="SunburstChart" >
<e-sunburstchart-selection-settings enable="true" mode="@SunburstSelectionMode.All">
</e-sunburstchart-selection-settings>
</ej-sunburstchart>
