Sunburst Elements

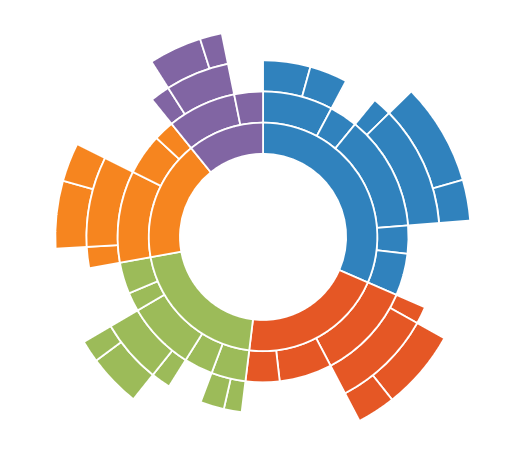

The Sunburst region represents the entire chart and all its elements. It includes all the chart elements like Legend, DataLabel, Levels etc. The major properties of the Sunburst Chart are as follows

  • datasource – Provides the data that are used to generate the chart.
  • valueMemberPath- Property based on the which the data segments are rendered in the chart
  • legend – displays the legend of the Sunburst Chart
  • levels- displays the hierarchical levels for the chart
  • dataLabel– displays the data labels for the Sunburst Chart

Start and End Angle

You can change the start and end angle of Sunburst chart using start-angle and end-angle property as shown in below code

  • cshtml
  • <ej-sunburstchart id="SunburstChart" start-angle="-90" end-angle="90">
    <ej-sunburstchart>

    Sunburst Radius

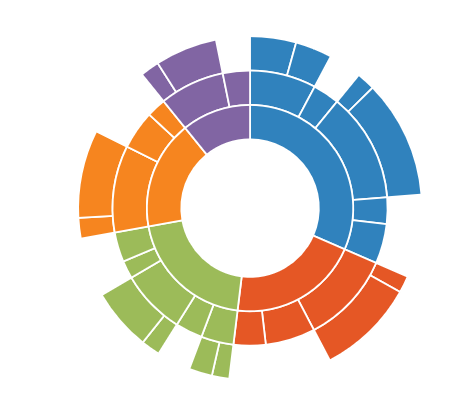

    The Radius of the Sunburst chart can be customized by using the radius property. The default value of radius is 1 and its value ranges between 0 and 1

  • cshtml
  • <ej-sunburstchart id="SunburstChart" radius="0.8">
    <ej-sunburstchart>

    ;

    ## Sunburst Inner Radius

    The Inner Radius of the Sunburst chart can be customized by using the inner-radius property. The default value of innerRadius is 0.4 and its value ranges between 0 and 1

  • cshtml
  • <ej-sunburstchart id="SunburstChart" inner-radius="0.5">
    <ej-sunburstchart>

    ;
