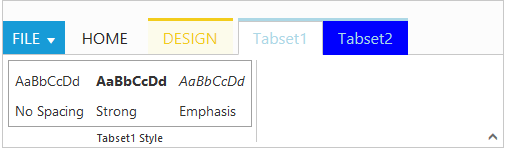

Contextual Tab And Tab Set

Contextual Tabs are collection of Tabs that extended styling and can be shown based on some criteria. Contextual Tabs can be added like RibbonTabs including TabGroup and TabContent section. You can set BackGroundColor and BorderColor to highlight them as Tab set. Contextual tabs can be added or set dynamically in ribbon control using addContextualTabs with it’s object and index position.

  • cshtml
  • <ej-ribbon id="defaultRibbon" width="500px">
            <e-application-tab type=Menu menu-item-id="ribbonmenu">
            </e-application-tab>
            <e-tabs>
                <e-tab id="home" text="HOME">
                    <e-groups>
                        <e-group text="CustomControls" type="custom" content-id="Contents">
                        </e-group>
                    </e-groups>
                </e-tab>
            </e-tabs>
            <e-contextual-tabs>
                <e-contextual-tab background-color="#FCFBEB" border-color="#F2CC1C">
                    <e-tabs>
                        <e-tab id="Design" text="DESIGN">
                            <e-groups>
                                <e-group text="Table Style Options" type="custom" content-id="design">
                                </e-group>
                            </e-groups>
                        </e-tab>
                        </e-tabs>
                    </e-contextual-tab>
                     <e-contextual-tab background-color="blue" border-color="lightblue">
                         <e-tabs>
                        <e-tab id="tabset1" text="Tabset1">
                            <e-groups>
                                <e-group text="Tabset1 Style" type="custom" content-id="headings">
                                </e-group>
                            </e-groups>
                        </e-tab>
                        <e-tab id="tabset2" text="Tabset2">
                            <e-groups>
                                <e-group text="Tabset2 Style">
                                    <e-content>
                                        <e-contents>
                                            <e-defaults is-big="true" />
                                            <e-content-groups>
                                                <e-content-group id="uppercase" text="Upper Case">
                                                    <e-button-settings content-type="ImageOnly" prefix-icon="e-icon e-ribbon e-uppercase">
                                                    </e-button-settings>
                                                </e-content-group>
                                                <e-content-group id="lowercase" text="Lower Case">
                                                    <e-button-settings content-type="ImageOnly" prefix-icon="e-icon e-ribbon e-lowercase">
                                                    </e-button-settings>
                                                </e-content-group>
                                            </e-content-groups>
                                        </e-contents>
                                    </e-content>
                                </e-group>
                            </e-groups>
                        </e-tab>
                    </e-tabs>
                 </e-contextual-tab>
            </e-contextual-tabs>
       </ej-ribbon>
  • html
  • <ul id="ribbonmenu">
            <li>
                <a>FILE</a>
                <ul>
                    <li><a>New</a></li>
                    <li><a>Open</a></li>
                </ul>
            </li>
        </ul>
        <div id="Contents">Custom Control</div>
        <div id="headings" class="e-headings">
            <div>
                <p>Ribbon-Heading</p>
                <p>No Spacing</p>
            </div>
            <div>
                <p class="e-strong">Ribbon-Heading</p>
                <p>Strong</p>
            </div>
            <div>
                <p class="e-emphasis">Ribbon-Heading</p>
                <p>Emphasis</p>
            </div>
        </div>
        <table id="design" class="e-designtablestyle">
            <tr>
                <td>
                    <input type="checkbox" id="Check2" />
                    <label for="Check2">First Column</label>
                </td>
                <td>
                    <input type="checkbox" id="check4" checked="checked" />
                    <label for="check4">Total Row</label>
                </td>
            </tr>
        </table>
