Dimension

You can customize Radial Menu dimension by using radius and position properties.

Radius

You can customize the Radial Menu size by using the radius property. By default, the Radial Menu Radius is set as 150px. Refer to the following code example.

  • cshtml
  • <ej-radial-menu id="defaultRadialMenu" image-class="imageclass" auto-open="true" radius="150">
                <e-radial-menu-items >
                       <e-radial-menu-item image-url="http://mvc.syncfusion.com/demos/web/Images/RadialMenu/font.png" text ="Bold" enabled="true">
                        </e-radial-menu-item>
                    <e-radial-menu-item image-url="http://mvc.syncfusion.com/demos/web/Images/RadialMenu/f1.png" text="Italic" >
                       </e-radial-menu-item>
                    <e-radial-menu-item image-url="http://mvc.syncfusion.com/demos/web/Images/RadialMenu/redo.png" text="Redo">
                       </e-radial-menu-item>
                    <e-radial-menu-item image-url="http://mvc.syncfusion.com/demos/web/Images/RadialMenu/undo.png" text="Undo" >
                    </e-radial-menu-item>
                </e-radial-menu-items>
            </ej-radial-menu>

    Add the following script in your code.

  • javascript
  • <script type="text/javascript">
            var rteObj, radialElement = $('#defaultRadialMenu');
            $(function () {
                if (!(ej.browserInfo().name == "msie" && ej.browserInfo().version < 9)) {
                    $("#radialtarget1").parent().css("position", "relative");
                }
                else {
                    $("#contentDiv").html("Radial Menu is only supported from Internet Explorer Versioned 9 and above.").css({ "font-size": "20px", "color": "red" });
                }
                $(window).resize(function () {
                    if (ej.isMobile() && ej.isPortrait())
                        $('#defaultRadialMenu').css({ "left": 25 })
                });
            });
            function rteCreate(e) {
                rteObj = this;
            }
            function radialShow(e) {
                var target = $("#radialtarget1"), radialRadius = 150, radialDiameter = 2 * radialRadius,
                // To get Iframe positions
                    iframeY = e.event.clientY, iframeX = e.event.clientX,
                // To set Radial Menu position within target
                    x = iframeX > target.width() - radialRadius ? target.width() - radialDiameter : (iframeX > radialRadius ? iframeX - radialRadius : 0),
                    y = iframeY > target.height() - radialRadius ? target.height() - radialDiameter : (iframeY > radialRadius ? iframeY - radialRadius : 0);
                radialElement.ejRadialMenu("setPosition", x, y);
                $('iframe').contents().find('body').blur();
            }
            </script>

    Add the following code in your style section,

  • css
  • <style type="text/css" class="cssStyles">
            .e-radialmenu .imageclass {
                background-image: url("http://mvc.syncfusion.com/demos/web/Images/RadialMenu/settings.png");
            }
        </style>

    The following screenshot illustrates the Radial Menu while clicking on the settings icon.

    Radius

    Position

    To display the Radial Menu in the web page in a specific area, we can use the position property. By default, the Radial Menu Position is set as null.

    Refer to the following code example.

  • cshtml
  • <ej-radial-menu id="defaultRadialMenu" image-class="imageclass" auto-open="true">
                <e-radial-menu-items >
                       <e-radial-menu-item image-url="http://mvc.syncfusion.com/demos/web/Images/RadialMenu/font.png" text ="Bold" enabled="true">
                        </e-radial-menu-item>
                    <e-radial-menu-item image-url="http://mvc.syncfusion.com/demos/web/Images/RadialMenu/f1.png" text="Italic">
                       </e-radial-menu-item>
                    <e-radial-menu-item image-url="http://mvc.syncfusion.com/demos/web/Images/RadialMenu/redo.png" text="Redo" >
                       </e-radial-menu-item>
                    <e-radial-menu-item image-url="http://mvc.syncfusion.com/demos/web/Images/RadialMenu/undo.png" text="Undo" >
                    </e-radial-menu-item>
                </e-radial-menu-items>
            </ej-radial-menu>

    Add the following script in your code.

  • javascript
  • <script type="text/javascript">
            var rteObj, radialElement = $('#defaultRadialMenu');
            $(function () {
                if (!(ej.browserInfo().name == "msie" && ej.browserInfo().version < 9)) {
                    $("#radialtarget1").parent().css("position", "relative");
                }
                else {
                    $("#contentDiv").html("Radial Menu is only supported from Internet Explorer Versioned 9 and above.").css({ "font-size": "20px", "color": "red" });
                }
                $(window).resize(function () {
                    if (ej.isMobile() && ej.isPortrait())
                        $('#defaultRadialMenu').css({ "left": 25 })
                });
            });
            function rteCreate(e) {
                rteObj = this;
            }
            function radialShow(e) {
                var target = $("#radialtarget1"), radialRadius = 150, radialDiameter = 2 * radialRadius,
                // To get Iframe positions
                    iframeY = e.event.clientY, iframeX = e.event.clientX,
                // To set Radial Menu position within target
                    x = iframeX > target.width() - radialRadius ? target.width() - radialDiameter : (iframeX > radialRadius ? iframeX - radialRadius : 0),
                    y = iframeY > target.height() - radialRadius ? target.height() - radialDiameter : (iframeY > radialRadius ? iframeY - radialRadius : 0);
                radialElement.ejRadialMenu("setPosition", x, y);
                $('iframe').contents().find('body').blur();
            }
            </script>

    Add the following code in your style section,

  • css
  • <style type="text/css" class="cssStyles">
            .e-radialmenu .imageclass {
                background-image: url("http://mvc.syncfusion.com/demos/web/Images/RadialMenu/settings.png");
            }
        </style>

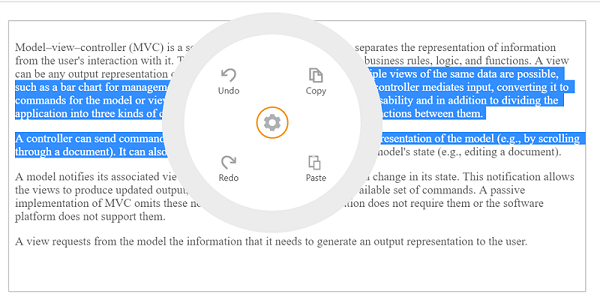

    The following screenshot illustrates the output while selecting the text in the page.

    Position
