Time Options

Start date and End date in the datasource defines the starting point and ending point of a task in the project. It can be of two data types,

  • Date
  • Datetime

The datetime data type for start date and end date defines the exact starting point and ending point of a task along with time details of a day. There are two types of time scales available based on working hours,

  • TimeScale8Hours for 8 hour working scale
  • TimeScale24Hours for 24 hour working scale

Use the following code example for setting different time scales of working hours.

  • cshtml
  • <ej-gantt id="ganttSample" datasource="ViewBag.datasource"
        //...
        working-time-scale="TimeScale24Hours">
    </ejGantt>

    Use the following code example for including time options in start date and end date of a task.

  • c#
  • public static List<DefaultData> GetData()
                {
                    List<DefaultData> list = new List<DefaultData>();
                    list.Add(new DefaultData()
                    {
                        Id = 1,
                        Name = "Planning",
                        StartDate = "02/03/2014 08:00:00 AM",
                        EndDate = "02/07/2014 05:00:00 PM",
                        Duration = 5,
                        PercentDone = 40,
                        Children = (new List<DefaultData>()
                        {
                            new DefaultData()
                            {
                                Id = 2,
                                Name= "Plan timeline",
                                    StartDate= "02/03/2014 08:00:00 AM",
                                    EndDate= "02/07/2014 05:00:00 PM",
                                    Duration= 5,
                                    PercentDone= 100
                            },
                        //...
  • cshtml
  • <ej-gantt id="ganttSample" datasource="ViewBag.datasource"
        //...
        task-id-mapping="Id"
        task-name-mapping="Name"
        start-date-mapping="StartDate"
        end-date-mapping="EndDate"
        duration-mapping="Duration"
        progress-mapping="PercentDone"
        working-time-scale="TimeScale24Hours">
    </ejGantt>

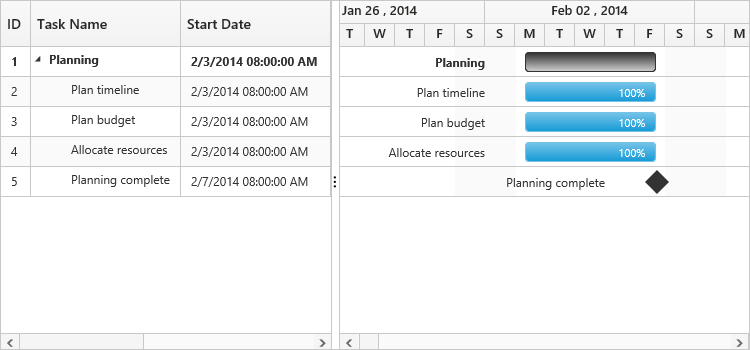

    Execute the above code to render the following output.
