Quantitative Scale

The Quantitative Scale appearance is customized using e-quantitative-scale-settings property. It has properties to customize labels, major ticks, minor ticks, comparative measure and performance measure of the bullet graph

Range for Quantitative Scale

Quantitative Scale range is set using the properties minimum, maximum and interval of e-quantitative-scale-settings property. Minimum specifies the start range of the scale, Maximum specifies the end range of scale and interval specifies the number of intervals between start and end range. Default values of Minimum, Maximum and Interval are 0, 10 and 1 respectively. The number of minor ticks (ticks between intervals) are specified using MinorTicksPerInterval property.

  • html
  • <ej-bullet-graph id="Bullets" >
    <e-quantitative-scale-settings  maximum="10" minimum="0" >
    </e-quantitative-scale-settings>
    </ej-bullet-graph>

    The following screenshot displays a Bullet Graph with start range 0, end range 10 and interval 1 with 4 minor ticks per interval

    Bullet Graph quantitative scale with customized range

    Quantitative scale location

    Bullet Graph does not position quantitative scale automatically based on its size or space required for caption text, etc. By default Quantitative scale is positioned at 10 pixels from left and 10 pixels from top. Quantitative scale location is customized as per the requirement using the e-location property available in e-quantitative-scale-settings.

  • html
  • <ej-bullet-graph id="Bullets" >
    <e-quantitative-scale-settings  >
    <e-location x="20" y="20"></e-location>
    </e-quantitative-scale-settings>
    </ej-bullet-graph>

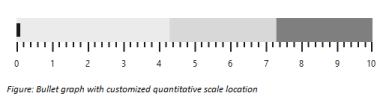

    The following screenshot displays Bullet Graph with Quantitative scale at 20 pixels from left and 20 pixels from top

    Bullet Graph quantitative scale in a specified location

    Major ticks

    Color, size and width of Major tick lines are customized using e-major-tick-settings property in QuantitativeScaleSettings. Default value of Size and Width properties are 13 and 2 respectively. Ticks are drawn in black color by default. The property Size represents the height of tick lines and Width represents the width of tick lines and ticks color are customized using Stroke property.

  • html
  • <ej-bullet-graph id="Bullets" >
    <e-quantitative-scale-settings  >
    <e-major-tick-settings size="15" width="3" color="Gray"></e-major-tick-settings>                </e-quantitative-scale-settings>
    </ej-bullet-graph>

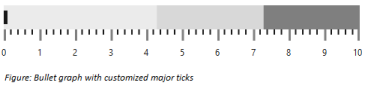

    The following screenshot displays Major ticks in gray color with a width of 3 pixels and height 15 pixels

    Bullet Graph quantitative scale with customized major ticks

    Minor ticks

    Minor ticks can also be customized similar to major ticks. The properties Stroke, Width and Size of e-minor-tick-settings are used to customize Minor ticks in quantitative scale. Stroke specifies the color of ticks, Width specifies the width of ticks and Size specifies the height of the ticks.

  • html
  • <ej-bullet-graph id="Bullets" >
    <e-quantitative-scale-settings  >
    <e-minor-tick-settings size="7" width="3" color="Gray"></e-minor-tick-settings>                </e-quantitative-scale-settings>
    </ej-bullet-graph>

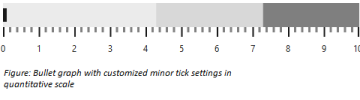

    The following screenshot displays Bullet Graph with customized Minor ticks in quantitative scale

    Bullet Graph quantitative scale with customized minor ticks

    Tick position

    Ticks are positioned below, above or inside the quantitative scale. By default ticks are positioned below the quantitative scale. The tick-position property is used to customize the position of ticks in quantitative scale. Ticks can be placed inside the quantitative scale by setting TickPosition to Cross.

  • html
  • <ej-bullet-graph id="Bullets" >
    <e-quantitative-scale-settings tick-position="@TickPosition.Above" >
    </e-quantitative-scale-settings>
    </ej-bullet-graph>

    The following screenshot displays Bullet Graph with ticks positioned above quantitative scale

    Bullet Graph quantitative scale with ticks positioned above

    Tick Placement

    Quantitative scale ticks can be placed either inside or outside the scale using “tick-placement” property. By default ticks are placed outside the scale.

  • html
  • <ej-bullet-graph id="Bullets" >
    <e-quantitative-scale-settings tick-placement="@BulletTickPlacement.Inside">
    <e-location x="108" y="10"></e-location>
    <e-label-settings offset="0" size="10"></e-label-settings>
    <e-feature-measures>
    <e-feature-measure comparative-measure="6" value="8"></e-feature-measure>
    </e-feature-measures>
    </e-quantitative-scale-settings>
    <e-caption-settings text="Revenue YTD">
    <e-location x="17" y="28"></e-location>
    <e-sub-title text="$ in thousands">
    <e-location x="10" y="42"></e-location>
    </e-sub-title>
    </e-caption-settings>
    </ej-bullet-graph>

    The following screenshot displays Bullet Graph ticks inside Quantitative Scale

    Bullet Graph with ticks inside quantitative scale

    Quantitative scale labels

    Quantitative scale labels are customized with prefix, suffix, font, color and size using e-label-settings property. By default, label text is displayed in black color with 12 pixel ‘Segoe UI’ font and there is a padding of 20 pixels space between quantitative scale and labels.

  • html
  • <ej-bullet-graph id="Bullets" >
    <e-quantitative-scale-settings>
    <e-label-settings stroke="Blue"  label-suffix="K" label-prefix="$" offset="15" size="12">
    <e-bullet-font  font-style="bold" font-weight="regular" opacity="0.8"
    font-family="Segoe UI">
    </e-bullet-font>
    </e-label-settings>
    </e-quantitative-scale-settings>
    </ej-bullet-graph>

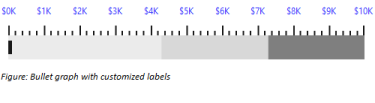

    The following screenshot displays Bullet Graph labels in blue color

    Bullet Graph quantitative scale with customized labels

    Label Placement

    Quantitative scale labels can be placed either inside or outside the scale using “label-placement” property. By default labels are placed 15 pixels outside the scale.

  • cshtml
  • <ej-bullet-graph id="Bullets" >
    <e-quantitative-scale-settings label-placement="@BulletLabelPlacement.Inside">
    <e-location x="108" y="10"></e-location>
    <e-label-settings offset="0" size="10"></e-label-settings>
    <e-feature-measures>
    <e-feature-measure comparative-measure="6" value="8"></e-feature-measure>
    </e-feature-measures>
    </e-quantitative-scale-settings>
    <e-caption-settings text="Revenue YTD">
    <e-location x="17" y="28"></e-location>
    <e-sub-title text="$ in thousands">
    <e-location x="10" y="42"></e-location>
    </e-sub-title>
    </e-caption-settings>
    </ej-bullet-graph>

    The following screenshot displays Bullet Graph labels inside Quantitative Scale

    Bullet Graph with labels inside quantitative scale

    Performance measure bar

    Performance measure bar is customized using e-featured-measure-settings in e-quantitative-scale-settings property. Color of the bar is customized using Stroke property and width using Width property. By default bar is drawn in black color with 6 pixels of width.

  • cshtml
  • <ej-bullet-graph id="Bullets" value="5">
    <e-quantitative-scale-settings>
    <e-featured-measure-settings width="4" stroke="Blue" >
    </e-featured-measure-settings>
    </e-quantitative-scale-settings>
    </ej-bullet-graph>

    The following screenshot displays Bullet Graph with customized Performance measure bar.

    Bullet Graph quantitative scale with customized performance measure bar

    Comparative measure symbol

    Comparative symbol color and width are customized using e-comparative-measure-settings through e-quantitative-scale-settings property. Color of the symbol is customized using stroke property and width using width property. By default Comparative measure symbol is displayed in black color with a width of 5 pixels.

  • cshtml
  • <ej-bullet-graph id="Bullets" comparative-measure-value="5">
    <e-quantitative-scale-settings>
    <e-comparative-measure-settings stroke="Blue" width="4">
    </e-comparative-measure-settings>
    </e-quantitative-scale-settings>
    </ej-bullet-graph>

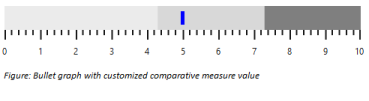

    The following screenshot displays Bullet Graph with customized Comparative measure value.

    Bullet Graph with customized comparative symbol

    Multiple performance measures comparison

    Bullet Graph supports comparing more than one performance at a time, given that all the comparisons are related using FeatureMeasure in e-quantitative-scale-settings property.

  • cshtml
  • <ej-bullet-graph id="Bullets" height="120"  qualitative-range-size="60">
    <e-quantitative-scale-settings>
    <e-feature-measures>
    <e-feature-measure comparative-measure="3" value="6" category="2010">
    </e-feature-measure>
    <e-feature-measure comparative-measure="6" value="9" category="2011">
    </e-feature-measure>
    <e-feature-measure comparative-measure="5" value="5" category="2012">
    </e-feature-measure>
    </e-feature-measures>
    <e-location x="50" y="10"></e-location>
    </e-quantitative-scale-settings>
    <ej-bullet-graph>

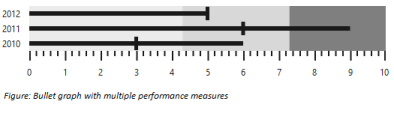

    The following screenshot displays Bullet Graph that compares 3 related performance measures.

    Bullet Graph with multiple performance measures
