Exporting

14 Oct 20163 minutes to read

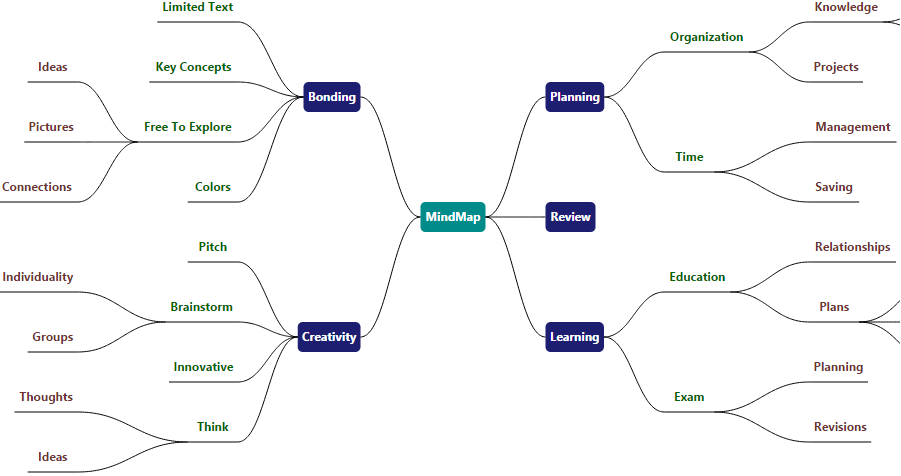

Diagram provides support to export its content as image/svg files.
The client side method exportDiagram helps to export the Diagram. The following code illustrates how to export the Diagram as image.

  • JS
  • var diagram = $("#diagram").ejDiagram("instance");
    //Exports the Diagram as an image of JPEG format
    diagram.exportDiagram();

    Exporting options

    Diagram provides support to export the desired region of the Diagram to desired formats.

    FileName

    FileName is the name of the file to be downloaded. By default, the file name is set as “Diagram”.

    Format

    Format is to specify the type/format of the exported file. By default, Diagram is exported as .jpg format. You can export Diagram to the following formats.

    • JPG
    • PNG
    • BMP
    • SVG

    For more information about the exportable formats, refer to File Formats.

    Margin

    Margin specifies the amount of space that has to be left around the Diagram.

  • JS
  • var diagram = $("#diagram").ejDiagram("instance");
    	var options = {
    		//Name of the file to be downloaded
    		fileName: "diagram",
    		//Margin to the exported file/data
    		margin: {
    			left: 30,
    			right: 30,
    			top: 30,
    			bottom: 30
    		}
    	};
    	diagram.exportDiagram(options);

    Mode

    Mode specifies whether the Diagram is to be exported as files or as data(ImageURL/SVG). The exporting options are as follows.

    • Exports and downloads Diagram as image
    • Exports Diagram as data of formats ImageURL/SVG

    For more information about the exporting modes, refer to Exporting Modes.

    The following code example illustrates how to export the Diagram as raw data.

  • JS
  • var diagram = $("#diagram").ejDiagram("instance");
    	var options = {
    		fileName: "diagram",
    		//Specifies whether to export as files/data
    		mode: "data"
    	};
    	diagram.exportDiagram(options);

    NOTE

    In IE-9, Diagrams cannot be exported as downloadable files. Instead, Diagram provides the exported data (DataURL/SVG) that enables to export it from application.

    Region

    You can export any particular region of the Diagram and the region is categorized as follows.

    • Region that fits all nodes and connectors that are added to model
    • Region that fits all pages (single or multiple pages based on page settings)

    For more information about region, refer to Regions.

    The following code example illustrates how to export the region occupied by the Diagram elements.

  • JS
  • var diagram = $("#diagram").ejDiagram("instance");
    	var options = {
    		//Specifies the exporting region
    		mode: "content"
    	};
    	diagram.exportDiagram(options);

    The following code example illustrates how to export any specific region of the Diagram.

  • JS
  • var diagram = $("#diagram").ejDiagram("instance");
    	var options = {
    		fileName: "diagram",
    		//Specifies whether to export as files/data
    		mode: "download",
    		//Format of the exported file
    		format: "jpg",
    		// Defines the custom bounds that has to be exported
    		bounds: {
    			x: 1000,
    			y: 1000,
    			width: 500,
    			height: 500
    		},
    	};
    	diagram.exportDiagram(options);
