Getting Started

This section explains briefly about how to create Maps in your application with AngularJS.

Create your first Map in AngularJS

You can configure an Essential JavaScript Map in simple steps. In this example, you can learn how to configure USA population map with customized appearance and tooltip.

Add Libraries

To use ejMap, refer the following libraries in HTML page.

To render the Maps control, the following list of external dependencies are needed,

  • jQuery - 1.7.1 and later versions
  • Angular - angular latest versions
  • JsRender

The required angular script as angular.min.js and ej.widget.angular.min.js which can be available in below CDN links:

Prepare Shape Data

The Shape Data collection describing geographical shape information can be obtained from GEOJSON format shapes.

In this example, USA shape is used as shape data by utilizing the “United States of America.json” file in the following folder structure obtained from downloaded Maps_GeoJSON folder.

..\ Maps_GeoJSON\All Countries with States

You can assign the complete contents in “United States of America.json” file to new JSON object. For your better understanding, a JS file “usa.js” is already created to store JSON data in JSON object “usMap”.

[usa.js]

  • javascript
  • var usMap = //Paste all the content copied from the JSON file//

    Prepare DataSource

    The datasource is populated with JSON data relative to shape data and stored in JSON object. USA population as datasource is used for better understanding. The “populationData.js” file is used to store JSON data in JSON object “populationData”.

    [populationData.js]

  • javascript
  • var populationData = [
            { name: "California", population: "38332521" },
            { name: "Texas", population: "26448193" },
            { name: "New York", population: "19651127" },
            { name: "Florida", population: "19552860" },
            { name: "Illinois", population: "12882135" },
            { name: "Pennsylvania", population: "12773801" },
            { name: "Ohio", population: "11570808" },
            { name: "Georgia", population: "9992167" },
            { name: "Michigan", population: "9895622" },
            { name: "North Carolina", population: "9848060" },
            { name: "New Jersey", population: "8899339" },
            { name: "Virginia", population: "8260405" },
            { name: "Washington", population: "6971406" },
            { name: "Massachusetts", population: "6692824" },
            { name: "Arizona", population: "6626624" },
            { name: "Indiana", population: "6570902" },
            { name: "Tennessee", population: "6495978" },
            { name: "Missouri", population: "6044171" },
            { name: "Maryland", population: "5928814" },
            { name: "Wisconsin", population: "5742713" },
            { name: "Minnesota", population: "5420380" },
            { name: "Colorado", population: "5268367" },
            { name: "Alabama", population: "4833722" },
            { name: "South Carolina", population: "4774839" },
            { name: "Louisiana", population: "4625470" },
            { name: "Kentucky", population: "4395295" },
            { name: "Oregon", population: "3930065" },
            { name: "Oklahoma", population: "3850568" },
            { name: "Puerto Rico", population: "3615086" },
            { name: "Connecticut", population: "3596080" },
            { name: "Iowa", population: "3090416" },
            { name: "Mississippi", population: "2991207" },
            { name: "Arkansas", population: "2959373" },
            { name: "Utah", population: "2900872" },
            { name: "Kansas", population: "2893957" },
            { name: "Nevada", population: "2790136" },
            { name: "New Mexico", population: "2085287" },
            { name: "Nebraska", population: "1868516" },
            { name: "West Virginia", population: "1854304" },
            { name: "Idaho", population: "1612136" },
            { name: "Hawaii", population: "1404054" },
            { name: "Maine", population: "1328302" },
            { name: "New Hampshire", population: "1323459" },
            { name: "Rhode Island", population: "1051511" },
            { name: "Montana", population: "1015165" },
            { name: "Delaware", population: "925749" },
            { name: "South Dakota", population: "844877" },
            { name: "Alaska", population: "735132" },
            { name: "North Dakota", population: "723393" },
            { name: "District of Columbia", population: "646449" },
            { name: "Vermont", population: "626630" },
            { name: "Wyoming", population: "582658" }
    ]

    Refer to both shape data and datasource as illustrated in the following code example.

  • javascript
  • <!-- Shape data file-->
        <script src="usa.js" type="text/javascript"></script>

        <!-- Data source file-->
        <script src="populationData.js" type="text/javascript"></script>

    Initialize Map

    1. Create a <div> tag with a specific id and set the height and width to determine the rendering map’s size with ej-map attribute.
    2. Create a e-layers with parent of e-layers inside the mapContainer div.
    3. Set the shapeData attribute value as usMap which contains the USA shape data details.

  • javascript
  • <body>
            <div id="mapContainer" style="width: 900px; height: 600px;" ej-map>
            <e-layers>
                <e-layer e-shapedata=USMap></e-layer>
            </e-layers>
            </div>
        </body>

    2. Add a script tag anywhere in the web page and add the following code.

  • javascript
  • <script>
       angular.module('MapsApp', ['ejangular'])
       .controller('MapsCtrl', function ($scope) {
                   $scope.USMap = usMap;
                });
        </script>

    3. The final HTML file appears as follows.

  • javascript
  • <!DOCTYPE html>
    <html xmlns="http://www.w3.org/1999/xhtml" lang="en" ng-app="MapsApp">
    <head>
        <title>Essential Studio for AngularJS: Maps</title>
        <!-- Essential Studio for JavaScript  theme reference -->
        <link href="http://cdn.syncfusion.com/18.3.0.35/js/web/flat-azure/ej.web.all.min.css" rel="stylesheet" />
        <!-- Essential Studio for JavaScript  script references -->
        <script src="http://cdn.syncfusion.com/js/assets/external/jquery-3.0.0.min.js"></script>
        <script src="http://cdn.syncfusion.com/js/assets/external/jsrender.min.js"></script>
        <script src="http://cdn.syncfusion.com/js/assets/external/angular.min.js"></script>
        <script src="http://cdn.syncfusion.com/18.3.0.35/js/web/ej.web.all.min.js"></script>
        <script src="http://cdn.syncfusion.com/18.3.0.35/js/common/ej.widget.angular.min.js" type="text/javascript"></script>
        <!-- Shape data file-->
        <script src="usa.js" type="text/javascript"></script>
        <!-- Data source file-->
        <script src="populationData.js" type="text/javascript"></script>
        <!-- Add your custom scripts here -->
    </head>
    <body ng-controller="MapsCtrl">
        <div id="mapContainer" style="width: 900px; height: 600px;" ej-map>
            <e-layers>
                <e-layer e-shapedata=USMap></e-layer>
            </e-layers>
        </div>
            <script>
                angular.module('MapsApp', ['ejangular'])
                .controller('MapsCtrl', function ($scope) {
                        $scope.USMap = usMap;
                    });
            </script>
        </body>
    </html>

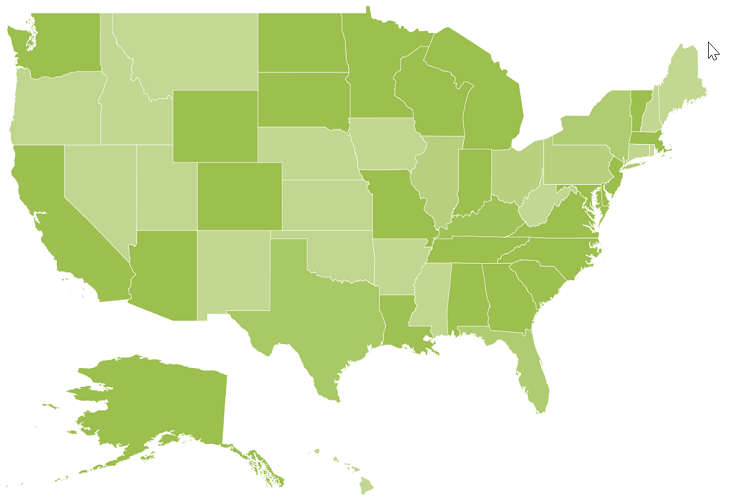

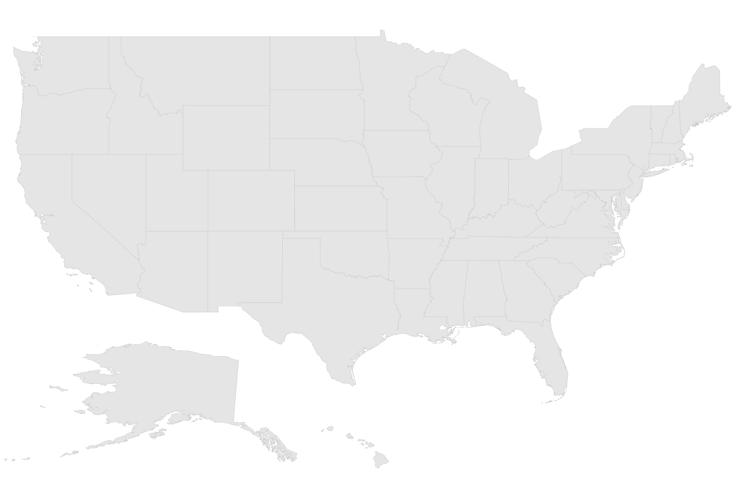

    The above code renders a map, with default properties and shape input provided through data in layers.

    Data Binding in Map

    The following properties in shape layers are used for binding data in Map control.

    • dataSource
    • shapeDataPath
    • shapePropertyPath

    DataSource

    The dataSource property accepts collection values as input. For example, the list of objects can be provided as input.

    Shape Data Path

    The shapeDataPath property used to refer the data ID in dataSource. For example, “populationData” JSON object contains data ids ‘name’ and ‘population’. The shapeDataPath and the shapePropertyPath properties are related to each other (refer to shapePropertyPath for more details).

    Shape Property Path

    The shapePropertyPath property is similar to the shapeDataPath that refers the column name in the shapeData property of shape layers to identify the shape. When the values of the shapeDataPath property in the dataSource property and the value of shapePropertyPath in the shapeData property match, then the associated object from the dataSource is bound to the corresponding shape.

    The JSON object “populationData” is used as dataSource in the following code example.

  • html
  • <div id="mapContainer" style="width: 900px; height: 600px;" ej-map>
            <e-layers>
                <e-layer e-shapedata=USMap e-datasource=datasource e-shapedatapath="name"
                e-shapepropertypath="name"></e-layer>
            </e-layers>
        </div>
        <script>
            angular.module('MapsApp', ['ejangular'])
            .controller('MapsCtrl', function ($scope) {
                    $scope.USMap = usMap;
                    $scope.datasource = populationData;
                });
        </script>

    Customize Map Appearance

    You can customize the shape’s color by using fill, stroke and strokeThickness properties in shapeSettings.

  • html
  • <div id="mapContainer" style="width: 900px; height: 600px;" ej-map>
            <div e-layers>
                <div e-layer e-shapedata=USMap e-datasource=datasource e-shapedatapath='name'
                e-shapepropertypath='name' e-enableselection="enableSelection"
                e-enablemousehover="enableMouseHover"
                e-shapesettings-strokeThickness="strokeThickness" e-shapesettings-fill="Fill"
                e-shapesettings-stroke="Stroke" e-shapesettings-highlightStroke="highlightStroke"
                e-shapesettings-highlightColor="highlightColor"
                e-shapesettings-highlightBorderWidth="highlightBorderWidth"></div>
            </div>
        </div>
        <script>
            angular.module('MapsApp', ['ejangular'])
            .controller('MapsCtrl', function ($scope) {
                    $scope.USMap = usMap;
                    $scope.datasource = populationData;
                    $scope.enableSelection = false;
                    $scope.enableMouseHover = true;
                    $scope.strokeThickness = "0.5";
                    $scope.Fill = "#9CBF4E";
                    $scope.Stroke = "White";
                    $scope.highlightStroke= "White";
                    $scope.highlightColor= "#BC5353";
                    $scope.highlightBorderWidth= "1";

                });
        </script>

    Customize Map Appearance by Range

    The Range color mapping is used to differentiate the shape’s fill based on its underlying value and color ranges. The from and to properties defines the value ranges and the gradientColors property defines the equivalent color ranges respective to their value ranges.

    NOTE

    The enableGradient property value is set to true to apply gradient colors for the maps.

  • html
  • <div id="mapContainer" style="width: 900px; height: 600px;" ej-map>
            <div e-layers>
                <div e-layer
                     e-shapesettings-valuePath="name" e-shapesettings-enableGradient="enableGradient"
                     e-shapesettings-colorValuePath="population">
                    <div e-shapesettings-colormappings-rangecolormapping>
                        <e-shaperangecolormap e-from="nfrom1" e-to="nto1" e-gradientcolors="ncolor1">
                        </e-shaperangecolormap>
                        <e-shaperangecolormap e-from="nfrom2" e-to="nto2" e-gradientcolors="ncolor2">
                        </e-shaperangecolormap>
                        <e-shaperangecolormap e-from="nfrom3" e-to="nto3" e-gradientcolors="ncolor3">
                        </e-shaperangecolormap>
                        <e-shaperangecolormap e-from="nfrom4" e-to="nto4" e-gradientcolors="ncolor4">
                        </e-shaperangecolormap>
                    </div>
                </div>
            </div>
        </div>
        <script>
            angular.module('MapsApp', ['ejangular'])
            .controller('MapsCtrl', function ($scope) {
                    //...
                    $scope.enableGradient = true;
                    $scope.nfrom1 = "500000";
                    $scope.nto1 = "1000000";
                    $scope.ncolor1 =["#9CBF4E", "#B8CE7B"];
                    $scope.nfrom2 = "1000001";
                    $scope.nto2 = "5000000";
                    $scope.ncolor2 = ["#B8CE7B", "#CBD89A"];
                    $scope.nfrom3 = "5000001";
                    $scope.nto3 = "10000000";
                    $scope.ncolor3 = ["#CBD89A", "#DEE2B9"];
                    $scope.nfrom4 = "10000001";
                    $scope.nto4 = "40000000";
                    $scope.ncolor4 = ["#DEE2B9", "#F1ECD8"];
                });
        </script>

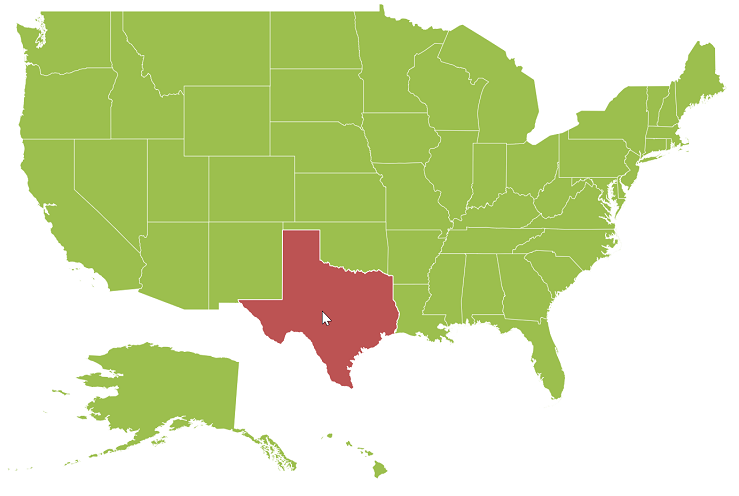

    The following screenshot illustrates a map with gradient color property enabled.

    Enable Tooltip

    The tooltip is displayed only when the showTooltip is set to “True” in the layers. By default, it takes the property of the bound object that is referred in the valuePath and displays its content on hovering the corresponding shape. The tooltipTemplate property is used for customizing the template for tooltip.

  • html
  • <div id="mapContainer" style="width: 900px; height: 600px;" ej-map>
            <div e-layers>
                <div e-layer e-showtooltip="true">
                </div>
            <div>
        </div>

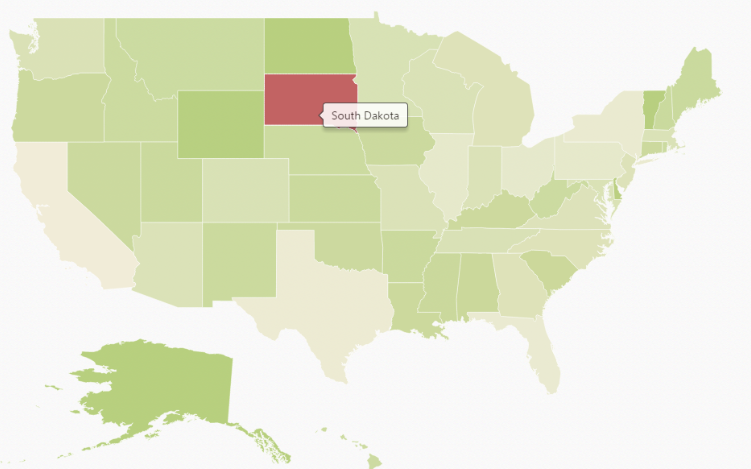

    The following screenshot illustrates a map control displaying a Tooltip.

    Legend

    A Legend can be made visible by setting the showLegend property in legendSettings.

    Interactive Legend

    The legends can be made interactive with an arrow mark indicating the exact range color in the legend, when the mouse hovers on the corresponding shape. You can enable this option by setting the mode property in the legendSettings value as “interactive”. The default value of mode property is “default” to enable the normal legend.

    Title

    Use the title property to provide title for interactive legend.

    Label

    You can use leftLabel and rightLabel property to provide left and right labels for interactive legend.

  • html
  • <div id="mapContainer" style="width: 900px; height: 600px;" ej-map>
            <div e-layers>
                <div e-layer
                     e-legendsettings-showLegend="showLegend" e-legendsettings-dockOnMap="dockOnMap"
                     e-legendsettings-height="height" e-legendsettings-width="width"
                     e-legendsettings-mode="mode"
                     e-legendsettings-title="title"
                     e-legendsettings-leftLabel=leftLabel
                     e-legendsettings-rightLabel=rightLabel>
                </div>
            </div>
    </div>
        <script>
            angular.module('MapsApp', ['ejangular'])
            .controller('MapsCtrl', function ($scope) {
                    //..
                    $scope.showLegend=true;
                    $scope.dockOnMap=true;
                    $scope.height=18;
                    $scope.width=190;
                    $scope.mode="interactive";
                    $scope.title= "Population";
                    $scope.leftLabel= "0.5M";
                    $scope.rightLabel= "40M";


                });

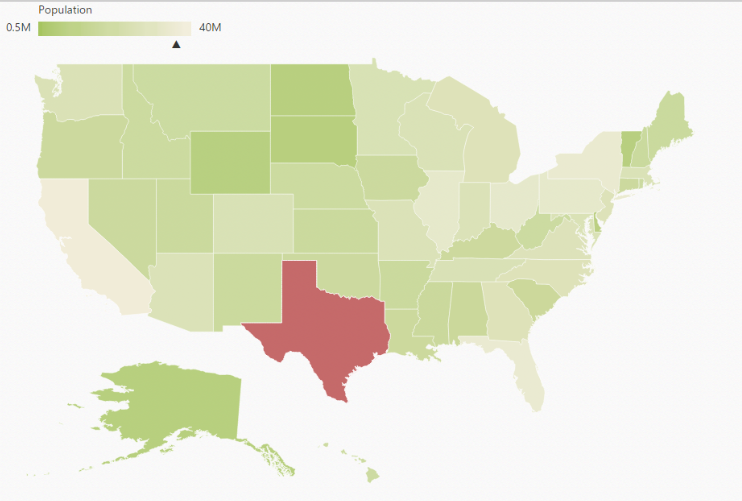

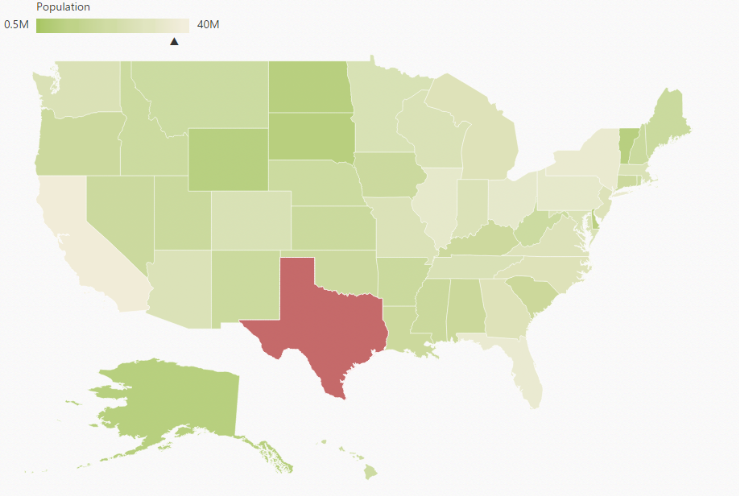

    The following screenshot illustrates a map displaying an interactive legend.
