Annotations

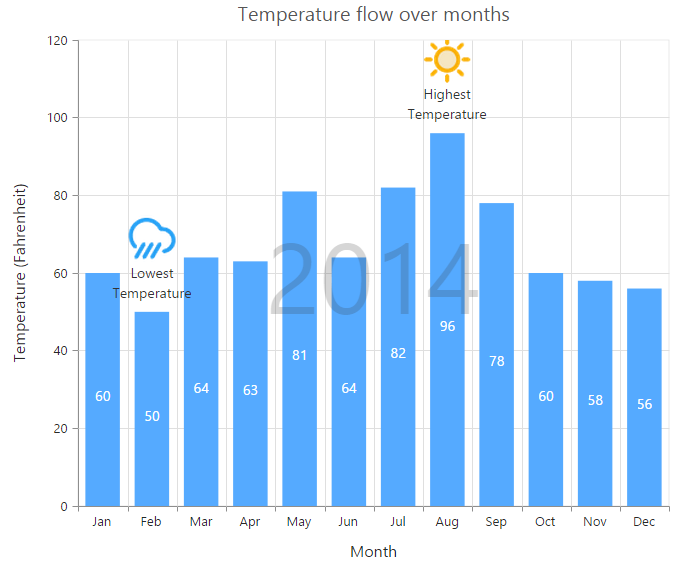

annotations are used to mark the specific area of interest in the chart area with texts, shapes or images.

You can add annotations to the chart by using the e-annotations option. By using the content option of annotation object, you can specify the id of the element that needs to be displayed in the chart area.

  • html
  • <html xmlns="http://www.w3.org/1999/xhtml" lang="en" ng-app="ChartApp">
        <head>
            <title>Essential Studio for AngularJS: Chart</title>
            <!--CSS and Script file References -->
        </head>
        <body ng-controller="ChartCtrl">
            <div id= "watermark" style="font-size:100px; display:none">2014</div>
            <div id="container" ej-chart>
            <e-annotations>
            <e-annotation  e-visible="true" e-content="watermark" e-opacity="0.2" e-region="series">
            </e-annotation>
            </e-annotations>
            </div>
            <script>
            angular.module('ChartApp', ['ejangular'])
            .controller('ChartCtrl', function ($scope) {
                       });
            </script>
        </body>
    </html>

    NOTE

    Annotations are not supported in 3D chart types.

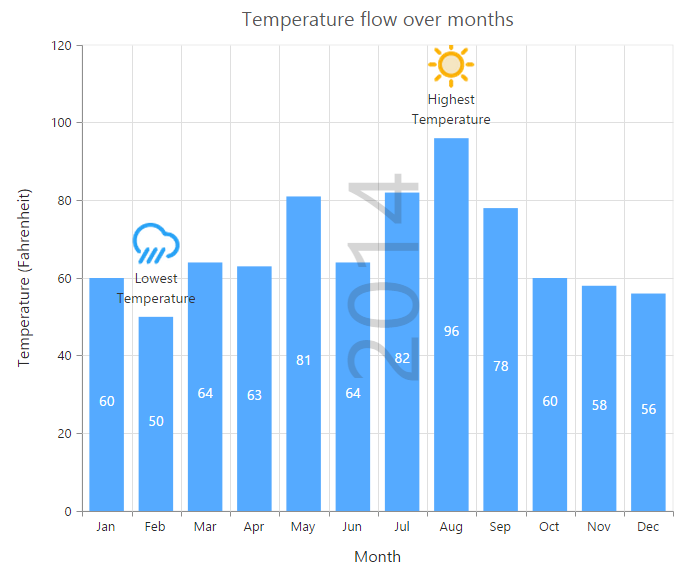

    Rotate the annotation template

    To rotate the annotation template, you can use the angle property of the annotations.

  • html
  • <html xmlns="http://www.w3.org/1999/xhtml" lang="en" ng-app="ChartApp">
        <head>
            <title>Essential Studio for AngularJS: Chart</title>
            <!--CSS and Script file References -->
        </head>
        <body ng-controller="ChartCtrl">
            <div id= "watermark" style="font-size:100px; display:none">2014</div>
            <div id="container" ej-chart >
            <e-annotations>
            <e-annotation  e-visible="true" e-content="watermark" e-angle="270">
            </e-annotation>
            </e-annotations>
            </div>
            <script>
            angular.module('ChartApp', ['ejangular'])
            .controller('ChartCtrl', function ($scope) {
                      });
            </script>
        </body>
    </html>

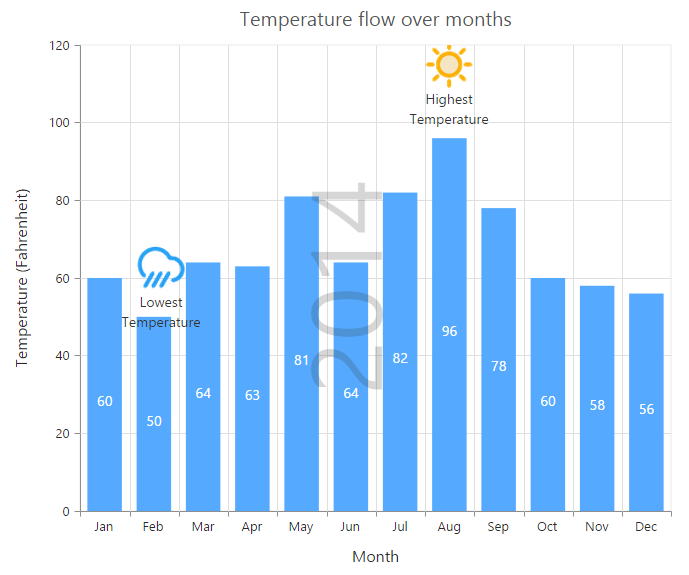

    Positioning Annotation

    You can position annotations either by using the coordinates (x and y options or by using the alignment options horizontalAlignment and verticalAlignment).

    By using the coordinateUnit option, you can specify whether the value provided in the xand y options are relative to the chart or axis.

    • If the coordinateUnit is set to none, the annotations are placed relative to the chart/plot area by using the horizontalAlignmentand verticalAlignment options.

    • If the coordinateUnit is set to points, the x and y values of the annotation are the coordinates relative to the axis and annotation is positioned relative to the axis. By default, the x and y values are associated with the e-primaryxaxisand e-primaryyaxis. In case, when the chart contains multiple axis and you want to associate the annotation with a particular axis, you can specify the e-xaxisname and e-yaxisname options of the annotation object.

    • If the coordinateUnit is set to pixels, the x and y values are coordinates relative to the top-left corner of the chart/plot area.

    NOTE

    By using the region option, you can specify whether the annotation is placed relative to the entire chart or plot area.

  • html
  • <html xmlns="http://www.w3.org/1999/xhtml" lang="en" ng-app="ChartApp">
        <head>
            <title>Essential Studio for AngularJS: Chart</title>
            <!--CSS and Script file References -->
        </head>
        <body ng-controller="ChartCtrl">
            <div id="container" ej-chart >
            <e-annotations>
            <e-annotation  e-visible="true" e-content="lowtemp" e-coordinateunit="pixels"
            e-x="170" e-y="350">
            </e-annotation>
            </e-annotations>
            </div>
            <script>
            angular.module('ChartApp', ['ejangular'])
            .controller('ChartCtrl', function ($scope) {
                       });
            </script>
        </body>
    </html>

    Annotation alignments

    When the coordinateUnit is set to pixels or points, you can align the annotation relative to the coordinates by using the horizontalAlignment and verticalAlignment options.

  • html
  • <html xmlns="http://www.w3.org/1999/xhtml" lang="en" ng-app="ChartApp">
        <head>
            <title>Essential Studio for AngularJS: Chart</title>
            <!--CSS and Script file References -->
        </head>
        <body ng-controller="ChartCtrl">
            <div id="container" ej-chart>
            <e-annotations>
            <e-annotation  e-visible="true" e-content="hightemp"
            e-verticalalignment="middle" e-horizontalalignment="near" e-margin-right="40">
            </e-annotation>
            </e-annotations>
            </div>
            <script>
            angular.module('ChartApp', ['ejangular'])
            .controller('ChartCtrl', function ($scope) {
                    });
            </script>
        </body>
    </html>
