Drill Through

Drill-through retrieves the raw items that are used to create a specific cell. To enable drill-through support, set enableDrillThrough property to true. Raw items are obtained through the drillThrough event, using which user can bind them to an external widget for precise view.

OLAP

NOTE

Drill-through is supported in PivotGrid only when we configure and enable drill-through action at the Cube.

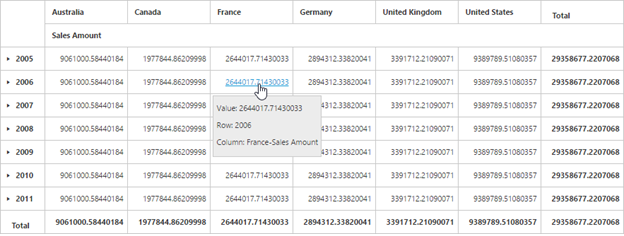

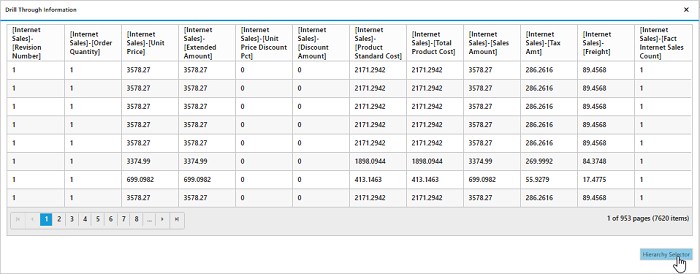

On clicking any value cell, the “Drill Through Information” dialog will be opened. It consists of a Grid with data which are associated with the measure values of clicked value cell. In this example, the measure behind the respective cell is “Sales Amount” and the values of the dimensions which are associated with this measure are alone displayed in the Grid.

On clicking the “Hierarchy Selector” button which is displayed below the Grid, the “Hierarchy Selector” dialog will be opened. It consists of the dimensions which are associated with the measure of the clicked value cell. In this example, the measure behind the respective cell is “Sales Amount” and the dimensions associated with this measure are alone displayed in the dialog.

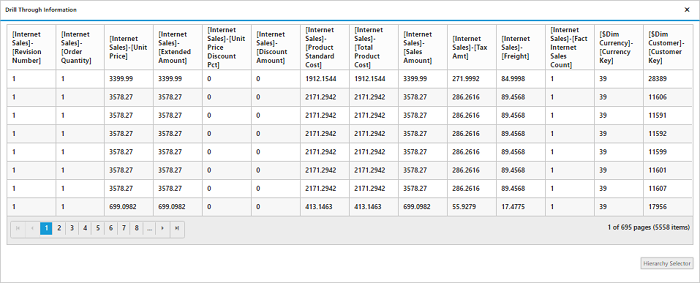

By dragging and dropping the respective hierarchies and finally clicking “OK” button, drill through MDX query will be framed and executed internally and provides back the raw items through “drillThrough” event. In this example, we have bound the raw items obtained to our ejGrid widget. Please refer the code sample and screen-shot below.

<ej-pivotgrid [dataSource]="dataSource" [enableDrillThrough]="true" (drillThrough)="drilledData($event)"></ej-pivotgrid>
export class PivotGridComponent {
    //..
    drilledData(args) {
        $(".e-dialog, .clientDialog, .tableDlg").remove();
        let gridData = JSON.parse(args.data);
        let dialogContent = ej.buildTag("div#" + this._id + "_tableDlg.tableDlg", $("<div id=\"Grid1\"></div>"))[0].outerHTML;
        let dialogFooter = ej.buildTag("div", ej.buildTag("button#btnOK.dialogBtnOK", "Hierarchy Selector")[0].outerHTML, { "float": "right", "margin": "-5px 0 6px" })[0].outerHTML
        ejDialog = ej.buildTag("div#clientDialog.clientDialog", dialogContent + dialogFooter, { "opacity": "1" }).attr("title", "Drill Through Information")[0].outerHTML;
        $(ejDialog).appendTo("#" + this._id);
        $("#btnOK").ejButton().css({ margin: "30px 0 20px 0" });
        $("#Grid1").ejGrid({
            dataSource: gridData,
            allowPaging: true,
            allowTextWrap: true,
            pageSettings: { pageSize: 8 }
        });
        this.element.find(".clientDialog").ejDialog({ width: "70%", content: "#" + this._id, enableResize: false, close: ej.proxy(ej.Pivot.closePreventPanel, this) });
        let pivotGrid = $(".e-pivotgrid").data("ejPivotGrid");
        $("#btnOK").click(function () {
            ej.Pivot.createHierarchySelector(pivotGrid);
        });
    }
}

Relational

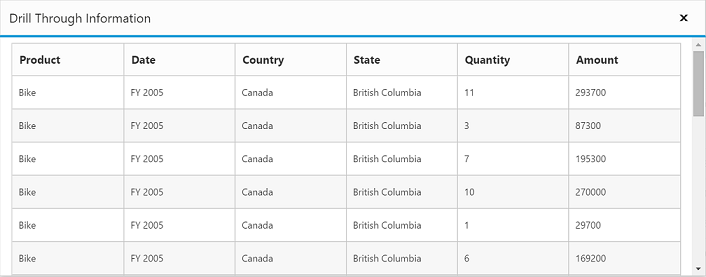

To enable drill-through support, set enableDrillThrough property to true. Raw items are obtained through the drillThrough event.

<ej-pivotgrid [dataSource]="dataSource" [enableDrillThrough]="true" (drillThrough)="drilledData($event)"></ej-pivotgrid>
export class PivotGridComponent {
    //..
    drilledData(args) {
        let gridData = args.selectedData;
        let dialogContent = ej.buildTag("div#Grid1", {height:"50px"})[0].outerHTML;
        ejDialog = ej.buildTag("div#clientDialog.clientDialog", dialogContent, { "opacity": "1" }).attr("title", "Drill Through Information")[0].outerHTML;
        $(ejDialog).appendTo("#" + this._id);
        this.element.find(".clientDialog").ejDialog({ width: "70%", height: "100%", content: "#" + this._id, enableResize: false, close: ej.proxy(ej.Pivot.closePreventPanel, this) });

        $("#Grid1").ejGrid({
            dataSource: gridData,
        });
    }
}
