Behavior Settings

14 Aug 201813 minutes to read

Decimal Places

The property decimalPlaces declares the decimal point to the value of PercentageTextBox control. The default value of decimalPlaces is 0 in PercentageTextBox control. To set the decimalPlaces to “-1”, that allows the decimals without any limit in PercentageTextBox control.

Configure Decimal Places

The following steps explain the implementation of decimalPlaces in PercentageTextBox.

In the HTML page set the corresponding <input> elements for rendering PercentageTextBox control.

<input id="percent" type="text" ej-percentagetextbox [value]="value"
 [decimalPlaces]="decimalPlaces" />

import { Component } from '@angular/core';

@Component({
  selector: 'ej-app',
  templateUrl: 'src/percentagetextbox/percentagetextbox.component.html'
})
export class PercentageTextboxComponent {
    public value: number;
    public decimalPlaces: number;
    constructor() {
        this.value = 22;
        this.decimalPlaces = 2;
    }
}

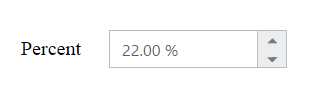

The output for PercentageTextBox with decimalPlaces is as follows.

Persistence Support

The PercentageTextBox widgets provides the state maintenance support. You can maintain the previous changes made in the control after a page loads.

Configure Persistence Support

The following steps explain the implementation of enablePersistence in PercentageTextBox.

In the HTML page set the corresponding <input> elements for rendering PercentageTextBox control.

<input id="percent" type="text" ej-percentagetextbox [value]="value"
[enablePersistence]="true" />

import { Component } from '@angular/core';

@Component({
  selector: 'ej-app',
  templateUrl: 'src/percentagetextbox/percentagetextbox.component.html'
})
export class PercentageTextboxComponent {
    public value: number;
    constructor() {
        this.value = 22;
    }
}

The output for PercentageTextBox with enablePersistence is as follows. You can change the value of PercentageTextBox and reload the web page.

PercentageTextBox at initial load

PercentageTextBox after changing the value and a page load

Strict Mode Support

The PercentageTextBox widget allows you to use the strict mode option by setting the enableStrictMode property. You can set the minValue and maxValue to the controls to enable strict mode functionality. When the Textbox value exceeds the maxValue, it restricts the exceeded value and returns the maxValue. Likewise when the Textbox value goes below minValue, it restricts the new value and returns the minValue.When this property is true, it will not restrict the specified value and an error class will be added to indicate wrong value is provided to the PercentageTextBox.

Configure Strict Mode Support

The following steps explain the implementation of enableStrictMode in PercentageTextBox .

In the HTML page set the corresponding <input> elements for rendering PercentageTextBox control.

<input id="percent" type="text" ej-percentagetextbox [value]="value" [minValue]="minValue"
[maxValue]="maxValue" [enableStrictMode]="true" />

import { Component} from '@angular/core';

@Component({
  selector: 'ej-app',
  templateUrl: 'src/percentagetextbox/percentagetextbox.component.html'
})
export class PercentageTextboxComponent {
    public value: number;
    public minValue: number;
    public maxValue: number;
    constructor() {
        this.value = -10;
        this.minValue = -5;
        this.maxValue = 3;
    }
}

The output for PercentageTextBox when enableStrictMode is “true” is as follows.

Enabled or Disabled

The PercentageTextBox control has an option to enable or disable its element. You can set the enabled property as “true” to enable the PercentageTextBox control. Also you can enable/disable the PercentageTextBox by using enable and disable methods.

Configure Enabled or Disabled

The following steps explains the implementation of enabled in PercentageTextBox.

In the HTML page set the corresponding <input> elements for rendering PercentageTextBox control.

<input id="percent" type="text" ej-percentagetextbox [value]="value" [enabled]="false" />

import { Component } from '@angular/core';

@Component({
  selector: 'ej-app',
  templateUrl: 'src/percentagetextbox/percentagetextbox.component.html'
})
export class PercentageTextboxComponent {
    public value: number;
    constructor() {
        this.value = 2;
    }
}

The output for PercentageTextBox when enabled is “true” and when enabled is “false”.

PercentageTextBox with enabled as true

PercentageTextBox with enabled as false

Adjusting PercentageTextBox Size

The PercentageTextBox size can be modified by using the height and width properties. You can customize the size of PercentageTextBox by using these properties.

Configure Height and Width

The following steps explain the implementation of height and width in PercentageTextBox.

In the HTML page set the corresponding <input> elements for rendering PercentageTextBox control.

<input id="percent" type="text" ej-percentagetextbox [value]="value" [width]="width"
[height]="height" />

import { Component } from '@angular/core';

@Component({
  selector: 'ej-app',
  templateUrl: 'src/percentagetextbox/percentagetextbox.component.html'
})
export class PercentageTextboxComponent {
    public value: number;
    public height: any;
    public width: any;
    constructor() {
        this.value = 2;
        this.height = 40;
        this.width = 100;
    }
}

The output for PercentageTextBox after setting “height” and “width” is as follows.

Increment Step

The incrementStep property is used to increase or decrease the amount of value in the PercentageTextBox control.

Configure Increment Step

The following steps explain the implementation of incrementStep in PercentageTextBox.

In the HTML page set the corresponding <input> elements for rendering PercentageTextBox control.

<input id="percent" type="text" ej-percentagetextbox [value]="value"
 [incrementStep]="incrementStep" />

import { Component } from '@angular/core';

@Component({
  selector: 'ej-app',
  templateUrl: 'src/percentagetextbox/percentagetextbox.component.html'
})
export class PercentageTextboxComponent {
    public value: number;
    public incrementStep: number;
    constructor() {
        this.value = 1;
        this.incrementStep = 3;
    }
}

The output for PercentageTextBox with incrementStep is as follows.

PercentageTextBox at initial load

PercentageTextBox after increasing one step

Define Name

When you have placed the PercentageTextBox in a form, the name property is used to send the field value at form submission. The default value of the name property is null.

Configure Name

The following steps explain the implementation of name in PercentageTextBox .

In the HTML page set the corresponding <input> elements for rendering PercentageTextBox control.

<input id="percent" type="text" ej-percentagetextbox [name]="name" />

import { Component } from '@angular/core';

@Component({
  selector: 'ej-app',
  templateUrl: 'src/percentagetextbox/percentagetextbox.component.html'
})
export class PercentageTextboxComponent {
    public name: string;
    constructor() {
        this.name = "percent";
    }
}

Define Value

The value of PercentageTextBox can be assigned by using the value property. The default value for value property is null. You can get the value of PercentageTextBox by using getValue method.

Configure Value

The following steps explain the implementation of value in PercentageTextBox.

In the HTML page set the corresponding <input> elements for rendering PercentageTextBox control.

<input id="percent" type="text" ej-percentagetextbox [value]="value" />

import { Component } from '@angular/core';

@Component({
  selector: 'ej-app',
  templateUrl: 'src/percentagetextbox/percentagetextbox.component.html'
})
export class PercentageTextboxComponent {
    public value: number;
    constructor() {
        this.value = 21;
    }
}

The output for PercentageTextBox with the value property is as follows.

Define maxValue and minValue

maxValue

The maximum limit value can be assigned to the PercentageTextBox by using the maxValue property. The default value of maxValue property is 1.7976931348623157e+308.

minValue

The minimum limit value can be assigned to the PercentageTextBox by using the minValue property. The default value of minValue property is -1.7976931348623157e+308.

Configure maxValue and minValue

The following steps explain the implementation of maxValue and minValue in PercentageTextBox.

In the HTML page set the corresponding <input> elements for rendering PercentageTextBox control.

<input id="percent" type="text" ej-percentagetextbox [value]="value" [maxValue]="maxValue" />

import { Component } from '@angular/core';

@Component({
  selector: 'ej-app',
  templateUrl: 'src/percentagetextbox/percentagetextbox.component.html'
})
export class PercentageTextboxComponent {
    public value: number;
    public maxValue: number;
    constructor() {
        this.value = 5;
        this.maxValue = 3;
    }
}

<input id="percent" type="text" ej-percentagetextbox [value]="value" [minValue]="minValue" />

import { Component } from '@angular/core';

@Component({
  selector: 'ej-app',
  templateUrl: 'src/percentagetextbox/percentagetextbox.component.html'
})
export class PercentageTextboxComponent {
    public value: number;
    public minValue: number;
    constructor() {
        this.value = -5;
        this.minValue = -2;
    }
}

The output for PercentageTextBox with basic properties is as follows.

PercentageTextBox with maxValue

PercentageTextBox with minValue

Read Only Support

The PercentageTextBox supports read only option. When you enable the readOnly property to the control, the value cannot be changed in the PercentageTextBox. You can set the readOnly property as “true” to enable this option.

Configure Read Only

The following steps explain the implementation of readOnly in PercentageTextBox.

In the HTML page set the corresponding <input> elements for rendering PercentageTextBox control.

<input id="percent" type="text" ej-percentagetextbox [value]="value" [readOnly]="true" />

import { Component } from '@angular/core';

@Component({
  selector: 'ej-app',
  templateUrl: 'src/percentagetextbox/percentagetextbox.component.html'
})
export class PercentageTextboxComponent {
    public value: number;
    constructor() {
        this.value = 3;
    }
}

The output for PercentageTextBox when readOnly is “true” is as follows. The PercentageTextBox values cannot be edited or changed.

Appearance

Theme

The PercentageTextBox control’s style and appearance can be controlled based on CSS classes. In order to apply styles to the Textbox control, you need to refer 2 files namely, ej.widgets.core.min.css and ej.theme.min.css. If the file ej.web.all.min.css is referred, then it is not necessary to include the files ej.widgets.core.min.css and ej.theme.min.css in your project, as ej.web.all.min.css is the combination of these two.

By default, there are 17 themes support available for PercentageTextBox control namely:

bootstrap
flat-azure
flat-azure-dark
fat-lime
flat-lime-dark
flat-saffron
flat-saffron-dark
gradient-azure
gradient-azure-dark
gradient-lime
gradient-lime-dark
gradient-saffron
gradient-saffron-dark
high-contrast-01
high-contrast-02
material
office-365

CSS Class

The CSS can be customized by using the cssClass in the PercentageTextBox. You can customize the PercentageTextBox with various cssClass properties to appear like your desired control.

Configure CSS Class

The following steps explain the implementation of cssClass in PercentageTextBox .

In the HTML page set the corresponding <input> elements for rendering PercentageTextBox control.

<input id="percent" type="text" ej-percentagetextbox [value]="value" [cssClass]="customCss" />

import { Component,ViewEncapsulation } from '@angular/core';

@Component({
  selector: 'ej-app',
  templateUrl: 'src/percentagetextbox/percentagetextbox.component.html',
  styleUrls: ['app/components/currencytextbox/currencytextbox.component.css'],
  encapsulation: ViewEncapsulation.None
})
export class PercentageTextboxComponent {
    public value: number;
    constructor() {
        this.value = 2;
    }
}

Customize the CSS properties in custom CSS class.

.customCss .e-box {
    border-color: #9d241b;
}
.customCss .e-input {
    background-color: #f6db8d;
}
.customCss .e-select {
    background-color: #ecf6ac;
    border-color: #3c36e7;
}

The output for PercentageTextBox after applying cssClass is as follows.

Rounded Corner Support

The PercentageTextBox provides you with rounded corner support whose appearance is different from normal textbox controls.

Configure Rounded Corner Support

The following steps explain the implementation of showRoundedCorner in PercentageTextBox .

In the HTML page set the corresponding <input> elements for rendering PercentageTextBox control.

<input id="percent" type="text" ej-percentagetextbox [value]="value"
[showRoundedCorner]="true"/>

import { Component } from '@angular/core';

@Component({
  selector: 'ej-app',
  templateUrl: 'src/percentagetextbox/percentagetextbox.component.html'
})
export class PercentageTextboxComponent {
    public value: number;
    constructor() {
        this.value = 2;
    }
}

The output for PercentageTextBox when showRoundedCorner is “true”.

Spin Button Support

The PercentageTextBox provides you the option as to whether to display the spin button in the widget or remove it from the control by using showSpinButton property.

Configure Spin Button

The following steps explain the implementation of showSpinButton in PercentageTextBox .

In the HTML page set the corresponding <input> elements for rendering PercentageTextBox control.

<input id="percent" type="text" ej-percentagetextbox [value]="value" [showSpinButton]="true"/>

import { Component } from '@angular/core';

@Component({
  selector: 'ej-app',
  templateUrl: 'src/percentagetextbox/percentagetextbox.component.html'
})
export class PercentageTextboxComponent {
    public value: number;
    constructor() {
        this.value = 2;
    }
}

The output for PercentageTextBox when showSpinButton is “true”.

PercentageTextBox with showSpinButton is true

PercentageTextBox with showSpinButton is false

Water Mark Text Support

The PercentageTextBox provide water mark text support. You can display the initial value in the control by water mark.

Configure Water Mark Text

The following steps explain the implementation of watermarkText in PercentageTextBox .

In the HTML page set the corresponding <input> elements for rendering PercentageTextBox controls.

<input id="percent" type="text" ej-percentagetextbox [watermarkText]="watermarkText"/>

import { Component } from '@angular/core';

@Component({
  selector: 'ej-app',
  templateUrl: 'src/percentagetextbox/percentagetextbox.component.html'
})
export class PercentageTextboxComponent {
    public watermarkText: string;
    constructor() {
        this.watermarkText = "Percent";
    }
}

The output for PercentageTextBox after applying watermarkText is as follows.
