Legend

The legend contains the list of the ranges that appear in the circular gauge

Legend Visibility

By default, the legend the legend will not be displayed in the circular gauge. You can enable or disable it by using the visible property of the legend.

  • html
  • <ej-CircularGauge id="circularGauge1" [legend.visible]="true" >
    </ej-CircularGauge>

    Click here to view the online demo sample for legend .

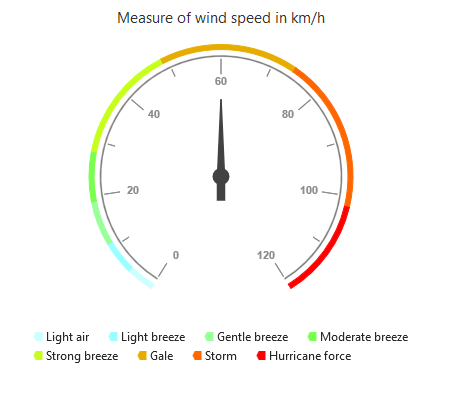

    Legend Text

    The text displayed in the legend can be customized by using the legendText property present in the ranges of the circular gauge. When the legendText is not specified in the ranges, then the legend item for that particular range will not displayed. By default the legendText value is null .

  • html
  • <ej-CircularGauge id="circularGauge1" >
     <e-scales>
     <e-scale >
     <e-ranges>
     <e-range legendText="Light air"></e-range>
     </e-ranges>
     </e-scale>
     </e-scales>
     </ej-CircularGauge>

    Legend Fill and Opacity

    You can change the opacity and fill color of legend text using Opacity and Fill property of legend.

  • html
  • <ej-CircularGauge id="circularGauge1" legend.fill="blue" [legend.opacity]="0.5" >
    </ej-CircularGauge>

    Position and Align the Legend

    By using the position property, you can position the legend at left, right, top or bottom of the CircularGauge. The legend is positioned at the bottom of the circular gauge, by default.

  • html
  • <ej-CircularGauge id="circularGauge1" legend.position="top">
    </ej-CircularGauge>

    Legend Alignment

    You can align the legend to the center, far or near based on its position by using the alignment property.

  • html
  • <ej-CircularGauge id="circularGauge1" legend.position="top" legend.alignment="far">
    </ej-CircularGauge>

    Customization

    Legend shape

    To change the legend item, shape, you have to specify the desired shape in the shape property of the legend. By default the legend shape is circle.It also supports rectangle,diamond,triangle,slider,line,pentagon,trapezoid and wedge shapes.

  • html
  • <ej-CircularGauge id="circularGauge1"  legend.shape="slider">
    </ej-CircularGauge>

    Legend Item Size and Border

    You can change the size of the legend items by using the width and height properties in the itemStyle. To change the legend item border, use border property of the legend itemStyle.

  • html
  • <ej-CircularGauge id="circularGauge1"  [legend.itemStyle]="{width: 13, height: 13,
                                     border: { color: '#FF0000', width: 2 } }">
    </ej-CircularGauge>

    Legend size

    You can change the default legend size by using the size property of the legend.

  • html
  • <ej-CircularGauge id="circularGauge1"  legend.size.width="350" legend.size.height="100" >
    </ej-CircularGauge>

    Legend Item Padding

    You can control the spacing between the legend items by using the itemPadding option of the legend. The default value is 20.

  • html
  • <ej-CircularGauge id="circularGauge1"  [legend.itemPadding]=30>
    </ej-CircularGauge>

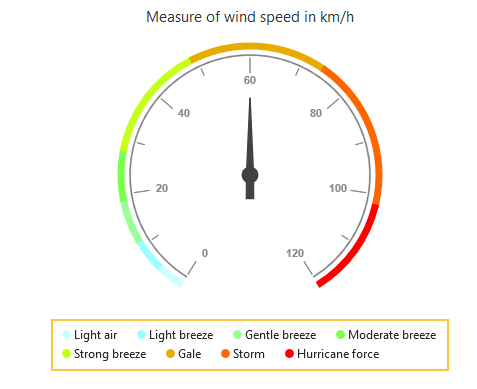

    Legend border

    You can customize the legend border by using the border option in the legend.

  • html
  • <ej-CircularGauge id="circularGauge1" [legend.border.width]=2 legend.border.color="#FFC342">
    </ej-CircularGauge>

    Font of the legend text

    The font of the legend item text can be customized by using the font property in legend.

  • ts
  • this.legendFont= { fontFamily: 'Segoe UI', fontStyle: 'Normal', fontWeight: 'Bold', size: '15px' };
  • html
  • <ej-CircularGauge id="circularGauge1"  [legend.font]="legendFont">

    </ej-CircularGauge>

    Events

    Legend Item Render

    legendItemRender event triggers before rendering the legend items. This event is triggered for each legend item in Circular gauge. You can use this event to customize legend item shape or add custom text to legend item.

  • html
  • <ej-CircularGauge id="circularGauge1" (legendItemRender)="onLegendItemRender($event)">
    </ej-CircularGauge>

    <script>
    function onLegendItemRender(sender) {
    //Get legend item details on legend item click.
    var legendItem = sender.data;
    }
    </script>

    Legend Item Click

    You can get the legend item details such as RangeIndex, bounds, shape and series by subscribing the legendItemClick event on the circular gauge. When the legend item is clicked, it triggers the event and returns the legend information.

  • html
  • <ej-CircularGauge id="circularGauge1" (legendItemClick)="onLegendClicked($event)">
    </ej-CircularGauge>

      <script>
         function onLegendClicked(sender) {
            //Get legend item details on legend item click.
            var legendItem = sender.data;
         }
     </script>
