Right-to-Left (RTL) in Flutter Maps (SfMaps)
18 Nov 201818 minutes to read
Enable RTL rendering
Right to left rendering can be achieved in the following ways:
Wrapping the SfMaps with Directionality widget
The Flutter Maps can be wrapped inside the Directionality widget and you can set the textDirection property to rtl.
import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_maps/maps.dart';
class MapsExample extends StatelessWidget {
@override
Widget build(BuildContext context) {
return MaterialApp(
home: Scaffold(
body: Directionality(
textDirection: TextDirection.rtl,
child: Center(
child: SfMaps(
layers: [
MapShapeLayer(
source: const MapShapeSource.asset(
"assets/world_map.json",
shapeDataField: "continent"),
),
],
),
)
),
),
);
}
}Changing the locale to RTL languages
The elements of the Flutter Maps will render in right to left direction if the locale belongs to RTL languages such as Arabic, Persian, Hebrew, Pashto, or Urdu. This can be achieved by specifying the MaterialApp properties such as localizationsDelegates, supportedLocales, locale and adding the flutter_localizations package to your pubspec.yaml file.
dependencies:
flutter_localizations:
sdk: flutterimport 'package:flutter/material.dart';
import 'package:flutter_localizations/flutter_localizations.dart';
import 'package:syncfusion_flutter_maps/maps.dart';
class MapsExample extends StatelessWidget {
@override
Widget build(BuildContext context) {
return MaterialApp(
localizationsDelegates: [
GlobalMaterialLocalizations.delegate,
GlobalWidgetsLocalizations.delegate,
],
supportedLocales: [
Locale("fa", "IR"),
],
locale: Locale("fa", "IR"),
home: Scaffold(
backgroundColor: Colors.white,
body: SfMaps(
layers: [
MapShapeLayer(
source: const MapShapeSource.asset(
"assets/world_map.json",
shapeDataField: "continent"),
),
],
),
),
);
}
}RTL supported maps elements

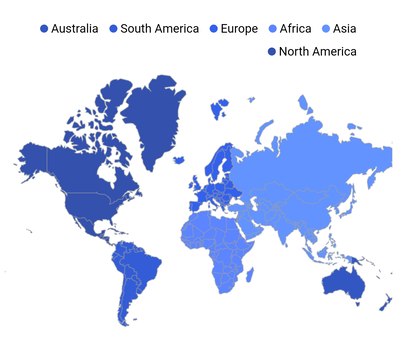

Legend
Legend items will be rendered from right to left direction. This is applicable for both shape and bubble legends with solid and bar types.
import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_maps/maps.dart';
class MapsExample extends StatefulWidget {
@override
_MapsExampleState createState() => _MapsExampleState();
}
class _MapsExampleState extends State<MapsExample> {
late List<PopulationModel> _data;
late MapShapeSource _mapSource;
@override
void initState() {
super.initState();
_data = <PopulationModel>[
PopulationModel('Asia', 150, Color.fromRGBO(60, 120, 255, 0.8)),
PopulationModel('Africa', 45, Color.fromRGBO(51, 102, 255, 0.8)),
PopulationModel('Europe', 34, Color.fromRGBO(0, 57, 230, 0.8)),
PopulationModel('South America', 25, Color.fromRGBO(0, 51, 204, 0.8)),
PopulationModel('North America', 28, Color.fromRGBO(0, 38, 153, 0.8)),
PopulationModel('Australia', 5, Color.fromRGBO(0, 45, 179, 0.8)),
];
_mapSource = MapShapeSource.asset(
"assets/world_map.json",
shapeDataField: "continent",
dataCount: _data.length,
primaryValueMapper: (int index) => _data[index].continent,
shapeColorValueMapper: (int index) => _data[index].color,
);
}
@override
Widget build(BuildContext context) {
return Scaffold(
body: Center(
child: Container(
padding: const EdgeInsets.only(left: 10, right: 15, top: 30),
height: 350,
child: Directionality(
textDirection: TextDirection.rtl,
child: SfMaps(
layers: [
MapShapeLayer(
source: _mapSource,
legend: MapLegend(MapElement.shape),
)
],
),
),
),
),
);
}
}
class PopulationModel {
const PopulationModel(
this.continent, this.populationDensityPerSqKm, this.color);
final String continent;
final double populationDensityPerSqKm;
final Color color;
}

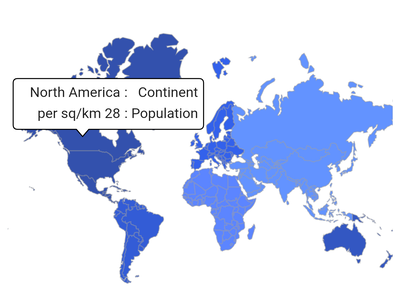

Tooltip
Tooltip text will be rendered from right to left direction. This is applicable for shape tooltip, bubble tooltip, and marker tooltip.
import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_maps/maps.dart';
class MapsExample extends StatefulWidget {
@override
_MapsExampleState createState() => _MapsExampleState();
}
class _MapsExampleState extends State<MapsExample> {
late List<PopulationModel> _data;
late MapShapeSource _mapSource;
@override
void initState() {
super.initState();
_data = <PopulationModel>[
PopulationModel('Asia', 150, Color.fromRGBO(60, 120, 255, 0.8)),
PopulationModel('Africa', 45, Color.fromRGBO(51, 102, 255, 0.8)),
PopulationModel('Europe', 34, Color.fromRGBO(0, 57, 230, 0.8)),
PopulationModel('South America', 25, Color.fromRGBO(0, 51, 204, 0.8)),
PopulationModel('North America', 28, Color.fromRGBO(0, 38, 153, 0.8)),
PopulationModel('Australia', 5, Color.fromRGBO(0, 45, 179, 0.8)),
];
_mapSource = MapShapeSource.asset(
"assets/world_map.json",
shapeDataField: "continent",
dataCount: _data.length,
primaryValueMapper: (int index) => _data[index].continent,
shapeColorValueMapper: (int index) => _data[index].color,
);
}
@override
Widget build(BuildContext context) {
return Scaffold(
body: Center(
child: Container(
padding: const EdgeInsets.only(left: 10, right: 15, top: 30),
height: 350,
child: Directionality(
textDirection: TextDirection.rtl,
child: SfMaps(
layers: [
MapShapeLayer(
source: _mapSource,
shapeTooltipBuilder: (BuildContext context, int index) {
return Container(
height: 50,
width: 190,
child: Column(
children: [
Padding(
padding: EdgeInsets.all(5),
child: Row(
children: [
Text('Continent : '),
Text(_data[index].continent),
],
),
),
Padding(
padding:
EdgeInsets.only(left: 5, right: 5, bottom: 5),
child: Row(
children: [
Text('Population : '),
Text(_data[index]
.populationDensityPerSqKm
.toStringAsFixed(0) +
' per sq/km'),
],
),
),
],
),
);
},
tooltipSettings: const MapTooltipSettings(
color: Colors.white,
strokeColor: Colors.black,
),
)
],
),
),
),
),
);
}
}
class PopulationModel {
const PopulationModel(
this.continent, this.populationDensityPerSqKm, this.color);
final String continent;
final double populationDensityPerSqKm;
final Color color;
}
