Drawer customizations in WPF Navigation Drawer (SfNavigationDrawer)
29 Dec 2020 / 24 minutes to read
This section describes how to customization of drawer.
Customize Panel size
The size of side pane can be adjusted using the DrawerHeight and DrawerWidth properties.
DrawerHeight
The DrawerHeight property is used to change the height of side pane when the Position is Top or Bottom.
<Window x:Class="NavigationDrawerWPF.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:syncfusion="http://schemas.syncfusion.com/wpf"
xmlns:local="clr-namespace:NavigationDrawerWPF"
mc:Ignorable="d"
Title="MainWindow" Height="450" Width="800">
<syncfusion:SfNavigationDrawer x:Name="navigationDrawer"
DrawerHeight="200"
Position="Top">
<syncfusion:SfNavigationDrawer.DrawerHeaderView>
<Grid Background="#31ade9">
<Label Content="This is a very short content used to demonstrate the DrawerHeight property "/>
</Grid>
</syncfusion:SfNavigationDrawer.DrawerHeaderView>
</syncfusion:SfNavigationDrawer>
</Window>using Syncfusion.UI.Xaml.NavigationDrawer;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Media;
namespace NavigationDrawerWPF
{
/// <summary>
/// Interaction logic for MainWindow.xaml
/// </summary>
public partial class MainWindow : Window
{
public MainWindow()
{
InitializeComponent();
SfNavigationDrawer navigationDrawer = new SfNavigationDrawer()
{
DrawerHeight = 200,
Position = Position.Top
};
Grid grid = new Grid()
{
Background = new SolidColorBrush((Color)ColorConverter.ConvertFromString("#31ade9"))
};
Label label = new Label()
{
Content = "This is a very short content used to demonstrate the DrawerHeight property "
};
grid.Children.Add(label);
navigationDrawer.DrawerHeaderView = grid;
this.Content = navigationDrawer;
}
}
}DrawerWidth
The DrawerWidth property is used to change the width of side pane when the Position is Left or Right.
<Window x:Class="NavigationDrawerWPF.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:syncfusion="http://schemas.syncfusion.com/wpf"
xmlns:local="clr-namespace:NavigationDrawerWPF"
mc:Ignorable="d"
Title="MainWindow" Height="450" Width="800">
<syncfusion:SfNavigationDrawer x:Name="navigationDrawer"
DrawerWidth="200"
Position="Left">
<syncfusion:SfNavigationDrawer.DrawerHeaderView>
<Grid Background="#31ade9">
<TextBlock Text="This is a very short content used to demonstrate the DrawerHeight property "
TextWrapping="Wrap"/>
</Grid>
</syncfusion:SfNavigationDrawer.DrawerHeaderView>
</syncfusion:SfNavigationDrawer>
</Window>using Syncfusion.UI.Xaml.NavigationDrawer;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Media;
namespace NavigationDrawerWPF
{
/// <summary>
/// Interaction logic for MainWindow.xaml
/// </summary>
public partial class MainWindow : Window
{
public MainWindow()
{
InitializeComponent();
SfNavigationDrawer navigationDrawer = new SfNavigationDrawer()
{
DrawerWidth = 200,
Position = Position.Left,
IsOpen = true
};
Grid grid = new Grid()
{
Background = new SolidColorBrush((Color)ColorConverter.ConvertFromString("#31ade9"))
};
TextBlock label = new TextBlock()
{
Text = "This is a very short content used to demonstrate the DrawerHeight property",
TextWrapping = TextWrapping.Wrap
};
grid.Children.Add(label);
navigationDrawer.DrawerHeaderView = grid;
this.Content = navigationDrawer;
}
}
}Swipe gesture and sensitivity
The NavigationDrawer supports swipe gesture for opening and closing the drawer.
Enabling swipe gesture
It can be enabled or disabled using the EnableSwipeGesture property.
<Window x:Class="NavigationDrawerWPF.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:syncfusion="http://schemas.syncfusion.com/wpf"
xmlns:local="clr-namespace:NavigationDrawerWPF"
mc:Ignorable="d"
Title="MainWindow" Height="450" Width="800">
<syncfusion:SfNavigationDrawer x:Name="navigationDrawer"
EnableSwipeGesture="True">
<syncfusion:SfNavigationDrawer.DrawerHeaderView>
<Grid Background="#31ade9">
<Label Content="Header View"
FontSize="20"
FontWeight="Bold"
HorizontalContentAlignment="Center"
VerticalContentAlignment="Center"/>
</Grid>
</syncfusion:SfNavigationDrawer.DrawerHeaderView>
</syncfusion:SfNavigationDrawer>
</Window>using Syncfusion.UI.Xaml.NavigationDrawer;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Media;
namespace NavigationDrawerWPF
{
/// <summary>
/// Interaction logic for MainWindow.xaml
/// </summary>
public partial class MainWindow : Window
{
public MainWindow()
{
InitializeComponent();
SfNavigationDrawer navigationDrawer = new SfNavigationDrawer()
{
EnableSwipeGesture = true
};
Grid grid = new Grid()
{
Background = new SolidColorBrush((Color)ColorConverter.ConvertFromString("#31ade9"))
};
Label label = new Label()
{
Content = "Header View",
FontSize = 20,
FontWeight = FontWeights.Bold,
HorizontalContentAlignment = HorizontalAlignment.Center,
VerticalContentAlignment = VerticalAlignment.Center
};
grid.Children.Add(label);
navigationDrawer.DrawerHeaderView = grid;
this.Content = navigationDrawer;
}
}
}Swipe sensitivity
In smaller screens, may find it difficult to swipe the drawer from the edge, in such cases it can increase the swipe region using the TouchThreshold property. It can be set as below:
<Window x:Class="NavigationDrawerWPF.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:syncfusion="http://schemas.syncfusion.com/wpf"
xmlns:local="clr-namespace:NavigationDrawerWPF"
mc:Ignorable="d"
Title="MainWindow" Height="450" Width="800">
<syncfusion:SfNavigationDrawer x:Name="navigationDrawer"
EnableSwipeGesture="True"
TouchThreshold="70">
<syncfusion:SfNavigationDrawer.DrawerHeaderView>
<Grid Background="#31ade9">
<Label Content="Header View"
FontSize="20"
FontWeight="Bold"
HorizontalContentAlignment="Center"
VerticalContentAlignment="Center"/>
</Grid>
</syncfusion:SfNavigationDrawer.DrawerHeaderView>
</syncfusion:SfNavigationDrawer>
</Window>using Syncfusion.UI.Xaml.NavigationDrawer;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Media;
namespace NavigationDrawerWPF
{
/// <summary>
/// Interaction logic for MainWindow.xaml
/// </summary>
public partial class MainWindow : Window
{
public MainWindow()
{
InitializeComponent();
SfNavigationDrawer navigationDrawer = new SfNavigationDrawer()
{
EnableSwipeGesture = true,
TouchThreshold = 70
};
Grid grid = new Grid()
{
Background = new SolidColorBrush((Color)ColorConverter.ConvertFromString("#31ade9"))
};
Label label = new Label()
{
Content = "Header View",
FontSize = 20,
FontWeight = FontWeights.Bold,
HorizontalContentAlignment = HorizontalAlignment.Center,
VerticalContentAlignment = VerticalAlignment.Center
};
grid.Children.Add(label);
navigationDrawer.DrawerHeaderView = grid;
this.Content = navigationDrawer;
}
}
}Customize animations
The Transition property specifies the animations for the DrawerView panel. The Transition property has the following options:
- SlideOnTop
- Push
- Reveal

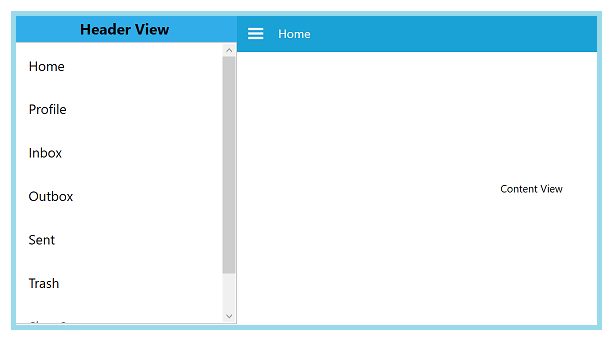

The default transition is SlideOnTop that draws the DrawerContent on top of the main content.
<Window x:Class="NavigationDrawerWPF.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:syncfusion="http://schemas.syncfusion.com/wpf"
xmlns:local="clr-namespace:NavigationDrawerWPF"
mc:Ignorable="d"
Title="MainWindow" Height="450" Width="800">
<Window.DataContext>
<local:ViewModel/>
</Window.DataContext>
<syncfusion:SfNavigationDrawer x:Name="navigationDrawer"
Transition="SlideOnTop"
DrawerWidth="300"
IsOpen="True">
<syncfusion:SfNavigationDrawer.ContentView>
<Grid x:Name="mainContentView"
Background="White">
<Grid.RowDefinitions>
<RowDefinition Height="auto"/>
<RowDefinition/>
</Grid.RowDefinitions>
<StackPanel Background="#1aa1d6"
Orientation="Horizontal">
<Button x:Name="hamburgerButton"
BorderBrush="Transparent"
Height="50" Width="50"
HorizontalAlignment="Left"
FontSize="16"
Background="#1aa1d6" Foreground="White"
Click="HamburgerButton_Click">
<Image Source="hamburger_icon.png"
Height="20"
Width="20"
HorizontalAlignment="Center"
VerticalAlignment="Center"/>
</Button>
<Label x:Name="headerLabel"
Height="50"
HorizontalContentAlignment="Center"
VerticalContentAlignment="Center"
Content="Home"
FontSize="16"
Foreground="White"
Background="#1aa1d6"/>
</StackPanel>
<Label Grid.Row="1"
x:Name="contentLabel"
VerticalContentAlignment="Center"
HorizontalContentAlignment="Center"
Content="Content View"
FontSize="14" Foreground="Black"/>
</Grid>
</syncfusion:SfNavigationDrawer.ContentView>
<syncfusion:SfNavigationDrawer.DrawerHeaderView>
<Grid Background="#31ade9">
<Label Content="Header View"
FontSize="20"
FontWeight="Bold"
HorizontalContentAlignment="Center"
VerticalContentAlignment="Center"/>
</Grid>
</syncfusion:SfNavigationDrawer.DrawerHeaderView>
<syncfusion:SfNavigationDrawer.DrawerContentView>
<Grid>
<ListBox x:Name="list"
ItemsSource="{Binding Contents}">
<ListBox.ItemTemplate>
<DataTemplate>
<TextBlock Text="{Binding Name}"
Padding="15"
TextAlignment="Center"
FontSize="18"
Foreground="Black"/>
</DataTemplate>
</ListBox.ItemTemplate>
</ListBox>
</Grid>
</syncfusion:SfNavigationDrawer.DrawerContentView>
</syncfusion:SfNavigationDrawer>
</Window>using Syncfusion.UI.Xaml.NavigationDrawer;
using System.Collections.Generic;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Media;
namespace NavigationDrawerWPF
{
/// <summary>
/// Interaction logic for MainWindow.xaml
/// </summary>
public partial class MainWindow : Window
{
public MainWindow()
{
InitializeComponent();
navigationDrawer.Transition = Transition.SlideOnTop;
}
private void HamburgerButton_Click(object sender, RoutedEventArgs e)
{
navigationDrawer.ToggleDrawer();
}
}
public class ViewModel
{
public ViewModel()
{
Contents = new List<Model>();
Contents.Add(new Model() { Name = "Home" });
Contents.Add(new Model() { Name = "Profile" });
Contents.Add(new Model() { Name = "Inbox" });
Contents.Add(new Model() { Name = "Outbox" });
Contents.Add(new Model() { Name = "Sent" });
Contents.Add(new Model() { Name = "Trash" });
Contents.Add(new Model() { Name = "Sign Out" });
}
public List<Model> Contents { get; set; }
}
public class Model
{
public string Name { get; set; }
}
}
The following code example shows how to set Transition as Push to SfNavigationDrawer. This transition moves the Drawer and main content simultaneously.
<Window x:Class="NavigationDrawerWPF.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:syncfusion="http://schemas.syncfusion.com/wpf"
xmlns:local="clr-namespace:NavigationDrawerWPF"
mc:Ignorable="d"
Title="MainWindow" Height="450" Width="800">
<Window.DataContext>
<local:ViewModel/>
</Window.DataContext>
<syncfusion:SfNavigationDrawer x:Name="navigationDrawer"
Transition="Push"
DrawerWidth="300"
IsOpen="True">
<syncfusion:SfNavigationDrawer.ContentView>
<Grid x:Name="mainContentView"
Background="White">
<Grid.RowDefinitions>
<RowDefinition Height="auto"/>
<RowDefinition/>
</Grid.RowDefinitions>
<StackPanel Background="#1aa1d6"
Orientation="Horizontal">
<Button x:Name="hamburgerButton"
BorderBrush="Transparent"
Height="50" Width="50"
HorizontalAlignment="Left"
FontSize="16"
Background="#1aa1d6" Foreground="White"
Click="HamburgerButton_Click">
<Image Source="hamburger_icon.png"
Height="20"
Width="20"
HorizontalAlignment="Center"
VerticalAlignment="Center"/>
</Button>
<Label x:Name="headerLabel"
Height="50"
HorizontalContentAlignment="Center"
VerticalContentAlignment="Center"
Content="Home"
FontSize="16"
Foreground="White"
Background="#1aa1d6"/>
</StackPanel>
<Label Grid.Row="1"
x:Name="contentLabel"
VerticalContentAlignment="Center"
HorizontalContentAlignment="Center"
Content="Content View"
FontSize="14" Foreground="Black"/>
</Grid>
</syncfusion:SfNavigationDrawer.ContentView>
<syncfusion:SfNavigationDrawer.DrawerHeaderView>
<Grid Background="#31ade9">
<Label Content="Header View"
FontSize="20"
FontWeight="Bold"
HorizontalContentAlignment="Center"
VerticalContentAlignment="Center"/>
</Grid>
</syncfusion:SfNavigationDrawer.DrawerHeaderView>
<syncfusion:SfNavigationDrawer.DrawerContentView>
<Grid>
<ListBox x:Name="list"
ItemsSource="{Binding Contents}">
<ListBox.ItemTemplate>
<DataTemplate>
<TextBlock Text="{Binding Name}"
Padding="15"
TextAlignment="Center"
FontSize="18"
Foreground="Black"/>
</DataTemplate>
</ListBox.ItemTemplate>
</ListBox>
</Grid>
</syncfusion:SfNavigationDrawer.DrawerContentView>
</syncfusion:SfNavigationDrawer>
</Window>using Syncfusion.UI.Xaml.NavigationDrawer;
using System.Collections.Generic;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Media;
namespace NavigationDrawerWPF
{
/// <summary>
/// Interaction logic for MainWindow.xaml
/// </summary>
public partial class MainWindow : Window
{
public MainWindow()
{
InitializeComponent();
navigationDrawer.Transition = Transition.Push;
}
private void HamburgerButton_Click(object sender, RoutedEventArgs e)
{
navigationDrawer.ToggleDrawer();
}
}
public class ViewModel
{
public ViewModel()
{
Contents = new List<Model>();
Contents.Add(new Model() { Name = "Home" });
Contents.Add(new Model() { Name = "Profile" });
Contents.Add(new Model() { Name = "Inbox" });
Contents.Add(new Model() { Name = "Outbox" });
Contents.Add(new Model() { Name = "Sent" });
Contents.Add(new Model() { Name = "Trash" });
Contents.Add(new Model() { Name = "Sign Out" });
}
public List<Model> Contents { get; set; }
}
public class Model
{
public string Name { get; set; }
}
}
The following code example shows how to set Transition as Reveal to SfNavigationDrawer. In this transition, the Drawer content is stable and the main content is moved to reveal the drawer content.
<Window x:Class="NavigationDrawerWPF.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:syncfusion="http://schemas.syncfusion.com/wpf"
xmlns:local="clr-namespace:NavigationDrawerWPF"
mc:Ignorable="d"
Title="MainWindow" Height="450" Width="800">
<Window.DataContext>
<local:ViewModel/>
</Window.DataContext>
<syncfusion:SfNavigationDrawer x:Name="navigationDrawer"
Transition="Reveal"
DrawerWidth="300"
IsOpen="True">
<syncfusion:SfNavigationDrawer.ContentView>
<Grid x:Name="mainContentView"
Background="White">
<Grid.RowDefinitions>
<RowDefinition Height="auto"/>
<RowDefinition/>
</Grid.RowDefinitions>
<StackPanel Background="#1aa1d6"
Orientation="Horizontal">
<Button x:Name="hamburgerButton"
BorderBrush="Transparent"
Height="50" Width="50"
HorizontalAlignment="Left"
FontSize="16"
Background="#1aa1d6" Foreground="White"
Click="HamburgerButton_Click">
<Image Source="hamburger_icon.png"
Height="20"
Width="20"
HorizontalAlignment="Center"
VerticalAlignment="Center"/>
</Button>
<Label x:Name="headerLabel"
Height="50"
HorizontalContentAlignment="Center"
VerticalContentAlignment="Center"
Content="Home"
FontSize="16"
Foreground="White"
Background="#1aa1d6"/>
</StackPanel>
<Label Grid.Row="1"
x:Name="contentLabel"
VerticalContentAlignment="Center"
HorizontalContentAlignment="Center"
Content="Content View"
FontSize="14" Foreground="Black"/>
</Grid>
</syncfusion:SfNavigationDrawer.ContentView>
<syncfusion:SfNavigationDrawer.DrawerHeaderView>
<Grid Background="#31ade9">
<Label Content="Header View"
FontSize="20"
FontWeight="Bold"
HorizontalContentAlignment="Center"
VerticalContentAlignment="Center"/>
</Grid>
</syncfusion:SfNavigationDrawer.DrawerHeaderView>
<syncfusion:SfNavigationDrawer.DrawerContentView>
<Grid>
<ListBox x:Name="list"
ItemsSource="{Binding Contents}">
<ListBox.ItemTemplate>
<DataTemplate>
<TextBlock Text="{Binding Name}"
Padding="15"
TextAlignment="Center"
FontSize="18"
Foreground="Black"/>
</DataTemplate>
</ListBox.ItemTemplate>
</ListBox>
</Grid>
</syncfusion:SfNavigationDrawer.DrawerContentView>
</syncfusion:SfNavigationDrawer>
</Window>using Syncfusion.UI.Xaml.NavigationDrawer;
using System.Collections.Generic;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Media;
namespace NavigationDrawerWPF
{
/// <summary>
/// Interaction logic for MainWindow.xaml
/// </summary>
public partial class MainWindow : Window
{
public MainWindow()
{
InitializeComponent();
navigationDrawer.Transition = Transition.Reveal;
}
private void HamburgerButton_Click(object sender, RoutedEventArgs e)
{
navigationDrawer.ToggleDrawer();
}
}
public class ViewModel
{
public ViewModel()
{
Contents = new List<Model>();
Contents.Add(new Model() { Name = "Home" });
Contents.Add(new Model() { Name = "Profile" });
Contents.Add(new Model() { Name = "Inbox" });
Contents.Add(new Model() { Name = "Outbox" });
Contents.Add(new Model() { Name = "Sent" });
Contents.Add(new Model() { Name = "Trash" });
Contents.Add(new Model() { Name = "Sign Out" });
}
public List<Model> Contents { get; set; }
}
public class Model
{
public string Name { get; set; }
}
}
Animation duration
Gets or sets the TimeSpan value, by which the DrawerContent can be brought to view.
<Window x:Class="NavigationDrawerWPF.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:syncfusion="http://schemas.syncfusion.com/wpf"
xmlns:local="clr-namespace:NavigationDrawerWPF"
mc:Ignorable="d"
Title="MainWindow" Height="450" Width="800">
<syncfusion:SfNavigationDrawer x:Name="navigationDrawer"
AnimationDuration="100">
<syncfusion:SfNavigationDrawer.DrawerHeaderView>
<Grid Background="#31ade9">
<Label Content="Header View"
FontSize="20"
FontWeight="Bold"
HorizontalContentAlignment="Center"
VerticalContentAlignment="Center"/>
</Grid>
</syncfusion:SfNavigationDrawer.DrawerHeaderView>
</syncfusion:SfNavigationDrawer>
</Window>using Syncfusion.UI.Xaml.NavigationDrawer;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Media;
namespace NavigationDrawerWPF
{
/// <summary>
/// Interaction logic for MainWindow.xaml
/// </summary>
public partial class MainWindow : Window
{
public MainWindow()
{
InitializeComponent();
SfNavigationDrawer navigationDrawer = new SfNavigationDrawer()
{
AnimationDuration = new System.TimeSpan(100)
};
Grid grid = new Grid()
{
Background = new SolidColorBrush((Color)ColorConverter.ConvertFromString("#31ade9"))
};
Label label = new Label()
{
Content = "Header View",
FontSize = 20,
FontWeight = FontWeights.Bold,
HorizontalContentAlignment = HorizontalAlignment.Center,
VerticalContentAlignment = VerticalAlignment.Center
};
grid.Children.Add(label);
navigationDrawer.DrawerHeaderView = grid;
this.Content = navigationDrawer;
}
}
}
Was this page helpful?
Yes
No
Thank you for your feedback!
Thank you for your feedback and comments. We will rectify this as soon as possible!
An unknown error has occurred. Please try again.
Help us improve this page
