Symbol groups of Stencil in WPF Diagram (SfDiagram)
6 Aug 202118 minutes to read
A set of stencil symbols can be combined together to create a group and many numbers of group can be created. This helps you to look overall stencil symbols into split view and it is easy to find specific or particular shape category into stencil.
Group symbols into a category
The symbols of the same category can be grouped using the SymbolGroupProvider. The SymbolGroupProvider groups based on the MappingName property, which has the name of the property whose value will be in the group category. In the following code example, the MappingName has a value of “Key” and the SymbolGroupProvider will create the group, based on the value of the Key property. The symbols with the same category name could be grouped under that category.
<Style TargetType="sync:Node">
<Setter Property="ShapeStyle">
<Setter.Value>
<Style TargetType="Path">
<Setter Property="Fill" Value="#FF5B9BD5"></Setter>
<Setter Property="Stretch" Value="Fill"></Setter>
</Style>
</Setter.Value>
</Setter>
</Style>
<Style TargetType="sync:Connector">
<Setter Property="ConnectorGeometryStyle">
<Setter.Value>
<Style TargetType="Path">
<Setter Property="Stroke" Value="#FF5B9BD5"></Setter>
</Style>
</Setter.Value>
</Setter>
</Style>
<DataTemplate x:Key="TitleTemplate">
<TextBlock x:Name="HeaderText" Text="{Binding}" FontSize="15" FontWeight="SemiBold" Foreground="#2b579a" />
</DataTemplate>
<stencil:Stencil Grid.Column="0" BorderThickness="1" Title="Shapes" TitleTemplate="{StaticResource TitleTemplate}" BorderBrush="#dfdfdf" x:Name="stencil">
<!--Initialize the SymbolSource-->
<stencil:Stencil.SymbolSource>
<!--Define the SymbolCollection-->
<local:SymbolCollection>
<syncfusion:NodeViewModel x:Name="node" UnitHeight="70" UnitWidth="100" OffsetX="100" OffsetY="100" Shape="{StaticResource Rectangle}" Key="Node">
</syncfusion:NodeViewModel>
<syncfusion:ConnectorViewModel SourcePoint="100,100" TargetPoint="200,200" Key="Connector"/>
<!--Define the DiagramElement- Group-->
<syncfusion:GroupViewModel Key="Group">
<!--Creates the Groupable Nodes-->
<syncfusion:GroupViewModel.Nodes>
<syncfusion:NodeCollection>
<syncfusion:NodeViewModel UnitHeight="70" ID="srcnode" OffsetX="0" OffsetY="300"
UnitWidth="100"
Shape="{StaticResource Rectangle}">
</syncfusion:NodeViewModel>
<syncfusion:NodeViewModel UnitHeight="70"
ID="tarnode"
OffsetX="100"
OffsetY="500"
UnitWidth="100"
Shape="{StaticResource Rectangle}">
</syncfusion:NodeViewModel>
</syncfusion:NodeCollection>
</syncfusion:GroupViewModel.Nodes>
<!--Creates the Groupable Connectors-->
<syncfusion:GroupViewModel.Connectors>
<syncfusion:ConnectorCollection>
<syncfusion:ConnectorViewModel SourceNodeID="srcnode" TargetNodeID="tarnode"/>
</syncfusion:ConnectorCollection>
</syncfusion:GroupViewModel.Connectors>
</syncfusion:GroupViewModel>
</local:SymbolCollection>
</stencil:Stencil.SymbolSource>
<!--Initialize the SymbolGroup-->
<stencil:Stencil.SymbolGroups>
<stencil:SymbolGroups>
<!--Map Symbols Using MappingName-->
<stencil:SymbolGroupProvider MappingName="Key">
</stencil:SymbolGroupProvider>
</stencil:SymbolGroups>
</stencil:Stencil.SymbolGroups>
</stencil:Stencil>//Define a Stencil.
Stencil stencil = new Stencil()
{
ExpandMode =ExpandMode.All,
BorderThickness =new Thickness(0,0,1,0),
BorderBrush =new SolidColorBrush(Colors.Black)
};
//Define the SymbolSource with the SymbolCollection.
stencil.SymbolSource = new SymbolCollection();
NodeViewModel node = new NodeViewModel()
{
UnitHeight = 100,
UnitWidth = 100,
OffsetX = 100, OffsetY = 100,
Shape = App.Current.MainWindow.Resources["Rectangle"],
Key = "Node"
};
ConnectorViewModel cvm = new ConnectorViewModel()
{
SourcePoint = new Point(100, 100),
TargetPoint = new Point(200, 200),
Key="Connector"
};
GroupViewModel grp = new GroupViewModel()
{
Key="Group",
Nodes = new NodeCollection()
{
new NodeViewModel()
{
ID="srcnode",
UnitHeight=70,
UnitWidth=100,
OffsetX=0,
OffsetY=300,
Shape=App.Current.Resources["Rectangle"]
},
new NodeViewModel()
{
ID="tarnode",
UnitHeight=70,
UnitWidth=100,
OffsetX=100,
OffsetY=500,
Shape=App.Current.Resources["Rectangle"]
}
},
Connectors = new ConnectorCollection()
{
new ConnectorViewModel()
{
SourceNodeID="srcnode",
TargetNodeID="tarnode"
}
}
};
//Add the element to the symbol collection.
(stencil.SymbolSource as SymbolCollection).Add(node);
(stencil.SymbolSource as SymbolCollection).Add(cvm);
(stencil.SymbolSource as SymbolCollection).Add(grp);
//Define the SymbolGroups.
stencil.SymbolGroups = new SymbolGroups()
{
new SymbolGroupProvider()
{
MappingName = "Key"
}
};
Customize the appearance of the symbol group header
You can customize the appearance of each SymbolGroup header by changing the header property style. The following code explains how to customize the appearance of the symbol group header.
<!--Style for Symbol Group-->
<Style TargetType="stencil:SymbolGroup">
<Setter Property="FontFamily" Value="Comic Sans MS"/>
<Setter Property="Background" Value="#ffffff"/>
<Setter Property="Foreground" Value="Brown"/>
<Setter Property="FontSize" Value="14"/>
<Setter Property="HeaderTemplate">
<Setter.Value>
<DataTemplate>
<stencil:Header>
<stencil:Header.Template>
<ControlTemplate TargetType="stencil:Header">
<Grid>
<Border x:Name="header" Background="#ffffff" BorderBrush="#Brown" BorderThickness="1">
<ContentPresenter Margin="10" Content="{Binding}"/>
</Border>
</Grid>
</ControlTemplate>
</stencil:Header.Template>
</stencil:Header>
</DataTemplate>
</Setter.Value>
</Setter>
</Style>
Expand and collapse the symbol group
When there is more number of symbol groups in the stencil, then you can expand and collapse the symbol groups using the ExpandMode property of Stencil class. The ExpandMode property allows you to decide the number of symbol groups that can be expanded in a stencil.
| ExpandMode | Description | Output |
|---|---|---|
| All | Enables all the symbol group that can be expanded |  |
| One | Enables only one symbol group that can be expanded |  |

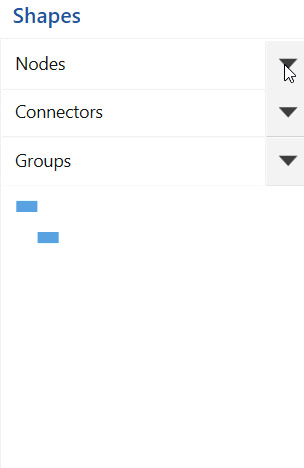

| OneOrMore | Enables one or more symbol group that can be expanded |  |

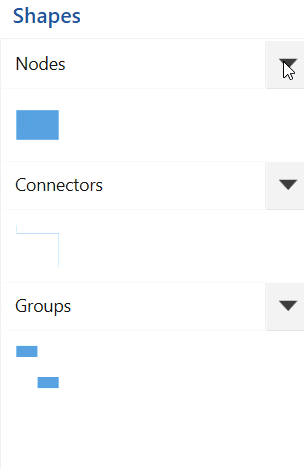

| ZeroOrMore | Enables none or more symbol group that can be expanded |  |
| ZeroOrOne | Enables none or one symbol group that can be expanded |  |
Symbol categories
There are plenty of shapes available in the diagram resource dictionary. It takes more time and allows repeated code samples to add all symbols to the stencil. To avoid this, the shapes are split and categorized as a list of symbols in the StencilCategory class. You can add more than one category using the Categories property of the stencil class.
The Categories can be mentioned by using the following properties of the StencilCategory class:
- Keys: Specifies the static resource key name value of the category collection.
- Title: Specifies the title that should be displayed as a header of the category collection.
Built-in symbol categories
The built-in shape paths available in the diagram resource dictionary are grouped by categories. The following are the built-in categories being available in the diagram resource dictionary:
- BasicShapes
- FlowShapes
- ArrowShapes
- DataFlowShapes
- UMLActivity
- UMLUseCase
- UMLRelationship
- ElectricalShapes
- SwimlaneShapes
- BPMNEditorShapes
<!--Initialize the stencil-->
<Stencil:Stencil x:Name="stencil" Title="Shapes" TitleTemplate="{StaticResource TitleTemplate}"
ExpandMode="ZeroOrMore" BorderBrush="#dfdfdf" BorderThickness="1">
<!--Initialize the stencil categories-->
<Stencil:Stencil.Categories>
<Stencil:StencilCategoryCollection>
<!--Specify the basic shapes category with title and resource key-->
<Stencil:StencilCategory Title="Basic Shapes" Keys="{StaticResource BasicShapes}"/>
</Stencil:StencilCategoryCollection>
</Stencil:Stencil.Categories>
<Stencil:Stencil.SymbolGroups>
<Stencil:SymbolGroups>
<!--Separate groups based on the key-->
<Stencil:SymbolGroupProvider MappingName="Key" />
</Stencil:SymbolGroups>
</Stencil:Stencil.SymbolGroups>
</Stencil:Stencil>
Add the custom shapes categories
The custom symbol collections can be added to the stencil by defining the custom symbol’s resource collection.
<!--custom path data-->
<sys:String x:Key="CustomPath">
F1M1.66,0.25C0.882,0.25,0.25,0.881,0.25,1.66L0.25,24.622C0.25,25.401,0.882,26.032,1.66,26.032L4.48,26.032C5.259,26.032,5.89,25.401,5.89,24.622L5.89,1.66C5.89,0.881,5.259,0.25,4.48,0.25z
</sys:String>
<!--custom shapes collection-->
<x:Array Type="sys:String" x:Key="customShapeCollection">
<sys:String>Rectangle</sys:String>
<sys:String>Cube</sys:String>
<sys:String>Triangle</sys:String>
<sys:String>Ellipse</sys:String>
<sys:String>CustomPath</sys:String>
</x:Array>
<DataTemplate x:Key="TitleTemplate">
<TextBlock x:Name="HeaderText" Text="{Binding}" FontSize="15" FontWeight="SemiBold" Foreground="#2b579a" >
</TextBlock>
</DataTemplate>
<!--Initialize the stencil-->
<Stencil:Stencil x:Name="stencil" Title="Shapes" TitleTemplate="{StaticResource TitleTemplate}" ExpandMode="ZeroOrMore"
BorderBrush="#dfdfdf" BorderThickness="1">
<!--Initialize the stencil categories-->
<Stencil:Stencil.Categories>
<Stencil:StencilCategoryCollection>
<!--Specify the custom shapes category with title and resource key-->
<Stencil:StencilCategory Title="Custom shapes" Keys="{StaticResource customShapeCollection}"/>
</Stencil:StencilCategoryCollection>
</Stencil:Stencil.Categories>
<Stencil:Stencil.SymbolGroups>
<Stencil:SymbolGroups>
<!--Separate groups based on the key-->
<Stencil:SymbolGroupProvider MappingName="Key" />
</Stencil:SymbolGroups>
</Stencil:Stencil.SymbolGroups>
</Stencil:Stencil>
NOTE
The custom symbol collections should be added in the App.xaml file.
Customize the appearance of the symbols in the built-in categories
The symbol sizes for the built-in symbol categories are equivalent to the Visio symbol size. Each symbol available in the category collection can be customized by the PrepareSymbolViewModel virtual method of the stencil class. Symbols can be modified by using the following properties of the PrepareSymbolViewModel method:
-
Item: To modify the symbol and its properties. -
SymbolName: To know the name of the symbol. -
CategoryName: To know the name of the category.
Also, you can decide whether a symbol can be added to the stencil symbol collection or not. It can be achieved by using the Cancel property of CanAddSymbol, the virtual method of stencil class.
/// <summary>
/// The custom class for the stencil view model.
/// </summary>
public class StencilViewModel : Stencil
{
/// <summary>
/// Overridden method to change the symbol.
/// </summary>
/// <param name="Item">Item value of the shape</param>
/// <param name="SymbolName">Name of the symbol</param>
/// <param name="CategoryName">Name of the category</param>
/// <returns>Return the item of the shape</returns>
protected override object PrepareSymbolViewModel(object Item, string SymbolName, string CategoryName)
{
if (SymbolName == "Rectangle")
{
(Item as INode).UnitWidth = 80;
(Item as INode).UnitHeight = 40;
return Item;
}
else
return base.PrepareSymbolViewModel(Item, SymbolName, CategoryName);
}
/// <summary>
/// Overidden method to decide whether a symbol can be added or not
/// </summary>
/// <param name="symbolName">Name of the symbol</param>
/// <param name="categoryName">Name of the category</param>
/// <returns>Return the boolean</returns>
protected override bool CanAddSymbol(string symbolName, string categoryName)
{
if (symbolName == "Triangle")
{
return false;
}
return base.CanAddSymbol(symbolName, categoryName);
}
}
