Force-Directed Tree Layout in WPF Diagram
18 Nov 201824 minutes to read

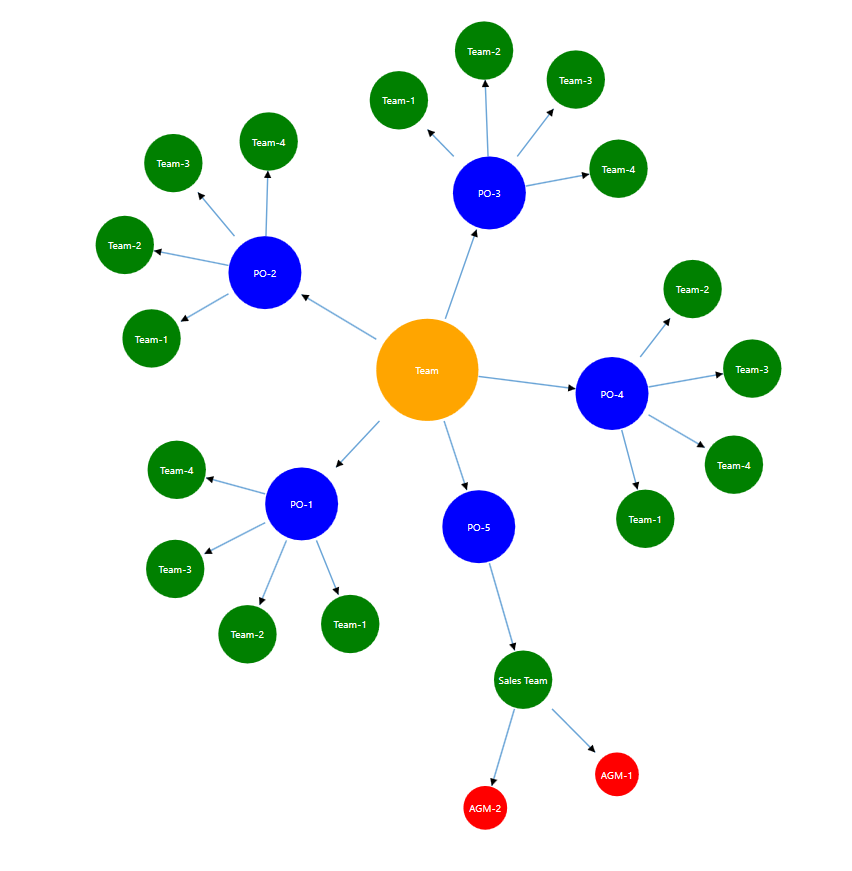

The Force-Directed Tree Layout arranges nodes using a physics simulation: nodes repel each other to avoid overlap, while connectors behave like springs that pull related nodes together. This produces organic, visually balanced diagrams that work well for scenarios such as social graphs, dependency maps, and knowledge networks.
Properties for Configuring Force-Directed Tree Layout (WPF)
The following properties are used to configure the Force-Directed Tree Layout. Default values are taken from the ForceDirectedTreeLayout class:
-
MaximumIteration (integer, default:
300, recommended range: 100–5000)- Number of simulation cycles the algorithm runs to stabilize node positions.
- Trade-off: Higher values produce more stable layouts but increase CPU time. Start with 500–2500 for typical diagrams.
-
RepulsionStrength (double, default:
5000, typical range: 3000–50000)- Magnitude of the repulsive force between nodes, preventing overlap and crowding. The values are abstract units; larger numbers produce stronger repulsion and more spread between nodes.
- Trade-off: Increase for more separation; decrease for denser layouts. Large values may slow layout.
-
AttractionStrength (double, default:
0.5, range: 0..1)- How strongly connected nodes are pulled toward each other (a unit less coefficient between 0 and 1).
- Trade-off: Values closer to 1 create tighter clusters; lower values allow connected nodes to spread out and ease congestion.

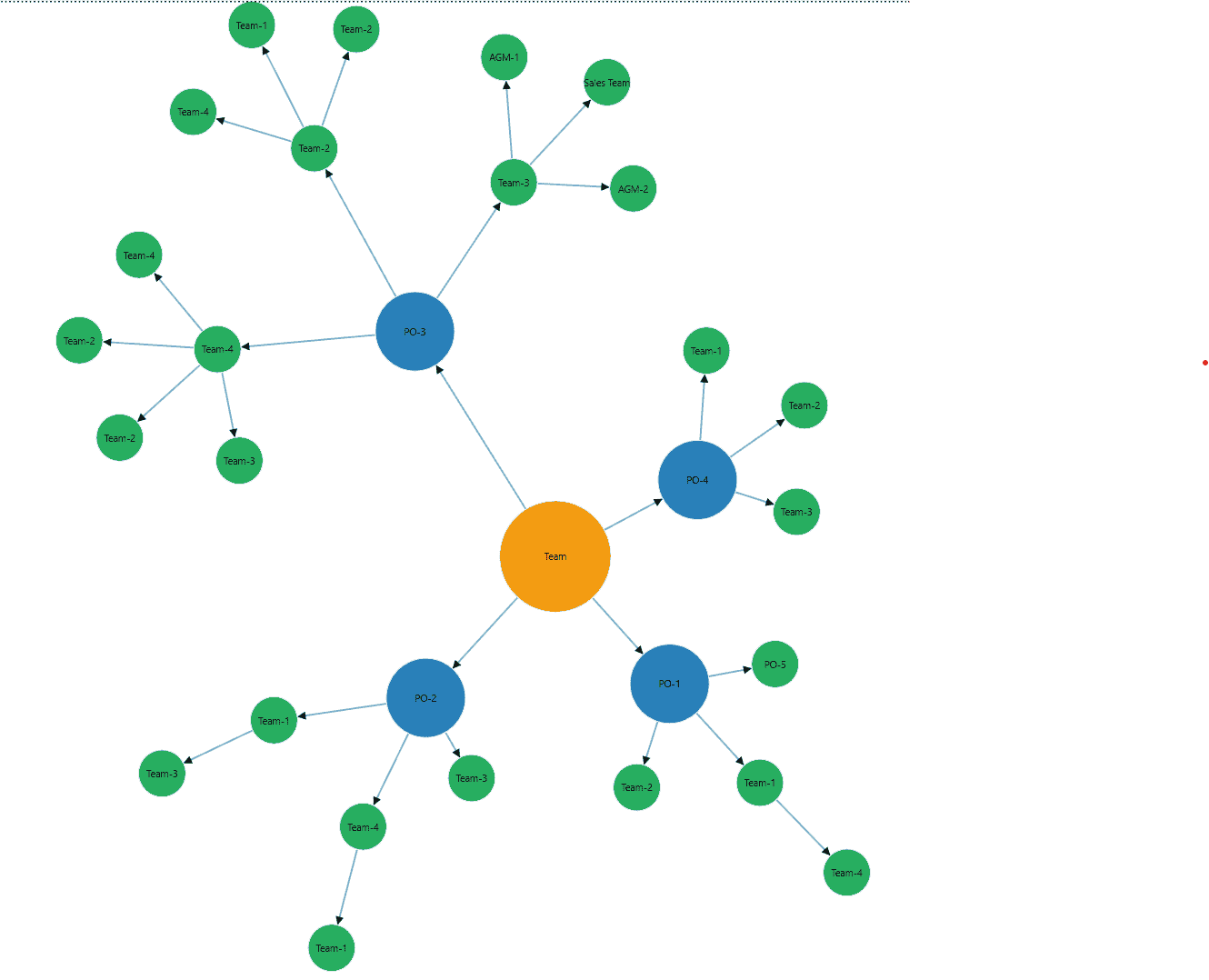

Create a layout using Nodes and Connectors
Define the nodes and connectors in XAML, then configure the layout with ForceDirectedTreeLayout.
The XAML below uses a custom NodeViewModel-derived type, CustomNodeViewModel, that exposes a Tag property and a parameterless constructor (required so that the type can be instantiated through XAML property syntax). You can place it in the same project as your SfDiagram:
<!-- Add the diagram namespace in your Window/UserControl root: -->
<!-- xmlns:Syncfusion="clr-namespace:Syncfusion.UI.Xaml.Diagram;assembly=Syncfusion.SfDiagram.Wpf" -->
<Syncfusion:SfDiagram x:Name="Diagram"
DefaultConnectorType="Line"
HorizontalAlignment="Stretch"
VerticalAlignment="Stretch">
<Syncfusion:SfDiagram.Nodes>
<Syncfusion:NodeCollection>
<!-- Root -->
<local:CustomNodeViewModel ID="Node1" UnitWidth="140" UnitHeight="140" Tag="Root">
<local:CustomNodeViewModel.Shape>
<EllipseGeometry RadiusX="70" RadiusY="70" Center="70,70" />
</local:CustomNodeViewModel.Shape>
<local:CustomNodeViewModel.Annotations>
<Syncfusion:AnnotationCollection>
<Syncfusion:AnnotationEditorViewModel Content="Team" />
</Syncfusion:AnnotationCollection>
</local:CustomNodeViewModel.Annotations>
</local:CustomNodeViewModel>
<!-- Parents (PO-1 .. PO-5) -->
<local:CustomNodeViewModel ID="Node2" UnitWidth="100" UnitHeight="100" Tag="Parent">
<local:CustomNodeViewModel.Shape>
<EllipseGeometry RadiusX="50" RadiusY="50" Center="50,50"/>
</local:CustomNodeViewModel.Shape>
<local:CustomNodeViewModel.Annotations>
<Syncfusion:AnnotationCollection>
<Syncfusion:AnnotationEditorViewModel Content="PO-1"/>
</Syncfusion:AnnotationCollection>
</local:CustomNodeViewModel.Annotations>
</local:CustomNodeViewModel>
<local:CustomNodeViewModel ID="Node3" UnitWidth="100" UnitHeight="100" Tag="Parent">
<local:CustomNodeViewModel.Shape>
<EllipseGeometry RadiusX="50" RadiusY="50" Center="50,50"/>
</local:CustomNodeViewModel.Shape>
<local:CustomNodeViewModel.Annotations>
<Syncfusion:AnnotationCollection>
<Syncfusion:AnnotationEditorViewModel Content="PO-2"/>
</Syncfusion:AnnotationCollection>
</local:CustomNodeViewModel.Annotations>
</local:CustomNodeViewModel>
<local:CustomNodeViewModel ID="Node4" UnitWidth="100" UnitHeight="100" Tag="Parent">
<local:CustomNodeViewModel.Shape>
<EllipseGeometry RadiusX="50" RadiusY="50" Center="50,50"/>
</local:CustomNodeViewModel.Shape>
<local:CustomNodeViewModel.Annotations>
<Syncfusion:AnnotationCollection>
<Syncfusion:AnnotationEditorViewModel Content="PO-3"/>
</Syncfusion:AnnotationCollection>
</local:CustomNodeViewModel.Annotations>
</local:CustomNodeViewModel>
<local:CustomNodeViewModel ID="Node5" UnitWidth="100" UnitHeight="100" Tag="Parent">
<local:CustomNodeViewModel.Shape>
<EllipseGeometry RadiusX="50" RadiusY="50" Center="50,50"/>
</local:CustomNodeViewModel.Shape>
<local:CustomNodeViewModel.Annotations>
<Syncfusion:AnnotationCollection>
<Syncfusion:AnnotationEditorViewModel Content="PO-4"/>
</Syncfusion:AnnotationCollection>
</local:CustomNodeViewModel.Annotations>
</local:CustomNodeViewModel>
<local:CustomNodeViewModel ID="Node6" UnitWidth="100" UnitHeight="100" Tag="Parent">
<local:CustomNodeViewModel.Shape>
<EllipseGeometry RadiusX="50" RadiusY="50" Center="50,50"/>
</local:CustomNodeViewModel.Shape>
<local:CustomNodeViewModel.Annotations>
<Syncfusion:AnnotationCollection>
<Syncfusion:AnnotationEditorViewModel Content="PO-5"/>
</Syncfusion:AnnotationCollection>
</local:CustomNodeViewModel.Annotations>
</local:CustomNodeViewModel>
<!-- Children (7..30) with labels -->
<local:CustomNodeViewModel ID="Node7" UnitWidth="60" UnitHeight="60" Tag="Child">
<local:CustomNodeViewModel.Shape>
<EllipseGeometry RadiusX="30" RadiusY="30" Center="30,30"/>
</local:CustomNodeViewModel.Shape>
<local:CustomNodeViewModel.Annotations>
<Syncfusion:AnnotationCollection>
<Syncfusion:AnnotationEditorViewModel Content="Team-1"/>
</Syncfusion:AnnotationCollection>
</local:CustomNodeViewModel.Annotations>
</local:CustomNodeViewModel>
<local:CustomNodeViewModel ID="Node8" UnitWidth="60" UnitHeight="60" Tag="Child">
<local:CustomNodeViewModel.Shape>
<EllipseGeometry RadiusX="30" RadiusY="30" Center="30,30"/>
</local:CustomNodeViewModel.Shape>
<local:CustomNodeViewModel.Annotations>
<Syncfusion:AnnotationCollection>
<Syncfusion:AnnotationEditorViewModel Content="Team-2"/>
</Syncfusion:AnnotationCollection>
</local:CustomNodeViewModel.Annotations>
</local:CustomNodeViewModel>
<local:CustomNodeViewModel ID="Node9" UnitWidth="60" UnitHeight="60" Tag="Child">
<local:CustomNodeViewModel.Shape>
<EllipseGeometry RadiusX="30" RadiusY="30" Center="30,30"/>
</local:CustomNodeViewModel.Shape>
<local:CustomNodeViewModel.Annotations>
<Syncfusion:AnnotationCollection>
<Syncfusion:AnnotationEditorViewModel Content="Team-3"/>
</Syncfusion:AnnotationCollection>
</local:CustomNodeViewModel.Annotations>
</local:CustomNodeViewModel>
<local:CustomNodeViewModel ID="Node10" UnitWidth="60" UnitHeight="60" Tag="Child">
<local:CustomNodeViewModel.Shape>
<EllipseGeometry RadiusX="30" RadiusY="30" Center="30,30"/>
</local:CustomNodeViewModel.Shape>
<local:CustomNodeViewModel.Annotations>
<Syncfusion:AnnotationCollection>
<Syncfusion:AnnotationEditorViewModel Content="Team-4"/>
</Syncfusion:AnnotationCollection>
</local:CustomNodeViewModel.Annotations>
</local:CustomNodeViewModel>
<!-- Nodes 11..24 (children) -->
<local:CustomNodeViewModel ID="Node11" UnitWidth="60" UnitHeight="60" Tag="Child">
<local:CustomNodeViewModel.Shape>
<EllipseGeometry RadiusX="30" RadiusY="30" Center="30,30"/>
</local:CustomNodeViewModel.Shape>
<local:CustomNodeViewModel.Annotations>
<Syncfusion:AnnotationCollection>
<Syncfusion:AnnotationEditorViewModel Content="Team-1"/>
</Syncfusion:AnnotationCollection>
</local:CustomNodeViewModel.Annotations>
</local:CustomNodeViewModel>
<local:CustomNodeViewModel ID="Node12" UnitWidth="60" UnitHeight="60" Tag="Child">
<local:CustomNodeViewModel.Shape>
<EllipseGeometry RadiusX="30" RadiusY="30" Center="30,30"/>
</local:CustomNodeViewModel.Shape>
<local:CustomNodeViewModel.Annotations>
<Syncfusion:AnnotationCollection>
<Syncfusion:AnnotationEditorViewModel Content="Team-2"/>
</Syncfusion:AnnotationCollection>
</local:CustomNodeViewModel.Annotations>
</local:CustomNodeViewModel>
<local:CustomNodeViewModel ID="Node13" UnitWidth="60" UnitHeight="60" Tag="Child">
<local:CustomNodeViewModel.Shape>
<EllipseGeometry RadiusX="30" RadiusY="30" Center="30,30"/>
</local:CustomNodeViewModel.Shape>
<local:CustomNodeViewModel.Annotations>
<Syncfusion:AnnotationCollection>
<Syncfusion:AnnotationEditorViewModel Content="Team-3"/>
</Syncfusion:AnnotationCollection>
</local:CustomNodeViewModel.Annotations>
</local:CustomNodeViewModel>
<local:CustomNodeViewModel ID="Node14" UnitWidth="60" UnitHeight="60" Tag="Child">
<local:CustomNodeViewModel.Shape>
<EllipseGeometry RadiusX="30" RadiusY="30" Center="30,30"/>
</local:CustomNodeViewModel.Shape>
<local:CustomNodeViewModel.Annotations>
<Syncfusion:AnnotationCollection>
<Syncfusion:AnnotationEditorViewModel Content="Team-4"/>
</Syncfusion:AnnotationCollection>
</local:CustomNodeViewModel.Annotations>
</local:CustomNodeViewModel>
<local:CustomNodeViewModel ID="Node15" UnitWidth="60" UnitHeight="60" Tag="Child">
<local:CustomNodeViewModel.Shape>
<EllipseGeometry RadiusX="30" RadiusY="30" Center="30,30"/>
</local:CustomNodeViewModel.Shape>
<local:CustomNodeViewModel.Annotations>
<Syncfusion:AnnotationCollection>
<Syncfusion:AnnotationEditorViewModel Content="Team-1"/>
</Syncfusion:AnnotationCollection>
</local:CustomNodeViewModel.Annotations>
</local:CustomNodeViewModel>
<local:CustomNodeViewModel ID="Node16" UnitWidth="60" UnitHeight="60" Tag="Child">
<local:CustomNodeViewModel.Shape>
<EllipseGeometry RadiusX="30" RadiusY="30" Center="30,30"/>
</local:CustomNodeViewModel.Shape>
<local:CustomNodeViewModel.Annotations>
<Syncfusion:AnnotationCollection>
<Syncfusion:AnnotationEditorViewModel Content="Team-2"/>
</Syncfusion:AnnotationCollection>
</local:CustomNodeViewModel.Annotations>
</local:CustomNodeViewModel>
<local:CustomNodeViewModel ID="Node17" UnitWidth="60" UnitHeight="60" Tag="Child">
<local:CustomNodeViewModel.Shape>
<EllipseGeometry RadiusX="30" RadiusY="30" Center="30,30"/>
</local:CustomNodeViewModel.Shape>
<local:CustomNodeViewModel.Annotations>
<Syncfusion:AnnotationCollection>
<Syncfusion:AnnotationEditorViewModel Content="Team-3"/>
</Syncfusion:AnnotationCollection>
</local:CustomNodeViewModel.Annotations>
</local:CustomNodeViewModel>
<local:CustomNodeViewModel ID="Node18" UnitWidth="60" UnitHeight="60" Tag="Child">
<local:CustomNodeViewModel.Shape>
<EllipseGeometry RadiusX="30" RadiusY="30" Center="30,30"/>
</local:CustomNodeViewModel.Shape>
<local:CustomNodeViewModel.Annotations>
<Syncfusion:AnnotationCollection>
<Syncfusion:AnnotationEditorViewModel Content="Team-4"/>
</Syncfusion:AnnotationCollection>
</local:CustomNodeViewModel.Annotations>
</local:CustomNodeViewModel>
<local:CustomNodeViewModel ID="Node19" UnitWidth="60" UnitHeight="60" Tag="Child">
<local:CustomNodeViewModel.Shape>
<EllipseGeometry RadiusX="30" RadiusY="30" Center="30,30"/>
</local:CustomNodeViewModel.Shape>
<local:CustomNodeViewModel.Annotations>
<Syncfusion:AnnotationCollection>
<Syncfusion:AnnotationEditorViewModel Content="Team-1"/>
</Syncfusion:AnnotationCollection>
</local:CustomNodeViewModel.Annotations>
</local:CustomNodeViewModel>
<local:CustomNodeViewModel ID="Node20" UnitWidth="60" UnitHeight="60" Tag="Child">
<local:CustomNodeViewModel.Shape>
<EllipseGeometry RadiusX="30" RadiusY="30" Center="30,30"/>
</local:CustomNodeViewModel.Shape>
<local:CustomNodeViewModel.Annotations>
<Syncfusion:AnnotationCollection>
<Syncfusion:AnnotationEditorViewModel Content="Team-2"/>
</Syncfusion:AnnotationCollection>
</local:CustomNodeViewModel.Annotations>
</local:CustomNodeViewModel>
<local:CustomNodeViewModel ID="Node21" UnitWidth="60" UnitHeight="60" Tag="Child">
<local:CustomNodeViewModel.Shape>
<EllipseGeometry RadiusX="30" RadiusY="30" Center="30,30"/>
</local:CustomNodeViewModel.Shape>
<local:CustomNodeViewModel.Annotations>
<Syncfusion:AnnotationCollection>
<Syncfusion:AnnotationEditorViewModel Content="Team-3"/>
</Syncfusion:AnnotationCollection>
</local:CustomNodeViewModel.Annotations>
</local:CustomNodeViewModel>
<local:CustomNodeViewModel ID="Node22" UnitWidth="60" UnitHeight="60" Tag="Child">
<local:CustomNodeViewModel.Shape>
<EllipseGeometry RadiusX="30" RadiusY="30" Center="30,30"/>
</local:CustomNodeViewModel.Shape>
<local:CustomNodeViewModel.Annotations>
<Syncfusion:AnnotationCollection>
<Syncfusion:AnnotationEditorViewModel Content="Team-4"/>
</Syncfusion:AnnotationCollection>
</local:CustomNodeViewModel.Annotations>
</local:CustomNodeViewModel>
<local:CustomNodeViewModel ID="Node23" UnitWidth="60" UnitHeight="60" Tag="Child">
<local:CustomNodeViewModel.Shape>
<EllipseGeometry RadiusX="30" RadiusY="30" Center="30,30"/>
</local:CustomNodeViewModel.Shape>
<local:CustomNodeViewModel.Annotations>
<Syncfusion:AnnotationCollection>
<Syncfusion:AnnotationEditorViewModel Content="Team-1"/>
</Syncfusion:AnnotationCollection>
</local:CustomNodeViewModel.Annotations>
</local:CustomNodeViewModel>
<local:CustomNodeViewModel ID="Node24" UnitWidth="60" UnitHeight="60" Tag="Child">
<local:CustomNodeViewModel.Shape>
<EllipseGeometry RadiusX="30" RadiusY="30" Center="30,30"/>
</local:CustomNodeViewModel.Shape>
<local:CustomNodeViewModel.Annotations>
<Syncfusion:AnnotationCollection>
<Syncfusion:AnnotationEditorViewModel Content="Team-2"/>
</Syncfusion:AnnotationCollection>
</local:CustomNodeViewModel.Annotations>
</local:CustomNodeViewModel>
<local:CustomNodeViewModel ID="Node25" UnitWidth="60" UnitHeight="60" Tag="Child">
<local:CustomNodeViewModel.Shape>
<EllipseGeometry RadiusX="30" RadiusY="30" Center="30,30"/>
</local:CustomNodeViewModel.Shape>
<local:CustomNodeViewModel.Annotations>
<Syncfusion:AnnotationCollection>
<Syncfusion:AnnotationEditorViewModel Content="Sales Team"/>
</Syncfusion:AnnotationCollection>
</local:CustomNodeViewModel.Annotations>
</local:CustomNodeViewModel>
<local:CustomNodeViewModel ID="Node26" UnitWidth="40" UnitHeight="40" Tag="Child">
<local:CustomNodeViewModel.Shape>
<EllipseGeometry RadiusX="20" RadiusY="20" Center="20,20"/>
</local:CustomNodeViewModel.Shape>
<local:CustomNodeViewModel.Annotations>
<Syncfusion:AnnotationCollection>
<Syncfusion:AnnotationEditorViewModel Content="AGM-1"/>
</Syncfusion:AnnotationCollection>
</local:CustomNodeViewModel.Annotations>
</local:CustomNodeViewModel>
<local:CustomNodeViewModel ID="Node27" UnitWidth="40" UnitHeight="40" Tag="Child">
<local:CustomNodeViewModel.Shape>
<EllipseGeometry RadiusX="20" RadiusY="20" Center="20,20"/>
</local:CustomNodeViewModel.Shape>
<local:CustomNodeViewModel.Annotations>
<Syncfusion:AnnotationCollection>
<Syncfusion:AnnotationEditorViewModel Content="AGM-2"/>
</Syncfusion:AnnotationCollection>
</local:CustomNodeViewModel.Annotations>
</local:CustomNodeViewModel>
<local:CustomNodeViewModel ID="Node28" UnitWidth="60" UnitHeight="60" Tag="Child">
<local:CustomNodeViewModel.Shape>
<EllipseGeometry RadiusX="30" RadiusY="30" Center="30,30"/>
</local:CustomNodeViewModel.Shape>
<local:CustomNodeViewModel.Annotations>
<Syncfusion:AnnotationCollection>
<Syncfusion:AnnotationEditorViewModel Content="Team-4"/>
</Syncfusion:AnnotationCollection>
</local:CustomNodeViewModel.Annotations>
</local:CustomNodeViewModel>
<local:CustomNodeViewModel ID="Node29" UnitWidth="60" UnitHeight="60" Tag="Child">
<local:CustomNodeViewModel.Shape>
<EllipseGeometry RadiusX="30" RadiusY="30" Center="30,30"/>
</local:CustomNodeViewModel.Shape>
<local:CustomNodeViewModel.Annotations>
<Syncfusion:AnnotationCollection>
<Syncfusion:AnnotationEditorViewModel Content="Team-3"/>
</Syncfusion:AnnotationCollection>
</local:CustomNodeViewModel.Annotations>
</local:CustomNodeViewModel>
<local:CustomNodeViewModel ID="Node30" UnitWidth="60" UnitHeight="60" Tag="Child">
<local:CustomNodeViewModel.Shape>
<EllipseGeometry RadiusX="30" RadiusY="30" Center="30,30"/>
</local:CustomNodeViewModel.Shape>
<local:CustomNodeViewModel.Annotations>
<Syncfusion:AnnotationCollection>
<Syncfusion:AnnotationEditorViewModel Content="Team-2"/>
</Syncfusion:AnnotationCollection>
</local:CustomNodeViewModel.Annotations>
</local:CustomNodeViewModel>
</Syncfusion:NodeCollection>
</Syncfusion:SfDiagram.Nodes>
<!-- Connectors -->
<Syncfusion:SfDiagram.Connectors>
<Syncfusion:ConnectorCollection>
<!-- Level 0 -> Level 1 -->
<Syncfusion:ConnectorViewModel ID="Node1->Node2" SourceNodeID="Node1" TargetNodeID="Node2" />
<Syncfusion:ConnectorViewModel ID="Node1->Node3" SourceNodeID="Node1" TargetNodeID="Node3" />
<Syncfusion:ConnectorViewModel ID="Node1->Node4" SourceNodeID="Node1" TargetNodeID="Node4" />
<Syncfusion:ConnectorViewModel ID="Node1->Node5" SourceNodeID="Node1" TargetNodeID="Node5" />
<!-- Level 1 -> Level 2 -->
<Syncfusion:ConnectorViewModel ID="Node2->Node6" SourceNodeID="Node2" TargetNodeID="Node6" />
<Syncfusion:ConnectorViewModel ID="Node2->Node7" SourceNodeID="Node2" TargetNodeID="Node7" />
<Syncfusion:ConnectorViewModel ID="Node2->Node8" SourceNodeID="Node2" TargetNodeID="Node8" />
<Syncfusion:ConnectorViewModel ID="Node3->Node9" SourceNodeID="Node3" TargetNodeID="Node9" />
<Syncfusion:ConnectorViewModel ID="Node3->Node10" SourceNodeID="Node3" TargetNodeID="Node10" />
<Syncfusion:ConnectorViewModel ID="Node3->Node11" SourceNodeID="Node3" TargetNodeID="Node11" />
<Syncfusion:ConnectorViewModel ID="Node4->Node12" SourceNodeID="Node4" TargetNodeID="Node12" />
<Syncfusion:ConnectorViewModel ID="Node4->Node13" SourceNodeID="Node4" TargetNodeID="Node13" />
<Syncfusion:ConnectorViewModel ID="Node4->Node14" SourceNodeID="Node4" TargetNodeID="Node14" />
<Syncfusion:ConnectorViewModel ID="Node5->Node15" SourceNodeID="Node5" TargetNodeID="Node15" />
<Syncfusion:ConnectorViewModel ID="Node5->Node16" SourceNodeID="Node5" TargetNodeID="Node16" />
<Syncfusion:ConnectorViewModel ID="Node5->Node17" SourceNodeID="Node5" TargetNodeID="Node17" />
<!-- Leaves and deeper children -->
<Syncfusion:ConnectorViewModel ID="Node7->Node18" SourceNodeID="Node7" TargetNodeID="Node18" />
<Syncfusion:ConnectorViewModel ID="Node10->Node19" SourceNodeID="Node10" TargetNodeID="Node19" />
<Syncfusion:ConnectorViewModel ID="Node14->Node20" SourceNodeID="Node14" TargetNodeID="Node20" />
<Syncfusion:ConnectorViewModel ID="Node11->Node21" SourceNodeID="Node11" TargetNodeID="Node21" />
<Syncfusion:ConnectorViewModel ID="Node12->Node22" SourceNodeID="Node12" TargetNodeID="Node22" />
<Syncfusion:ConnectorViewModel ID="Node12->Node23" SourceNodeID="Node12" TargetNodeID="Node23" />
<Syncfusion:ConnectorViewModel ID="Node12->Node24" SourceNodeID="Node12" TargetNodeID="Node24" />
<Syncfusion:ConnectorViewModel ID="Node13->Node25" SourceNodeID="Node13" TargetNodeID="Node25" />
<Syncfusion:ConnectorViewModel ID="Node13->Node26" SourceNodeID="Node13" TargetNodeID="Node26" />
<Syncfusion:ConnectorViewModel ID="Node13->Node27" SourceNodeID="Node13" TargetNodeID="Node27" />
<Syncfusion:ConnectorViewModel ID="Node14->Node28" SourceNodeID="Node14" TargetNodeID="Node28" />
<Syncfusion:ConnectorViewModel ID="Node14->Node29" SourceNodeID="Node14" TargetNodeID="Node29" />
<Syncfusion:ConnectorViewModel ID="Node14->Node30" SourceNodeID="Node14" TargetNodeID="Node30" />
</Syncfusion:ConnectorCollection>
</Syncfusion:SfDiagram.Connectors>
<!-- Layout manager -->
<Syncfusion:SfDiagram.LayoutManager>
<Syncfusion:LayoutManager>
<Syncfusion:LayoutManager.Layout>
<Syncfusion:ForceDirectedTreeLayout
AttractionStrength="0.6"
RepulsionStrength="25000"
MaximumIteration="2500" />
</Syncfusion:LayoutManager.Layout>
</Syncfusion:LayoutManager>
</Syncfusion:SfDiagram.LayoutManager>
</Syncfusion:SfDiagram>// Add the required using directives at the top of the file:
// using Syncfusion.UI.Xaml.Diagram;
// using Syncfusion.UI.Xaml.Diagram.ViewModel;
// using System.Collections.ObjectModel;
// using System.Windows;
// using System.Windows.Media;
// Configure the layout and create nodes/connectors in code-behind
// Replace "diagram" with the name of your SfDiagram instance in the visual tree.
var diagram = new SfDiagram();
WindowGrid.Children.Add(diagram);
diagram.Nodes = new ObservableCollection<NodeViewModel>();
diagram.Connectors = new ObservableCollection<ConnectorViewModel>();
CreatedNode(diagram);
diagram.LayoutManager = new LayoutManager()
{
Layout = new ForceDirectedTreeLayout()
{
AttractionStrength = 0.6,
RepulsionStrength = 25000,
MaximumIteration = 2500,
}
};
private void CreatedNode(SfDiagram diagram)
{
// Create nodes first
string[] labels = new[]
{
"Team", // 1 root
"PO-1", // 2
"PO-2", // 3
"PO-3", // 4
"PO-4", // 5
"PO-5", // 6
"Team-1", // 7
"Team-2", // 8
"Team-3", // 9
"Team-4", //10
"Team-1", //11
"Team-2", //12
"Team-3", //13
"Team-4", //14
"Team-1", //15
"Team-2", //16
"Team-3", //17
"Team-4", //18
"Team-1", //19
"Team-2", //20
"Team-3", //21
"Team-4", //22
"Team-1", //23
"Team-2", //24
"Sales Team", //25
"AGM-1", //26
"AGM-2", //27
"Team-4", //28
"Team-3", //29
"Team-2" //30
};
for (int i = 1; i <= 30; i++)
{
string role = GetRoleForIndex(i); // "Root","Parent","Child"
string id = $"Node{i}";
string label = labels[i - 1];
diagram.Nodes.Add(CreateNode(id, role, label));
}
// Connectors (parent -> child)
var cons = diagram.Connectors;
// Level 0 -> Level 1
cons.Add(Edge("Node1", "Node2"));
cons.Add(Edge("Node1", "Node3"));
cons.Add(Edge("Node1", "Node4"));
cons.Add(Edge("Node1", "Node5"));
// Level 1 -> Level 2
cons.Add(Edge("Node2", "Node6"));
cons.Add(Edge("Node2", "Node7"));
cons.Add(Edge("Node2", "Node8"));
cons.Add(Edge("Node3", "Node9"));
cons.Add(Edge("Node3", "Node10"));
cons.Add(Edge("Node3", "Node11"));
cons.Add(Edge("Node4", "Node12"));
cons.Add(Edge("Node4", "Node13"));
cons.Add(Edge("Node4", "Node14"));
cons.Add(Edge("Node5", "Node15"));
cons.Add(Edge("Node5", "Node16"));
cons.Add(Edge("Node5", "Node17"));
// Leaves and deeper children
cons.Add(Edge("Node7", "Node18"));
cons.Add(Edge("Node10", "Node19"));
cons.Add(Edge("Node14", "Node20"));
cons.Add(Edge("Node11", "Node21"));
cons.Add(Edge("Node12", "Node22"));
cons.Add(Edge("Node12", "Node23"));
cons.Add(Edge("Node12", "Node24"));
cons.Add(Edge("Node13", "Node25"));
cons.Add(Edge("Node13", "Node26"));
cons.Add(Edge("Node13", "Node27"));
cons.Add(Edge("Node14", "Node28"));
cons.Add(Edge("Node14", "Node29"));
cons.Add(Edge("Node14", "Node30"));
}
// Determine role by index (adjust ranges as needed)
private string GetRoleForIndex(int index)
{
if (index == 1) return "Root";
if (index >= 2 && index <= 5) return "Parent";
return "Child";
}
private CustomNodeViewModel CreateNode(string id, string role, string label)
{
double size = role == "Root" ? 140 : role == "Parent" ? 100 : 60;
EllipseGeometry geom = new EllipseGeometry(new Point(size / 2, size / 2), size / 2, size / 2);
CustomNodeViewModel node = new CustomNodeViewModel
{
ID = id,
UnitWidth = size,
UnitHeight = size,
Tag = role,
Shape = geom,
Annotations = new ObservableCollection<IAnnotation>
{
new AnnotationEditorViewModel
{
Content = label
}
}
};
return node;
}
private ConnectorViewModel Edge(string sourceId, string targetId)
{
return new ConnectorViewModel
{
ID = $"{sourceId}->{targetId}",
SourceNodeID = sourceId,
TargetNodeID = targetId
};
}
// CustomNodeViewModel class
public class CustomNodeViewModel : NodeViewModel
{
public CustomNodeViewModel()
{
}
public string Tag { get; set; }
}
Create a Force-Directed Tree from a data source
Bind a collection to DataSourceSettings. One item must omit or null its Manager property to act as the root. Configure the LayoutManager with ForceDirectedTreeLayout.
The shape size, label, and fill color consumed by the data-driven example are set on the ForceDirectedDetails business object (Width, Height, Role, Color) but are applied in code by a custom NodeStyle or via the ItemAdded event, because DataSourceSettings (unlike FlowchartDataSourceSettings) does not provide WidthMapping/HeightMapping mappings. The example below sets the labels on the diagram via a custom node view model after item creation.
The
Commandscollection onIGraphInfoexposes built-in commands such asFitToPage, which sizes the viewport to fit the entire diagram. It is only available after the diagram is loaded.
<!-- Define items and wire DataSourceSettings, Layout, and LayoutManager in XAML -->
<local:ForceDirectedDataItems x:Key="ForceDirectedSource">
<local:ForceDirectedDetails Id="Dev" Role="Team" Color="Orange" Width="140" Height="140" />
<local:ForceDirectedDetails Id="Dept" Role="PO-5" Manager="Dev" Color="Blue" Width="100" Height="100" />
<local:ForceDirectedDetails Id="PO1" Role="PO-1" Manager="Dev" Color="Blue" Width="100" Height="100" />
<local:ForceDirectedDetails Id="PO2" Role="PO-2" Manager="Dev" Color="Blue" Width="100" Height="100" />
<local:ForceDirectedDetails Id="PO3" Role="PO-3" Manager="Dev" Color="Blue" Width="100" Height="100" />
<local:ForceDirectedDetails Id="PO4" Role="PO-4" Manager="Dev" Color="Blue" Width="100" Height="100" />
<local:ForceDirectedDetails Id="PO1_T1" Role="Team-1" Manager="PO1" Color="Green" Width="80" Height="80" />
<local:ForceDirectedDetails Id="PO1_T2" Role="Team-2" Manager="PO1" Color="Green" Width="80" Height="80" />
<local:ForceDirectedDetails Id="PO1_T3" Role="Team-3" Manager="PO1" Color="Green" Width="80" Height="80" />
<local:ForceDirectedDetails Id="PO1_T4" Role="Team-4" Manager="PO1" Color="Green" Width="80" Height="80" />
<local:ForceDirectedDetails Id="PO2_T1" Role="Team-1" Manager="PO2" Color="Green" Width="80" Height="80" />
<local:ForceDirectedDetails Id="PO2_T2" Role="Team-2" Manager="PO2" Color="Green" Width="80" Height="80" />
<local:ForceDirectedDetails Id="PO2_T3" Role="Team-3" Manager="PO2" Color="Green" Width="80" Height="80" />
<local:ForceDirectedDetails Id="PO2_T4" Role="Team-4" Manager="PO2" Color="Green" Width="80" Height="80" />
<local:ForceDirectedDetails Id="PO3_T1" Role="Team-1" Manager="PO3" Color="Green" Width="80" Height="80" />
<local:ForceDirectedDetails Id="PO3_T2" Role="Team-2" Manager="PO3" Color="Green" Width="80" Height="80" />
<local:ForceDirectedDetails Id="PO3_T3" Role="Team-3" Manager="PO3" Color="Green" Width="80" Height="80" />
<local:ForceDirectedDetails Id="PO3_T4" Role="Team-4" Manager="PO3" Color="Green" Width="80" Height="80" />
<local:ForceDirectedDetails Id="PO4_T1" Role="Team-1" Manager="PO4" Color="Green" Width="80" Height="80" />
<local:ForceDirectedDetails Id="PO4_T2" Role="Team-2" Manager="PO4" Color="Green" Width="80" Height="80" />
<local:ForceDirectedDetails Id="PO4_T3" Role="Team-3" Manager="PO4" Color="Green" Width="80" Height="80" />
<local:ForceDirectedDetails Id="PO4_T4" Role="Team-4" Manager="PO4" Color="Green" Width="80" Height="80" />
<local:ForceDirectedDetails Id="Sales" Role="Sales Team" Manager="Dept" Color="Green" Width="80" Height="80" />
<local:ForceDirectedDetails Id="AGM1" Role="AGM-1" Manager="Sales" Color="Red" Width="60" Height="60" />
<local:ForceDirectedDetails Id="AGM2" Role="AGM-2" Manager="Sales" Color="Red" Width="60" Height="60" />
</local:ForceDirectedDataItems>
<!--Initializes the DataSourceSettings -->
<Syncfusion:DataSourceSettings x:Key="DataSources"
DataSource="{StaticResource ForceDirectedSource}"
ParentId="Manager"
Id="Id"/>
<Syncfusion:ForceDirectedTreeLayout x:Key="layout" x:Name="DirectedTreeLayout"
AttractionStrength = "0.7"
RepulsionStrength = "25000"
MaximumIteration = "500" />
<Syncfusion:LayoutManager x:Key="Layoutmanager" Layout="{StaticResource layout}"/>// C#: Create the layout using a data source in code-behind
public class ForceDirectedDetails
{
public string Id { get; set; }
public string Role { get; set; }
public string Manager { get; set; }
public string Color { get; set; }
public double Width { get; set; }
public double Height { get; set; }
}
private List<ForceDirectedDetails> GetForceDirectedData()
{
return new List<ForceDirectedDetails>
{
new ForceDirectedDetails { Id = "Dev", Role = "Team", Color = "Orange", Width = 140, Height = 140 },
new ForceDirectedDetails { Id = "Dept", Role = "PO-5", Manager = "Dev", Color = "Blue", Width = 100, Height = 100 },
new ForceDirectedDetails { Id = "PO1", Role = "PO-1", Manager = "Dev", Color = "Blue", Width = 100, Height = 100 },
new ForceDirectedDetails { Id = "PO2", Role = "PO-2", Manager = "Dev", Color = "Blue", Width = 100, Height = 100 },
new ForceDirectedDetails { Id = "PO3", Role = "PO-3", Manager = "Dev", Color = "Blue", Width = 100, Height = 100 },
new ForceDirectedDetails { Id = "PO4", Role = "PO-4", Manager = "Dev", Color = "Blue", Width = 100, Height = 100 },
new ForceDirectedDetails { Id = "PO1_T1", Role = "Team-1", Manager = "PO1", Color = "Green", Width = 80, Height = 80 },
new ForceDirectedDetails { Id = "PO1_T2", Role = "Team-2", Manager = "PO1", Color = "Green", Width = 80, Height = 80 },
new ForceDirectedDetails { Id = "PO1_T3", Role = "Team-3", Manager = "PO1", Color = "Green", Width = 80, Height = 80 },
new ForceDirectedDetails { Id = "PO1_T4", Role = "Team-4", Manager = "PO1", Color = "Green", Width = 80, Height = 80 },
new ForceDirectedDetails { Id = "PO2_T1", Role = "Team-1", Manager = "PO2", Color = "Green", Width = 80, Height = 80 },
new ForceDirectedDetails { Id = "PO2_T2", Role = "Team-2", Manager = "PO2", Color = "Green", Width = 80, Height = 80 },
new ForceDirectedDetails { Id = "PO2_T3", Role = "Team-3", Manager = "PO2", Color = "Green", Width = 80, Height = 80 },
new ForceDirectedDetails { Id = "PO2_T4", Role = "Team-4", Manager = "PO2", Color = "Green", Width = 80, Height = 80 },
new ForceDirectedDetails { Id = "PO3_T1", Role = "Team-1", Manager = "PO3", Color = "Green", Width = 80, Height = 80 },
new ForceDirectedDetails { Id = "PO3_T2", Role = "Team-2", Manager = "PO3", Color = "Green", Width = 80, Height = 80 },
new ForceDirectedDetails { Id = "PO3_T3", Role = "Team-3", Manager = "PO3", Color = "Green", Width = 80, Height = 80 },
new ForceDirectedDetails { Id = "PO3_T4", Role = "Team-4", Manager = "PO3", Color = "Green", Width = 80, Height = 80 },
new ForceDirectedDetails { Id = "PO4_T1", Role = "Team-1", Manager = "PO4", Color = "Green", Width = 80, Height = 80 },
new ForceDirectedDetails { Id = "PO4_T2", Role = "Team-2", Manager = "PO4", Color = "Green", Width = 80, Height = 80 },
new ForceDirectedDetails { Id = "PO4_T3", Role = "Team-3", Manager = "PO4", Color = "Green", Width = 80, Height = 80 },
new ForceDirectedDetails { Id = "PO4_T4", Role = "Team-4", Manager = "PO4", Color = "Green", Width = 80, Height = 80 },
new ForceDirectedDetails { Id = "Sales", Role = "Sales Team", Manager = "Dept", Color = "Green", Width = 80, Height = 80 },
new ForceDirectedDetails { Id = "AGM1", Role = "AGM-1", Manager = "Sales", Color = "Red", Width = 60, Height = 60 },
new ForceDirectedDetails { Id = "AGM2", Role = "AGM-2", Manager = "Sales", Color = "Red", Width = 60, Height = 60 }
};
}
// Apply binding and layout (e.g., in Window Loaded).Here Diagram is the instance of the SfDiagram.
Diagram.DataSourceSettings = new DataSourceSettings()
{
Id = "Id",
ParentId = "Manager",
DataSource = GetForceDirectedData()
};
Diagram.LayoutManager = new LayoutManager()
{
Layout = new ForceDirectedTreeLayout()
{
AttractionStrength = 0.7,
RepulsionStrength = 25000,
MaximumIteration = 500
}
};
// Optional: Fit the entire diagram to the viewport.
(Diagram.Info as IGraphInfo).Commands.FitToPage.Execute(null);
Troubleshooting
-
Nodes overlap or layout is crowded: Increase
RepulsionStrengthor decreaseAttractionStrength. -
Layout is slow or freezes: Lower
MaximumIterationand/orRepulsionStrength. For large graphs, run layout on a background thread and provide a cancel option.
