AutoComplete Filtering Options in WPF Autocomplete (SfTextBoxExt)

The phenomenon of string comparison for filtering suggestions can be changed by using the SuggestionMode property. The default filtering strategy is “StartsWith” and is case-insensitive.

  1. None
  2. StartsWith
  3. StartsWithCaseSensitive
  4. StartsWithOrdinal
  5. StartsWithOrdinalCaseSensitive
  6. Contains
  7. ContainsCaseSensitive
  8. ContainsOrdinal
  9. ContainsOrdinalCaseSensitive
  10. Equals
  11. EqualsCaseSensitive
  12. EqualsOrdinal
  13. EqualsOrdinalCaseSensitive
  14. Custom
  15. EndsWith
  16. EndsWithCaseSensitive
  17. EndsWithOrdinal
  18. EndsWithOrdinalCaseSensitive

The default value is StartsWith.

None

The control returns the entire collection without filtering when text is typed by the user.

<Window x:Class="AutoCompleteSample.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:AutoCompleteSample"
        mc:Ignorable="d"
        xmlns:editors="clr-namespace:Syncfusion.Windows.Controls.Input;assembly=Syncfusion.SfInput.Wpf"
        Title="MainWindow" Height="450" Width="800">
    <Window.DataContext>
        <local:EmployeeViewModel/>
    </Window.DataContext>
    <Window.Content>
        <Grid>
            <editors:SfTextBoxExt HorizontalAlignment="Center"
                                      VerticalAlignment="Center"
                                      Width="400"
                                      SearchItemPath="Name"
                                      SuggestionMode="None"
                                      AutoCompleteMode="Suggest"
                                      AutoCompleteSource="{Binding Employees}"/>
        </Grid>
    </Window.Content>
</Window>
using Syncfusion.Windows.Controls.Input;
using System.Collections.Generic;
using System.Windows;
using System.Windows.Data;

namespace AutoCompleteSample
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
            EmployeeViewModel viewModel = new EmployeeViewModel();
            this.DataContext = viewModel;
            SfTextBoxExt textBoxExt = new SfTextBoxExt()
            {
                HorizontalAlignment = HorizontalAlignment.Center,
                VerticalAlignment = VerticalAlignment.Center,
                SearchItemPath = "Name",
                AutoCompleteMode = AutoCompleteMode.Suggest,
                SuggestionMode = SuggestionMode.None,
                Width = 400
            };

            Binding autoCompleteSourceBinding = new Binding();
            autoCompleteSourceBinding.Source = viewModel;
            autoCompleteSourceBinding.Path = new PropertyPath("Employees");
            BindingOperations.SetBinding(textBoxExt, SfTextBoxExt.AutoCompleteSourceProperty, autoCompleteSourceBinding);

            this.Content = textBoxExt;
        }
    }

    public class Employee
    {
        public string Name { get; set; }
        public string Email { get; set; }
    }

    public class EmployeeViewModel
    {
        private List<Employee> employees;
        public List<Employee> Employees
        {
            get { return employees; }

            set { employees = value; }
        }
        public EmployeeViewModel()
        {
            Employees = new List<Employee>();
            Employees.Add(new Employee { Name = "Lucas", Email = "lucas@syncfusion.com" });
            Employees.Add(new Employee { Name = "James", Email = "james@syncfusion.com" });
            Employees.Add(new Employee { Name = "Jacob", Email = "jacob@syncfusion.com" });
        }
    }
}

SuggestMode None

None case

StartsWith

Displays all matches that begins with the typed characters in the control. This strategy is case-insensitive.

<Window x:Class="AutoCompleteSample.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:AutoCompleteSample"
        mc:Ignorable="d"
        xmlns:editors="clr-namespace:Syncfusion.Windows.Controls.Input;assembly=Syncfusion.SfInput.Wpf"
        Title="MainWindow" Height="450" Width="800">
    <Window.DataContext>
        <local:EmployeeViewModel/>
    </Window.DataContext>
    <Window.Content>
        <editors:SfTextBoxExt HorizontalAlignment="Center"
                                      VerticalAlignment="Center"
                                      Width="400"
                                      SearchItemPath="Name"
                                      SuggestionMode="StartsWith"
                                      AutoCompleteMode="Suggest"
                                      AutoCompleteSource="{Binding Employees}"/>
    </Window.Content>
</Window>
using Syncfusion.Windows.Controls.Input;
using System.Collections.Generic;
using System.Windows;
using System.Windows.Data;

namespace AutoCompleteSample
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
            EmployeeViewModel viewModel = new EmployeeViewModel();
            this.DataContext = viewModel;
            SfTextBoxExt textBoxExt = new SfTextBoxExt()
            {
                HorizontalAlignment = HorizontalAlignment.Center,
                VerticalAlignment = VerticalAlignment.Center,
                SearchItemPath = "Name",
                AutoCompleteMode = AutoCompleteMode.Suggest,
                SuggestionMode = SuggestionMode.StartsWith,
                Width = 400
            };

            Binding autoCompleteSourceBinding = new Binding();
            autoCompleteSourceBinding.Source = viewModel;
            autoCompleteSourceBinding.Path = new PropertyPath("Employees");
            BindingOperations.SetBinding(textBoxExt, SfTextBoxExt.AutoCompleteSourceProperty, autoCompleteSourceBinding);

            this.Content = textBoxExt;
        }
    }

    public class Employee
    {
        public string Name { get; set; }
        public string Email { get; set; }
    }

    public class EmployeeViewModel
    {
        private List<Employee> employees;
        public List<Employee> Employees
        {
            get { return employees; }

            set { employees = value; }
        }
        public EmployeeViewModel()
        {
            Employees = new List<Employee>();
            Employees.Add(new Employee { Name = "Lucas", Email = "lucas@syncfusion.com" });
            Employees.Add(new Employee { Name = "James", Email = "james@syncfusion.com" });
            Employees.Add(new Employee { Name = "Jacob", Email = "jacob@syncfusion.com" });
        }
    }
}

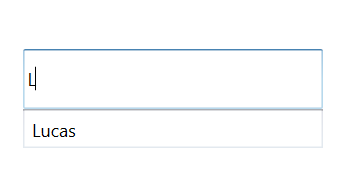

StartsWith

StartsWith case

StartsWithCaseSensitive

Displays all matches that starts with the typed characters in the control. This strategy is case-sensitive.

<Window x:Class="AutoCompleteSample.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:AutoCompleteSample"
        mc:Ignorable="d"
        xmlns:editors="clr-namespace:Syncfusion.Windows.Controls.Input;assembly=Syncfusion.SfInput.Wpf"
        Title="MainWindow" Height="450" Width="800">
    <Window.DataContext>
        <local:EmployeeViewModel/>
    </Window.DataContext>
    <Window.Content>
        <editors:SfTextBoxExt HorizontalAlignment="Center"
                                      VerticalAlignment="Center"
                                      Width="400"
                                      SearchItemPath="Name"
                                      SuggestionMode="StartsWithCaseSensitive"
                                      AutoCompleteMode="Suggest"
                                      AutoCompleteSource="{Binding Employees}"/>
    </Window.Content>
</Window>
using Syncfusion.Windows.Controls.Input;
using System.Collections.Generic;
using System.Windows;
using System.Windows.Data;

namespace AutoCompleteSample
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
            EmployeeViewModel viewModel = new EmployeeViewModel();
            this.DataContext = viewModel;
            SfTextBoxExt textBoxExt = new SfTextBoxExt()
            {
                HorizontalAlignment = HorizontalAlignment.Center,
                VerticalAlignment = VerticalAlignment.Center,
                SearchItemPath = "Name",
                AutoCompleteMode = AutoCompleteMode.Suggest,
                SuggestionMode = SuggestionMode.StartsWithCaseSensitive,
                Width = 400
            };

            Binding autoCompleteSourceBinding = new Binding();
            autoCompleteSourceBinding.Source = viewModel;
            autoCompleteSourceBinding.Path = new PropertyPath("Employees");
            BindingOperations.SetBinding(textBoxExt, SfTextBoxExt.AutoCompleteSourceProperty, autoCompleteSourceBinding);

            this.Content = textBoxExt;
        }
    }

    public class Employee
    {
        public string Name { get; set; }
        public string Email { get; set; }
    }

    public class EmployeeViewModel
    {
        private List<Employee> employees;
        public List<Employee> Employees
        {
            get { return employees; }

            set { employees = value; }
        }
        public EmployeeViewModel()
        {
            Employees = new List<Employee>();
            Employees.Add(new Employee { Name = "Lucas", Email = "lucas@syncfusion.com" });
            Employees.Add(new Employee { Name = "James", Email = "james@syncfusion.com" });
            Employees.Add(new Employee { Name = "Jacob", Email = "jacob@syncfusion.com" });
        }
    }
}

StartsWithCaseSensitive

StartsWithCaseSensitive case

StartsWithOrdinal

The control returns all possible matches starting with the text typed by the user based on the OrdinalIgnoreCase.

<Window x:Class="AutoCompleteSample.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:AutoCompleteSample"
        mc:Ignorable="d"
        xmlns:editors="clr-namespace:Syncfusion.Windows.Controls.Input;assembly=Syncfusion.SfInput.Wpf"
        Title="MainWindow" Height="450" Width="800">
    <Window.DataContext>
        <local:EmployeeViewModel/>
    </Window.DataContext>
    <Window.Content>
        <editors:SfTextBoxExt HorizontalAlignment="Center"
                                      VerticalAlignment="Center"
                                      Width="400"
                                      SearchItemPath="Name"
                                      SuggestionMode="StartsWithOrdinal"
                                      AutoCompleteMode="Suggest"
                                      AutoCompleteSource="{Binding Employees}"/>
    </Window.Content>
</Window>
using Syncfusion.Windows.Controls.Input;
using System.Collections.Generic;
using System.Windows;
using System.Windows.Data;

namespace AutoCompleteSample
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
            EmployeeViewModel viewModel = new EmployeeViewModel();
            this.DataContext = viewModel;
            SfTextBoxExt textBoxExt = new SfTextBoxExt()
            {
                HorizontalAlignment = HorizontalAlignment.Center,
                VerticalAlignment = VerticalAlignment.Center,
                SearchItemPath = "Name",
                AutoCompleteMode = AutoCompleteMode.Suggest,
                SuggestionMode = SuggestionMode.StartsWithOrdinal,
                Width = 400
            };

            Binding autoCompleteSourceBinding = new Binding();
            autoCompleteSourceBinding.Source = viewModel;
            autoCompleteSourceBinding.Path = new PropertyPath("Employees");
            BindingOperations.SetBinding(textBoxExt, SfTextBoxExt.AutoCompleteSourceProperty, autoCompleteSourceBinding);

            this.Content = textBoxExt;
        }
    }

    public class Employee
    {
        public string Name { get; set; }
        public string Email { get; set; }
    }

    public class EmployeeViewModel
    {
        private List<Employee> employees;
        public List<Employee> Employees
        {
            get { return employees; }

            set { employees = value; }
        }
        public EmployeeViewModel()
        {
            Employees = new List<Employee>();
            Employees.Add(new Employee { Name = "Lucas", Email = "lucas@syncfusion.com" });
            Employees.Add(new Employee { Name = "James", Email = "james@syncfusion.com" });
            Employees.Add(new Employee { Name = "Jacob", Email = "jacob@syncfusion.com" });
        }
    }
}

StartsWithOrdinal

StartsWithOrdinal case

StartsWithOrdinalCaseSensitive

The control returns all possible matches starting with the text typed by the user by Ordinal, which is case sensitive.

<Window x:Class="AutoCompleteSample.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:AutoCompleteSample"
        mc:Ignorable="d"
        xmlns:editors="clr-namespace:Syncfusion.Windows.Controls.Input;assembly=Syncfusion.SfInput.Wpf"
        Title="MainWindow" Height="450" Width="800">
    <Window.DataContext>
        <local:EmployeeViewModel/>
    </Window.DataContext>
    <Window.Content>
        <editors:SfTextBoxExt HorizontalAlignment="Center"
                                      VerticalAlignment="Center"
                                      Width="400"
                                      SearchItemPath="Name"
                                      SuggestionMode="StartsWithOrdinalCaseSensitive"
                                      AutoCompleteMode="Suggest"
                                      AutoCompleteSource="{Binding Employees}"/>
    </Window.Content>
</Window>
using Syncfusion.Windows.Controls.Input;
using System.Collections.Generic;
using System.Windows;
using System.Windows.Data;

namespace AutoCompleteSample
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
            EmployeeViewModel viewModel = new EmployeeViewModel();
            this.DataContext = viewModel;
            SfTextBoxExt textBoxExt = new SfTextBoxExt()
            {
                HorizontalAlignment = HorizontalAlignment.Center,
                VerticalAlignment = VerticalAlignment.Center,
                SearchItemPath = "Name",
                AutoCompleteMode = AutoCompleteMode.Suggest,
                SuggestionMode = SuggestionMode.StartsWithOrdinalCaseSensitive,
                Width = 400
            };

            Binding autoCompleteSourceBinding = new Binding();
            autoCompleteSourceBinding.Source = viewModel;
            autoCompleteSourceBinding.Path = new PropertyPath("Employees");
            BindingOperations.SetBinding(textBoxExt, SfTextBoxExt.AutoCompleteSourceProperty, autoCompleteSourceBinding);

            this.Content = textBoxExt;
        }
    }

    public class Employee
    {
        public string Name { get; set; }
        public string Email { get; set; }
    }

    public class EmployeeViewModel
    {
        private List<Employee> employees;
        public List<Employee> Employees
        {
            get { return employees; }

            set { employees = value; }
        }
        public EmployeeViewModel()
        {
            Employees = new List<Employee>();
            Employees.Add(new Employee { Name = "Lucas", Email = "lucas@syncfusion.com" });
            Employees.Add(new Employee { Name = "James", Email = "james@syncfusion.com" });
            Employees.Add(new Employee { Name = "Jacob", Email = "jacob@syncfusion.com" });
        }
    }
}

StartsWithOrdinalCaseSensitive

StartsWithOrdinalCaseSensitive case

Contains

Displays all matches that contains typed characters in the control. This strategy is case-insensitive.

<Window x:Class="AutoCompleteSample.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:AutoCompleteSample"
        mc:Ignorable="d"
        xmlns:editors="clr-namespace:Syncfusion.Windows.Controls.Input;assembly=Syncfusion.SfInput.Wpf"
        Title="MainWindow" Height="450" Width="800">
    <Window.DataContext>
        <local:EmployeeViewModel/>
    </Window.DataContext>
    <Window.Content>
        <editors:SfTextBoxExt HorizontalAlignment="Center"
                                      VerticalAlignment="Center"
                                      Width="400"
                                      SearchItemPath="Name"
                                      SuggestionMode="Contains"
                                      AutoCompleteMode="Suggest"
                                      AutoCompleteSource="{Binding Employees}"/>
    </Window.Content>
</Window>
using Syncfusion.Windows.Controls.Input;
using System.Collections.Generic;
using System.Windows;
using System.Windows.Data;

namespace AutoCompleteSample
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
            EmployeeViewModel viewModel = new EmployeeViewModel();
            this.DataContext = viewModel;
            SfTextBoxExt textBoxExt = new SfTextBoxExt()
            {
                HorizontalAlignment = HorizontalAlignment.Center,
                VerticalAlignment = VerticalAlignment.Center,
                SearchItemPath = "Name",
                AutoCompleteMode = AutoCompleteMode.Suggest,
                SuggestionMode = SuggestionMode.Contains,
                Width = 400
            };

            Binding autoCompleteSourceBinding = new Binding();
            autoCompleteSourceBinding.Source = viewModel;
            autoCompleteSourceBinding.Path = new PropertyPath("Employees");
            BindingOperations.SetBinding(textBoxExt, SfTextBoxExt.AutoCompleteSourceProperty, autoCompleteSourceBinding);

            this.Content = textBoxExt;
        }
    }

    public class Employee
    {
        public string Name { get; set; }
        public string Email { get; set; }
    }

    public class EmployeeViewModel
    {
        private List<Employee> employees;
        public List<Employee> Employees
        {
            get { return employees; }

            set { employees = value; }
        }
        public EmployeeViewModel()
        {
            Employees = new List<Employee>();
            Employees.Add(new Employee { Name = "Lucas", Email = "lucas@syncfusion.com" });
            Employees.Add(new Employee { Name = "James", Email = "james@syncfusion.com" });
            Employees.Add(new Employee { Name = "Jacob", Email = "jacob@syncfusion.com" });
        }
    }
}

Contains

Contains case

ContainsCaseSensitive

The control returns all possible matches that contains the text typed by the user, which is culture and case-sensitive.

<Window x:Class="AutoCompleteSample.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:AutoCompleteSample"
        mc:Ignorable="d"
        xmlns:editors="clr-namespace:Syncfusion.Windows.Controls.Input;assembly=Syncfusion.SfInput.Wpf"
        Title="MainWindow" Height="450" Width="800">
    <Window.DataContext>
        <local:EmployeeViewModel/>
    </Window.DataContext>
    <Window.Content>
        <editors:SfTextBoxExt HorizontalAlignment="Center"
                                      VerticalAlignment="Center"
                                      Width="400"
                                      SearchItemPath="Name"
                                      SuggestionMode="ContainsCaseSensitive"
                                      AutoCompleteMode="Suggest"
                                      AutoCompleteSource="{Binding Employees}"/>
    </Window.Content>
</Window>
using Syncfusion.Windows.Controls.Input;
using System.Collections.Generic;
using System.Windows;
using System.Windows.Data;

namespace AutoCompleteSample
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
            EmployeeViewModel viewModel = new EmployeeViewModel();
            this.DataContext = viewModel;
            SfTextBoxExt textBoxExt = new SfTextBoxExt()
            {
                HorizontalAlignment = HorizontalAlignment.Center,
                VerticalAlignment = VerticalAlignment.Center,
                SearchItemPath = "Name",
                AutoCompleteMode = AutoCompleteMode.Suggest,
                SuggestionMode = SuggestionMode.ContainsCaseSensitive,
                Width = 400
            };

            Binding autoCompleteSourceBinding = new Binding();
            autoCompleteSourceBinding.Source = viewModel;
            autoCompleteSourceBinding.Path = new PropertyPath("Employees");
            BindingOperations.SetBinding(textBoxExt, SfTextBoxExt.AutoCompleteSourceProperty, autoCompleteSourceBinding);

            this.Content = textBoxExt;
        }
    }

    public class Employee
    {
        public string Name { get; set; }
        public string Email { get; set; }
    }

    public class EmployeeViewModel
    {
        private List<Employee> employees;
        public List<Employee> Employees
        {
            get { return employees; }

            set { employees = value; }
        }
        public EmployeeViewModel()
        {
            Employees = new List<Employee>();
            Employees.Add(new Employee { Name = "Lucas", Email = "lucas@syncfusion.com" });
            Employees.Add(new Employee { Name = "James", Email = "james@syncfusion.com" });
            Employees.Add(new Employee { Name = "Jacob", Email = "jacob@syncfusion.com" });
        }
    }
}

ContainsCaseSensitive

ContainsCaseSensitive case

ContainsOrdinal

The control returns all possible matches that contains the text typed by the user based on the OrdinalIgnoreCase.

<Window x:Class="AutoCompleteSample.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:AutoCompleteSample"
        mc:Ignorable="d"
        xmlns:editors="clr-namespace:Syncfusion.Windows.Controls.Input;assembly=Syncfusion.SfInput.Wpf"
        Title="MainWindow" Height="450" Width="800">
    <Window.DataContext>
        <local:EmployeeViewModel/>
    </Window.DataContext>
    <Window.Content>
        <editors:SfTextBoxExt HorizontalAlignment="Center"
                                      VerticalAlignment="Center"
                                      Width="400"
                                      SearchItemPath="Name"
                                      SuggestionMode="ContainsOrdinal"
                                      AutoCompleteMode="Suggest"
                                      AutoCompleteSource="{Binding Employees}"/>
    </Window.Content>
</Window>
using Syncfusion.Windows.Controls.Input;
using System.Collections.Generic;
using System.Windows;
using System.Windows.Data;

namespace AutoCompleteSample
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
            EmployeeViewModel viewModel = new EmployeeViewModel();
            this.DataContext = viewModel;
            SfTextBoxExt textBoxExt = new SfTextBoxExt()
            {
                HorizontalAlignment = HorizontalAlignment.Center,
                VerticalAlignment = VerticalAlignment.Center,
                SearchItemPath = "Name",
                AutoCompleteMode = AutoCompleteMode.Suggest,
                SuggestionMode = SuggestionMode.ContainsOrdinal,
                Width = 400
            };

            Binding autoCompleteSourceBinding = new Binding();
            autoCompleteSourceBinding.Source = viewModel;
            autoCompleteSourceBinding.Path = new PropertyPath("Employees");
            BindingOperations.SetBinding(textBoxExt, SfTextBoxExt.AutoCompleteSourceProperty, autoCompleteSourceBinding);

            this.Content = textBoxExt;
        }
    }

    public class Employee
    {
        public string Name { get; set; }
        public string Email { get; set; }
    }

    public class EmployeeViewModel
    {
        private List<Employee> employees;
        public List<Employee> Employees
        {
            get { return employees; }

            set { employees = value; }
        }
        public EmployeeViewModel()
        {
            Employees = new List<Employee>();
            Employees.Add(new Employee { Name = "Lucas", Email = "lucas@syncfusion.com" });
            Employees.Add(new Employee { Name = "James", Email = "james@syncfusion.com" });
            Employees.Add(new Employee { Name = "Jacob", Email = "jacob@syncfusion.com" });
        }
    }
}

ContainsOrdinal

ContainsOrdinal case

ContainsOrdinalCaseSensitive

The control returns all possible matches that contains the text typed by the user based on the Ordinal, which is case-sensitive.

<Window x:Class="AutoCompleteSample.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:AutoCompleteSample"
        mc:Ignorable="d"
        xmlns:editors="clr-namespace:Syncfusion.Windows.Controls.Input;assembly=Syncfusion.SfInput.Wpf"
        Title="MainWindow" Height="450" Width="800">
    <Window.DataContext>
        <local:EmployeeViewModel/>
    </Window.DataContext>
    <Window.Content>
        <editors:SfTextBoxExt HorizontalAlignment="Center"
                                      VerticalAlignment="Center"
                                      Width="400"
                                      SearchItemPath="Name"
                                      SuggestionMode="ContainsOrdinalCaseSensitive"
                                      AutoCompleteMode="Suggest"
                                      AutoCompleteSource="{Binding Employees}"/>
    </Window.Content>
</Window>
using Syncfusion.Windows.Controls.Input;
using System.Collections.Generic;
using System.Windows;
using System.Windows.Data;

namespace AutoCompleteSample
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
            EmployeeViewModel viewModel = new EmployeeViewModel();
            this.DataContext = viewModel;
            SfTextBoxExt textBoxExt = new SfTextBoxExt()
            {
                HorizontalAlignment = HorizontalAlignment.Center,
                VerticalAlignment = VerticalAlignment.Center,
                SearchItemPath = "Name",
                AutoCompleteMode = AutoCompleteMode.Suggest,
                SuggestionMode = SuggestionMode.ContainsOrdinalCaseSensitive,
                Width = 400
            };

            Binding autoCompleteSourceBinding = new Binding();
            autoCompleteSourceBinding.Source = viewModel;
            autoCompleteSourceBinding.Path = new PropertyPath("Employees");
            BindingOperations.SetBinding(textBoxExt, SfTextBoxExt.AutoCompleteSourceProperty, autoCompleteSourceBinding);

            this.Content = textBoxExt;
        }
    }

    public class Employee
    {
        public string Name { get; set; }
        public string Email { get; set; }
    }

    public class EmployeeViewModel
    {
        private List<Employee> employees;
        public List<Employee> Employees
        {
            get { return employees; }

            set { employees = value; }
        }
        public EmployeeViewModel()
        {
            Employees = new List<Employee>();
            Employees.Add(new Employee { Name = "Lucas", Email = "lucas@syncfusion.com" });
            Employees.Add(new Employee { Name = "James", Email = "james@syncfusion.com" });
            Employees.Add(new Employee { Name = "Jacob", Email = "jacob@syncfusion.com" });
        }
    }
}

ContainsOrdinalCaseSensitive

ContainsOrdinalCaseSensitive

Equals

Displays all words that completely matches the typed characters in the control. This strategy is case-insensitive.

<Window x:Class="AutoCompleteSample.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:AutoCompleteSample"
        mc:Ignorable="d"
        xmlns:editors="clr-namespace:Syncfusion.Windows.Controls.Input;assembly=Syncfusion.SfInput.Wpf"
        Title="MainWindow" Height="450" Width="800">
    <Window.DataContext>
        <local:EmployeeViewModel/>
    </Window.DataContext>
    <Window.Content>
        <editors:SfTextBoxExt HorizontalAlignment="Center"
                                      VerticalAlignment="Center"
                                      Width="400"
                                      SearchItemPath="Name"
                                      SuggestionMode="Equals"
                                      AutoCompleteMode="Suggest"
                                      AutoCompleteSource="{Binding Employees}"/>
    </Window.Content>
</Window>
using Syncfusion.Windows.Controls.Input;
using System.Collections.Generic;
using System.Windows;
using System.Windows.Data;

namespace AutoCompleteSample
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
            EmployeeViewModel viewModel = new EmployeeViewModel();
            this.DataContext = viewModel;
            SfTextBoxExt textBoxExt = new SfTextBoxExt()
            {
                HorizontalAlignment = HorizontalAlignment.Center,
                VerticalAlignment = VerticalAlignment.Center,
                SearchItemPath = "Name",
                AutoCompleteMode = AutoCompleteMode.Suggest,
                SuggestionMode = SuggestionMode.Equals,
                Width = 400
            };

            Binding autoCompleteSourceBinding = new Binding();
            autoCompleteSourceBinding.Source = viewModel;
            autoCompleteSourceBinding.Path = new PropertyPath("Employees");
            BindingOperations.SetBinding(textBoxExt, SfTextBoxExt.AutoCompleteSourceProperty, autoCompleteSourceBinding);

            this.Content = textBoxExt;
        }
    }

    public class Employee
    {
        public string Name { get; set; }
        public string Email { get; set; }
    }

    public class EmployeeViewModel
    {
        private List<Employee> employees;
        public List<Employee> Employees
        {
            get { return employees; }

            set { employees = value; }
        }
        public EmployeeViewModel()
        {
            Employees = new List<Employee>();
            Employees.Add(new Employee { Name = "Lucas", Email = "lucas@syncfusion.com" });
            Employees.Add(new Employee { Name = "James", Email = "james@syncfusion.com" });
            Employees.Add(new Employee { Name = "Jacob", Email = "jacob@syncfusion.com" });
        }
    }
}

Equals

Equals case

EqualsCaseSensitive

Displays all words that completely matches the typed characters in the control. This strategy is case-sensitive.

<Window x:Class="AutoCompleteSample.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:AutoCompleteSample"
        mc:Ignorable="d"
        xmlns:editors="clr-namespace:Syncfusion.Windows.Controls.Input;assembly=Syncfusion.SfInput.Wpf"
        Title="MainWindow" Height="450" Width="800">
    <Window.DataContext>
        <local:EmployeeViewModel/>
    </Window.DataContext>
    <Window.Content>
        <editors:SfTextBoxExt HorizontalAlignment="Center"
                                      VerticalAlignment="Center"
                                      Width="400"
                                      SearchItemPath="Name"
                                      SuggestionMode="EqualsCaseSensitive"
                                      AutoCompleteMode="Suggest"
                                      AutoCompleteSource="{Binding Employees}"/>
    </Window.Content>
</Window>
using Syncfusion.Windows.Controls.Input;
using System.Collections.Generic;
using System.Windows;
using System.Windows.Data;

namespace AutoCompleteSample
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
            EmployeeViewModel viewModel = new EmployeeViewModel();
            this.DataContext = viewModel;
            SfTextBoxExt textBoxExt = new SfTextBoxExt()
            {
                HorizontalAlignment = HorizontalAlignment.Center,
                VerticalAlignment = VerticalAlignment.Center,
                SearchItemPath = "Name",
                AutoCompleteMode = AutoCompleteMode.Suggest,
                SuggestionMode = SuggestionMode.EqualsCaseSensitive,
                Width = 400
            };

            Binding autoCompleteSourceBinding = new Binding();
            autoCompleteSourceBinding.Source = viewModel;
            autoCompleteSourceBinding.Path = new PropertyPath("Employees");
            BindingOperations.SetBinding(textBoxExt, SfTextBoxExt.AutoCompleteSourceProperty, autoCompleteSourceBinding);

            this.Content = textBoxExt;
        }
    }

    public class Employee
    {
        public string Name { get; set; }
        public string Email { get; set; }
    }

    public class EmployeeViewModel
    {
        private List<Employee> employees;
        public List<Employee> Employees
        {
            get { return employees; }

            set { employees = value; }
        }
        public EmployeeViewModel()
        {
            Employees = new List<Employee>();
            Employees.Add(new Employee { Name = "Lucas", Email = "lucas@syncfusion.com" });
            Employees.Add(new Employee { Name = "James", Email = "james@syncfusion.com" });
            Employees.Add(new Employee { Name = "Jacob", Email = "jacob@syncfusion.com" });
        }
    }
}

EqualsCaseSensitive

EqualsCaseSensitive case

EqualsOrdinal

The control returns all possible matches that equals the text typed by the user based on the OrdinalIgnoreCase.

<Window x:Class="AutoCompleteSample.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:AutoCompleteSample"
        mc:Ignorable="d"
        xmlns:editors="clr-namespace:Syncfusion.Windows.Controls.Input;assembly=Syncfusion.SfInput.Wpf"
        Title="MainWindow" Height="450" Width="800">
    <Window.DataContext>
        <local:EmployeeViewModel/>
    </Window.DataContext>
    <Window.Content>
        <editors:SfTextBoxExt HorizontalAlignment="Center"
                                      VerticalAlignment="Center"
                                      Width="400"
                                      SearchItemPath="Name"
                                      SuggestionMode="EqualsOrdinal"
                                      AutoCompleteMode="Suggest"
                                      AutoCompleteSource="{Binding Employees}"/>
    </Window.Content>
</Window>
using Syncfusion.Windows.Controls.Input;
using System.Collections.Generic;
using System.Windows;
using System.Windows.Data;

namespace AutoCompleteSample
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
            EmployeeViewModel viewModel = new EmployeeViewModel();
            this.DataContext = viewModel;
            SfTextBoxExt textBoxExt = new SfTextBoxExt()
            {
                HorizontalAlignment = HorizontalAlignment.Center,
                VerticalAlignment = VerticalAlignment.Center,
                SearchItemPath = "Name",
                AutoCompleteMode = AutoCompleteMode.Suggest,
                SuggestionMode = SuggestionMode.EqualsOrdinal,
                Width = 400
            };

            Binding autoCompleteSourceBinding = new Binding();
            autoCompleteSourceBinding.Source = viewModel;
            autoCompleteSourceBinding.Path = new PropertyPath("Employees");
            BindingOperations.SetBinding(textBoxExt, SfTextBoxExt.AutoCompleteSourceProperty, autoCompleteSourceBinding);

            this.Content = textBoxExt;
        }
    }

    public class Employee
    {
        public string Name { get; set; }
        public string Email { get; set; }
    }

    public class EmployeeViewModel
    {
        private List<Employee> employees;
        public List<Employee> Employees
        {
            get { return employees; }

            set { employees = value; }
        }
        public EmployeeViewModel()
        {
            Employees = new List<Employee>();
            Employees.Add(new Employee { Name = "Lucas", Email = "lucas@syncfusion.com" });
            Employees.Add(new Employee { Name = "James", Email = "james@syncfusion.com" });
            Employees.Add(new Employee { Name = "Jacob", Email = "jacob@syncfusion.com" });
        }
    }
}

EqualsOrdinal

EqualsOrdinal case

EqualsOrdinalCaseSensitive

The control returns all possible matches that equals the text typed by the user based on the Ordinal, which is case-sensitive.

<Window x:Class="AutoCompleteSample.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:AutoCompleteSample"
        mc:Ignorable="d"
        xmlns:editors="clr-namespace:Syncfusion.Windows.Controls.Input;assembly=Syncfusion.SfInput.Wpf"
        Title="MainWindow" Height="450" Width="800">
    <Window.DataContext>
        <local:EmployeeViewModel/>
    </Window.DataContext>
    <Window.Content>
        <editors:SfTextBoxExt HorizontalAlignment="Center"
                                      VerticalAlignment="Center"
                                      Width="400"
                                      SearchItemPath="Name"
                                      SuggestionMode="EqualsOrdinalCaseSensitive"
                                      AutoCompleteMode="Suggest"
                                      AutoCompleteSource="{Binding Employees}"/>
    </Window.Content>
</Window>
using Syncfusion.Windows.Controls.Input;
using System.Collections.Generic;
using System.Windows;
using System.Windows.Data;

namespace AutoCompleteSample
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
            EmployeeViewModel viewModel = new EmployeeViewModel();
            this.DataContext = viewModel;
            SfTextBoxExt textBoxExt = new SfTextBoxExt()
            {
                HorizontalAlignment = HorizontalAlignment.Center,
                VerticalAlignment = VerticalAlignment.Center,
                SearchItemPath = "Name",
                AutoCompleteMode = AutoCompleteMode.Suggest,
                SuggestionMode = SuggestionMode.EqualsOrdinalCaseSensitive,
                Width = 400
            };

            Binding autoCompleteSourceBinding = new Binding();
            autoCompleteSourceBinding.Source = viewModel;
            autoCompleteSourceBinding.Path = new PropertyPath("Employees");
            BindingOperations.SetBinding(textBoxExt, SfTextBoxExt.AutoCompleteSourceProperty, autoCompleteSourceBinding);

            this.Content = textBoxExt;
        }
    }

    public class Employee
    {
        public string Name { get; set; }
        public string Email { get; set; }
    }

    public class EmployeeViewModel
    {
        private List<Employee> employees;
        public List<Employee> Employees
        {
            get { return employees; }

            set { employees = value; }
        }
        public EmployeeViewModel()
        {
            Employees = new List<Employee>();
            Employees.Add(new Employee { Name = "Lucas", Email = "lucas@syncfusion.com" });
            Employees.Add(new Employee { Name = "James", Email = "james@syncfusion.com" });
            Employees.Add(new Employee { Name = "Jacob", Email = "jacob@syncfusion.com" });
        }
    }
}

EqualsOrdinalCaseSensitive

EqualsOrdinalCaseSensitive case

Custom

The control returns all possible matches based on the Filter property. Filter is of type SuggestionPredicate. In the MyFilter method, filtration is done by checking whether the collection contains the typed text.

<Window x:Class="AutoCompleteSample.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:AutoCompleteSample"
        mc:Ignorable="d"
        xmlns:editors="clr-namespace:Syncfusion.Windows.Controls.Input;assembly=Syncfusion.SfInput.Wpf"
        Title="MainWindow" Height="450" Width="800">
    <Window.DataContext>
        <local:EmployeeViewModel/>
    </Window.DataContext>
    <Window.Content>
        <editors:SfTextBoxExt HorizontalAlignment="Center"
                                      VerticalAlignment="Center"
                                      Width="400"
                                      SearchItemPath="Name"
                                      SuggestionMode="Custom"
                                      AutoCompleteMode="Suggest"
                                      AutoCompleteSource="{Binding Employees}"/>
    </Window.Content>
</Window>
using Syncfusion.Windows.Controls.Input;
using System.Collections.Generic;
using System.Windows;
using System.Windows.Data;

namespace AutoCompleteSample
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
            EmployeeViewModel viewModel = new EmployeeViewModel();
            this.DataContext = viewModel;
            SfTextBoxExt textBoxExt = new SfTextBoxExt()
            {
                HorizontalAlignment = HorizontalAlignment.Center,
                VerticalAlignment = VerticalAlignment.Center,
                SearchItemPath = "Name",
                AutoCompleteMode = AutoCompleteMode.Suggest,
                SuggestionMode = SuggestionMode.Custom,
                Width = 400
            };

            Binding autoCompleteSourceBinding = new Binding();
            autoCompleteSourceBinding.Source = viewModel;
            autoCompleteSourceBinding.Path = new PropertyPath("Employees");
            BindingOperations.SetBinding(textBoxExt, SfTextBoxExt.AutoCompleteSourceProperty, autoCompleteSourceBinding);

            textBoxExt.Filter = MyFilter;

            this.Content = textBoxExt;
        }

        public bool MyFilter(string search, object item)
        {
            Employee model = item as Employee;
            if (model != null)
            {
                if (model.Name.ToLower().Contains(search))
                {
                    return true;
                }
                else
                    return false;
            }
            else
                return false;

        }
    }

    public class Employee
    {
        public string Name { get; set; }
        public string Email { get; set; }
    }

    public class EmployeeViewModel
    {
        private List<Employee> employees;
        public List<Employee> Employees
        {
            get { return employees; }

            set { employees = value; }
        }
        public EmployeeViewModel()
        {
            Employees = new List<Employee>();
            Employees.Add(new Employee { Name = "Lucas", Email = "lucas@syncfusion.com" });
            Employees.Add(new Employee { Name = "James", Email = "james@syncfusion.com" });
            Employees.Add(new Employee { Name = "Jacob", Email = "jacob@syncfusion.com" });
        }
    }
}

Custom

Custom case

NOTE

Append mode always works with StartsWith behavior. If the typed text is not the same as the start text of any item, nothing will be append even if the auto complete mode is set to Append or SuggestAppend.

EndsWith

Displays all matches that ends with the typed characters in the control. This strategy is case-insensitive.

<Window x:Class="AutoCompleteSample.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:AutoCompleteSample"
        mc:Ignorable="d"
        xmlns:editors="clr-namespace:Syncfusion.Windows.Controls.Input;assembly=Syncfusion.SfInput.Wpf"
        Title="MainWindow" Height="450" Width="800">
    <Window.DataContext>
        <local:EmployeeViewModel/>
    </Window.DataContext>
    <Window.Content>
        <editors:SfTextBoxExt HorizontalAlignment="Center"
                                      VerticalAlignment="Center"
                                      Width="200"
                                      SearchItemPath="Name"
                                      SuggestionMode="EndsWith"
                                      AutoCompleteMode="Suggest"
                                      AutoCompleteSource="{Binding Employees}"/>
    </Window.Content>
</Window>
using Syncfusion.Windows.Controls.Input;
using System.Collections.Generic;
using System.Windows;
using System.Windows.Data;

namespace AutoCompleteSample
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
            EmployeeViewModel viewModel = new EmployeeViewModel();
            this.DataContext = viewModel;
            SfTextBoxExt textBoxExt = new SfTextBoxExt()
            {
                HorizontalAlignment = HorizontalAlignment.Center,
                VerticalAlignment = VerticalAlignment.Center,
                SearchItemPath = "Name",
                AutoCompleteMode = AutoCompleteMode.Suggest,
                SuggestionMode = SuggestionMode.EndsWith,
                Width = 200
            };

            Binding autoCompleteSourceBinding = new Binding();
            autoCompleteSourceBinding.Source = viewModel;
            autoCompleteSourceBinding.Path = new PropertyPath("Employees");
            BindingOperations.SetBinding(textBoxExt, SfTextBoxExt.AutoCompleteSourceProperty, autoCompleteSourceBinding);

            this.Content = textBoxExt;
        }
    }

    public class Employee
    {
        public string Name { get; set; }
        public string Email { get; set; }
    }

    public class EmployeeViewModel
    {
        private List<Employee> employees;
        public List<Employee> Employees
        {
            get { return employees; }

            set { employees = value; }
        }
        public EmployeeViewModel()
        {
            Employees = new List<Employee>();
            Employees.Add(new Employee { Name = "Lucas", Email = "lucas@syncfusion.com" });
            Employees.Add(new Employee { Name = "James", Email = "james@syncfusion.com" });
            Employees.Add(new Employee { Name = "Jacob", Email = "jacob@syncfusion.com" });
        }
    }
}

EndsWith

EndsWith case

EndsWithCaseSensitive

Displays all matches that ends with the typed characters in the control. This strategy is case-sensitive.

<Window x:Class="AutoCompleteSample.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:AutoCompleteSample"
        mc:Ignorable="d"
        xmlns:editors="clr-namespace:Syncfusion.Windows.Controls.Input;assembly=Syncfusion.SfInput.Wpf"
        Title="MainWindow" Height="450" Width="800">
    <Window.DataContext>
        <local:EmployeeViewModel/>
    </Window.DataContext>
    <Window.Content>
        <editors:SfTextBoxExt HorizontalAlignment="Center"
                                      VerticalAlignment="Center"
                                      Width="200"
                                      SearchItemPath="Name"
                                      SuggestionMode="EndsWithCaseSensitive"
                                      AutoCompleteMode="Suggest"
                                      AutoCompleteSource="{Binding Employees}"/>
    </Window.Content>
</Window>
using Syncfusion.Windows.Controls.Input;
using System.Collections.Generic;
using System.Windows;
using System.Windows.Data;

namespace AutoCompleteSample
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
            EmployeeViewModel viewModel = new EmployeeViewModel();
            this.DataContext = viewModel;
            SfTextBoxExt textBoxExt = new SfTextBoxExt()
            {
                HorizontalAlignment = HorizontalAlignment.Center,
                VerticalAlignment = VerticalAlignment.Center,
                SearchItemPath = "Name",
                AutoCompleteMode = AutoCompleteMode.Suggest,
                SuggestionMode = SuggestionMode.EndsWithCaseSensitive,
                Width = 200
            };

            Binding autoCompleteSourceBinding = new Binding();
            autoCompleteSourceBinding.Source = viewModel;
            autoCompleteSourceBinding.Path = new PropertyPath("Employees");
            BindingOperations.SetBinding(textBoxExt, SfTextBoxExt.AutoCompleteSourceProperty, autoCompleteSourceBinding);

            this.Content = textBoxExt;
        }
    }

    public class Employee
    {
        public string Name { get; set; }
        public string Email { get; set; }
    }

    public class EmployeeViewModel
    {
        private List<Employee> employees;
        public List<Employee> Employees
        {
            get { return employees; }

            set { employees = value; }
        }
        public EmployeeViewModel()
        {
            Employees = new List<Employee>();
            Employees.Add(new Employee { Name = "Lucas", Email = "lucas@syncfusion.com" });
            Employees.Add(new Employee { Name = "JAMES", Email = "james@syncfusion.com" });
            Employees.Add(new Employee { Name = "Jacob", Email = "jacob@syncfusion.com" });
        }
    }
}

EndsWith

EndsWithCaseSensitive case

EndsWithOrdinal

The control returns all possible matches ending with the text typed by the user based on the OrdinalIgnoreCase.

<Window x:Class="AutoCompleteSample.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:AutoCompleteSample"
        mc:Ignorable="d"
        xmlns:editors="clr-namespace:Syncfusion.Windows.Controls.Input;assembly=Syncfusion.SfInput.Wpf"
        Title="MainWindow" Height="450" Width="800">
    <Window.DataContext>
        <local:EmployeeViewModel/>
    </Window.DataContext>
    <Window.Content>
        <editors:SfTextBoxExt HorizontalAlignment="Center"
                                      VerticalAlignment="Center"
                                      Width="200"
                                      SearchItemPath="Name"
                                      SuggestionMode="EndsWithOrdinal"
                                      AutoCompleteMode="Suggest"
                                      AutoCompleteSource="{Binding Employees}"/>
    </Window.Content>
</Window>
using Syncfusion.Windows.Controls.Input;
using System.Collections.Generic;
using System.Windows;
using System.Windows.Data;

namespace AutoCompleteSample
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
            EmployeeViewModel viewModel = new EmployeeViewModel();
            this.DataContext = viewModel;
            SfTextBoxExt textBoxExt = new SfTextBoxExt()
            {
                HorizontalAlignment = HorizontalAlignment.Center,
                VerticalAlignment = VerticalAlignment.Center,
                SearchItemPath = "Name",
                AutoCompleteMode = AutoCompleteMode.Suggest,
                SuggestionMode = SuggestionMode.EndsWithOrdinal,
                Width = 200
            };

            Binding autoCompleteSourceBinding = new Binding();
            autoCompleteSourceBinding.Source = viewModel;
            autoCompleteSourceBinding.Path = new PropertyPath("Employees");
            BindingOperations.SetBinding(textBoxExt, SfTextBoxExt.AutoCompleteSourceProperty, autoCompleteSourceBinding);

            this.Content = textBoxExt;
        }
    }

    public class Employee
    {
        public string Name { get; set; }
        public string Email { get; set; }
    }

    public class EmployeeViewModel
    {
        private List<Employee> employees;
        public List<Employee> Employees
        {
            get { return employees; }

            set { employees = value; }
        }
        public EmployeeViewModel()
        {
            Employees = new List<Employee>();
            Employees.Add(new Employee { Name = "Lucas", Email = "lucas@syncfusion.com" });
            Employees.Add(new Employee { Name = "James", Email = "james@syncfusion.com" });
            Employees.Add(new Employee { Name = "Jacob", Email = "jacob@syncfusion.com" });
        }
    }
}

EndsWithOrdinalCaseSensitive

The control returns all possible matches ending with the text typed by the user by Ordinal, which is case-sensitive.

<Window x:Class="AutoCompleteSample.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:AutoCompleteSample"
        mc:Ignorable="d"
        xmlns:editors="clr-namespace:Syncfusion.Windows.Controls.Input;assembly=Syncfusion.SfInput.Wpf"
        Title="MainWindow" Height="450" Width="800">
    <Window.DataContext>
        <local:EmployeeViewModel/>
    </Window.DataContext>
    <Window.Content>
        <editors:SfTextBoxExt HorizontalAlignment="Center"
                                      VerticalAlignment="Center"
                                      Width="200"
                                      SearchItemPath="Name"
                                      SuggestionMode="EndsWithOrdinalCaseSensitive"
                                      AutoCompleteMode="Suggest"
                                      AutoCompleteSource="{Binding Employees}"/>
    </Window.Content>
</Window>
using Syncfusion.Windows.Controls.Input;
using System.Collections.Generic;
using System.Windows;
using System.Windows.Data;

namespace AutoCompleteSample
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
            EmployeeViewModel viewModel = new EmployeeViewModel();
            this.DataContext = viewModel;
            SfTextBoxExt textBoxExt = new SfTextBoxExt()
            {
                HorizontalAlignment = HorizontalAlignment.Center,
                VerticalAlignment = VerticalAlignment.Center,
                SearchItemPath = "Name",
                AutoCompleteMode = AutoCompleteMode.Suggest,
                SuggestionMode = SuggestionMode.EndsWithOrdinalCaseSensitive,
                Width = 200
            };

            Binding autoCompleteSourceBinding = new Binding();
            autoCompleteSourceBinding.Source = viewModel;
            autoCompleteSourceBinding.Path = new PropertyPath("Employees");
            BindingOperations.SetBinding(textBoxExt, SfTextBoxExt.AutoCompleteSourceProperty, autoCompleteSourceBinding);

            this.Content = textBoxExt;
        }
    }

    public class Employee
    {
        public string Name { get; set; }
        public string Email { get; set; }
    }

    public class EmployeeViewModel
    {
        private List<Employee> employees;
        public List<Employee> Employees
        {
            get { return employees; }

            set { employees = value; }
        }
        public EmployeeViewModel()
        {
            Employees = new List<Employee>();
            Employees.Add(new Employee { Name = "Lucas", Email = "lucas@syncfusion.com" });
            Employees.Add(new Employee { Name = "James", Email = "james@syncfusion.com" });
            Employees.Add(new Employee { Name = "Jacob", Email = "jacob@syncfusion.com" });
        }
    }
}
