KPI

22 May 20171 minute to read

Key Performance Indicators (KPIs) are business metric that help to figure out the progress of an enterprise in meeting its business goals.

The different indicators available in KPI are:

• KPI Value: A physical measure or a calculated measure.
• KPI Goal: Defines the target for the measure.
• KPI Status: Evaluates the current status of the value compared to the goal.
• KPI Trend: Evaluate the current trend of the value compared to the goal.

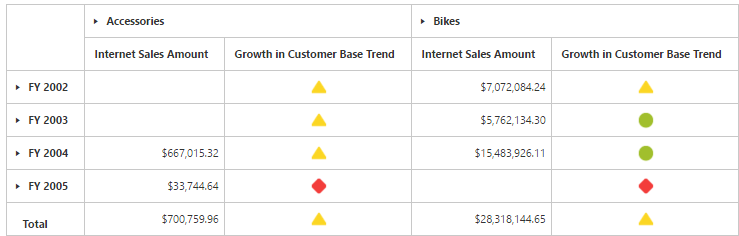

The “KpiElements” class in OLAP Base library holds the KPI name and when its object is added to an OlapReport, you can view the resultant information in PivotGrid.

HTML

<!--Create a tag which acts as a container for PivotGrid-->
 <div id="PivotGrid1" style="height: 350px; width: 100%; overflow: auto"></div>
<script type="text/babel">
    var Olap_dataSource={
        data: "http://bi.syncfusion.com/olap/msmdpump.dll",
        catalog: "Adventure Works DW 2008 SE", //"Adventure Works DW 2008 SEtandard Edition
        cube: "Adventure Works", rows: [{ fieldName: "[Date].[Fiscal]" }], columns: [{ fieldName: "[Product].[Product Categories]" }],
        values: [{ measures: [{ fieldName: "[Measures].[Internet Sales Amount]" },{ fieldName: "[Measures].[Growth in Customer Base Trend]" }], axis: "columns" }]
    };
    $(function(){
        ReactDOM.render(
            <EJ.PivotGrid id="Olap" dataSource= {Olap_dataSource}></EJ.PivotGrid>,
            document.getElementById('PivotGrid1')
        );
    });
</script>
