This section explains how to populate the pivot gauge in your application with JSP wrapper classes of EJ controls. This section covers only the minimal features that are needed to get started with the pivot gauge.

Create pivot gauge widget

You can create a JSP application and add necessary scripts and styles with the help of the given JSP Getting Started Documentation.

Refer to the required scripts and CSS files in your JSP page as mentioned below to render the pivot gauge control:

  • html
  • <!DOCTYPE html>
    <html>
    	<head>
    			<title>Getting Started - PivotGauge</title>
    			<link href="http://cdn.syncfusion.com/19.3.0.43/js/web/flat-azure/ej.web.all.min.css" rel="stylesheet" />
    			<link href="http://cdn.syncfusion.com/19.3.0.43/js/web/responsive-css/ej.responsive.css" rel="stylesheet" />
    			<script src="http://cdn.syncfusion.com/js/assets/external/jquery-3.0.0.min.js"></script>
    			<script src="http://cdn.syncfusion.com/js/assets/external/jsrender.min.js"></script>
    			<script src="http://cdn.syncfusion.com/19.3.0.43/js/web/ej.web.all.min.js"></script>
    	</head>
    </html>

    Relational

    Add the following code example to add list of items to the pivot gauge and initialize the pivot gauge widget with relational data source.

  • html
  • <div class="cols-sample-area">
    <ej:pivotGauge id="PivotGauge1" isResponsive="true" enableTooltip="true" load="loadData" beforePivotEnginePopulate="beforePivotEnginePopulate">
    <ej:pivotGauge-dataSource>
    <ej:pivotGauge-dataSource-rows>
    <ej:pivotGauge-dataSource-row fieldName="Date" ></ej:pivotGauge-dataSource-row>
    </ej:pivotGauge-dataSource-rows>
    <ej:pivotGauge-dataSource-columns>
    <ej:pivotGauge-dataSource-column fieldName="Country" ></ej:pivotGauge-dataSource-column>
    </ej:pivotGauge-dataSource-columns>
    <ej:pivotGauge-dataSource-values>
    <ej:pivotGauge-dataSource-value fieldName="Amount" ></ej:pivotGauge-dataSource-value>
    </ej:pivotGauge-dataSource-values>
    </ej:pivotGauge-dataSource>
    <ej:pivotGauge-labelFormatSettings decimalPlaces="2"></ej:pivotGauge-labelFormatSettings>
    </ej:pivotGauge>
    </div>
    <script type="text/javascript">
    	function loadData(args) {
    		args.model.dataSource.data = [
    	        { Amount: 100, Country: "Canada", Date: "FY 2005", Product: "Bike", Quantity: 2, State: "Alberta" },
    	        { Amount: 200, Country: "Canada", Date: "FY 2006", Product: "Van", Quantity: 3, State: "British Columbia" },
    	        { Amount: 300, Country: "Canada", Date: "FY 2007", Product: "Car", Quantity: 4, State: "Brunswick" },
    	        { Amount: 150, Country: "Canada", Date: "FY 2008", Product: "Bike", Quantity: 3, State: "Manitoba" },
    	        { Amount: 200, Country: "Canada", Date: "FY 2006", Product: "Car", Quantity: 4, State: "Ontario" },
    	        { Amount: 100, Country: "Canada", Date: "FY 2007", Product: "Van", Quantity: 1, State: "Quebec" },
    	        { Amount: 200, Country: "France", Date: "FY 2005", Product: "Bike", Quantity: 2, State: "Charente-Maritime" },
    	        { Amount: 250, Country: "France", Date: "FY 2006", Product: "Van", Quantity: 4, State: "Essonne" },
    	        { Amount: 300, Country: "France", Date: "FY 2007", Product: "Car", Quantity: 3, State: "Garonne (Haute)" },
    	        { Amount: 150, Country: "France", Date: "FY 2008", Product: "Van", Quantity: 2, State: "Gers" },
    	        { Amount: 200, Country: "Germany", Date: "FY 2006", Product: "Van", Quantity: 3, State: "Bayern" },
    	        { Amount: 250, Country: "Germany", Date: "FY 2007", Product: "Car", Quantity: 3, State: "Brandenburg" },
    	        { Amount: 150, Country: "Germany", Date: "FY 2008", Product: "Car", Quantity: 4, State: "Hamburg" },
    	        { Amount: 200, Country: "Germany", Date: "FY 2008", Product: "Bike", Quantity: 4, State: "Hessen" },
    	        { Amount: 150, Country: "Germany", Date: "FY 2007", Product: "Van", Quantity: 3, State: "Nordrhein-Westfalen" },
    	        { Amount: 100, Country: "Germany", Date: "FY 2005", Product: "Bike", Quantity: 2, State: "Saarland" },
    	        { Amount: 150, Country: "United Kingdom", Date: "FY 2008", Product: "Bike", Quantity: 5, State: "England" },
    	        { Amount: 250, Country: "United States", Date: "FY 2007", Product: "Car", Quantity: 4, State: "Alabama" },
    	        { Amount: 200, Country: "United States", Date: "FY 2005", Product: "Van", Quantity: 4, State: "California" },
    	        { Amount: 100, Country: "United States", Date: "FY 2006", Product: "Bike", Quantity: 2, State: "Colorado" },
    	        { Amount: 150, Country: "United States", Date: "FY 2008", Product: "Car", Quantity: 3, State: "New Mexico" },
    	        { Amount: 200, Country: "United States", Date: "FY 2005", Product: "Bike", Quantity: 4, State: "New York" },
    	        { Amount: 250, Country: "United States", Date: "FY 2008", Product: "Car", Quantity: 3, State: "North Carolina" },
    	        { Amount: 300, Country: "United States", Date: "FY 2007", Product: "Van", Quantity: 4, State: "South Carolina" }
    	    ];
    	}

        function beforePivotEnginePopulate(args) {
            this.model.backgroundColor = "transparent";
    		this.model.scales = [];
    		this.model.scales[0] = {"showRanges":true,"radius":150,"showScaleBar":true,"size":1,"border":{"width":0.5},"showIndicators":true,"showLabels":true,"pointers":[{"showBackNeedle":true,"backNeedleLength":20,"length":120,"width":7},{"type":"marker","markerType":"diamond","distanceFromScale":5,"placement":"center","backgroundColor":"#29A4D9","length":25,"width":15}],"ticks":[{"type":"major","distanceFromScale":2,"height":16,"width":1,"color":"#8c8c8c"},{"type":"minor","height":6,"width":1,"distanceFromScale":2,"color":"#8c8c8c"}],"labels":[{"color":"#8c8c8c"}],"ranges":[{"distanceFromScale":-5,"backgroundColor":"#fc0606","border":{"color":"#fc0606"}},{"distanceFromScale":-5}],"customLabels":[{"position":{"x":180,"y":290},"font":{"size":"10px","fontFamily":"Segoe UI","fontStyle":"Normal"},"color":"#666666"},{"position":{"x":180,"y":320},"font":{"size":"10px","fontFamily":"Segoe UI","fontStyle":"Normal"},"color":"#666666"},{"position":{"x":180,"y":150},"font":{"size":"12px","fontFamily":"Segoe UI","fontStyle":"Normal"},"color":"#666666"}],"pointerCap":{"radius":7,"borderWidth":3,"interiorGradient":null,"borderColor":null,"backgroundColor":null},"sweepAngle":310,"startAngle":115,"majorIntervalValue":10,"minorIntervalValue":2,"maximum":null,"minimum":null,"backgroundColor":null,"direction":"clockwise","showPointers":true,"showTicks":true,"opacity":1,"shadowOffset":0,"indicators":[{"height":15,"width":15,"type":"circle","imageUrl":null,"position":{"x":0,"y":0},"stateRanges":[{"endValue":0,"startValue":0,"backgroundColor":null,"borderColor":null,"text":"","textColor":null,"font":null}]}],"subGauges":[{"height":150,"width":150,"position":{"x":0,"y":0}}]};
        }
    </script>

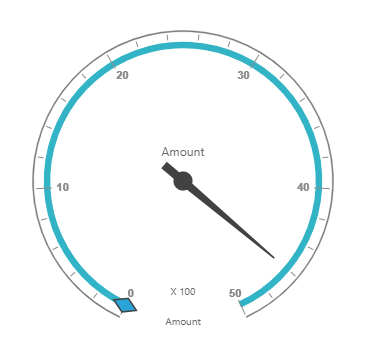

    The above code will generate a simple pivot gauge with relational data source as shown in the following screenshot:

    OLAP

    Add the following code example to add list of items to the pivot gauge and initialize the pivot gauge widget with OLAP data source.

  • html
  • <div class="cols-sample-area">
    <ej:pivotGauge id="PivotGauge1" isResponsive="true" enableTooltip="true" beforePivotEnginePopulate="beforePivotEnginePopulate">
    <ej:pivotGauge-dataSource data="//bi.syncfusion.com/olap/msmdpump.dll" catalog="Adventure Works DW 2008 SE" cube="Adventure Works">
    <ej:pivotGauge-dataSource-rows>
    <ej:pivotGauge-dataSource-row fieldName="[Date].[Fiscal]"></ej:pivotGauge-dataSource-row>
    </ej:pivotGauge-dataSource-rows>
    <ej:pivotGauge-dataSource-columns>
    <ej:pivotGauge-dataSource-column fieldName="[Customer].[Customer Geography]"></ej:pivotGauge-dataSource-column>
    </ej:pivotGauge-dataSource-columns>
    <ej:pivotGauge-dataSource-values>
    <ej:pivotGauge-dataSource-value axis="columns">
    <ej:pivotGauge-dataSource-value-measures>
    <ej:pivotGauge-dataSource-value-measure fieldName="[Measures].[Internet Sales Amount]"></ej:pivotGauge-dataSource-value-measure>
    </ej:pivotGauge-dataSource-value-measures>
    </ej:pivotGauge-dataSource-value>
    </ej:pivotGauge-dataSource-values>
    </ej:pivotGauge-dataSource>
    <ej:pivotGauge-labelFormatSettings decimalPlaces="2"></ej:pivotGauge-labelFormatSettings>
    </ej:pivotGauge>
    </div>
    <script type="text/javascript">
        function beforePivotEnginePopulate(args) {
            this.model.backgroundColor = "transparent";
    		this.model.scales = [];
    		this.model.scales[0] = {"showRanges":true,"radius":150,"showScaleBar":true,"size":1,"border":{"width":0.5},"showIndicators":true,"showLabels":true,"pointers":[{"showBackNeedle":true,"backNeedleLength":20,"length":120,"width":7},{"type":"marker","markerType":"diamond","distanceFromScale":5,"placement":"center","backgroundColor":"#29A4D9","length":25,"width":15}],"ticks":[{"type":"major","distanceFromScale":2,"height":16,"width":1,"color":"#8c8c8c"},{"type":"minor","height":6,"width":1,"distanceFromScale":2,"color":"#8c8c8c"}],"labels":[{"color":"#8c8c8c"}],"ranges":[{"distanceFromScale":-5,"backgroundColor":"#fc0606","border":{"color":"#fc0606"}},{"distanceFromScale":-5}],"customLabels":[{"position":{"x":180,"y":290},"font":{"size":"10px","fontFamily":"Segoe UI","fontStyle":"Normal"},"color":"#666666"},{"position":{"x":180,"y":320},"font":{"size":"10px","fontFamily":"Segoe UI","fontStyle":"Normal"},"color":"#666666"},{"position":{"x":180,"y":150},"font":{"size":"12px","fontFamily":"Segoe UI","fontStyle":"Normal"},"color":"#666666"}],"pointerCap":{"radius":7,"borderWidth":3,"interiorGradient":null,"borderColor":null,"backgroundColor":null},"sweepAngle":310,"startAngle":115,"majorIntervalValue":10,"minorIntervalValue":2,"maximum":null,"minimum":null,"backgroundColor":null,"direction":"clockwise","showPointers":true,"showTicks":true,"opacity":1,"shadowOffset":0,"indicators":[{"height":15,"width":15,"type":"circle","imageUrl":null,"position":{"x":0,"y":0},"stateRanges":[{"endValue":0,"startValue":0,"backgroundColor":null,"borderColor":null,"text":"","textColor":null,"font":null}]}],"subGauges":[{"height":150,"width":150,"position":{"x":0,"y":0}}]};
    	}
    </script>

    The above code will generate a simple pivot gauge with OLAP data source as shown in the following screenshot:
