Dimensions

9 Mar 20181 minute to read

Set size in percentage

You can customize the pivot chart dimension by setting the width and height of the control in percentage.

  • html
  • <div>
    		<ej:pivotChart id="PivotChart1 load="onLoad">
    		//...
    		</ej:pivotChart
    	</div>
    	<script type="text/javascript">
    		function onLoad(args) {
    			//...
    			args.model.size.height = "80%";
    			args.model.size.width = "80%";
    		}
    	</script>

    Set size in pixels

    You can customize the pivot chart dimension by setting the width and height of the control in pixels.

  • html
  • <div>
    		<ej:pivotChart id="PivotChart1" load="onLoad">
    		//...
    		</ej:pivotChart
    	</div>
    	<script type="text/javascript">
    		function onLoad(args) {
    			//...
    			args.model.size.height = "460px";
    			args.model.size.width = "950px";
    		}
    	</script>

    Responsive

    The pivot chart control supports responsive rendering based on the target device (desktop and tablet) resolution. It supports resolution upto 1024x600. You can enable responsiveness in the pivot chart by setting the isResponsive property to true.

  • html
  • <div>
    		<ej:pivotChart id="PivotChart1" isResponsive="true">
    		//...
    		</ej:pivotChart
    	</div>

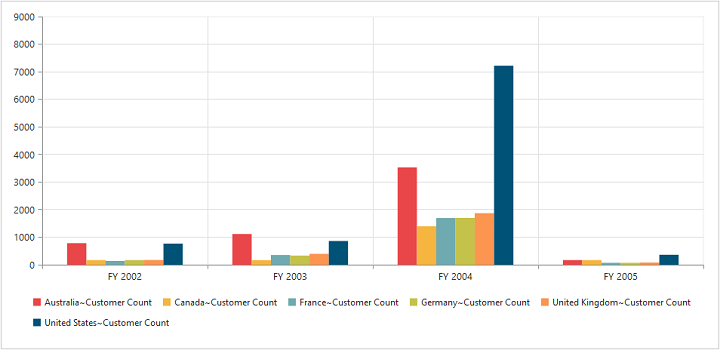

    Normal View

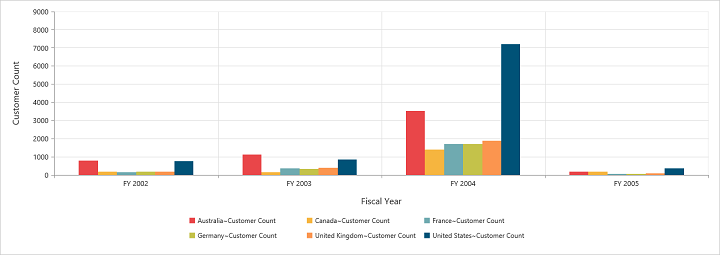

    ResponsiveView
