Getting Started

Before we start with the Chart, please refer this page for general information regarding integrating Syncfusion widget’s.

Adding script reference

To render the SunburstChart control, the following list of external dependencies are needed,

Files Description/Usage
ej.core.min.js It is referred always before using all the JS controls.
ej.data.min.js Used to handle data operation and is used while binding data to the JS controls.
ej.sunburstchart.min.js Sunburst Chart core script file which includes chart related scripts files.

NOTE

Refer the ej.web.all.min.js (which encapsulates all the ej controls and frameworks in a single file) in the application instead of referring all the above specified internal dependencies.

Control Initialization

  • Open the command prompt in the folder ember-app or the folder in which the application is created.

  • Use the command ember generate route sunburstchart/defaultto create template default.hbs file in templates folder and router default.js file in routes folder. It also add the routing content in router.js.

  • Use below code in default.hbs in templates folder to render the sunburstchart.

  • html
    • Use the below code in default.js in routes folder to bind the model to the sunburstchart.
  • html
  • import Ember from 'ember';

        export default Ember.Route.extend({
          model() {
             return {
             }
          }
        });

    Populate Data source:

    The datasource for the Sunburst Chart is populated as a JSON object. The default_data contains the JSON data for rendering the Sunburst Chart as shown in the sample.
    Create a document with .js extension with the below data to render sunburstchart and refer the script in index.html page as shown in below code snippet.

  • js
  • var default_data = [

    { Category: "Employees", Country: "USA", JobDescription: "Sales", JobGroup: "Executive", EmployeesCount: 50 },
    { Category: "Employees", Country: "USA", JobDescription: "Sales", JobGroup: "Analyst", EmployeesCount: 40 },
    { Category: "Employees", Country: "USA", JobDescription: "Marketing", EmployeesCount: 40 },
    { Category: "Employees", Country: "USA", JobDescription: "Technical", JobGroup: "Testers", EmployeesCount: 55 },
    { Category: "Employees", Country: "USA", JobDescription: "Technical", JobGroup: "Developers", JobRole: "Windows", EmployeesCount: 175 },
    { Category: "Employees", Country: "USA", JobDescription: "Technical", JobGroup: "Developers", JobRole: "Web", EmployeesCount: 70 },
    { Category: "Employees", Country: "USA", JobDescription: "Management", EmployeesCount: 40 },
    { Category: "Employees", Country: "USA", JobDescription: "Accounts", EmployeesCount: 60 },

    { Category: "Employees", Country: "India", JobDescription: "Technical", JobGroup: "Testers", EmployeesCount: 43 },
    { Category: "Employees", Country: "India", JobDescription: "Technical", JobGroup: "Developers", JobRole: "Windows", EmployeesCount: 125 },
    { Category: "Employees", Country: "India", JobDescription: "Technical", JobGroup: "Developers", JobRole: "Web", EmployeesCount: 60 },
    { Category: "Employees", Country: "India", JobDescription: "HR Executives", EmployeesCount: 70 },
    { Category: "Employees", Country: "India", JobDescription: "Accounts", EmployeesCount: 45 },

    { Category: "Employees", Country: "Germany", JobDescription: "Sales", JobGroup: "Executive", EmployeesCount: 30 },
    { Category: "Employees", Country: "Germany", JobDescription: "Sales", JobGroup: "Analyst", EmployeesCount: 40 },
    { Category: "Employees", Country: "Germany", JobDescription: "Marketing", EmployeesCount: 50 },
    { Category: "Employees", Country: "Germany", JobDescription: "Technical", JobGroup: "Testers", EmployeesCount: 40 },
    { Category: "Employees", Country: "Germany", JobDescription: "Technical", JobGroup: "Developers", JobRole: "Windows", EmployeesCount: 65 },
    { Category: "Employees", Country: "Germany", JobDescription: "Technical", JobGroup: "Developers", JobRole: "Web", EmployeesCount: 27 },
    { Category: "Employees", Country: "Germany", JobDescription: "Management", EmployeesCount: 33 },
    { Category: "Employees", Country: "Germany", JobDescription: "Accounts", EmployeesCount: 55 },

    { Category: "Employees", Country: "UK", JobDescription: "Technical", JobGroup: "Testers", EmployeesCount: 45 },
    { Category: "Employees", Country: "UK", JobDescription: "Technical", JobGroup: "Developers", JobRole: "Windows", EmployeesCount: 96 },
    { Category: "Employees", Country: "UK", JobDescription: "Technical", JobGroup: "Developers", JobRole: "Web", EmployeesCount: 55 },
    { Category: "Employees", Country: "UK", JobDescription: "HR Executives", EmployeesCount: 60 },
    { Category: "Employees", Country: "UK", JobDescription: "Accounts", EmployeesCount: 30 },

    { Category: "Employees", Country: "France", JobDescription: "Technical", JobGroup: "Testers", EmployeesCount: 40 },
    { Category: "Employees", Country: "France", JobDescription: "Technical", JobGroup: "Developers", JobRole: "Windows", EmployeesCount: 65 },
    { Category: "Employees", Country: "France", JobDescription: "Technical", JobGroup: "Developers", JobRole: "Web", EmployeesCount: 27 },
    { Category: "Employees", Country: "France", JobDescription: "Marketing", EmployeesCount: 50 }

     ];

    As stated earlier, refer the above script in index.html page.

  • html
  • <script src="scripts/scripts/Sunburst_Data.js" type="text/javascript"></script>

    Initialize Sunburst Chart with data

    Now, bind the default_data to datasource property of the Sunburst Chart. Thelevelsproperty determines the number of hierarchical levels. Each hierarchy level is formed based on the property specified in groupMemberPath property, and each arc segment size is calculated using valueMemberPath.

  • html
    • Now create a document with .js extension under app/routes/chart folder with the below code snippet.
  • html
  • import Ember from 'ember';

        export default Ember.Route.extend({
          model() {
             return {
               dataSource: window.default_data,
               valueMemberPath: "EmployeesCount",
               levels: [
                    { groupMemberPath: "Country" },
                    { groupMemberPath: "JobDescription" },
                    { groupMemberPath: "JobGroup" },
                    { groupMemberPath: "JobRole" }
               ],
             }
          }
        });

    Running the application

    • To run the application, execute below command.
  • javascript
  • ember serve
    • Browse to http://localhost:4200 to see the application. And navigate to sunburstchart sample. The component is rendered as like the below screenshot. You can make changes in the code found under app folder and the browser should auto-refresh itself while you save files.

    Add Title to the Sunburst Chart

    The title of the Sunburst chart is used to provide quick information to the user about the data being plotted in the Sunburst Chart. You can add it by using the text option of the title

  • html
  • html
  • import Ember from 'ember';

        export default Ember.Route.extend({
          model() {
             return {
               title: {text: "Employees Count"},
             }
          }
        });

    Enable Legend

    You can enable or disable the legend by using the visible option present inside the legend

  • html
  • html
  • import Ember from 'ember';

        export default Ember.Route.extend({
          model() {
             return {
               legend: { visible:true, position: "left" },
             }
          }
        });

    Add Data Labels

    The data labels are used to improve the readability of the Sunburst chart. This can be achieved by enabling the visible option in the dataLabelSettings

  • html
  • html
  • import Ember from 'ember';

        export default Ember.Route.extend({
          model() {
             return {
               dataLabelSettings: { visible:true},
               size: { height: "600" },
             }
          }
        });

    Running the application

    • To run the application, execute below command.
  • javascript
  • ember serve

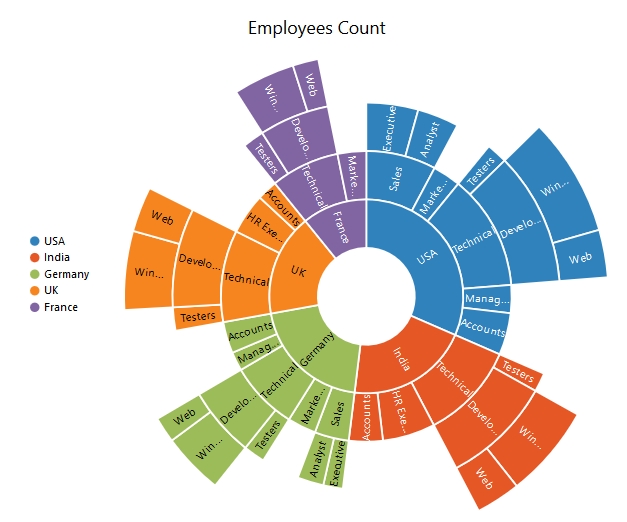

    • Browse to http://localhost:4200 to see the application. And navigate to chart tab. The component is rendered as like the below screenshot. You can make changes in the code found under app folder and the browser should auto-refresh itself while you save files.

    Now the Sunburst Chart is rendered along with the specified customizations

    Click here to view the default sample of the Sunburst Chart.
