Getting Started

28 Nov 20179 minutes to read

This section explains briefly about how to create a Splitter in your application with Syncfusion Essential EmberJS.
Before going to getting started with Splitter widget please refer Getting Started with Syncfusion EmberJS application to know how to create simple Essential EmberJS application.
If you want to know individual script reference to create Splitter Please Refer under Requires
Splitter widget consists of movable split bar(s) that divides a container’s display area into two or more resizable and collapsible panels.

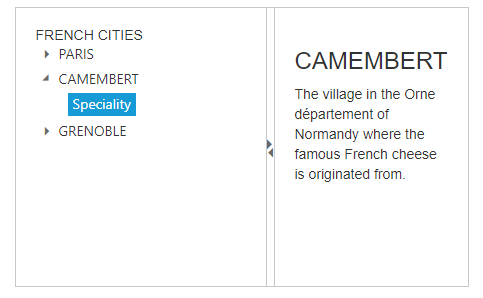

From the following guidelines, you can create a Splitter, add Tree view in the Splitter and set actions to view the text content. It is used to split the document or image and Expand or Collapse in the Splitter. The following screenshot demonstrates the functionality of Splitter widget.

Create Splitter Control

HTML

<div class="cols-sample-area">

                {{#ej-splitter id="outterSplitter" e-height=model.height e-width=model.width  e-properties=model.properties e-enableAutoResize=model.enableAutoResize}}
                    <div id="treepane">
                    </div>

                       <div class="cont">
                        </div>
                {{/ej-splitter}}


        </div>

Add the following code in styles section,

CSS

<style type="text/css" class="cssStyles">
        .cont {
            padding: 20px;
            min-width: 50px;
        }

            .cont #treeView_Container {
                margin-bottom: 0;
                border: none;
            }

    </style>

Configure Tree View

Add the following code example in HTML file to configure Tree View.

HTML

<div class="cols-sample-area">

        {{#ej-splitter id="outterSplitter" e-height=model.height e-width=model.width  e-properties=model.properties e-enableAutoResize=model.enableAutoResize}}
        <div>
        <div class="cont">
        <h3 class="h3">FRENCH CITIES</h3>

        {{#ej-treeview id="treeView" class="visibleHide" e-nodeSelect=model.nodeSelect }}
        <li>PARIS
        <ul>
        <li id="paris" class="_child">Speciality</li>
        </ul>
        </li>
        <li>CAMEMBERT
        <ul>
            <li id="camembert" class="_child">Speciality </li>
        </ul>
        </li>
        <li>GRENOBLE
        <ul>
            <li id="grenoble" class="_child">Speciality</li>
        </ul>
        </li>
        {{/ej-treeview}}
        </div>
        </div>
        <div class="cont">
        <div class="_content">
        Select any city from the tree to show the description.
        </div>
        <div class="paris spe">
        <h3>PARIS</h3>
        Paris, the city of lights and love - this short guide is full of ideas for how to make the most of the romanticism...
        </div>
        <div class="camembert spe">
        <h3>CAMEMBERT</h3>
        The village in the Orne département of Normandy where the famous French cheese is originated from.
        </div>
        <div class="grenoble spe">
        <h3>GRENOBLE</h3>
        The capital city of the French Alps and a major scientific center surrounded by many ski resorts, host of the Winter Olympics in 1968.
        </div>
        </div>
        {{/ej-splitter}}

        </div>

Include following code in style section,

CSS

<style type="text/css" class="cssStyles">
        .cont {
            padding: 20px;
            min-width: 50px;
        }

            .cont #treeView_Container {
                margin-bottom: 0;
                border: none;
            }

        .h3 {
            font-size: 14px;
            margin: 0;
        }

        .spe {
            display: none;
        }
    </style>

Set Actions

Add the following code example in the view page to set the action to view the content.

JAVASCRIPT

export default Ember.Route.extend({
    model() {
    return {
        height: 280, width: 454,
        properties: [{ paneSize: 250 }, {}],
        enableAutoResize: true,
        nodeSelect: function (sender) {
            if (sender.currentElement.hasClass('_child')) {
                var content = Ember.$('.' + sender.currentElement[0].id).html();
                Ember.$('._content').html(content);
            }
        },
        }
        }
     });

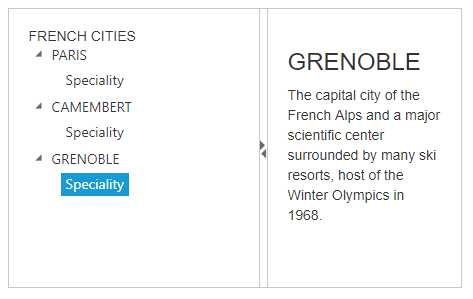

The following screenshot is the output for the above code.
