Getting Started

Before we start with the RangeNavigator, please refer this page for general information regarding integrating Syncfusion widget’s.

Adding JavaScript and CSS Reference

To render the RangeNavigator control, the following list of external dependencies are needed,

Files Description/Usage
ej.core.min.js It is referred always before using all the JS controls.
ej.data.min.js Used to handle data operation and is used while binding data to the JS controls.
ej.rangenavigator.min.js RangeNavigator core script file which includes RangeNavigator related scripts files.
ej.globalize.min.js It is referred when using localization in RangeNavigator.
ej.scroller.min.js It is referred when scrolling is used in the RangeNavigator.

NOTE

RangeNavigator uses one or more script files, therefore refer the ej.web.all.min.js (which encapsulates all the ej controls and frameworks in a single file) in the application instead of referring all the above specified internal dependencies.

To get the real appearance of the RangeNavigator, the dependent CSS file ej.web.all.min.css (which includes styles of all the widgets) should also needs to be referred.

Control Initialization

  • Open the command prompt in the folder ember-app or the folder in which the application is created.

  • Use the command ember generate route rangenavigator/defaultto create template default.hbs file in templates folder and router default.js file in routes folder. It also add the routing content in router.js.

  • Use below code in default.hbs in templates folder to render the rangenavigator.

  • html
    • Use the below code in default.js in routes folder to bind the model to the rangenavigator.
  • html
  • import Ember from 'ember';

        export default Ember.Route.extend({
          model() {
             return {
             }
          }
        });

    Running the application

    • To run the application, execute below command.
  • javascript
  • ember serve
    • Browse to http://localhost:4200 to see the application. And navigate to rangenavigator sample. The component is rendered as like the below screenshot. You can make changes in the code found under app folder and the browser should auto-refresh itself while you save files.

    Configure RangeNavigator

    Getting started with your ej-rangenavigator is simple. You can initialize the ej-rangenavigator by setting its range values.
    Set ej-rangenavigator attribute to render RangeNavigator control and add e-rangeSettings for customize the rangeSettings.

  • html
  • html
  • export default Ember.Route.extend({
          model() {
             return {
               rangeSettings: {
                        start: "2010/1/1", end: "2010/12/31"
                    },
             }
          }
      });

    The following screen shot displays the RangeNavigator with a range from 2010, January 1st to December 31st.

    Add series

    To add series to ej-rangenavigator, you need to set dataSource property of ej-rangenavigator as shown in the following code example.

    You can create a folder service and add data.serivce.ts file to give data source for RangeNavigator as follows.

  • html
  • html
  • export default Ember.Route.extend({
          model() {
             return {
               series: [{
    			            dataSource: chartData, xName: "xDate", yName: "yValue"
    		       }],
             }
          }
      });

    Now, add the dataSource to the series property of RangeNavigator and provide the field name to get the values from the dataSource in xName and yName options as in the above code snippet.

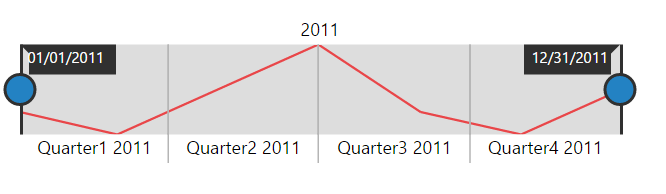

    The following screenshot displays a RangeNavigator with the default “Line” series type.

    Enable tooltip

    You can customize Tooltip for RangeNavigator using tooltip option. You can use tooltipDisplayMode option in tooltip,to display the tooltip “always” or “ondemand” (displays tooltip only while dragging the sliders). You can also specify label format for tooltip using labelFormat.

    The following code sample shows how to enable a Tooltip.

  • html
  • html
  • export default Ember.Route.extend({
          model() {
             return {
               tooltipSettings: {
                  visible: true, labelFormat: "MMM/yyyy", tooltipDisplayMode: "always",
               },
             }
          }
      });

    The following screenshot displays the label format Tooltip in RangeNavigator:
