Named sets

9 Mar 20185 minutes to read

Named sets is a multidimensional expression (MDX) that returns a set of dimension members that can be created by combining cube data, arithmetic operators, numbers, and functions.

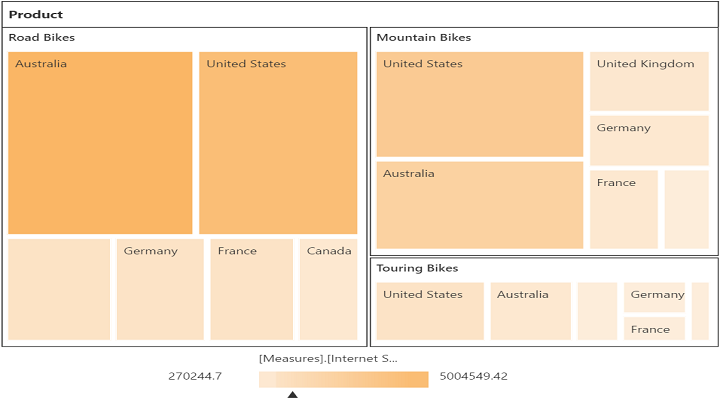

You can bind the named sets in the pivot tree map by setting it’s unique name in the field-name property in the row or column axis and is-named-sets Boolean property to true.

<div class="e-control">

	{{ej-pivottreemap id="PivotTreeMap" e-dataSource=model.dataSource e-renderSuccess=model.renderSuccess}}

	</div>

    <script type="text/x-jsrender" id="tooltipTemplate">
        <div style="background:White; color:black; font-size:12px; font-weight:normal; border: 1px solid #4D4D4D; white-space: nowrap;border-radius: 2px; margin-right: 25px; min-width: 110px;padding-right: 5px; padding-left: 5px; padding-bottom: 2px ;width: auto; height: auto;">
            <div>Measure(s) : \</div><div>Row : \</div><div>Column : \</div><div>Value : \</div>
        </div>
    </script>
export default Ember.Route.extend({
        model() {
            return {
                dataSource: {
                data: "http://bi.syncfusion.com/olap/msmdpump.dll", //data
                catalog: "Adventure Works DW 2008 SE",
                cube: "Adventure Works",
                rows: [
                    {
                        fieldName: "[Date].[Fiscal]"
                    }
                ],
                columns: [
                    {
                        fieldName: "[Customer].[Customer Geography]"
                    }
                ],
                values: [
                    {
                        measures: [
                            {
                                fieldName: "[Measures].[Internet Sales Amount]",
                            }
                        ],
                        axis: "columns"
                    }
                ]
            },
            renderSuccess: function(args){
                     var treemapTarget = $('#PivotTreeMapTreeMapContainer').data('ejTreeMap');
                     treemapTarget.model.tooltipTemplate = null;
                     treemapTarget.model.showTooltip = false;
                     treemapTarget.refresh();
                }
           }
        }
    });
