Grouping bar

Initialization

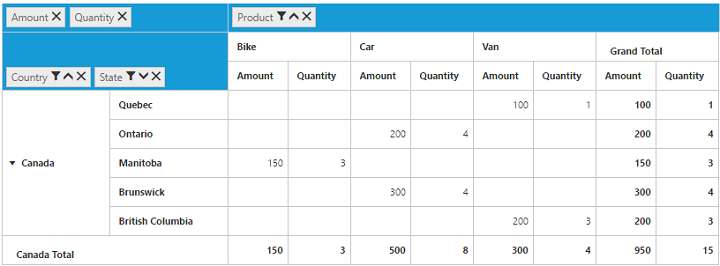

The grouping bar allows you to dynamically alter the report by filter, sort, and remove operations in the pivot grid control. Based on the relational data source and report bound to the pivot grid control, the grouping bar will be automatically populated. You can enable the grouping bar option in the pivot grid by setting the e-enableGroupingBar property to true.

  • html
  • <div class="e-control">

    	{{ej-pivotgrid id="PivotGrid" e-dataSource=model.dataSource e-enableGroupingBar=model.enableGroupingBar }}

    	</div>
  • js
  • export default Ember.Route.extend({
            model() {
                return {
                    dataSource: {
                                    data: [
                                        { Amount: 100, Country: "Canada", Date: "FY 2005", Product: "Bike", Quantity: 2, State: "Alberta" },
                                        { Amount: 200, Country: "Canada", Date: "FY 2006", Product: "Van", Quantity: 3, State: "British Columbia" },
                                        { Amount: 300, Country: "Canada", Date: "FY 2007", Product: "Car", Quantity: 4, State: "Brunswick" },
                                        { Amount: 150, Country: "Canada", Date: "FY 2008", Product: "Bike", Quantity: 3, State: "Manitoba" },
                                        { Amount: 200, Country: "Canada", Date: "FY 2006", Product: "Car", Quantity: 4, State: "Ontario" },
                                        { Amount: 100, Country: "Canada", Date: "FY 2007", Product: "Van", Quantity: 1, State: "Quebec" },
                                        { Amount: 200, Country: "France", Date: "FY 2005", Product: "Bike", Quantity: 2, State: "Charente-Maritime" },
                                        { Amount: 250, Country: "France", Date: "FY 2006", Product: "Van", Quantity: 4, State: "Essonne" },
                                        { Amount: 300, Country: "France", Date: "FY 2007", Product: "Car", Quantity: 3, State: "Garonne (Haute)" },
                                        { Amount: 150, Country: "France", Date: "FY 2008", Product: "Van", Quantity: 2, State: "Gers" },
                                        { Amount: 200, Country: "Germany", Date: "FY 2006", Product: "Van", Quantity: 3, State: "Bayern" },
                                        { Amount: 250, Country: "Germany", Date: "FY 2007", Product: "Car", Quantity: 3, State: "Brandenburg" },
                                        { Amount: 150, Country: "Germany", Date: "FY 2008", Product: "Car", Quantity: 4, State: "Hamburg" },
                                        { Amount: 200, Country: "Germany", Date: "FY 2008", Product: "Bike", Quantity: 4, State: "Hessen" },
                                        { Amount: 150, Country: "Germany", Date: "FY 2007", Product: "Van", Quantity: 3, State: "Nordrhein-Westfalen" },
                                        { Amount: 100, Country: "Germany", Date: "FY 2005", Product: "Bike", Quantity: 2, State: "Saarland" },
                                        { Amount: 150, Country: "United Kingdom", Date: "FY 2008", Product: "Bike", Quantity: 5, State: "England" },
                                        { Amount: 250, Country: "United States", Date: "FY 2007", Product: "Car", Quantity: 4, State: "Alabama" },
                                        { Amount: 200, Country: "United States", Date: "FY 2005", Product: "Van", Quantity: 4, State: "California" },
                                        { Amount: 100, Country: "United States", Date: "FY 2006", Product: "Bike", Quantity: 2, State: "Colorado" },
                                        { Amount: 150, Country: "United States", Date: "FY 2008", Product: "Car", Quantity: 3, State: "New Mexico" },
                                        { Amount: 200, Country: "United States", Date: "FY 2005", Product: "Bike", Quantity: 4, State: "New York" },
                                        { Amount: 250, Country: "United States", Date: "FY 2008", Product: "Car", Quantity: 3, State: "North Carolina" },
                                        { Amount: 300, Country: "United States", Date: "FY 2007", Product: "Van", Quantity: 4, State: "South Carolina" }
                                    ],
                                    rows: [
    									{
                                            fieldName: "Country",
                                            fieldCaption: "Country"
                                        }
                                    ],
                                    columns: [
                                        {
                                            fieldName: "Product",
                                            fieldCaption: "Product"
                                        }
                                    ],
                                    values: [
                                        {
                                            fieldName: "Amount",
                                            fieldCaption: "Amount"
                                        }
                                    ]
                                },
                                enableGroupingBar: true
               }
            }
        });

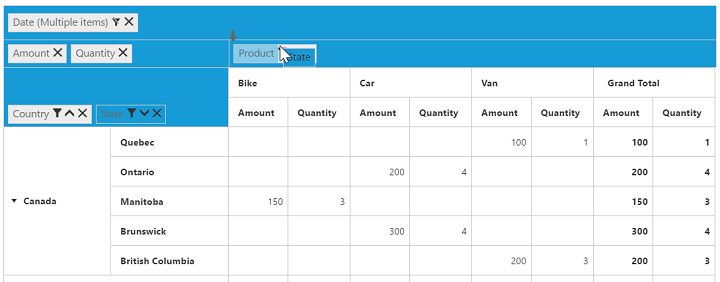

    Drag and drop

    You can alter the report on fly through drag and drop operation.

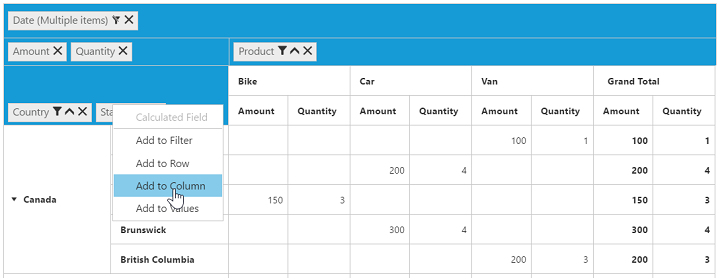

    Context menu

    You can also alter the report by using the context menu.

    Searching values

    The search option available in the grouping bar allows you to search a specific value that should be filtered from the list of values in the filter pop-up window.

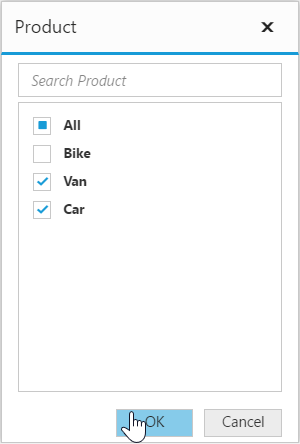

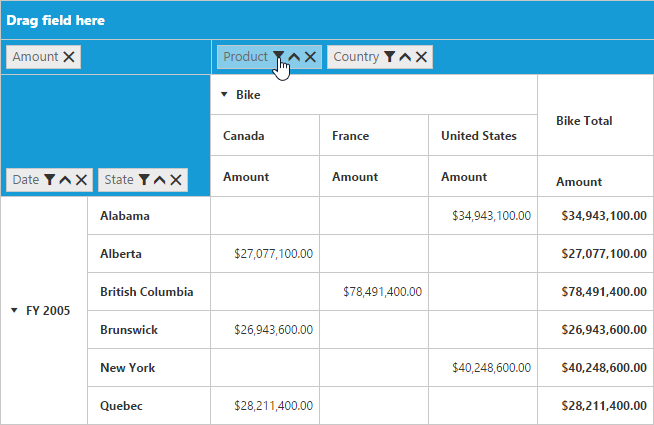

    Filtering values

    The filtering option available in the grouping bar allows you to select a specific set of values that should be displayed in the pivot grid control. At least, one value should present in the checked state while filtering, otherwise, the OK button will be disabled.

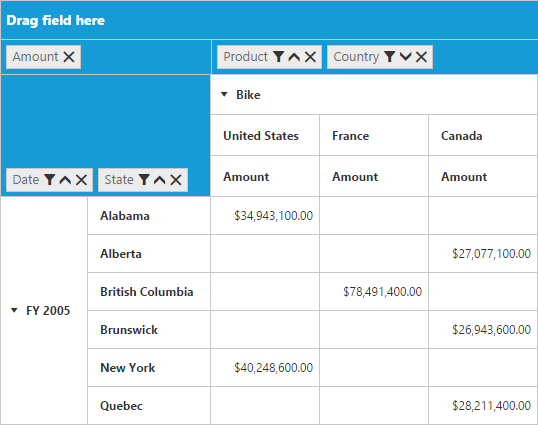

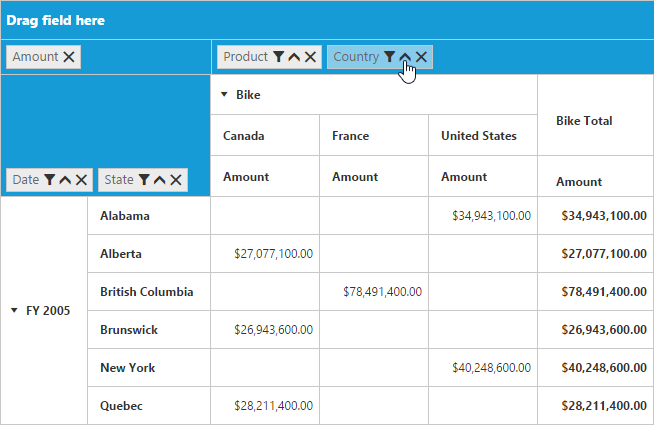

    Sorting values

    The sorting option available in the grouping bar allows you to arrange headers in the ascending or descending order. This option is applicable only for fields available in the row and column region. By default, headers are sorted in the ascending order. In the sorting indicator, up arrow denotes ascending order and down arrow denotes descending order.

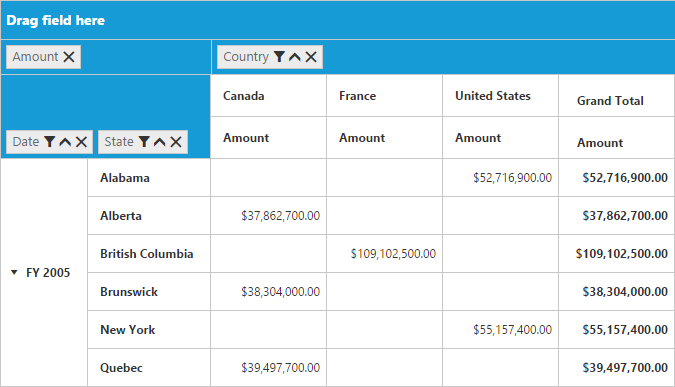

    Removing field

    The remove option available in the grouping bar allows you to completely remove a specific field from the pivot grid control. The remove operation can be achieved by clicking remove icon available in each field or by dragging and dropping the field out of the grouping bar region.
