Named sets

9 Mar 2018 / 3 minutes to read

Named sets is a multidimensional expression (MDX) that returns a set of dimension members, which can be created by combining cube data, arithmetic operators, numbers, and functions.

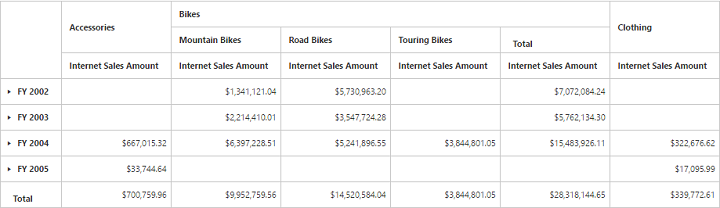

You can bind the named sets in the pivot grid by setting it’s unique name in the fieldName property in the row or column axis and isNamedSets Boolean property to true.

html

<div class="e-control">

	{{ej-pivotgrid id="PivotGrid" e-dataSource=model.dataSource}}

	</div>

js

export default Ember.Route.extend({
        model() {
            return {
                dataSource: {
                data: "http://bi.syncfusion.com/olap/msmdpump.dll", //data
                catalog: "Adventure Works DW 2008 SE",
                cube: "Adventure Works",
                rows: [
                    {
                        fieldName: "[Date].[Fiscal]"
                    }
                ],
                columns: [
                    {
                        fieldName: "[Core Product Group]",
                        isNamedSets: true
                    }
                ],
                values: [
                    {
                        measures: [
                            {
                                fieldName: "[Measures].[Internet Sales Amount]"
                            }
                        ],
                        axis: "columns"
                    }
                ]
            }
           }
        }
    });
