Frame type

9 Mar 20182 minutes to read

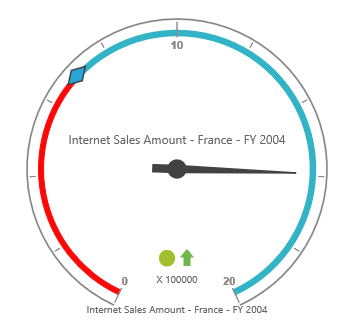

Full circle

The full circle frame is used to display the pivot gauge in circular shape. The frame type can be set by using the frameType property. By default, the frame type is “fullcircle”.

HTML

{{ej-pivotgauge id="PivotGauge" e-frame=model.frame }}

JAVASCRIPT

import Ember from 'ember';

export default Ember.Route.extend({
   model(){
    return {
            frame: {
                frameType: "fullcircle"
            }
        }
    },
});

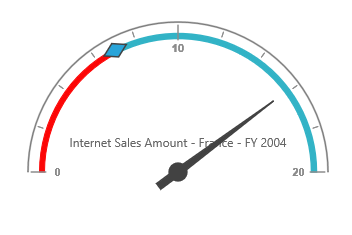

Half circle

The half circle frame is used to display the pivot gauge in semi-circular shape. For this, frame type should be set as “HalfCircle” in the frameType property, and should set the startAngle and sweepAngle for the pivot gauge in the scales property.

HTML

{{ej-pivotgauge id="PivotGauge" e-frame=model.frame e-scales=model.scales }}

JAVASCRIPT

import Ember from 'ember';

export default Ember.Route.extend({
   model(){
    return {
            frame: {
               frameType: 'halfcircle',
               halfCircleFrameStartAngle: 180, halfCircleFrameEndAngle: 360
        },
        scales: [{
                    //..
                    startAngle: 180, sweepAngle: 180
                    //..
                }]
        }
    },
});
