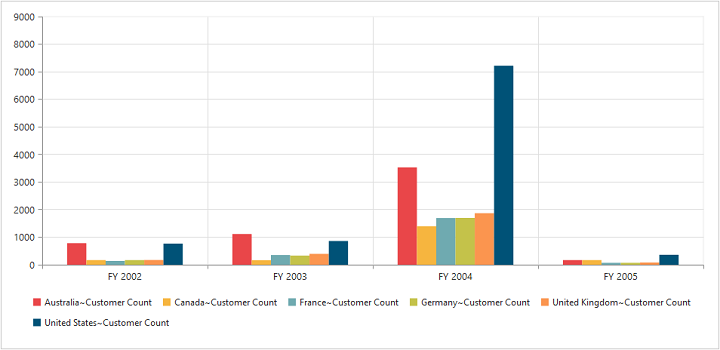

Dimensions

9 Mar 20184 minutes to read

Set size in percentage

You can customize the pivot chart dimension by setting the width and height of the control in percentage.

HTML

<div class="e-control">

	{{ej-pivotchart id="PivotChart" e-size=model.size }}

	</div>

JS

import Ember from 'ember';

export default Ember.Route.extend({
   model(){
    return {
                //...

                size: {
                    height: "80%",
                    width: "80%"
                },
        }
    }
});

CSS

ej-pivotchart {
    width:100%;
    height:450px;
}

Set size in pixels

You can customize the pivot chart dimension by setting the width and height of the control in pixels.

HTML

<div class="e-control">

	{{ej-pivotchart id="PivotChart" e-size=model.size }}

	</div>

JS

import Ember from 'ember';

export default Ember.Route.extend({
   model(){
    return {
                //...

                size: {
                    height: "540px",
                    width: "950px"
                },
        }
    }
});

CSS

ej-pivotchart {
    width:950px;
    height:450px;
}

Responsive

The pivot chart control supports responsive rendering based on the target device (desktop and tablet) resolution. It supports resolution upto 1024x600. You can enable responsiveness in the pivot chart by setting the isResponsive property to true.

HTML

<div class="e-control">

	{{ej-pivotchart id="PivotChart" e-isResponsive=model.isResponsive e-size=model.size }}

	</div>

JS

import Ember from 'ember';

export default Ember.Route.extend({
   model(){
    return {
                //...

                size: {
                    height: "540px",
                    width: "950px"
                },
                isResponsive: true
        }
    }
});

CSS

ej-pivotchart {
    min-width:525px;
    min-height:460px;
    width: 100%;
    height:450px;
}

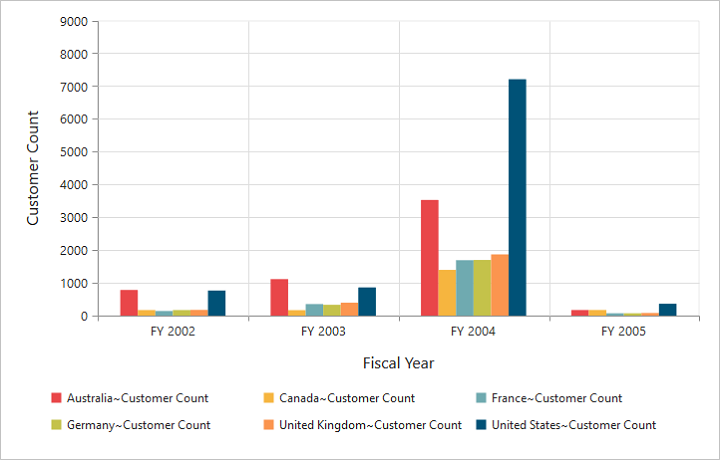

Normal View

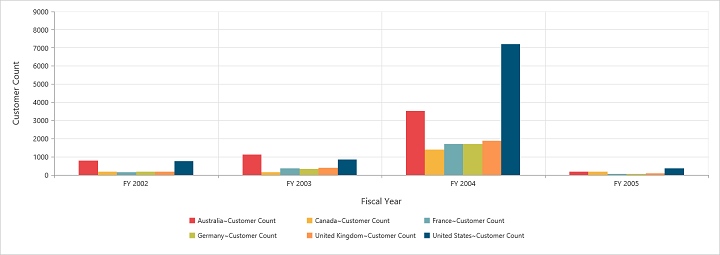

ResponsiveView
