Getting Started

Before we start with the CircularGauge, please refer this page for general information regarding integrating Syncfusion widget’s.

Adding JavaScript and CSS Reference

To render the CircularGauge control, the following list of external dependencies are needed,

The other required internal dependencies are tabulated below,

Files Description/Usage
ej.core.min.js It is referred always before using all the JS controls.
ej.data.min.js Used to handle data operation and is used while binding data to the JS controls.
ej.circulargauge.min.js CircularGauge core script file which includes CircularGauge related scripts files.
excanvas.min.js

Refer the ej.web.all.min.js which encapsulates all the ej controls and frameworks in a single file.

Control Initialization

  • Open the command prompt in the folder ember-app or the folder in which the application is created.

  • Use the command ember generate route circulargauge/defaultto create template default.hbs file in templates folder and router default.js file in routes folder. It also add the routing content in router.js.

  • Use below code in default.hbs in templates folder to render the circulargauge.

  • html
    • Use the below code in default.js in routes folder to bind the model to the circulargauge.
  • html
  • import Ember from 'ember';

        export default Ember.Route.extend({
          model() {
             return {
             }
          }
        });

    Running the application

    • To run the application, execute below command.
  • javascript
  • ember serve

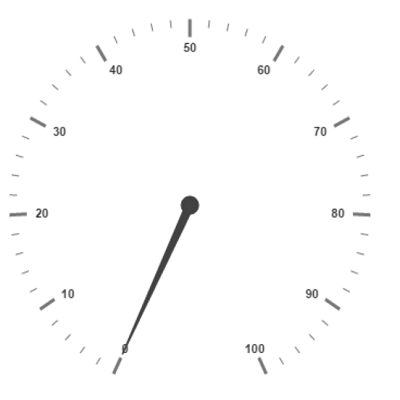

    • Browse to http://localhost:4200 to see the application. And navigate to circulargauge sample. The component is rendered as like the below screenshot. You can make changes in the code found under app folder and the browser should auto-refresh itself while you save files.

    Set Background Color

    You can draw the speedometer with dark background and to vary the speed of the pointer, set the readOnly option as False for user interaction.

  • html
  • html
  • export default Ember.Route.extend({
          model() {
             return {
                 backgroundColor: "#3D3F3D"
             }
          }
        });

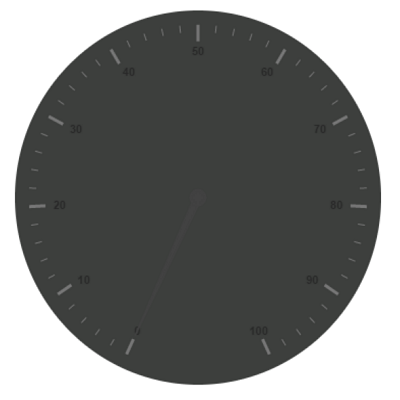

    The above code example renders a Gauge as shown in the following screen shot.

    Provide scale values

    • You can customize the pointer cap using the following options- Cap radius, Cap border color, cap background color, pointer cap border width.

    • Set the maximum speed limit in the Gauge as 200KmpH.

    • Major Ticks and Minor Ticks have the interval values 20 and 5 respectively. Show ranges and show indicators are used to display the ranges and indicators in their respective positions.

  • html
  • html
  • export default Ember.Route.extend({
          model() {
             return {
                width: 500,
                height: 500,
                backgroundColor: "#3D3F3D",
                scales: [{
                    showRanges: true,
                    showIndicators: true,
                    pointerCap: {
                        radius: 15,
                        borderWidth: 0,
                        backgroundColor: "#797C79",
                        borderColor: "#797C79"
                    },
                    maximum: 200,
                    majorIntervalValue: 20,
                    minorIntervalValue: 5,
                    //Add the labels customization code here
                    //Add the pointers customization code here
                    //Add the ticks customization code here
                    //Add the ranges customization code here
                    //Add the indicators customization code here
                    //Add the Custom labels customization code here
                }]
             }
          }
        });

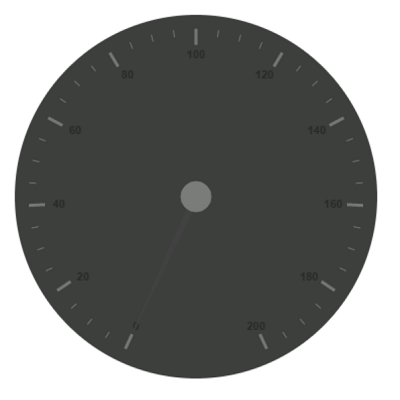

    On executing the above code, sample renders a Circular Gauge with customized labels as follows.

    Add Label Customization

    To display the values in the Gauge, scale labels are used. You can customize the label color.

  • html
  • </div>
  • html
  • export default Ember.Route.extend({
          model() {
             return {
                width: 500,
                height: 500,
                backgroundColor: "#3D3F3D",
                readOnly: false,
                scales: [{
                        //Add the labels customization code here
                        labels: [{
                            color: "#ffffff"
                        }],
                        //Add the pointers customization code here
                        //Add the ticks customization code here
                        //Add the ranges customization code here
                        //Add the indicators customization code here
                        //Add the Custom labels customization code here
                }]
             }
          }
        });

    On executing the above code, sample renders a default Circular Gauge with customized labels as follows.

    Add pointer data

    You can use three pointers that denote kilometer value, rotation per minute value and torque value.The torque value pointer should not be similar to other two pointers. Set the torque pointer as marker pointer. You can set other attributes for pointer such as background color, border color, Length, width and distance from scale.

  • html
  • </div>
  • html
  • export default Ember.Route.extend({
          model() {
             return {
                width: 500,
                height: 500,
                backgroundColor: "#3D3F3D",
                readOnly: false,
                scales: [{
                        //Add the labels customization code here
                        //Add the pointers customization code here
                        pointers: [{
                            value: 140,
                            distanceFromScale: 60,
                            showBackNeedle: false,
                            length: 20,
                            type: "marker",
                            markerType: "triangle",
                            width: 10,
                            radius: 10,
                            backgroundColor: "#FF940A",
                            border: {
                                color: "#FF940A"
                            },
                        },
                        {
                            value: 110,
                            showBackNeedle: false,
                            length: 150,
                            width: 2,
                            radius: 10,
                            needleType: "rectangle",
                            backgroundColor: "#05AFFF",
                            border: {
                                color: "#05AFFF"
                            },
                        }, {
                            value: 67,
                            showBackNeedle: false,
                            length: 100,
                            width: 15,
                            radius: 10,
                            backgroundColor: "#FC5D07",
                            border: {
                                color: "#FC5D07"
                            },
                        }],
                        //Add the ticks customization code here
                        //Add the ranges customization code here
                        //Add the indicators customization code here
                        //Add the Custom labels customization code here
                }]
             }
          }
        });

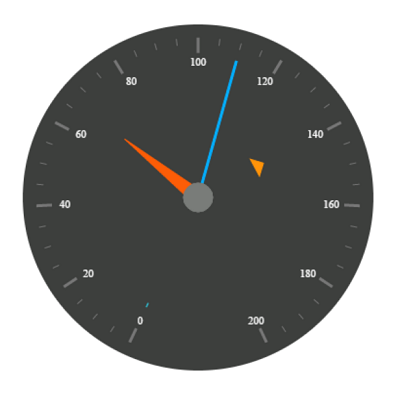

    On executing the above code, sample renders a customized Circular Gauge as follows.

    Add Tick Details

    You can display the tick value with customization as given in the following code example. You can set width and height of the Major ticks greater than the Minor ticks. You can set dark background for tick Color to have a better visibility.

  • html
  • </div>
  • html
  • export default Ember.Route.extend({
          model() {
             return {
                width: 500,
                height: 500,
                backgroundColor: "#3D3F3D",
                readOnly: false,
                scales: [{
                        //Add the labels customization code here
                        //Add the pointers customization code here
                        //Add the ticks customization code here
                        ticks: [{
                            type: "major",
                            distanceFromScale: 70,
                            height: 20,
                            width: 3,
                            color: "#ffffff"
                        }, {
                            type: "minor",
                            height: 12,
                            width: 1,
                            distanceFromScale: 70,
                            color: "#ffffff"
                        }],
                        //Add the ranges customization code here
                        //Add the indicators customization code here
                        //Add the Custom labels customization code here
                }]
             }
          }
        });

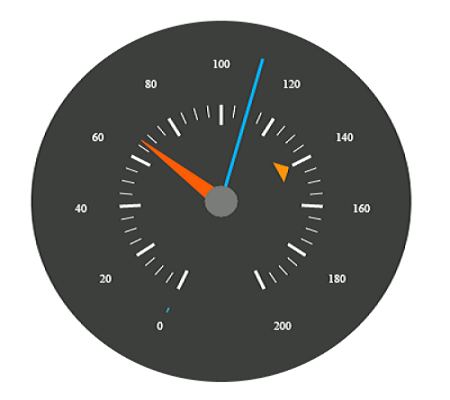

    On executing the above code, sample renders a Circular Gauge with customized labels as follows.

    Add Range Values

    Ranges denote the property of scale value in the speedometer. The color values of the ranges specify the speed variation. Set showRanges property to True to show the ranges in the Circular Gauge. Select safe zone for low speed, caution zone for moderate speed and high zone for high speed. You can customize the range with the properties such as start value, end value, start width, end width, background color , border color, etc.,

  • html
  • </div>
  • html
  • export default Ember.Route.extend({
          model() {
             return {
                width: 500,
                height: 500,
                backgroundColor: "#3D3F3D",
                readOnly: false,
                scales: [{
                        //Add the labels customization code here
                        //Add the pointers customization code here
                        //Add the ticks customization code here
                        //Add the ranges customization code here
                        ranges: [{
                            distanceFromScale: 30,
                            startValue: 0,
                            endValue: 70,
                            backgroundColor: "#5DF243",
                            border: {
                                color: "#FFFFFF"
                            },
                        }, {
                            distanceFromScale: 30,
                            startValue: 70,
                            endValue: 140,
                            backgroundColor: "#F6FF0A",
                            border: {
                                color: "#FFFFFF"
                            },
                        },
                        {
                            distanceFromScale: 30,
                            startValue: 140,
                            endValue: 200,
                            backgroundColor: "#FF1807",
                            border: {
                                color: "#FFFFFF"
                            },
                        }],
                        //Add the indicators customization code here
                        //Add the Custom labels customization code here
                }]
             }
          }
        });

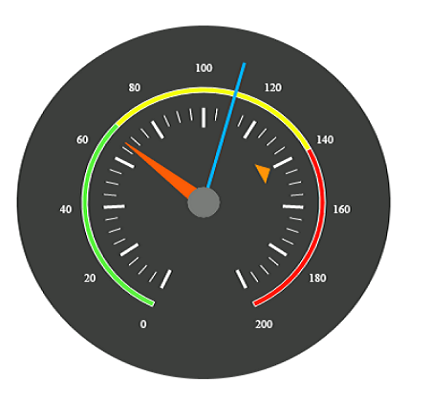

    On executing the above code, sample renders a Circular Gauge with customized range as follows.

    Add Indicator Details

    Indicators denote whether the pointer values are placed in their respective zones. You can position the indicators on the respective range value for the required changes. You can set the location of the indicator using position property.You can also specify height, width and type for indicators. The stateRanges property defines how the indicator should behave when the pointer is in certain values.

  • html
  • </div>
  • html
  • export default Ember.Route.extend({
          model() {
             return {
                width: 500,
                height: 500,
                backgroundColor: "#3D3F3D",
                readOnly: false,
                scales: [{
                        //Add the labels customization code here
                        //Add the pointers customization code here
                        //Add the ticks customization code here
                        //Add the ranges customization code here
                        //Add the indicators customization code here
                        indicators: [
                        {
                            height: 10,
                            width: 10,
                            type: "circle",
                            position: { x: 210, y: 300 },
                            stateRanges: [{
                                endValue: 70,
                                startValue: 0,
                                backgroundColor: "#5DF243",
                                borderColor: "#5DF243",
                                text: "",
                                textColor: "#870505"
                            }, {
                                endValue: 200,
                                startValue: 70,
                                backgroundColor: "#145608",
                                borderColor: "#145608",
                                text: "",
                                textColor: "#870505"
                            }]
                        },
                        {
                            height: 10,
                            width: 10,
                            type: "circle",
                            position: { x: 255, y: 200 },
                            stateRanges: [{
                                endValue: 140,
                                startValue: 70,
                                backgroundColor: "#F6FF0A",
                                borderColor: "#F6FF0A",
                                text: "",
                            }, {
                                endValue: 70,
                                startValue: 0,
                                backgroundColor: "#969B0C",
                                borderColor: "#969B0C",
                                text: "",
                            }, {
                                endValue: 200,
                                startValue: 140,
                                backgroundColor: "#969B0C",
                                borderColor: "#969B0C",
                                text: "",
                            }]
                        }, {
                            height: 10,
                            width: 10,
                            type: "circle",
                            position: { x: 300, y: 300 },
                            stateRanges: [{
                                endValue: 140,
                                startValue: 0,
                                backgroundColor: "#890F06",
                                borderColor: "#890F06",
                                text: "",
                            },
                            {
                                endValue: 200,
                                startValue: 140,
                                backgroundColor: "#FF1807",
                                borderColor: "#FF1807",
                                text: "",
                            }]
                        }],
                        //Add the Custom labels customization code here
                }]
             }
          }
        });

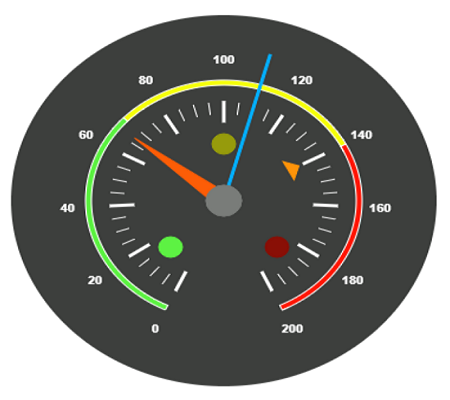

    On executing the above code, sample renders a Circular Gauge with customized indicators as follows.

    Add Custom Label Details

    You can specify the text in the Gauge using customLabels and you can customize it through various properties such as value, position, color, font, size, fontFamily and fontStyle. You can use custom texts to display the three range description.

  • html
  • </div>
  • html
  • export default Ember.Route.extend({
          model() {
             return {
                width: 500,
                height: 500,
                backgroundColor: "#3D3F3D",
                readOnly: false,
                scales: [{
                        //Add the labels customization code here
                        //Add the pointers customization code here
                        //Add the ticks customization code here
                        //Add the ranges customization code here
                        //Add the indicators customization code here
                        //Add the Custom labels customization code here
                        customLabels: [{
                            value: "Safe",
                            position: { x: 200, y: 280 },
                            color: "#5DF243",
                            font:
                            {
                                size: "12px",
                                fontFamily: "Arial",
                                fontStyle: "Bold"
                            }
                        }, {
                            value: "Caution",
                            position: { x: 253, y: 212 },
                            color: "#F6FF0A",
                            font:
                            {
                                size: "12px",
                                fontFamily: "Arial",
                                fontStyle: "Bold"
                            }
                        }, {
                            value: "Danger",
                            position: { x: 290, y: 280 },
                            color: "#FF1807",
                            font:
                            {
                                size: "12px",
                                fontFamily: "Arial",
                                fontStyle: "Bold"
                            }
                        }]
                }]
             }
          }
        });

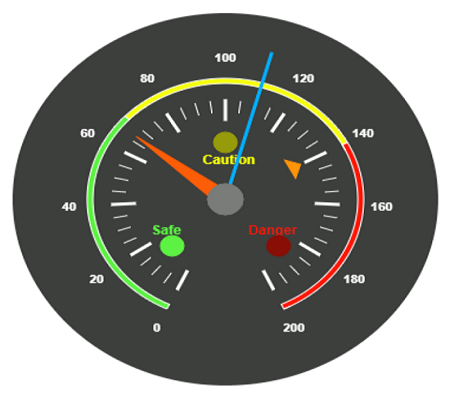

    The following screenshot displays a Circular Gauge control with all customization properties.
