Background in WPF DOCX Editor

30 Aug 20264 minutes to read

The WPF DOCX Editor control allows you to change background color of the control. A background of a control is represented by Background property of SfRichTextBoxAdv class. The default value of this property is black.

The following code illustrates how to apply color as background to the document.

<RichTextBoxAdv:SfRichTextBoxAdv x:Name="richTextBoxAdv" Background="#6699cc" />
// Initializes a new instance of RichTextBoxAdv.
SfRichTextBoxAdv richTextBoxAdv = new SfRichTextBoxAdv();
// Sets the control background color
richTextBoxAdv.Background = new SolidColorBrush(Color.FromRgb(102, 153, 204));
' Initializes a new instance of RichTextBoxAdv.
Dim richTextBoxAdv As New SfRichTextBoxAdv()

' Sets the control background color.
richTextBoxAdv.Background = New SolidColorBrush(Color.FromRgb(102, 153, 204))

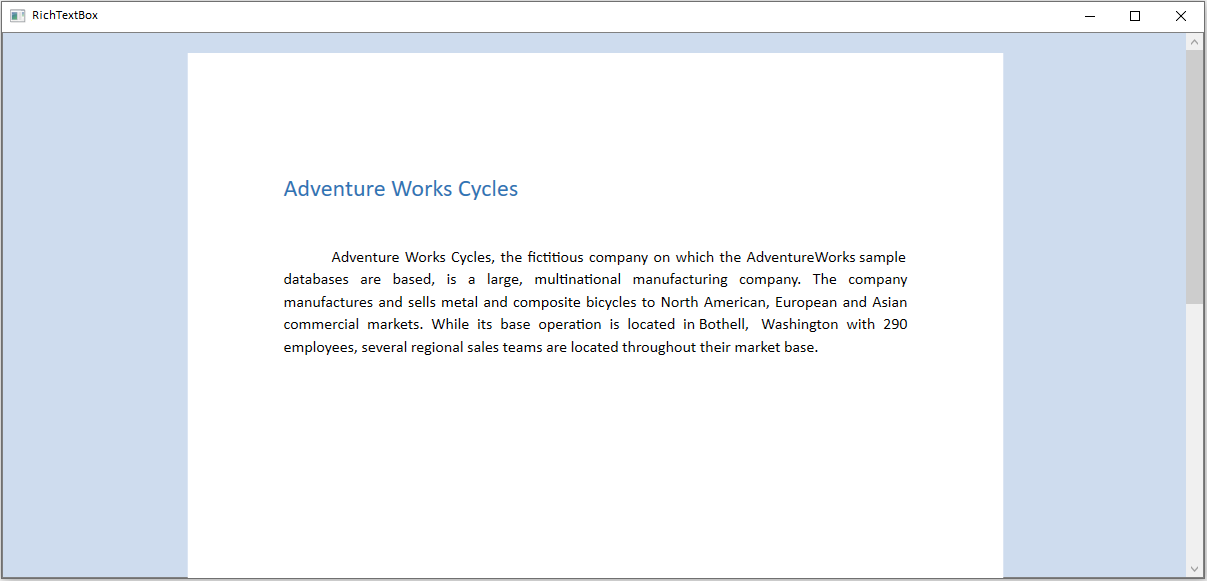

Pages layout:
Changing Background color of Page Layout in WPF DOCX Editor

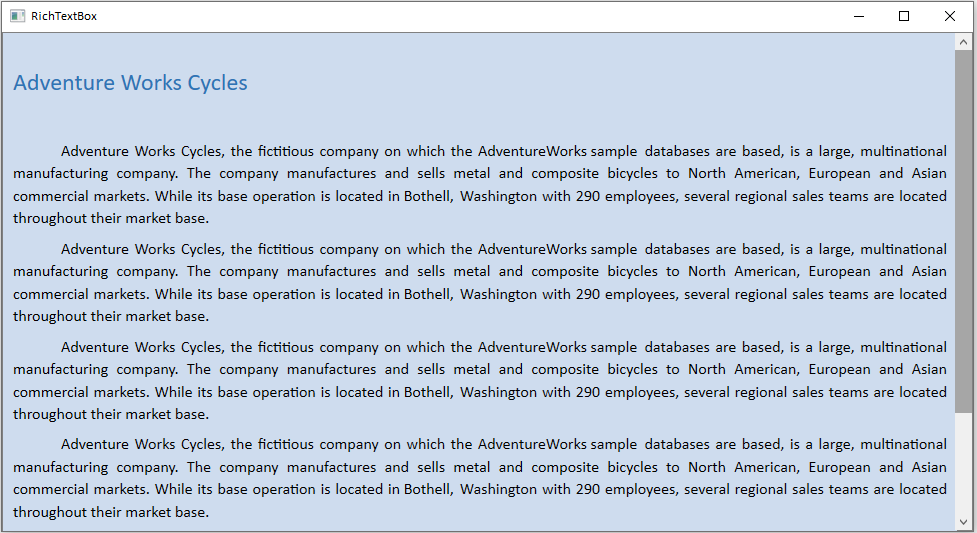

Continuous layout:
Changing Background color of Continuous Layout in WPF DOCX Editor

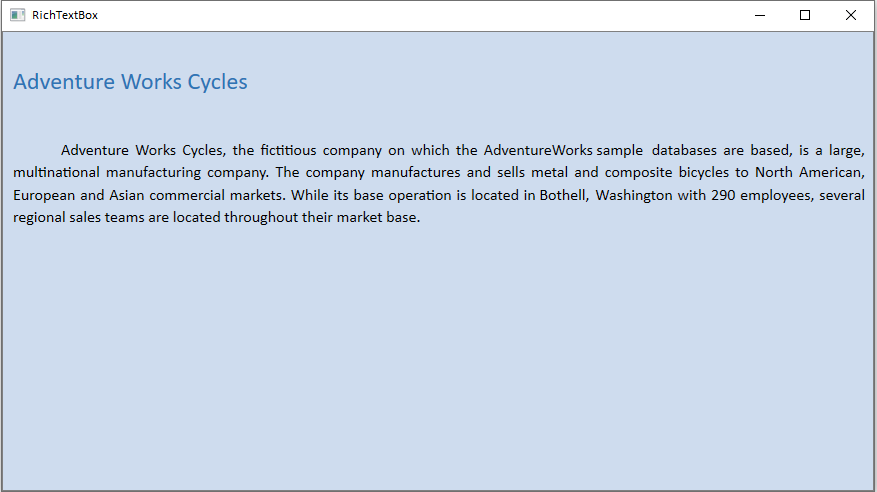

Block layout:
The block layout always inherits the control background color.
Changing Background color of Block Layout in WPF DOCX Editor

How to override the document background in continuous layout type?

By default, the document background properties will be applied when the LayoutType is continuous. You can suppress the document background and apply the control background by setting OverridesDocumentBackground property to true. The default value of this property is false.

This property is valid only when the LayoutType is continuous.

The following code illustrates how to override the document background color.

<RichTextBoxAdv:SfRichTextBoxAdv x:Name="richTextBoxAdv" LayoutType="Continuous" Background="#6699cc" OverridesDocumentBackground="True" />
// Initializes a new instance of RichTextBoxAdv.
SfRichTextBoxAdv richTextBoxAdv = new SfRichTextBoxAdv();
// Sets the control background color
richTextBoxAdv.Background = new SolidColorBrush(Color.FromRgb(102, 153, 204));
// Sets the layout type as continuous
richTextBoxAdv.LayoutType = LayoutType.Continuous;
//Enable the OverridesDocumentBackground property
richTextBoxAdv.OverridesDocumentBackground = true;
' Initializes a new instance of RichTextBoxAdv.
Dim richTextBoxAdv As New SfRichTextBoxAdv()
' Sets the control background color.
richTextBoxAdv.Background = New SolidColorBrush(Color.FromRgb(102, 153, 204))
' Sets the layout type as continuous
richTextBoxAdv.LayoutType = LayoutType.Continuous
' Enable the OverridesDocumentBackground property
richTextBoxAdv.OverridesDocumentBackground = true

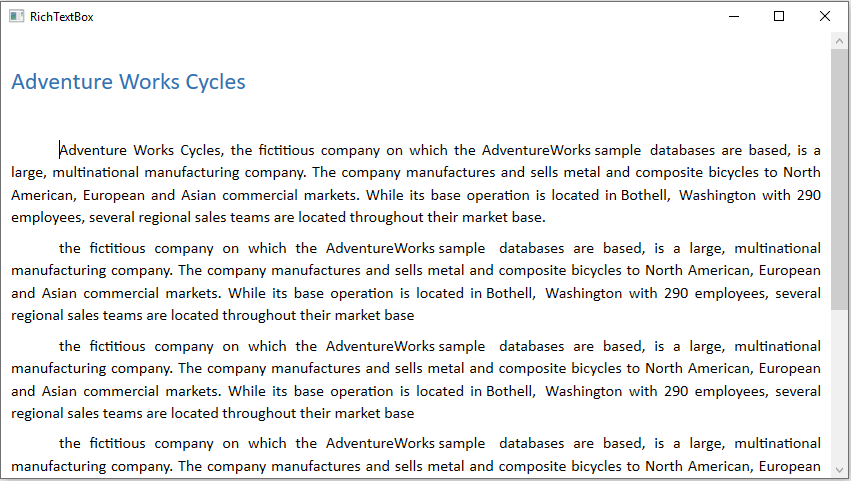

Continuous layout:
Changing Background color of Continuous Layout in WPF DOCX Editor

Setting background for document pages

The WPF DOCX Editor control allows you to change background color of the document pages. A background of a document is represented by Background property of DocumentAdv class. The default value of this property is white.

  1. This API is supported starting from release version v17.4.0.39.
  2. This property is independent for a document. So the background will change when the document is changed.
  3. To maintain same background for all documents, you can reset this property in DocumentChanged event.

The following code illustrates how to apply color as background to the document pages.

// Initializes a new instance of RichTextBoxAdv.
SfRichTextBoxAdv richTextBoxAdv = new SfRichTextBoxAdv();
// Sets the document background color
richTextBoxAdv.Document.Background.Color = Color.FromRgb(102, 153, 204);
' Initializes a new instance of RichTextBoxAdv.
Dim richTextBoxAdv As New SfRichTextBoxAdv()
' Sets the document background color.
richTextBoxAdv.Document.Background.Color = Color.FromRgb(102, 153, 204)

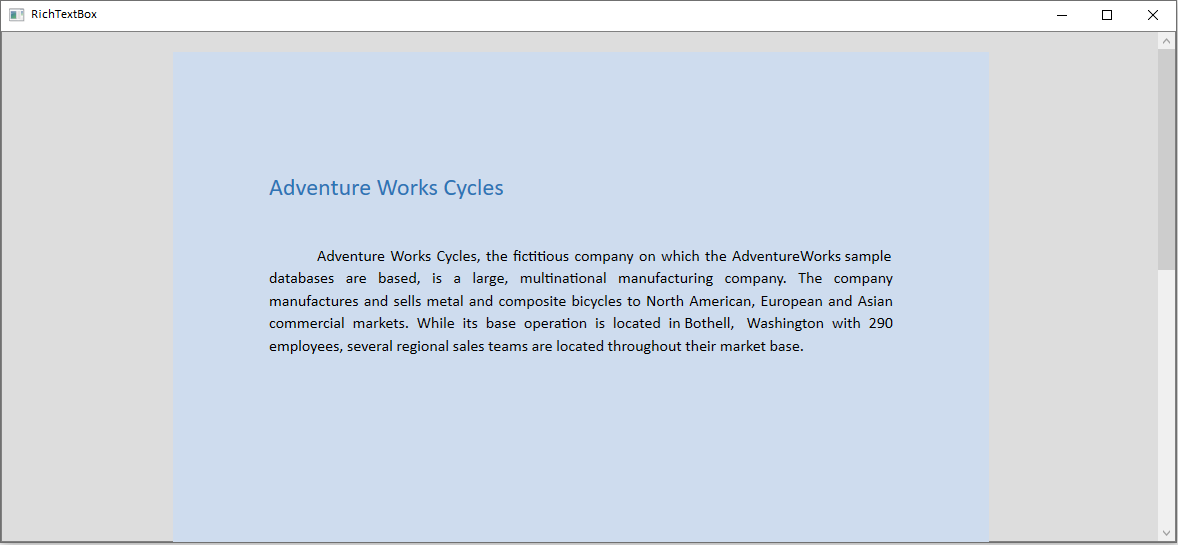

Pages layout:
Changing Background color of Page Layout in WPF DOCX Editor

Continuous layout:
Changing Background color of Continuous Layout in WPF DOCX Editor

You can refer to our WPF DOCX Editor feature tour page for its groundbreaking feature representations. You can also explore our WPF DOCX Editor example to know how to render and configure the editing tool.
