Hyperlinks in TypeScript DOCX Editor

14 Aug 202612 minutes to read

TypeScript DOCX Editor (Document Editor) supports the hyperlink field. You can link a part of the document content to the Internet, a file location, a mail address, or any text within the document.

Document Editor triggers the requestNavigate event whenever the user presses the Ctrl key or taps a hyperlink within the document. This event provides the necessary details about link type, navigation URL, and local URL (if any) as arguments, and allows you to easily customize the hyperlink navigation functionality.

Add the requestNavigate event for DocumentEditor

The following example illustrates how to add the requestNavigate event for the DocumentEditor.

import { DocumentEditor, SfdtExport, Selection, RequestNavigateEventArgs, Editor } from '@syncfusion/ej2-documenteditor';

//Inject require modules.
DocumentEditor.Inject(Selection, SfdtExport, Editor);
//Initilize the Document Editor component.
let documenteditor: DocumentEditor = new DocumentEditor({ enableSelection: true, height: '370px', enableEditor: true, isReadOnly: false });
documenteditor.appendTo('#DocumentEditor');

// Add event listener for requestNavigate event to customize hyperlink navigation functionality
documenteditor.requestNavigate = (args: RequestNavigateEventArgs) => {
    if (args.linkType !== 'Bookmark') {
        let link: string = args.navigationLink;
        if (args.localReference.length > 0) {
            link += '#' + args.localReference;
        }
        //Navigate to the selected URL.
        window.open(link);
        args.isHandled = true;
    }
};
<!DOCTYPE html>
<html lang="en">

<head>
    <title>EJ2 Animation</title>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta name="description" content="Typescript UI Controls" />
    <meta name="author" content="Syncfusion" />
    <link href="index.css" rel="stylesheet" />
    <link href="https://cdn.syncfusion.com/ej2/34.2.2/ej2-documenteditor/styles/fabric.css" rel="stylesheet" />
    <script src="https://cdnjs.cloudflare.com/ajax/libs/systemjs/0.19.38/system.js"></script>
    <script src="systemjs.config.js"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>
    <div id='loader'>Loading....</div>
    <div id='container'>
        <div id='DocumentEditor'>

        </div>
    </div>
</body>

</html>

Add the requestNavigate event for DocumentEditorContainer component

The following example illustrates how to add the requestNavigate event for the DocumentEditorContainer component.

import { DocumentEditor, SfdtExport, Selection, RequestNavigateEventArgs } from '@syncfusion/ej2-documenteditor';

let hostUrl: string =
  'https://document.syncfusion.com/web-services/word-editor/';

let container: DocumentEditorContainer = new DocumentEditorContainer({
  enableToolbar: true,
  height: '590px',
});
DocumentEditorContainer.Inject(Toolbar);
container.serviceUrl = hostUrl + 'api/documenteditor/';
container.appendTo('#container');

// Add event listener for requestNavigate event to customize hyperlink navigation functionality
container.documentEditor.requestNavigate = (args: RequestNavigateEventArgs) => {
  if (args.linkType !== 'Bookmark') {
    let link: string = args.navigationLink;
    if (args.localReference.length > 0) {
      link += '#' + args.localReference;
    }
    //Navigate to the selected URL.
    window.open(link);
    args.isHandled = true;
  }
};

If the selection is in a hyperlink, trigger this event by calling the navigateHyperlink method of the Selection instance. Refer to the following example.

documenteditor.selection.navigateHyperlink();

Document Editor copies the link text of a hyperlink field to the clipboard if the selection is in a hyperlink. Refer to the following example.

documenteditor.selection.copyHyperlink();

To create a basic hyperlink in the document, press ENTER / SPACEBAR / SHIFT + ENTER / TAB key after typing the address, for instance http://www.google.com. Document Editor automatically converts this address to a hyperlink field. The text can be considered as a valid URL if it starts with any of the following.

NOTE

<http://>
<https://>
file:///
www.
mailto:

Refer to the following example.

import { DocumentEditor, SfdtExport, Selection, Editor, RequestNavigateEventArgs } from '@syncfusion/ej2-documenteditor';
DocumentEditor.Inject(Selection, SfdtExport, Editor);
let documenteditor: DocumentEditor = new DocumentEditor({ height: '370px', isReadOnly: false, enableSelection: true, enableEditor: true });
documenteditor.appendTo('#DocumentEditor');

// Add event listener for requestNavigate event to customize hyperlink navigation functionality.
documenteditor.requestNavigate = (args: RequestNavigateEventArgs) => {
    if (args.linkType !== 'Bookmark') {
        let link: string = args.navigationLink;
        if (args.localReference.length > 0) {
            link += '#' + args.localReference;
        }
        window.open(link);
        args.isHandled = true;
    }
};
<!DOCTYPE html>
<html lang="en">

<head>
    <title>EJ2 Animation</title>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta name="description" content="Typescript UI Controls" />
    <meta name="author" content="Syncfusion" />
    <link href="index.css" rel="stylesheet" />
    <link href="https://cdn.syncfusion.com/ej2/34.2.2/ej2-documenteditor/styles/fabric.css" rel="stylesheet" />
    <script src="https://cdnjs.cloudflare.com/ajax/libs/systemjs/0.19.38/system.js"></script>
    <script src="systemjs.config.js"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>
    <div id='loader'>Loading....</div>
    <div id='container'>
        <div id='DocumentEditor'>

        </div>
    </div>
</body>

</html>

Also, Document Editor exposes the API insertHyperlink() to insert a hyperlink.

Refer to the following sample code.

documenteditor.editor.insertHyperlink('https://www.google.com', 'Google');

Customize screen tip

You can customize the screen tip text for the hyperlink by using the sample code below.

documenteditor.editor.insertHyperlink('https://www.google.com', 'Google', '<<Screen tip text>>');

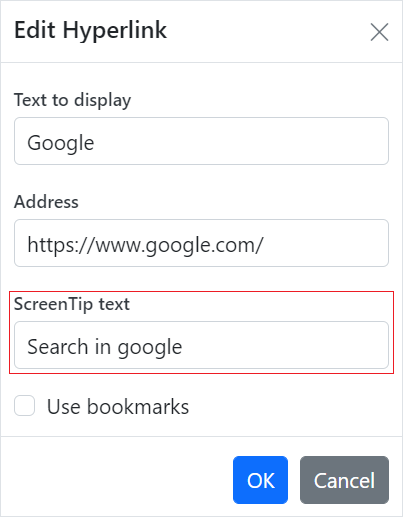

Screen tip text can be modified through the UI by using the Hyperlink dialog.

Add or modify the screen tip text for hyperlinks in a Word document.

To remove the link from a hyperlink in the document, press the Backspace key at the end of a hyperlink. By removing the link, it will be converted as plain text. You can use the removeHyperlink method of the Editor instance if the selection is in a hyperlink. Refer to the following example.

documenteditor.editor.removeHyperlink();

Document Editor provides dialog support to insert or edit a hyperlink. Refer to the following example.

import { DocumentEditor, Editor, Selection, EditorHistory, HyperlinkDialog, SfdtExport } from '@syncfusion/ej2-documenteditor';
//Inject the required module
DocumentEditor.Inject(Editor, Selection, EditorHistory, HyperlinkDialog, SfdtExport);
let documenteditor: DocumentEditor = new DocumentEditor({
    isReadOnly: false,
    enableSelection: true,
    enableEditorHistory: true,
    enableEditor: true,
    enableHyperlinkDialog: true,
    enableSfdtExport: true,
    height: '370px'
});
//Click the hyperlink button, the hyperlink dialog will open
function showHyperlinkDialog() {
    //Open the hyperlink dialog.
    documenteditor.showDialog('Hyperlink');
}
let button: HTMLElement = document.getElementById('dialog');
button.addEventListener('click', showHyperlinkDialog)
documenteditor.appendTo('#DocumentEditor');
<!DOCTYPE html>
<html lang="en">

<head>
    <title>EJ2 Animation</title>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta name="description" content="Typescript UI Controls" />
    <meta name="author" content="Syncfusion" />
    <link href="index.css" rel="stylesheet" />
    <link href="https://cdn.syncfusion.com/ej2/34.2.2/ej2-documenteditor/styles/fabric.css" rel="stylesheet" />
    <link href="https://cdn.syncfusion.com/ej2/34.2.2/ej2-buttons/styles/fabric.css" rel="stylesheet" />
    <link href="https://cdn.syncfusion.com/ej2/34.2.2/ej2-base/styles/fabric.css" rel="stylesheet" />
    <link href="https://cdn.syncfusion.com/ej2/34.2.2/ej2-dropdowns/styles/fabric.css" rel="stylesheet" />
    <link href="https://cdn.syncfusion.com/ej2/34.2.2/ej2-inputs/styles/fabric.css" rel="stylesheet" />
    <link href="https://cdn.syncfusion.com/ej2/34.2.2/ej2-lists/styles/fabric.css" rel="stylesheet" />
    <link href="https://cdn.syncfusion.com/ej2/34.2.2/ej2-navigations/styles/fabric.css" rel="stylesheet" />
    <link href="https://cdn.syncfusion.com/ej2/34.2.2/ej2-popups/styles/fabric.css" rel="stylesheet" />
    <link href="https://cdn.syncfusion.com/ej2/34.2.2/ej2-splitbuttons/styles/fabric.css" rel="stylesheet" />
    <script src="https://cdnjs.cloudflare.com/ajax/libs/systemjs/0.19.38/system.js"></script>
    <script src="systemjs.config.js"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>
    <div id='loader'>Loading....</div>
    <div id='container'>
        <div id='toolbar'>
            <button id="dialog">Dialog</button>
        </div>
        <div style="width:100%;height: 100%">
            <!--Element which will render as DocumentEditor -->
            <div id="DocumentEditor"></div>
        </div>
    </div>
</body>


</html>

You can use the following keyboard shortcut to open the hyperlink dialog if the selection is in a hyperlink.

Key Combination Description
Ctrl + K Open hyperlink dialog that allows you to create or edit a hyperlink

Online Demo

Explore how to insert and manage hyperlinks in Word documents using the JavaScript Document Editor in this live demo here.
