Track Changes in ASP.NET Core DOCX Editor

14 Aug 20267 minutes to read

Track Changes allows you to keep a record of changes or edits made to a document. You can then choose to accept or reject the modifications. It is a useful tool for managing changes made by several reviewers to the same document. If the track changes option is enabled, all editing operations are preserved as revisions in the Document Editor.

Enable track changes in Document Editor

The following example demonstrates how to enable track changes.

<ejs-documenteditorcontainer id="container" serviceUrl="/api/DocumentEditor/" enableToolbar=true enableTrackChanges=true created="onCreated" height="590px"></ejs-documenteditorcontainer>
public ActionResult Default()
    {
        return View();
    }

NOTE

Track changes are document-level settings. When opening a document, if the document does not have track changes enabled, then enableTrackChanges will be disabled even if enableTrackChanges = true is set in the initial rendering. To enable track changes for all documents, we recommend enabling track changes during the document change event. The following example demonstrates how to enable Track changes for all documents while opening.

<ejs-documenteditorcontainer id="container"  documentChange="onDocumentChange" enableToolbar=true serviceUrl="/api/DocumentEditor/" height="590px"></ejs-documenteditorcontainer>
<script>
    function onDocumentChange() {
        var container = document.getElementById("container").ej2_instances[0];
        if(container !== null){
           container.documentEditor.enableTrackChanges= true;
        }
    }
</script>
public ActionResult Default()
    {
        return View();
    }

Show or hide revisions pane

This feature lets users toggle the visibility of the revisions pane, providing flexibility in managing tracked changes within the document.

The following example code illustrates how to show or hide the revisions pane.

<ejs-documenteditorcontainer id="container" serviceUrl="/api/DocumentEditor/" enableToolbar=true    enableTrackChanges=true height="590px"></ejs-documenteditorcontainer>

<script>
    var documenteditor;
    var container;
    var documenteditorElement = document.getElementById("container");
    container = documenteditorElement.ej2_instances[0];
    container.documentEditor.showRevisions = true; // To show revisions pane
    container.documentEditor.showRevisions = false; // To hide revisions pane
</script>
public ActionResult Default()
    {
        return View();
    }

Get all tracked revisions

The following example demonstrates how to get all tracked revisions from the current document.

/**
 * Get revisions from the current document
 */
var revisions  = container.documentEditor.revisions;

Accept or Reject all changes programmatically

The following example demonstrates how to accept/reject all changes.

/**
 * Get revisions from the current document
 */
var revisions = container.documentEditor.revisions;

/**
 * Accept all tracked changes
 */
revisions.acceptAll();

/**
 * Reject all tracked changes
 */
revisions.rejectAll();

Accept or reject a specific revision

The following example demonstrates how to accept or reject a specific revision in the Document Editor.

/**
 * Get revisions from the current document
 */
var revisions  = container.documentEditor.revisions;
/**
 * Accept specific changes
 */
revisions.get(0).accept();
/**
 * Reject specific changes
 */
revisions.get(1).reject();

The following example demonstrates how to navigate tracked revisions programmatically.

/**
 * Navigate to next tracked change from the current selection.
 */
container.documentEditor.selection.navigateNextRevision();

/**
 * Navigate to previous tracked change from the current selection.
 */
container.documentEditor.selection.navigatePreviousRevision();

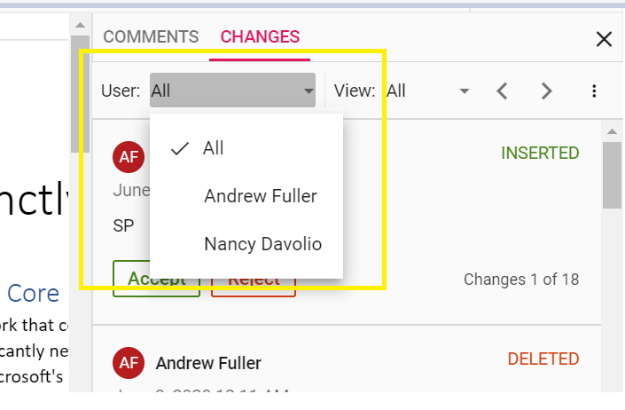

Filtering changes based on user

In DocumentEditor, we have built-in review panel in which we have provided support for filtering changes based on the user.

Track changes

Custom metadata along with author

The Document Editor provides options to customize revisions using revisionSettings. The customData property allows you to attach additional metadata to tracked revisions in the Word Processor. This metadata can represent roles, tags, or any custom identifier for the revision. To display this metadata along with the author name in the Track Changes pane, you must enable the showCustomDataWithAuthor property.

The following example code illustrates how to enable and update custom metadata for track changes revisions.

<ejs-documenteditorcontainer id="container" documentEditorSettings="settings"  height="590px" enableTrackChanges=true></ejs-documenteditorcontainer>
<script>
    var settings = { revisionSettings: { customData: 'Developer', showCustomDataWithAuthor: true} };
</script>
public ActionResult Default()
    {
        return View();
    }

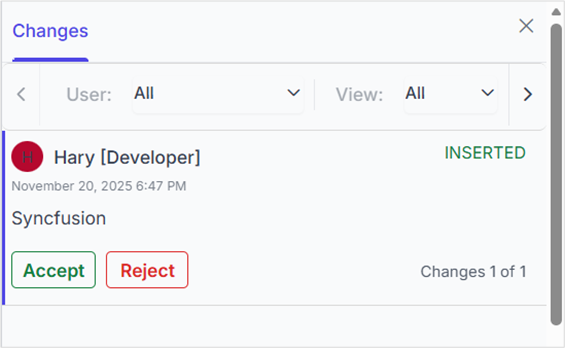

The Track Changes pane will display the author name along with the custom metadata, as shown in the screenshot below.

Custom metadata along with author

NOTE

When you export the document as SFDT, the customData value is stored in the revision collection. When you reopen the SFDT, the custom data is automatically restored and displayed in the Track Changes pane. For other formats such as DOCX, the customData is not preserved, as it is specific to the Document Editor component.

Protect the document in track changes only mode

Document Editor provides support for protecting the document with RevisionsOnly protection. In this protection, all the users are allowed to view the document and do their corrections, but they cannot accept or reject any tracked changes in the document. Later, the author can view their corrections and accept or reject the changes.

The Document Editor provides an option to protect and unprotect the document using the enforceProtection and stopProtection APIs.

The following example code illustrates how to enforce and stop protection in the Document Editor container.

<ejs-documenteditorcontainer id="container" serviceUrl="/api/DocumentEditor/" enableToolbar=true enableTrackChanges=true created="onCreated" height="590px"></ejs-documenteditorcontainer>


<script>
    var documenteditor;
    var container;
    function onCreated() {
        var documenteditorElement = document.getElementById('container');
        container = documenteditorElement.ej2_instances[0];
        documenteditor = container.documentEditor;
        container.documentEditor.editor.enforceProtection('123', 'RevisionsOnly');
        //stop the document protection
        container.documentEditor.editor.stopProtection('123');
    }
</script>
public ActionResult Default()
    {
        return View();
    }

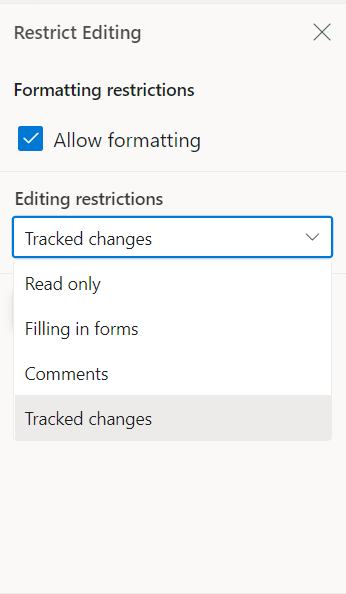

Tracked changes only protection can be enabled in UI by using Restrict Editing pane

Enable track changes only protection

NOTE

In the EnforceProtection method, the first parameter is the password and the second parameter is the protection type. Possible values of protection type are NoProtection | ReadOnly | FormFieldsOnly | CommentsOnly | RevisionsOnly. In the StopProtection method, the parameter is the password.

Online demo

Explore how to track and review changes in Word documents using the ASP.NET Core Document Editor in this live demo.
