Workflow of Document Processing Engine API

9 May 20251 minute to read

The document processing engine is designed to handle long-running tasks. A long-running task is an operation that requires a considerable amount of server resources and/or time. To avoid blocking the client, the task is completed asynchronously without a persistent connection between the client and the server.

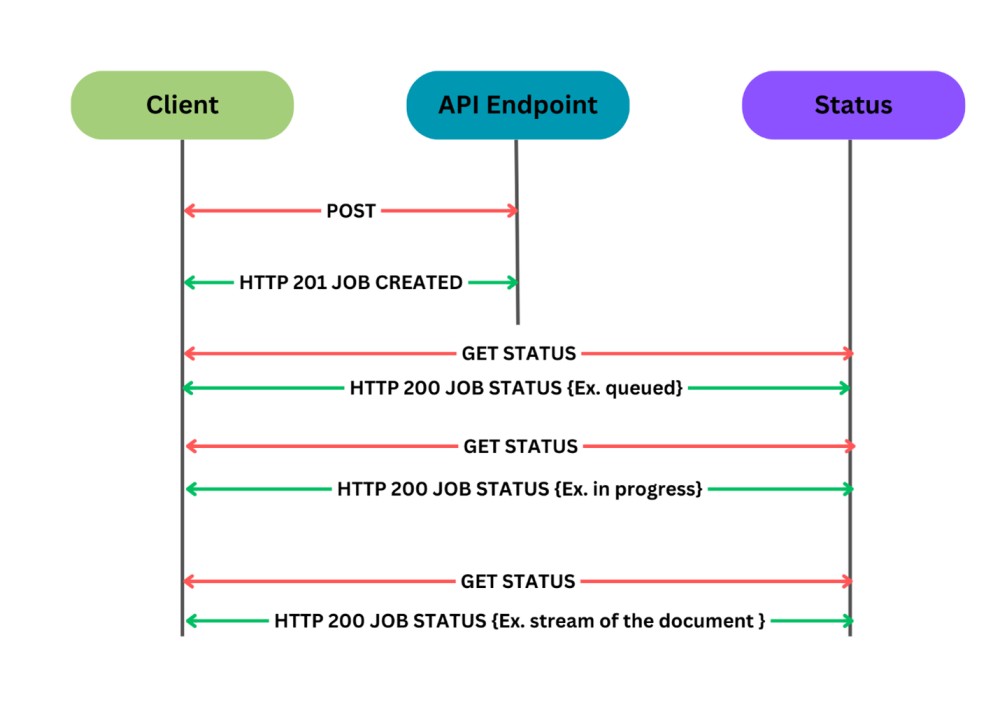

The workflow involves following steps:

Step 1: Request Submission

The client posts a request to the endpoint with the necessary input files. Once the request is received, a job is assigned to that request and a job ID is sent back to the client as follows:

{
    "jobID": "6be827c5-d86d-4fe5-9bd5-c8fd5887a455",
    "status": "requested",
    "createdAt": "2024-05-06T09:39:13.9505828Z"
}

Step 2: Polling for Job Status

The client continuously polls the status of the job by sending a request to /status/{jobID}. The client will receive the following responses until the job is completed. Once the job is completed, the client will receive the generated document from the same endpoint.

Possible Status Responses:

• Queued:

{
    "jobID": "6be827c5-d86d-4fe5-9bd5-c8fd5887a455",
    "status": "queued"
}

• In Progress:

{
    "jobID": "6be827c5-d86d-4fe5-9bd5-c8fd5887a455",
    "status": "in progress"
}

• Error:

{
    "jobID": "6be827c5-d86d-4fe5-9bd5-c8fd5887a455",
    "status": "errror",
    "code": "500",
    "message": "Failed to convert the document to PDF"
}

Step 3: Job Completion

Once the job is completed, you will receive the document as a stream response with the following header parameters:

Content-Length: 105982
Content-Type: application/pdf
Content-Disposition: attachment; filename="file.pdf"
Date: Mon, 09 May 2024 12:00:00 GMT
api-supported-versions: 1.0

NOTE
