Convert PPTX to Image in Azure Functions (Flex Consumption)
29 Jun 202612 minutes to read
Syncfusion® PowerPoint is a .NET Core PowerPoint library used to create, read, edit and convert PowerPoint documents programmatically without Microsoft PowerPoint or interop dependencies. Using this library, you can convert a PowerPoint Presentation to image in Azure Functions deployed on Flex (Consumption) plan.
Steps to convert a PowerPoint Presentation to Image in Azure Functions (Flex Consumption)

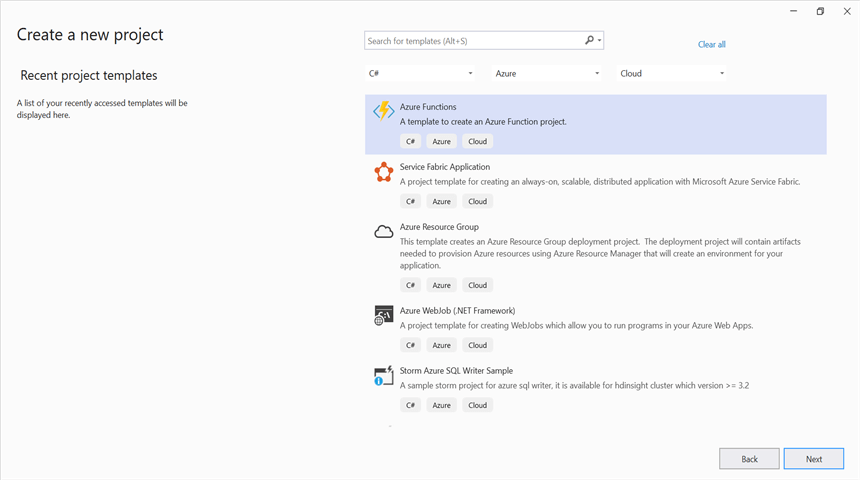

Step 1: Create a new Azure Functions project.

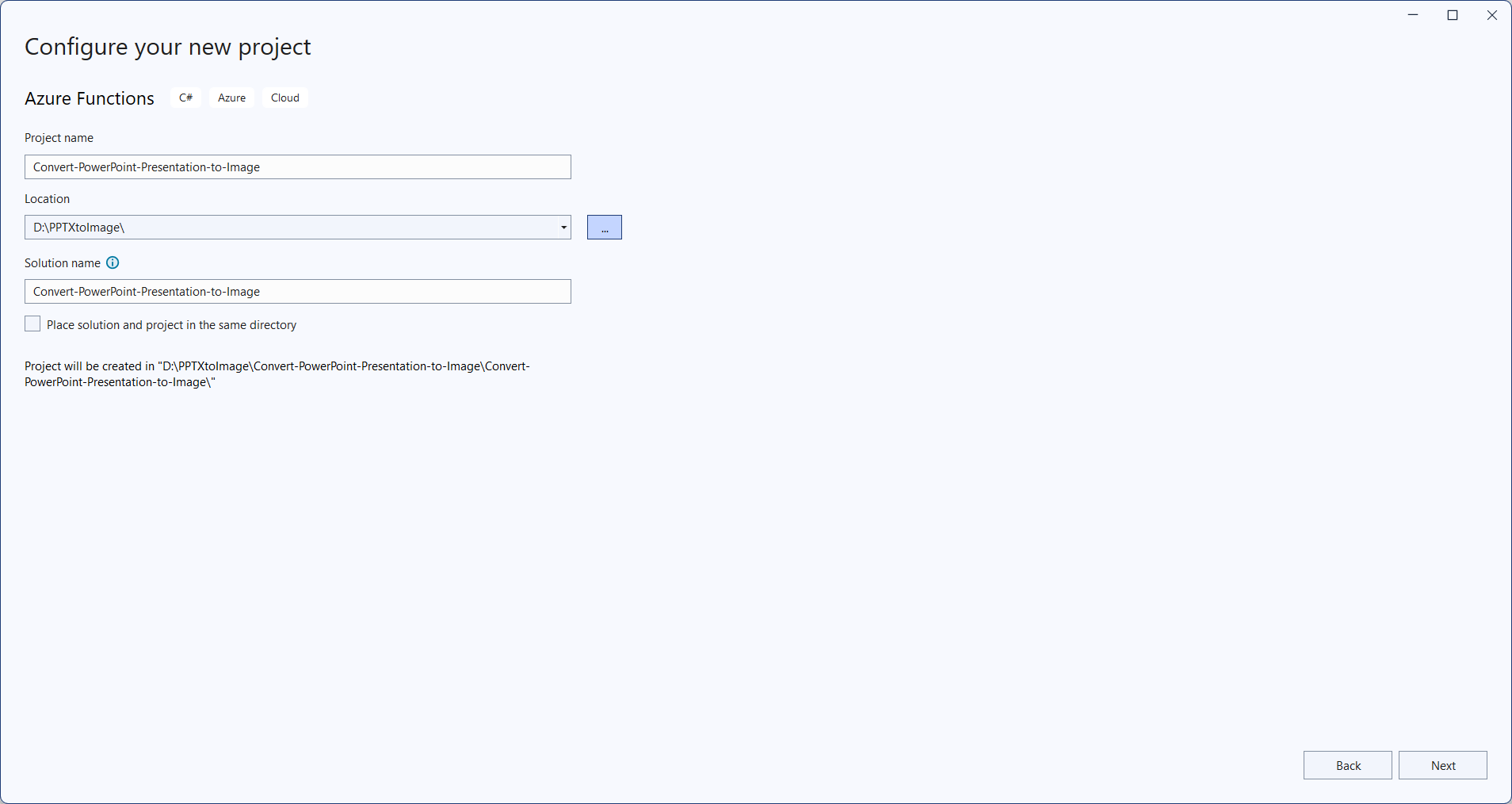

Step 2: Create a project name and select the location.

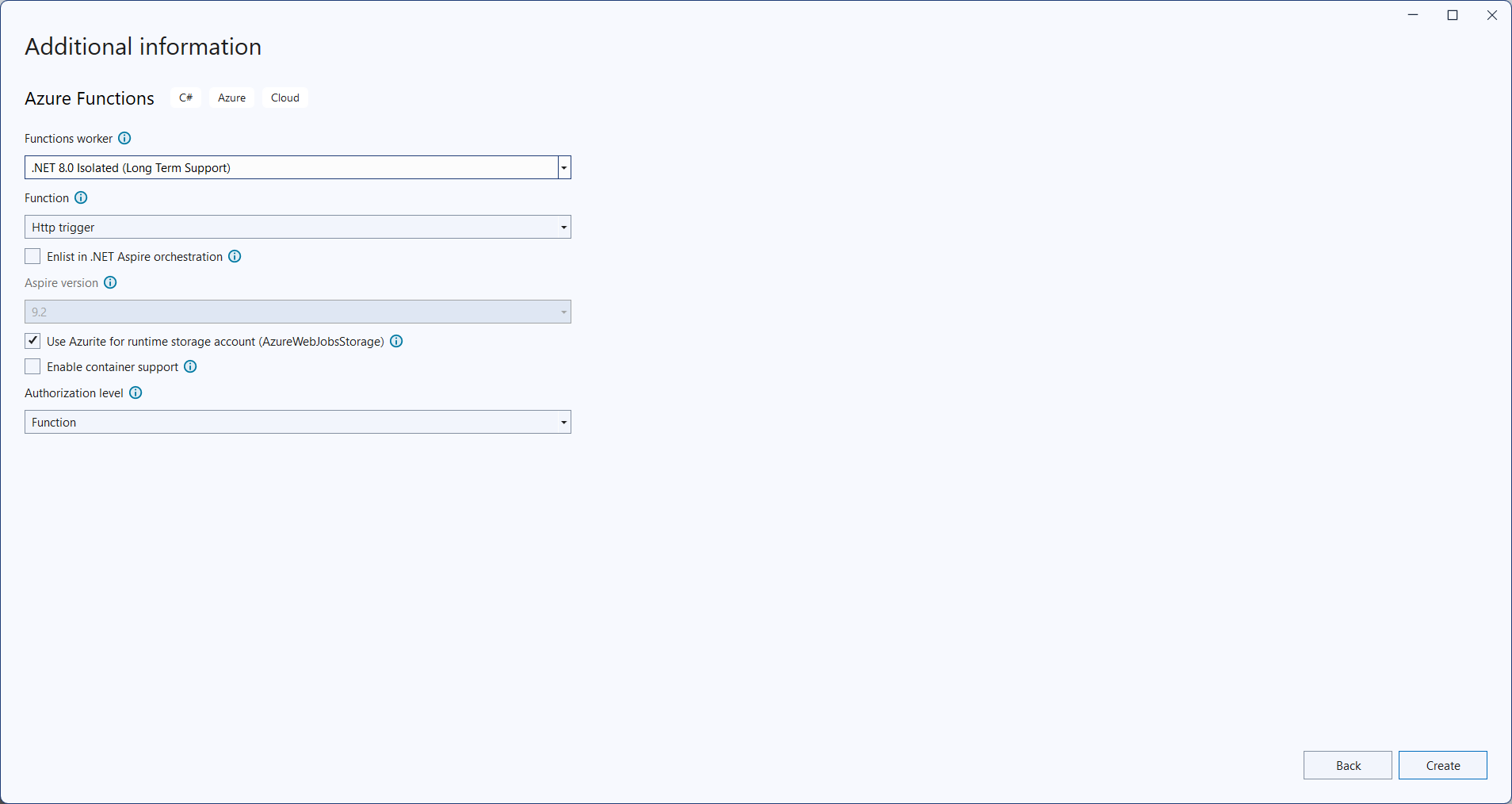

Step 3: Select function worker as .NET 8.0 (Long Term Support) (isolated worker) and target Flex/Consumption hosting suitable for isolated worker.

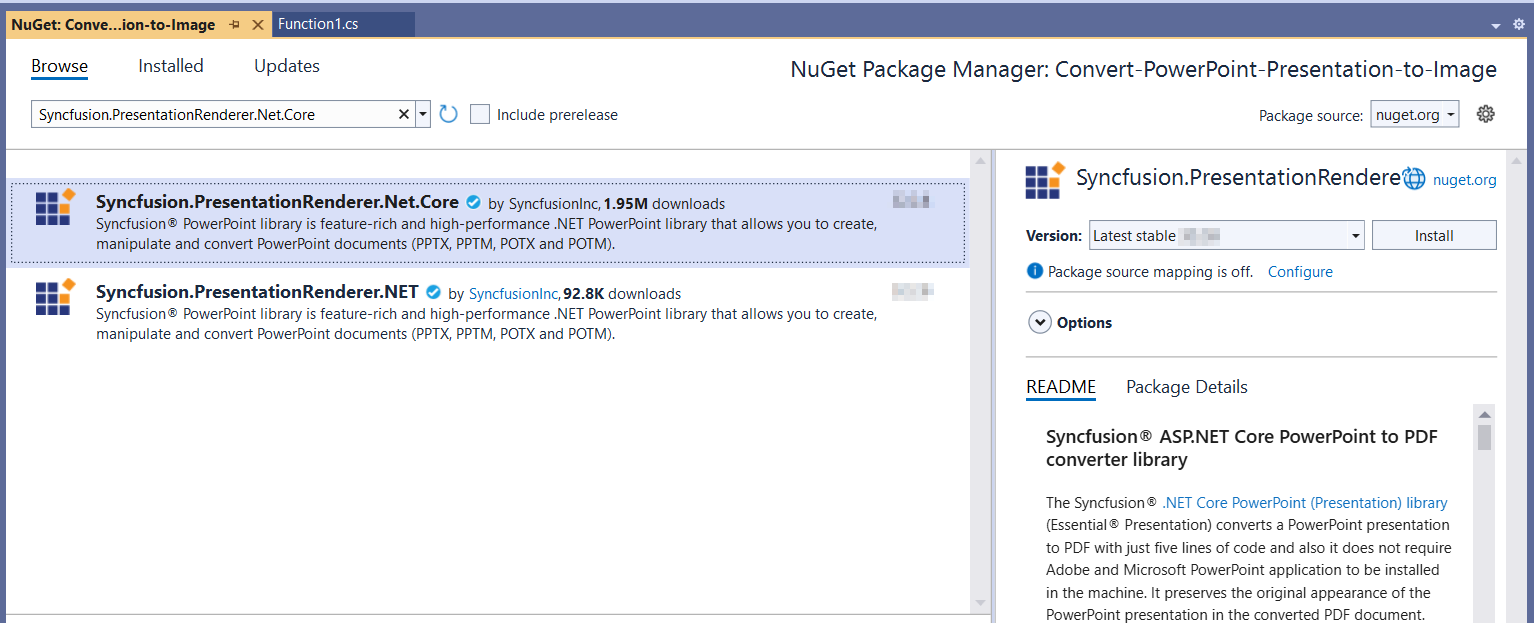

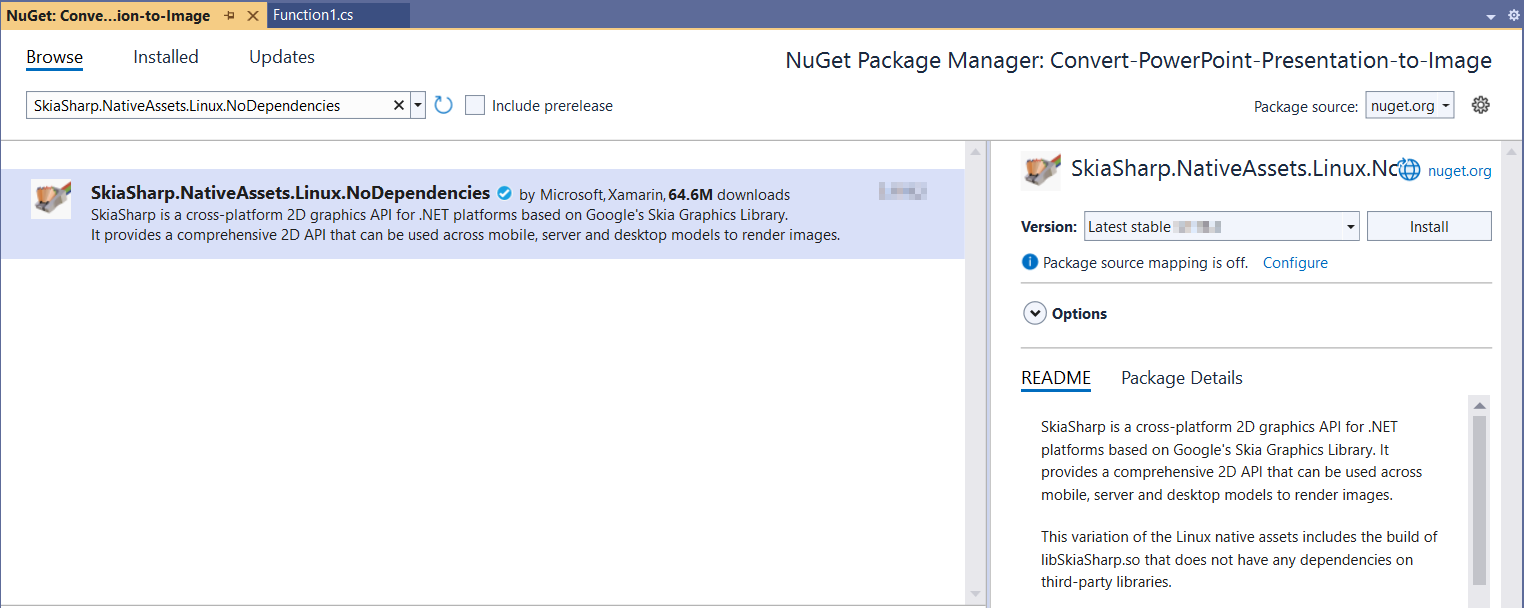

Step 4: Install the Syncfusion.PresentationRenderer.Net.Core and SkiaSharp.NativeAssets.Linux.NoDependencies v3.119.1 NuGet packages as references to your project from NuGet.org.
NOTE
Starting with v16.2.0.x, if you reference Syncfusion® assemblies from trial setup or from the NuGet feed, you also have to add “Syncfusion.Licensing” assembly reference and include a license key in your projects. Please refer to this link to know about registering Syncfusion® license key in your application to use our components.
Step 5: Include the following namespaces in the Function1.cs file.
using Syncfusion.Presentation;
using Syncfusion.PresentationRenderer;
using SkiaSharp;Step 6: Add the following code snippet in Run method of Function1 class to perform PowerPoint Presentation to image conversion in Azure Functions and return the resultant image to client end.
public async Task<IActionResult> Run([HttpTrigger(AuthorizationLevel.Function, "post")] HttpRequest req)
{
try
{
// Create a memory stream to hold the incoming request body (PowerPoint Presentation bytes)
await using MemoryStream inputStream = new MemoryStream();
// Copy the request body into the memory stream
await req.Body.CopyToAsync(inputStream);
// Check if the stream is empty (no file content received)
if (inputStream.Length == 0)
return new BadRequestObjectResult("No file content received in request body.");
// Reset stream position to the beginning for reading
inputStream.Position = 0;
// Load the PowerPoint Presentation from the stream
using IPresentation pptxDoc = Presentation.Open(inputStream);
// Attach font substitution handler to manage missing fonts
pptxDoc.FontSettings.SubstituteFont += FontSettings_SubstituteFont;
// Initialize the PresentationRenderer to perform image conversion.
pptxDoc.PresentationRenderer = new PresentationRenderer();
// Convert PowerPoint slide to image as stream.
Stream imageStream = pptxDoc.Slides[0].ConvertToImage(ExportImageFormat.Png);
// Reset the stream position.
imageStream.Position = 0;
// Create a memory stream to hold the Image output
await using MemoryStream outputStream = new MemoryStream();
// Copy the contents of the image stream to the memory stream.
await imageStream.CopyToAsync(outputStream);
// Convert the Image stream to a byte array
var imageBytes = outputStream.ToArray();
//Reset the stream position.
imageStream.Position = 0;
// Reset stream position to the beginning for reading
outputStream.Position = 0;
// Create a file result to return the PNG as a downloadable file
return new FileContentResult(imageBytes, "image/png")
{
FileDownloadName = "slide-1.png"
};
}
catch (Exception ex)
{
// Log the error with details for troubleshooting
_logger.LogError(ex, "Error converting PPTX to Image.");
// Prepare error message including exception details
var msg = $"Exception: {ex.Message}\n\n{ex}";
// Return a 500 Internal Server Error response with the message
return new ContentResult { StatusCode = 500, Content = msg, ContentType = "text/plain; charset=utf-8" };
}
}
/// <summary>
/// Event handler for font substitution during PDF conversion
/// </summary>
/// <param name="sender"></param>
/// <param name="args"></param>
private void FontSettings_SubstituteFont(object sender, SubstituteFontEventArgs args)
{
// Define the path to the Fonts folder in the application base directory
string fontsFolder = Path.Combine(AppContext.BaseDirectory, "Fonts");
// If the original font is Calibri, substitute with calibri-regular.ttf
if (args.OriginalFontName == "Calibri")
{
args.AlternateFontStream = File.OpenRead(Path.Combine(fontsFolder, "calibri-regular.ttf"));
}
// Otherwise, substitute with Times New Roman
else
{
args.AlternateFontStream = File.OpenRead(Path.Combine(fontsFolder, "Times New Roman.ttf"));
}

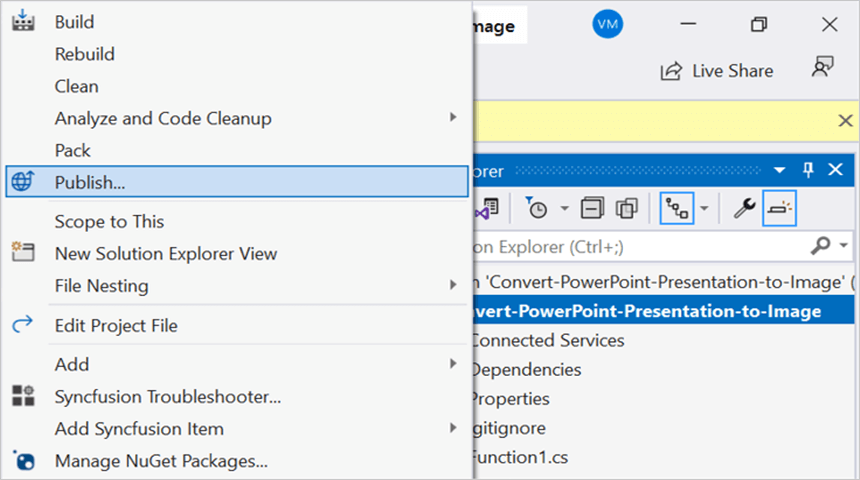

}Step 7: Right click the project and select Publish. Then, create a new profile in the Publish Window.

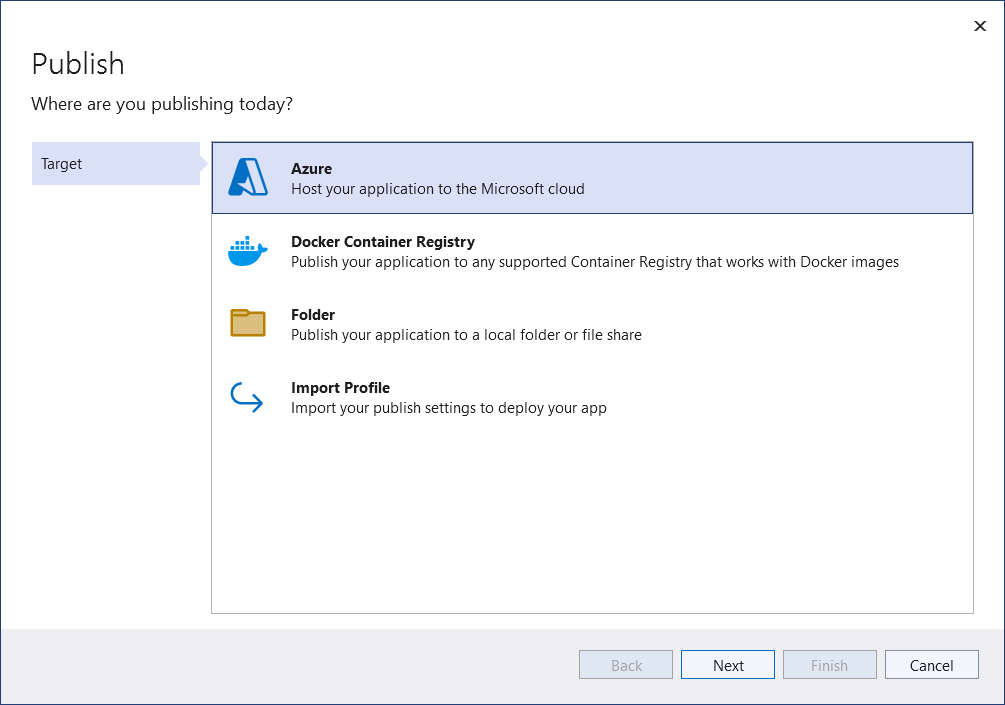

Step 8: Select the target as Azure and click Next button.

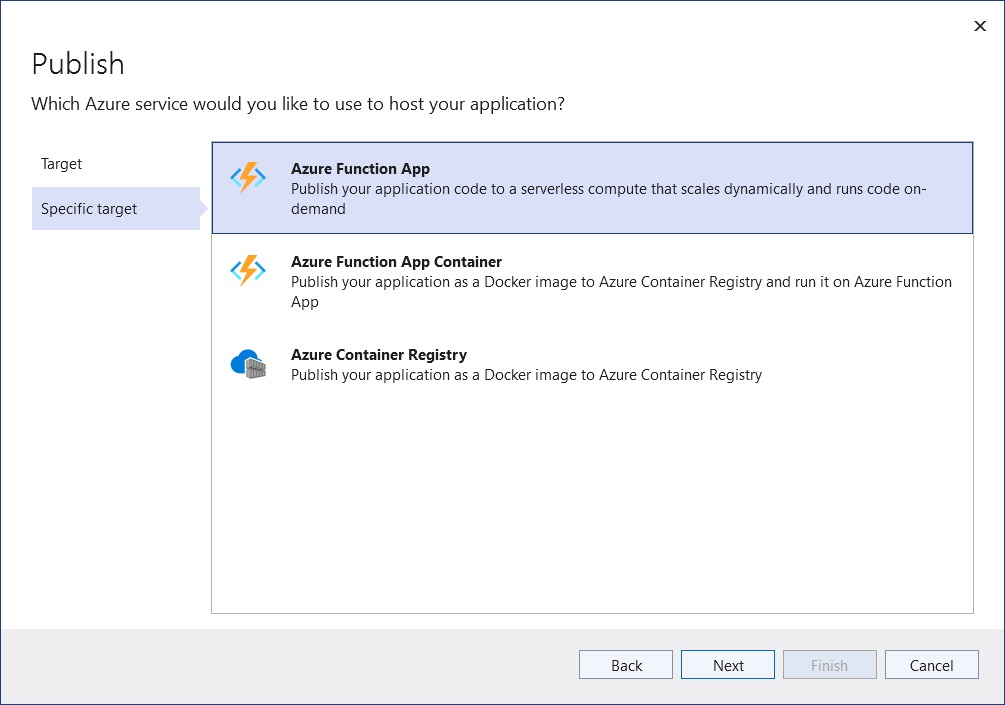

Step 9: Select the specific target as Azure Function App and click Next button.

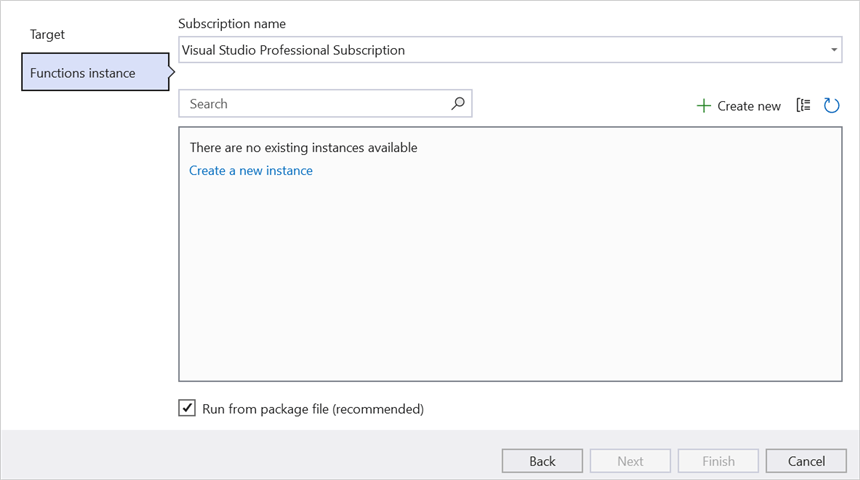

Step 10: Select the Create new button.

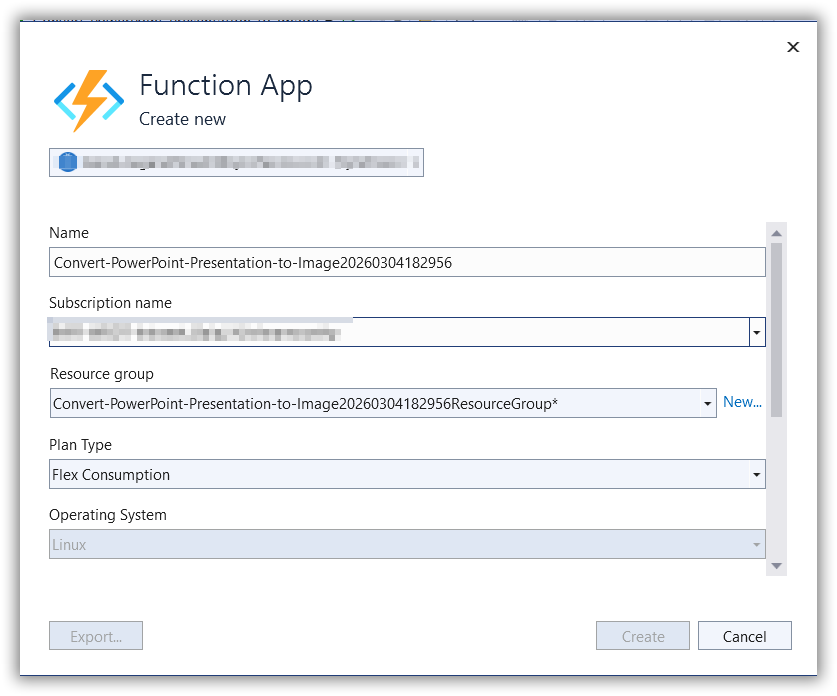

Step 11: Click Create button.

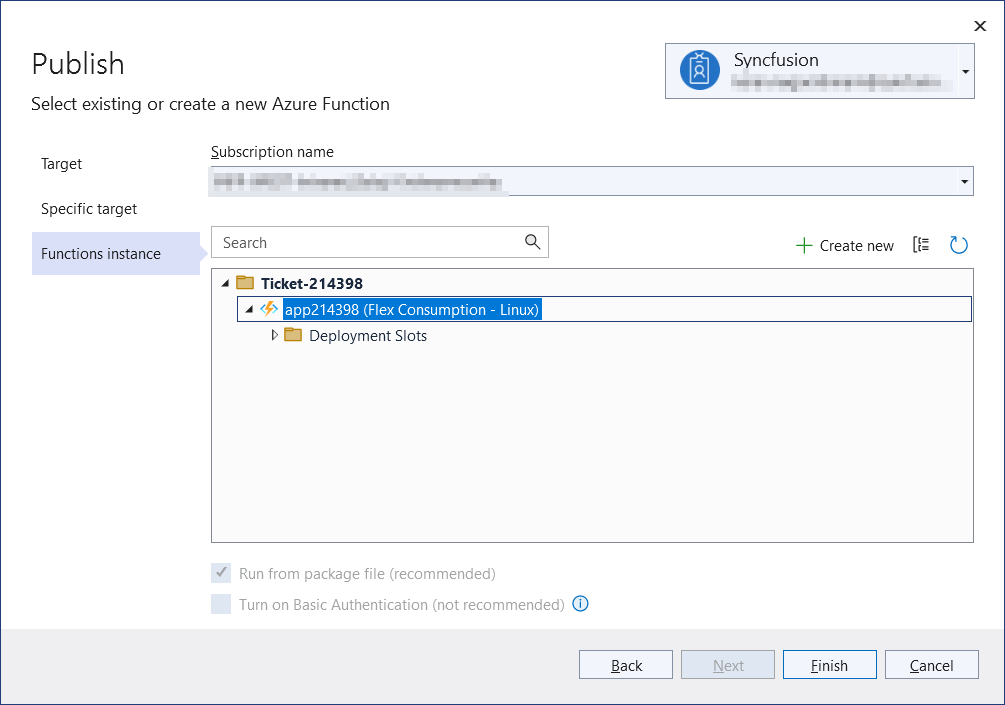

Step 12: After creating app service then click Finish button.

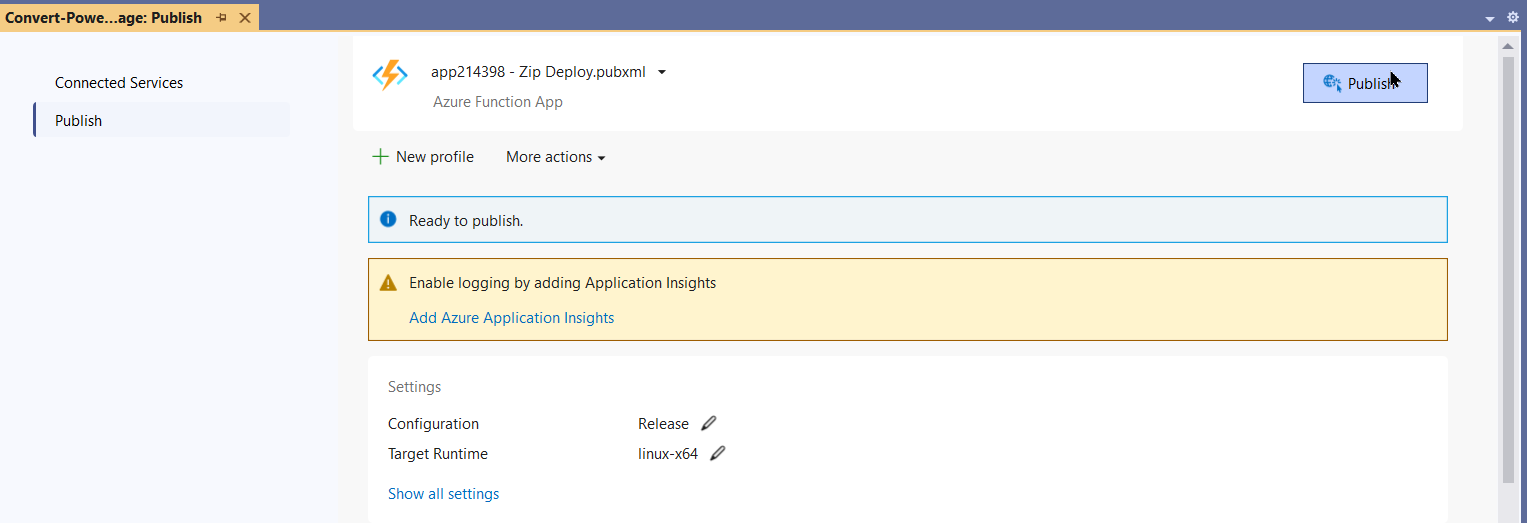

Step 13: Click the Publish button.

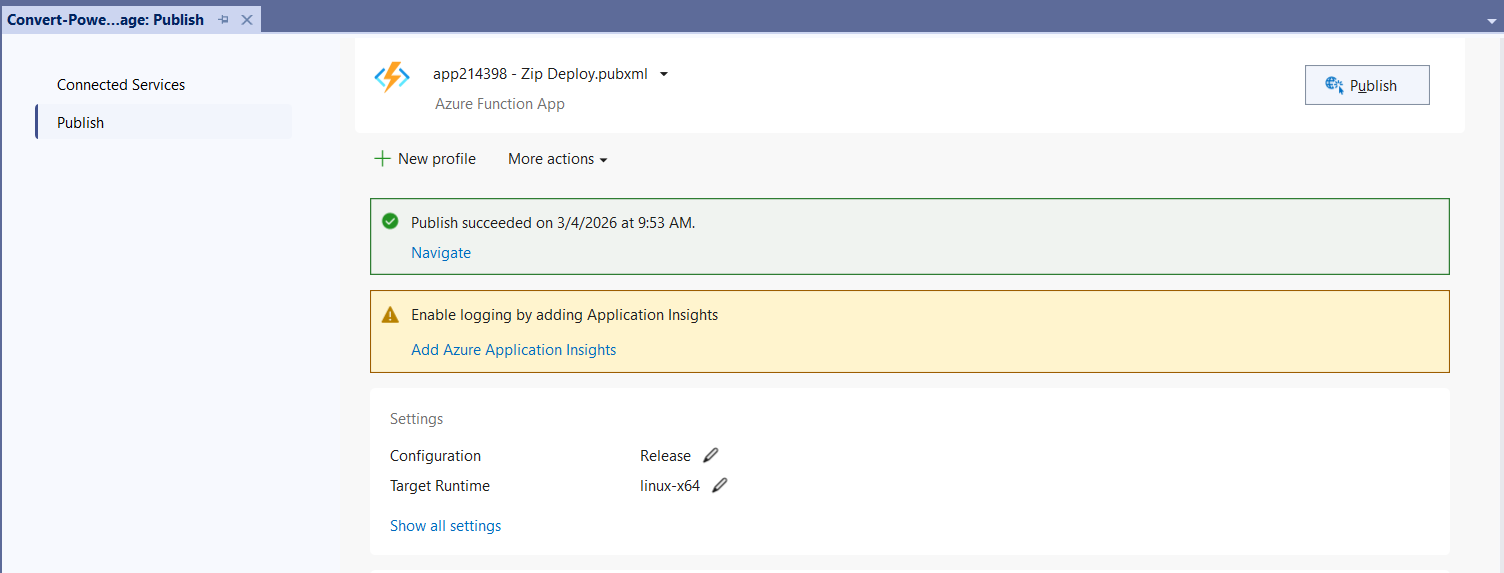

Step 14: Publish has been succeed.
Step 15: Now, go to Azure portal and select the App Services. After running the service, click Get function URL by copying it. Then, paste it in the below client sample (which will request the Azure Functions, to perform PowerPoint Presentation to image conversion using the template PowerPoint document). You will get the output image as follows.
Steps to post the request to Azure Functions
Step 1: Create a console application to request the Azure Functions API.
Step 2: Add the following code snippet into Main method to post the request to Azure Functions with template PowerPoint document and get the resultant image.
static async Task Main()
{
try
{
Console.Write("Please enter your Azure Functions URL : ");
string url = Console.ReadLine();
if (string.IsNullOrEmpty(url)) return;
// Create a new HttpClient instance for sending HTTP requests
using var http = new HttpClient();
// Read all bytes from the input PowerPoint file
byte[] bytes = await File.ReadAllBytesAsync(@"Data/Input.pptx");
// Wrap the file bytes into a ByteArrayContent object for HTTP transmission
using var content = new ByteArrayContent(bytes);
// Set the content type header to indicate binary data
content.Headers.ContentType = new System.Net.Http.Headers.MediaTypeHeaderValue("application/octet-stream");
// Send a POST request to the provided Azure Functions URL with the file content
using var res = await http.PostAsync(url, content);
// Read the response body as a byte array
var resBytes = await res.Content.ReadAsByteArrayAsync();
// Extract the media type from the response headers (e.g., "image/png")
string mediaType = res.Content.Headers.ContentType?.MediaType ?? string.Empty;
// Decide the output file path the response is an image or txt
string outputPath = mediaType.Contains("image", StringComparison.OrdinalIgnoreCase)
? Path.GetFullPath(@"../../../Output/image-1.png")
: Path.GetFullPath(@"../../../function-error.txt");
// Write the response bytes to the output file
await File.WriteAllBytesAsync(outputPath, resBytes);
Console.WriteLine($"Saved: {outputPath}");
}
catch (Exception ex)
{
throw;
}
}From GitHub, you can download the console application and Azure Functions Flex Consumption.
Looking for the full .NET PowerPoint Library component overview, features, pricing, and documentation? Visit the .NET PowerPoint Library page.
An online sample link to convert PowerPoint Presentation to image in ASP.NET Core.
