Ink annotation in Vue PDF viewer component
28 Feb 202624 minutes to read

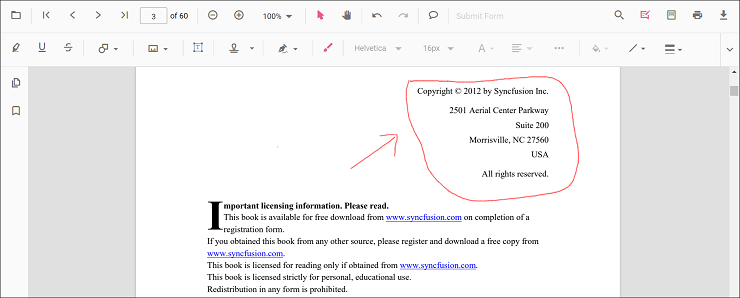

The PDF Viewer control provides options to add, edit, and delete ink annotations.
Add an ink annotation to the PDF document
Ink annotations can be added to the PDF document using the annotation toolbar.

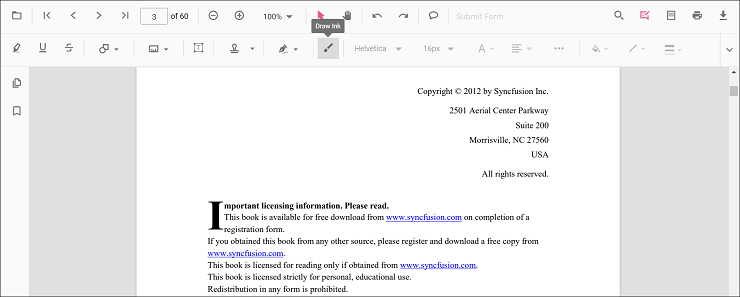

- Click the Edit Annotation button in the PDF Viewer toolbar. The annotation toolbar appears below it.
- Select the Draw Ink button to enable ink annotation mode.
- Draw on any page of the PDF document.
The following example switches to ink annotation mode.
<template>
<div id="app">
<button id="set">Draw Ink</button>
<ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :resourceUrl="resourceUrl"
:documentLoad="documentLoad">
</ejs-pdfviewer>
</div>
</template>
<script setup>
import {
PdfViewerComponent as EjsPdfviewer, Toolbar, Magnification, Navigation, LinkAnnotation,
BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
import { provide, ref } from 'vue';
const pdfviewer = ref(null);
const documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
const resourceUrl = 'https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib';
provide('PdfViewer', [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView,
Print, TextSelection, TextSearch, Annotation, FormFields, FormDesigner, PageOrganizer])
const documentLoad = () => {
const viewer = pdfviewer.value.ej2Instances;
document.getElementById('set').addEventListener('click', () => {
viewer.annotation.setAnnotationMode('Ink');
});
}
</script><template>
<div id="app">
<button id="set">Draw Ink</button>
<ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :resourceUrl="resourceUrl"
:documentLoad="documentLoad">
</ejs-pdfviewer>
</div>
</template>
<script>
import {
PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
export default {
name: "App",
components: {
"ejs-pdfviewer": PdfViewerComponent
},
data() {
return {
documentPath: "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf",
resourceUrl: 'https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib',
};
},
provide: {
PdfViewer: [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView,
Print, TextSelection, TextSearch, Annotation, FormFields, FormDesigner, PageOrganizer]
},
methods: {
documentLoad() {
const viewer = this.$refs.pdfviewer.ej2Instances;
document.getElementById('set').addEventListener('click', () => {
viewer.annotation.setAnnotationMode('Ink');
});
}
}
}
</script><template>
<div id="app">
<button id="set">Draw Ink</button>
<ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :serviceUrl="serviceUrl" :documentPath="documentPath"
:documentLoad="documentLoad">
</ejs-pdfviewer>
</div>
</template>
<script setup>
import {
PdfViewerComponent as EjsPdfviewer, Toolbar, Magnification, Navigation, LinkAnnotation,
BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
import { provide, ref } from 'vue';
const pdfviewer = ref(null);
const serviceUrl = "https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer";
const documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
provide('PdfViewer', [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView,
Print, TextSelection, TextSearch, Annotation, FormFields, FormDesigner, PageOrganizer])
const documentLoad = () => {
const viewer = pdfviewer.value.ej2Instances;
document.getElementById('set').addEventListener('click', () => {
viewer.annotation.setAnnotationMode('Ink');
});
}
</script><template>
<div id="app">
<button id="set">Draw Ink</button>
<ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :serviceUrl="serviceUrl" :documentPath="documentPath"
:documentLoad="documentLoad">
</ejs-pdfviewer>
</div>
</template>
<script>
import {
PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
export default {
name: "App",
components: {
"ejs-pdfviewer": PdfViewerComponent
},
data() {
return {
serviceUrl: "https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer",
documentPath: "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf"
};
},
provide: {
PdfViewer: [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView,
Print, TextSelection, TextSearch, Annotation, FormFields, FormDesigner, PageOrganizer]
},
methods: {
documentLoad() {
const viewer = this.$refs.pdfviewer.ej2Instances;
document.getElementById('set').addEventListener('click', () => {
viewer.annotation.setAnnotationMode('Ink');
});
}
}
}
</script>Add an Ink annotation programmatically to the PDF document Programmatically
The PDF Viewer library allows adding an ink annotation programmatically using the addAnnotation() method.
Here is an example of adding an ink annotation programmatically using addAnnotation():
<template>
<div id="app">
<button v-on:click="addAnnotation">Add Annotation programatically</button>
<ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :resourceUrl="resourceUrl"
:addAnnotation="addAnnotation">
</ejs-pdfviewer>
</div>
</template>
<script setup>
import {
PdfViewerComponent as EjsPdfviewer, Toolbar, Magnification, Navigation, LinkAnnotation,
BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
import { provide, ref } from 'vue';
const pdfviewer = ref(null);
const documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
const resourceUrl = 'https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib';
provide('PdfViewer', [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer])
const addAnnotation = function () {
const viewer = pdfviewer.value.ej2Instances;
viewer.annotation.addAnnotation("Ink", {
offset: { x: 150, y: 100 },
pageNumber: 1,
width: 200,
height: 60,
path: '[{\"command\":\"M\",\"x\":244.83334350585938,\"y\":982.0000305175781},{\"command\":\"L\",\"x\":244.83334350585938,\"y\":982.0000305175781},{\"command\":\"L\",\"x\":250.83334350585938,\"y\":953.3333435058594},{\"command\":\"L\",\"x\":252.83334350585938,\"y\":946.0000305175781},{\"command\":\"L\",\"x\":254.16668701171875,\"y\":940.6667175292969},{\"command\":\"L\",\"x\":256.8333435058594,\"y\":931.3333435058594},{\"command\":\"L\",\"x\":257.5,\"y\":929.3333435058594},{\"command\":\"L\",\"x\":258.8333435058594,\"y\":926.6667175292969},{\"command\":\"L\",\"x\":259.5,\"y\":924.0000305175781},{\"command\":\"L\",\"x\":259.5,\"y\":922.6667175292969},{\"command\":\"L\",\"x\":258.8333435058594,\"y\":922.0000305175781},{\"command\":\"L\",\"x\":258.16668701171875,\"y\":922.0000305175781},{\"command\":\"L\",\"x\":256.8333435058594,\"y\":922.0000305175781},{\"command\":\"L\",\"x\":256.16668701171875,\"y\":922.6667175292969},{\"command\":\"L\",\"x\":254.83334350585938,\"y\":923.3333435058594},{\"command\":\"L\",\"x\":254.16668701171875,\"y\":923.3333435058594},{\"command\":\"L\",\"x\":253.5,\"y\":923.3333435058594},{\"command\":\"L\",\"x\":252.83334350585938,\"y\":925.3333435058594},{\"command\":\"L\",\"x\":252.83334350585938,\"y\":927.3333435058594},{\"command\":\"L\",\"x\":252.83334350585938,\"y\":936.0000305175781},{\"command\":\"L\",\"x\":253.5,\"y\":940.6667175292969},{\"command\":\"L\",\"x\":254.83334350585938,\"y\":944.6667175292969},{\"command\":\"L\",\"x\":260.16668701171875,\"y\":952.0000305175781},{\"command\":\"L\",\"x\":264.16668701171875,\"y\":954.0000305175781},{\"command\":\"L\",\"x\":274.16668701171875,\"y\":958.6667175292969},{\"command\":\"L\",\"x\":278.16668701171875,\"y\":960.0000305175781},{\"command\":\"L\",\"x\":281.5,\"y\":961.3333435058594},{\"command\":\"L\",\"x\":285.5,\"y\":964.6667175292969},{\"command\":\"L\",\"x\":286.8333740234375,\"y\":967.3333435058594},{\"command\":\"L\",\"x\":286.8333740234375,\"y\":970.0000305175781},{\"command\":\"L\",\"x\":282.8333740234375,\"y\":978.6667175292969},{\"command\":\"L\",\"x\":278.16668701171875,\"y\":983.3333435058594},{\"command\":\"L\",\"x\":266.16668701171875,\"y\":991.3333435058594},{\"command\":\"L\",\"x\":259.5,\"y\":993.3333435058594},{\"command\":\"L\",\"x\":252.16668701171875,\"y\":994.0000305175781},{\"command\":\"L\",\"x\":240.83334350585938,\"y\":991.3333435058594},{\"command\":\"L\",\"x\":236.16668701171875,\"y\":988.6667175292969},{\"command\":\"L\",\"x\":230.16668701171875,\"y\":982.6667175292969},{\"command\":\"L\",\"x\":228.83334350585938,\"y\":980.6667175292969},{\"command\":\"L\",\"x\":228.16668701171875,\"y\":978.6667175292969},{\"command\":\"L\",\"x\":228.83334350585938,\"y\":974.6667175292969},{\"command\":\"L\",\"x\":230.16668701171875,\"y\":973.3333435058594},{\"command\":\"L\",\"x\":236.16668701171875,\"y\":971.3333435058594},{\"command\":\"L\",\"x\":240.83334350585938,\"y\":971.3333435058594},{\"command\":\"L\",\"x\":246.16668701171875,\"y\":972.0000305175781},{\"command\":\"L\",\"x\":257.5,\"y\":974.6667175292969},{\"command\":\"L\",\"x\":262.8333435058594,\"y\":976.0000305175781},{\"command\":\"L\",\"x\":269.5,\"y\":977.3333435058594},{\"command\":\"L\",\"x\":276.16668701171875,\"y\":978.6667175292969},{\"command\":\"L\",\"x\":279.5,\"y\":978.0000305175781},{\"command\":\"L\",\"x\":285.5,\"y\":976.6667175292969},{\"command\":\"L\",\"x\":288.16668701171875,\"y\":974.6667175292969},{\"command\":\"L\",\"x\":292.8333740234375,\"y\":969.3333435058594},{\"command\":\"L\",\"x\":293.5,\"y\":966.6667175292969},{\"command\":\"L\",\"x\":294.16668701171875,\"y\":964.0000305175781},{\"command\":\"L\",\"x\":293.5,\"y\":960.0000305175781},{\"command\":\"L\",\"x\":293.5,\"y\":958.0000305175781},{\"command\":\"L\",\"x\":292.8333740234375,\"y\":956.6667175292969},{\"command\":\"L\",\"x\":291.5,\"y\":954.6667175292969},{\"command\":\"L\",\"x\":291.5,\"y\":954.0000305175781},{\"command\":\"L\",\"x\":291.5,\"y\":953.3333435058594},{\"command\":\"L\",\"x\":291.5,\"y\":954.0000305175781},{\"command\":\"L\",\"x\":292.16668701171875,\"y\":954.6667175292969},{\"command\":\"L\",\"x\":292.8333740234375,\"y\":956.0000305175781},{\"command\":\"L\",\"x\":294.16668701171875,\"y\":961.3333435058594},{\"command\":\"L\",\"x\":295.5,\"y\":964.6667175292969},{\"command\":\"L\",\"x\":297.5,\"y\":969.3333435058594},{\"command\":\"L\",\"x\":298.8333740234375,\"y\":970.6667175292969},{\"command\":\"L\",\"x\":301.5,\"y\":970.0000305175781},{\"command\":\"L\",\"x\":304.16668701171875,\"y\":968.6667175292969},{\"command\":\"L\",\"x\":305.5,\"y\":966.0000305175781},{\"command\":\"L\",\"x\":308.8333740234375,\"y\":960.0000305175781},{\"command\":\"L\",\"x\":310.16668701171875,\"y\":957.3333435058594},{\"command\":\"L\",\"x\":310.8333740234375,\"y\":956.0000305175781},{\"command\":\"L\",\"x\":310.8333740234375,\"y\":954.6667175292969},{\"command\":\"L\",\"x\":310.8333740234375,\"y\":954.0000305175781},{\"command\":\"L\",\"x\":311.5,\"y\":956.0000305175781},{\"command\":\"L\",\"x\":312.8333740234375,\"y\":959.3333435058594},{\"command\":\"L\",\"x\":316.16668701171875,\"y\":968.0000305175781},{\"command\":\"L\",\"x\":317.5,\"y\":972.6667175292969},{\"command\":\"L\",\"x\":318.16668701171875,\"y\":977.3333435058594},{\"command\":\"L\",\"x\":319.5,\"y\":983.3333435058594},{\"command\":\"L\",\"x\":319.5,\"y\":986.0000305175781},{\"command\":\"L\",\"x\":319.5,\"y\":988.0000305175781},{\"command\":\"L\",\"x\":318.8333740234375,\"y\":988.0000305175781},{\"command\":\"L\",\"x\":318.16668701171875,\"y\":988.6667175292969},{\"command\":\"L\",\"x\":316.16668701171875,\"y\":987.3333435058594},{\"command\":\"L\",\"x\":314.8333740234375,\"y\":985.3333435058594},{\"command\":\"L\",\"x\":314.16668701171875,\"y\":980.6667175292969},{\"command\":\"L\",\"x\":314.8333740234375,\"y\":974.6667175292969},{\"command\":\"L\",\"x\":316.16668701171875,\"y\":969.3333435058594},{\"command\":\"L\",\"x\":319.5,\"y\":960.6667175292969},{\"command\":\"L\",\"x\":320.16668701171875,\"y\":957.3333435058594},{\"command\":\"L\",\"x\":321.5,\"y\":955.3333435058594},{\"command\":\"L\",\"x\":322.16668701171875,\"y\":953.3333435058594},{\"command\":\"L\",\"x\":322.8333740234375,\"y\":952.6667175292969},{\"command\":\"L\",\"x\":324.16668701171875,\"y\":952.6667175292969},{\"command\":\"L\",\"x\":324.8333740234375,\"y\":953.3333435058594},{\"command\":\"L\",\"x\":326.8333740234375,\"y\":956.0000305175781},{\"command\":\"L\",\"x\":328.16668701171875,\"y\":958.0000305175781},{\"command\":\"L\",\"x\":328.8333740234375,\"y\":960.0000305175781},{\"command\":\"L\",\"x\":329.5,\"y\":962.0000305175781},{\"command\":\"L\",\"x\":330.16668701171875,\"y\":962.0000305175781},{\"command\":\"L\",\"x\":330.16668701171875,\"y\":962.6667175292969},{\"command\":\"L\",\"x\":330.16668701171875,\"y\":962.0000305175781},{\"command\":\"L\",\"x\":330.8333740234375,\"y\":960.0000305175781},{\"command\":\"L\",\"x\":331.5,\"y\":956.0000305175781},{\"command\":\"L\",\"x\":332.8333740234375,\"y\":952.0000305175781},{\"command\":\"L\",\"x\":333.5,\"y\":950.0000305175781},{\"command\":\"L\",\"x\":334.8333740234375,\"y\":948.6667175292969},{\"command\":\"L\",\"x\":335.5,\"y\":948.6667175292969},{\"command\":\"L\",\"x\":336.16668701171875,\"y\":948.6667175292969},{\"command\":\"L\",\"x\":337.5,\"y\":950.6667175292969},{\"command\":\"L\",\"x\":338.8333740234375,\"y\":952.0000305175781},{\"command\":\"L\",\"x\":340.8333740234375,\"y\":954.0000305175781},{\"command\":\"L\",\"x\":341.5,\"y\":954.0000305175781},{\"command\":\"L\",\"x\":342.8333740234375,\"y\":954.6667175292969},{\"command\":\"L\",\"x\":344.8333740234375,\"y\":954.0000305175781},{\"command\":\"L\",\"x\":346.8333740234375,\"y\":952.6667175292969},{\"command\":\"L\",\"x\":349.5,\"y\":949.3333435058594},{\"command\":\"L\",\"x\":350.8333740234375,\"y\":948.0000305175781},{\"command\":\"L\",\"x\":351.5,\"y\":946.6667175292969},{\"command\":\"L\",\"x\":352.8333740234375,\"y\":944.0000305175781},{\"command\":\"L\",\"x\":352.8333740234375,\"y\":943.3333435058594},{\"command\":\"L\",\"x\":354.16668701171875,\"y\":942.0000305175781},{\"command\":\"L\",\"x\":354.8333740234375,\"y\":942.0000305175781},{\"command\":\"L\",\"x\":354.8333740234375,\"y\":942.6667175292969},{\"command\":\"L\",\"x\":354.16668701171875,\"y\":943.3333435058594},{\"command\":\"L\",\"x\":354.16668701171875,\"y\":946.6667175292969},{\"command\":\"L\",\"x\":354.16668701171875,\"y\":950.0000305175781},{\"command\":\"L\",\"x\":355.5,\"y\":956.0000305175781},{\"command\":\"L\",\"x\":356.16668701171875,\"y\":957.3333435058594},{\"command\":\"L\",\"x\":358.16668701171875,\"y\":959.3333435058594},{\"command\":\"L\",\"x\":360.16668701171875,\"y\":958.0000305175781},{\"command\":\"L\",\"x\":364.16668701171875,\"y\":956.0000305175781},{\"command\":\"L\",\"x\":370.8333740234375,\"y\":948.6667175292969},{\"command\":\"L\",\"x\":373.5,\"y\":943.3333435058594},{\"command\":\"L\",\"x\":375.5,\"y\":937.3333435058594},{\"command\":\"L\",\"x\":376.16668701171875,\"y\":933.3333435058594},{\"command\":\"L\",\"x\":376.8333740234375,\"y\":931.3333435058594},{\"command\":\"L\",\"x\":376.8333740234375,\"y\":930.0000305175781},{\"command\":\"L\",\"x\":376.8333740234375,\"y\":929.3333435058594},{\"command\":\"L\",\"x\":376.16668701171875,\"y\":930.0000305175781},{\"command\":\"L\",\"x\":375.5,\"y\":932.0000305175781},{\"command\":\"L\",\"x\":375.5,\"y\":937.3333435058594},{\"command\":\"L\",\"x\":374.8333740234375,\"y\":953.3333435058594},{\"command\":\"L\",\"x\":374.8333740234375,\"y\":960.6667175292969},{\"command\":\"L\",\"x\":375.5,\"y\":966.0000305175781},{\"command\":\"L\",\"x\":377.5,\"y\":974.6667175292969},{\"command\":\"L\",\"x\":378.16668701171875,\"y\":977.3333435058594},{\"command\":\"L\",\"x\":380.8333740234375,\"y\":981.3333435058594},{\"command\":\"L\",\"x\":382.16668701171875,\"y\":982.6667175292969},{\"command\":\"L\",\"x\":383.5,\"y\":982.6667175292969},{\"command\":\"L\",\"x\":387.5,\"y\":982.6667175292969},{\"command\":\"L\",\"x\":389.5,\"y\":980.6667175292969},{\"command\":\"L\",\"x\":392.16668701171875,\"y\":976.6667175292969},{\"command\":\"L\",\"x\":392.8333740234375,\"y\":973.3333435058594},{\"command\":\"L\",\"x\":392.16668701171875,\"y\":970.0000305175781},{\"command\":\"L\",\"x\":388.8333740234375,\"y\":965.3333435058594},{\"command\":\"L\",\"x\":385.5,\"y\":964.0000305175781},{\"command\":\"L\",\"x\":382.8333740234375,\"y\":964.0000305175781},{\"command\":\"L\",\"x\":377.5,\"y\":964.0000305175781},{\"command\":\"L\",\"x\":375.5,\"y\":964.6667175292969},{\"command\":\"L\",\"x\":373.5,\"y\":965.3333435058594},{\"command\":\"L\",\"x\":374.8333740234375,\"y\":963.3333435058594},{\"command\":\"L\",\"x\":376.8333740234375,\"y\":961.3333435058594},{\"command\":\"L\",\"x\":382.16668701171875,\"y\":956.0000305175781},{\"command\":\"L\",\"x\":384.16668701171875,\"y\":953.3333435058594},{\"command\":\"L\",\"x\":387.5,\"y\":950.6667175292969},{\"command\":\"L\",\"x\":388.16668701171875,\"y\":952.0000305175781},{\"command\":\"L\",\"x\":388.16668701171875,\"y\":952.6667175292969},{\"command\":\"L\",\"x\":388.8333740234375,\"y\":954.0000305175781},{\"command\":\"L\",\"x\":388.8333740234375,\"y\":954.6667175292969},{\"command\":\"L\",\"x\":389.5,\"y\":959.3333435058594},{\"command\":\"L\",\"x\":389.5,\"y\":960.6667175292969},{\"command\":\"L\",\"x\":390.16668701171875,\"y\":961.3333435058594},{\"command\":\"L\",\"x\":390.8333740234375,\"y\":960.6667175292969},{\"command\":\"L\",\"x\":393.5,\"y\":958.0000305175781},{\"command\":\"L\",\"x\":396.8333740234375,\"y\":954.0000305175781},{\"command\":\"L\",\"x\":398.16668701171875,\"y\":952.0000305175781},{\"command\":\"L\",\"x\":400.16668701171875,\"y\":949.3333435058594},{\"command\":\"L\",\"x\":400.16668701171875,\"y\":948.6667175292969},{\"command\":\"L\",\"x\":400.8333740234375,\"y\":948.0000305175781},{\"command\":\"L\",\"x\":400.8333740234375,\"y\":947.3333435058594},{\"command\":\"L\",\"x\":401.5,\"y\":948.0000305175781},{\"command\":\"L\",\"x\":402.16668701171875,\"y\":949.3333435058594},{\"command\":\"L\",\"x\":403.5,\"y\":950.6667175292969},{\"command\":\"L\",\"x\":404.8333740234375,\"y\":953.3333435058594},{\"command\":\"L\",\"x\":406.16668701171875,\"y\":954.0000305175781},{\"command\":\"L\",\"x\":407.5,\"y\":954.0000305175781},{\"command\":\"L\",\"x\":410.16668701171875,\"y\":952.0000305175781},{\"command\":\"L\",\"x\":412.16668701171875,\"y\":949.3333435058594},{\"command\":\"L\",\"x\":414.16668701171875,\"y\":944.6667175292969},{\"command\":\"L\",\"x\":414.16668701171875,\"y\":942.0000305175781},{\"command\":\"L\",\"x\":414.16668701171875,\"y\":940.6667175292969},{\"command\":\"L\",\"x\":414.16668701171875,\"y\":938.6667175292969},{\"command\":\"L\",\"x\":414.16668701171875,\"y\":938.0000305175781},{\"command\":\"L\",\"x\":415.5,\"y\":939.3333435058594},{\"command\":\"L\",\"x\":418.8333740234375,\"y\":942.6667175292969},{\"command\":\"L\",\"x\":420.16668701171875,\"y\":945.3333435058594},{\"command\":\"L\",\"x\":421.5,\"y\":946.6667175292969},{\"command\":\"L\",\"x\":422.8333740234375,\"y\":950.0000305175781},{\"command\":\"L\",\"x\":423.5,\"y\":950.6667175292969},{\"command\":\"L\",\"x\":423.5,\"y\":953.3333435058594},{\"command\":\"L\",\"x\":422.8333740234375,\"y\":954.0000305175781},{\"command\":\"L\",\"x\":421.5,\"y\":955.3333435058594},{\"command\":\"L\",\"x\":421.5,\"y\":956.0000305175781},{\"command\":\"L\",\"x\":422.16668701171875,\"y\":954.6667175292969},{\"command\":\"L\",\"x\":422.8333740234375,\"y\":954.0000305175781},{\"command\":\"L\",\"x\":424.8333740234375,\"y\":950.6667175292969},{\"command\":\"L\",\"x\":425.5,\"y\":948.6667175292969},{\"command\":\"L\",\"x\":428.16668701171875,\"y\":945.3333435058594},{\"command\":\"L\",\"x\":428.8333740234375,\"y\":943.3333435058594},{\"command\":\"L\",\"x\":428.8333740234375,\"y\":942.6667175292969},{\"command\":\"L\",\"x\":428.8333740234375,\"y\":943.3333435058594},{\"command\":\"L\",\"x\":428.8333740234375,\"y\":945.3333435058594},{\"command\":\"L\",\"x\":428.8333740234375,\"y\":948.0000305175781},{\"command\":\"L\",\"x\":428.8333740234375,\"y\":950.0000305175781},{\"command\":\"L\",\"x\":429.5,\"y\":953.3333435058594},{\"command\":\"L\",\"x\":430.16668701171875,\"y\":953.3333435058594},{\"command\":\"L\",\"x\":432.8333740234375,\"y\":952.6667175292969},{\"command\":\"L\",\"x\":434.8333740234375,\"y\":950.6667175292969},{\"command\":\"L\",\"x\":437.5,\"y\":948.6667175292969},{\"command\":\"L\",\"x\":440.16668701171875,\"y\":944.6667175292969},{\"command\":\"L\",\"x\":441.5,\"y\":942.6667175292969},{\"command\":\"L\",\"x\":442.16668701171875,\"y\":942.0000305175781},{\"command\":\"L\",\"x\":442.8333740234375,\"y\":941.3333435058594},{\"command\":\"L\",\"x\":442.8333740234375,\"y\":942.0000305175781},{\"command\":\"L\",\"x\":442.8333740234375,\"y\":943.3333435058594},{\"command\":\"L\",\"x\":442.8333740234375,\"y\":944.6667175292969},{\"command\":\"L\",\"x\":442.8333740234375,\"y\":946.0000305175781},{\"command\":\"L\",\"x\":443.5,\"y\":949.3333435058594},{\"command\":\"L\",\"x\":444.16668701171875,\"y\":950.6667175292969},{\"command\":\"L\",\"x\":445.5,\"y\":950.6667175292969},{\"command\":\"L\",\"x\":447.5,\"y\":950.6667175292969},{\"command\":\"L\",\"x\":450.16668701171875,\"y\":948.6667175292969},{\"command\":\"L\",\"x\":452.16668701171875,\"y\":945.3333435058594},{\"command\":\"L\",\"x\":453.5,\"y\":942.6667175292969},{\"command\":\"L\",\"x\":452.8333740234375,\"y\":938.6667175292969},{\"command\":\"L\",\"x\":452.16668701171875,\"y\":937.3333435058594},{\"command\":\"L\",\"x\":450.8333740234375,\"y\":936.6667175292969},{\"command\":\"L\",\"x\":448.8333740234375,\"y\":936.0000305175781},{\"command\":\"L\",\"x\":447.5,\"y\":936.6667175292969},{\"command\":\"L\",\"x\":446.16668701171875,\"y\":937.3333435058594},{\"command\":\"L\",\"x\":445.5,\"y\":938.6667175292969},{\"command\":\"L\",\"x\":445.5,\"y\":939.3333435058594},{\"command\":\"L\",\"x\":446.16668701171875,\"y\":939.3333435058594},{\"command\":\"L\",\"x\":446.8333740234375,\"y\":939.3333435058594},{\"command\":\"L\",\"x\":452.16668701171875,\"y\":937.3333435058594},{\"command\":\"L\",\"x\":454.8333740234375,\"y\":936.6667175292969},{\"command\":\"L\",\"x\":456.8333740234375,\"y\":936.0000305175781},{\"command\":\"L\",\"x\":459.5,\"y\":936.6667175292969},{\"command\":\"L\",\"x\":460.8333740234375,\"y\":937.3333435058594},{\"command\":\"L\",\"x\":461.5,\"y\":938.6667175292969},{\"command\":\"L\",\"x\":462.16668701171875,\"y\":942.0000305175781},{\"command\":\"L\",\"x\":462.16668701171875,\"y\":942.6667175292969},{\"command\":\"L\",\"x\":462.16668701171875,\"y\":944.0000305175781},{\"command\":\"L\",\"x\":462.16668701171875,\"y\":943.3333435058594},{\"command\":\"L\",\"x\":462.16668701171875,\"y\":942.6667175292969},{\"command\":\"L\",\"x\":462.16668701171875,\"y\":941.3333435058594},{\"command\":\"L\",\"x\":462.8333740234375,\"y\":938.6667175292969},{\"command\":\"L\",\"x\":464.16668701171875,\"y\":935.3333435058594},{\"command\":\"L\",\"x\":465.5,\"y\":933.3333435058594},{\"command\":\"L\",\"x\":466.16668701171875,\"y\":932.6667175292969},{\"command\":\"L\",\"x\":467.5,\"y\":933.3333435058594},{\"command\":\"L\",\"x\":469.5,\"y\":935.3333435058594},{\"command\":\"L\",\"x\":470.16668701171875,\"y\":938.6667175292969},{\"command\":\"L\",\"x\":472.8333740234375,\"y\":943.3333435058594},{\"command\":\"L\",\"x\":472.8333740234375,\"y\":944.6667175292969},{\"command\":\"L\",\"x\":474.16668701171875,\"y\":944.6667175292969},{\"command\":\"L\",\"x\":475.5,\"y\":944.0000305175781},{\"command\":\"L\",\"x\":478.16668701171875,\"y\":941.3333435058594},{\"command\":\"L\",\"x\":481.5,\"y\":937.3333435058594},{\"command\":\"L\",\"x\":484.8333740234375,\"y\":934.0000305175781},{\"command\":\"L\",\"x\":488.8333740234375,\"y\":929.3333435058594},{\"command\":\"L\",\"x\":489.5,\"y\":928.0000305175781}]'
});
}
</script><template>
<div id="app">
<button v-on:click="addAnnotation">Add Annotation programatically</button>
<ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :resourceUrl="resourceUrl"
:addAnnotation="addAnnotation">
</ejs-pdfviewer>
</div>
</template>
<script>
import {
PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
export default {
name: "App",
components: {
"ejs-pdfviewer": PdfViewerComponent
},
data() {
return {
documentPath: "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf",
resourceUrl: 'https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib',
};
},
provide: {
PdfViewer: [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer]
},
methods: {
addAnnotation: function () {
const viewer = this.$refs.pdfviewer.ej2Instances;
viewer.annotation.addAnnotation("Ink", {
offset: { x: 150, y: 100 },
pageNumber: 1,
width: 200,
height: 60,
path: '[{"command":"M","x":244.83334350585938,"y":982.0000305175781},{"command":"L","x":244.83334350585938,"y":982.0000305175781},{"command":"L","x":250.83334350585938,"y":953.3333435058594},{"command":"L","x":252.83334350585938,"y":946.0000305175781},{"command":"L","x":254.16668701171875,"y":940.6667175292969},{"command":"L","x":256.8333435058594,"y":931.3333435058594},{"command":"L","x":257.5,"y":929.3333435058594},{"command":"L","x":258.8333435058594,"y":926.6667175292969},{"command":"L","x":259.5,"y":924.0000305175781},{"command":"L","x":259.5,"y":922.6667175292969},{"command":"L","x":258.8333435058594,"y":922.0000305175781},{"command":"L","x":258.16668701171875,"y":922.0000305175781},{"command":"L","x":256.8333435058594,"y":922.0000305175781},{"command":"L","x":256.16668701171875,"y":922.6667175292969},{"command":"L","x":254.83334350585938,"y":923.3333435058594},{"command":"L","x":254.16668701171875,"y":923.3333435058594},{"command":"L","x":253.5,"y":923.3333435058594},{"command":"L","x":252.83334350585938,"y":925.3333435058594},{"command":"L","x":252.83334350585938,"y":927.3333435058594},{"command":"L","x":252.83334350585938,"y":936.0000305175781},{"command":"L","x":253.5,"y":940.6667175292969},{"command":"L","x":254.83334350585938,"y":944.6667175292969},{"command":"L","x":260.16668701171875,"y":952.0000305175781},{"command":"L","x":264.16668701171875,"y":954.0000305175781},{"command":"L","x":274.16668701171875,"y":958.6667175292969},{"command":"L","x":278.16668701171875,"y":960.0000305175781},{"command":"L","x":281.5,"y":961.3333435058594},{"command":"L","x":285.5,"y":964.6667175292969},{"command":"L","x":286.8333740234375,"y":967.3333435058594},{"command":"L","x":286.8333740234375,"y":970.0000305175781},{"command":"L","x":282.8333740234375,"y":978.6667175292969},{"command":"L","x":278.16668701171875,"y":983.3333435058594},{"command":"L","x":266.16668701171875,"y":991.3333435058594},{"command":"L","x":259.5,"y":993.3333435058594},{"command":"L","x":252.16668701171875,"y":994.0000305175781},{"command":"L","x":240.83334350585938,"y":991.3333435058594},{"command":"L","x":236.16668701171875,"y":988.6667175292969},{"command":"L","x":230.16668701171875,"y":982.6667175292969},{"command":"L","x":228.83334350585938,"y":980.6667175292969},{"command":"L","x":228.16668701171875,"y":978.6667175292969},{"command":"L","x":228.83334350585938,"y":974.6667175292969},{"command":"L","x":230.16668701171875,"y":973.3333435058594},{"command":"L","x":236.16668701171875,"y":971.3333435058594},{"command":"L","x":240.83334350585938,"y":971.3333435058594},{"command":"L","x":246.16668701171875,"y":972.0000305175781},{"command":"L","x":257.5,"y":974.6667175292969},{"command":"L","x":262.8333435058594,"y":976.0000305175781},{"command":"L","x":269.5,"y":977.3333435058594},{"command":"L","x":276.16668701171875,"y":978.6667175292969},{"command":"L","x":279.5,"y":978.0000305175781},{"command":"L","x":285.5,"y":976.6667175292969},{"command":"L","x":288.16668701171875,"y":974.6667175292969},{"command":"L","x":292.8333740234375,"y":969.3333435058594},{"command":"L","x":293.5,"y":966.6667175292969},{"command":"L","x":294.16668701171875,"y":964.0000305175781},{"command":"L","x":293.5,"y":960.0000305175781},{"command":"L","x":293.5,"y":958.0000305175781},{"command":"L","x":292.8333740234375,"y":956.6667175292969},{"command":"L","x":291.5,"y":954.6667175292969},{"command":"L","x":291.5,"y":954.0000305175781},{"command":"L","x":291.5,"y":953.3333435058594},{"command":"L","x":291.5,"y":954.0000305175781},{"command":"L","x":292.16668701171875,"y":954.6667175292969},{"command":"L","x":292.8333740234375,"y":956.0000305175781},{"command":"L","x":294.16668701171875,"y":961.3333435058594},{"command":"L","x":295.5,"y":964.6667175292969},{"command":"L","x":297.5,"y":969.3333435058594},{"command":"L","x":298.8333740234375,"y":970.6667175292969},{"command":"L","x":301.5,"y":970.0000305175781},{"command":"L","x":304.16668701171875,"y":968.6667175292969},{"command":"L","x":305.5,"y":966.0000305175781},{"command":"L","x":308.8333740234375,"y":960.0000305175781},{"command":"L","x":310.16668701171875,"y":957.3333435058594},{"command":"L","x":310.8333740234375,"y":956.0000305175781},{"command":"L","x":310.8333740234375,"y":954.6667175292969},{"command":"L","x":310.8333740234375,"y":954.0000305175781},{"command":"L","x":311.5,"y":956.0000305175781},{"command":"L","x":312.8333740234375,"y":959.3333435058594},{"command":"L","x":316.16668701171875,"y":968.0000305175781},{"command":"L","x":317.5,"y":972.6667175292969},{"command":"L","x":318.16668701171875,"y":977.3333435058594},{"command":"L","x":319.5,"y":983.3333435058594},{"command":"L","x":319.5,"y":986.0000305175781},{"command":"L","x":319.5,"y":988.0000305175781},{"command":"L","x":318.8333740234375,"y":988.0000305175781},{"command":"L","x":318.16668701171875,"y":988.6667175292969},{"command":"L","x":316.16668701171875,"y":987.3333435058594},{"command":"L","x":314.8333740234375,"y":985.3333435058594},{"command":"L","x":314.16668701171875,"y":980.6667175292969},{"command":"L","x":314.8333740234375,"y":974.6667175292969},{"command":"L","x":316.16668701171875,"y":969.3333435058594},{"command":"L","x":319.5,"y":960.6667175292969},{"command":"L","x":320.16668701171875,"y":957.3333435058594},{"command":"L","x":321.5,"y":955.3333435058594},{"command":"L","x":322.16668701171875,"y":953.3333435058594},{"command":"L","x":322.8333740234375,"y":952.6667175292969},{"command":"L","x":324.16668701171875,"y":952.6667175292969},{"command":"L","x":324.8333740234375,"y":953.3333435058594},{"command":"L","x":326.8333740234375,"y":956.0000305175781},{"command":"L","x":328.16668701171875,"y":958.0000305175781},{"command":"L","x":328.8333740234375,"y":960.0000305175781},{"command":"L","x":329.5,"y":962.0000305175781},{"command":"L","x":330.16668701171875,"y":962.0000305175781},{"command":"L","x":330.16668701171875,"y":962.6667175292969},{"command":"L","x":330.16668701171875,"y":962.0000305175781},{"command":"L","x":330.8333740234375,"y":960.0000305175781},{"command":"L","x":331.5,"y":956.0000305175781},{"command":"L","x":332.8333740234375,"y":952.0000305175781},{"command":"L","x":333.5,"y":950.0000305175781},{"command":"L","x":334.8333740234375,"y":948.6667175292969},{"command":"L","x":335.5,"y":948.6667175292969},{"command":"L","x":336.16668701171875,"y":948.6667175292969},{"command":"L","x":337.5,"y":950.6667175292969},{"command":"L","x":338.8333740234375,"y":952.0000305175781},{"command":"L","x":340.8333740234375,"y":954.0000305175781},{"command":"L","x":341.5,"y":954.0000305175781},{"command":"L","x":342.8333740234375,"y":954.6667175292969},{"command":"L","x":344.8333740234375,"y":954.0000305175781},{"command":"L","x":346.8333740234375,"y":952.6667175292969},{"command":"L","x":349.5,"y":949.3333435058594},{"command":"L","x":350.8333740234375,"y":948.0000305175781},{"command":"L","x":351.5,"y":946.6667175292969},{"command":"L","x":352.8333740234375,"y":944.0000305175781},{"command":"L","x":352.8333740234375,"y":943.3333435058594},{"command":"L","x":354.16668701171875,"y":942.0000305175781},{"command":"L","x":354.8333740234375,"y":942.0000305175781},{"command":"L","x":354.8333740234375,"y":942.6667175292969},{"command":"L","x":354.16668701171875,"y":943.3333435058594},{"command":"L","x":354.16668701171875,"y":946.6667175292969},{"command":"L","x":354.16668701171875,"y":950.0000305175781},{"command":"L","x":355.5,"y":956.0000305175781},{"command":"L","x":356.16668701171875,"y":957.3333435058594},{"command":"L","x":358.16668701171875,"y":959.3333435058594},{"command":"L","x":360.16668701171875,"y":958.0000305175781},{"command":"L","x":364.16668701171875,"y":956.0000305175781},{"command":"L","x":370.8333740234375,"y":948.6667175292969},{"command":"L","x":373.5,"y":943.3333435058594},{"command":"L","x":375.5,"y":937.3333435058594},{"command":"L","x":376.16668701171875,"y":933.3333435058594},{"command":"L","x":376.8333740234375,"y":931.3333435058594},{"command":"L","x":376.8333740234375,"y":930.0000305175781},{"command":"L","x":376.8333740234375,"y":929.3333435058594},{"command":"L","x":376.16668701171875,"y":930.0000305175781},{"command":"L","x":375.5,"y":932.0000305175781},{"command":"L","x":375.5,"y":937.3333435058594},{"command":"L","x":374.8333740234375,"y":953.3333435058594},{"command":"L","x":374.8333740234375,"y":960.6667175292969},{"command":"L","x":375.5,"y":966.0000305175781},{"command":"L","x":377.5,"y":974.6667175292969},{"command":"L","x":378.16668701171875,"y":977.3333435058594},{"command":"L","x":380.8333740234375,"y":981.3333435058594},{"command":"L","x":382.16668701171875,"y":982.6667175292969},{"command":"L","x":383.5,"y":982.6667175292969},{"command":"L","x":387.5,"y":982.6667175292969},{"command":"L","x":389.5,"y":980.6667175292969},{"command":"L","x":392.16668701171875,"y":976.6667175292969},{"command":"L","x":392.8333740234375,"y":973.3333435058594},{"command":"L","x":392.16668701171875,"y":970.0000305175781},{"command":"L","x":388.8333740234375,"y":965.3333435058594},{"command":"L","x":385.5,"y":964.0000305175781},{"command":"L","x":382.8333740234375,"y":964.0000305175781},{"command":"L","x":377.5,"y":964.0000305175781},{"command":"L","x":375.5,"y":964.6667175292969},{"command":"L","x":373.5,"y":965.3333435058594},{"command":"L","x":374.8333740234375,"y":963.3333435058594},{"command":"L","x":376.8333740234375,"y":961.3333435058594},{"command":"L","x":382.16668701171875,"y":956.0000305175781},{"command":"L","x":384.16668701171875,"y":953.3333435058594},{"command":"L","x":387.5,"y":950.6667175292969},{"command":"L","x":388.16668701171875,"y":952.0000305175781},{"command":"L","x":388.16668701171875,"y":952.6667175292969},{"command":"L","x":388.8333740234375,"y":954.0000305175781},{"command":"L","x":388.8333740234375,"y":954.6667175292969},{"command":"L","x":389.5,"y":959.3333435058594},{"command":"L","x":389.5,"y":960.6667175292969},{"command":"L","x":390.16668701171875,"y":961.3333435058594},{"command":"L","x":390.8333740234375,"y":960.6667175292969},{"command":"L","x":393.5,"y":958.0000305175781},{"command":"L","x":396.8333740234375,"y":954.0000305175781},{"command":"L","x":398.16668701171875,"y":952.0000305175781},{"command":"L","x":400.16668701171875,"y":949.3333435058594},{"command":"L","x":400.16668701171875,"y":948.6667175292969},{"command":"L","x":400.8333740234375,"y":948.0000305175781},{"command":"L","x":400.8333740234375,"y":947.3333435058594},{"command":"L","x":401.5,"y":948.0000305175781},{"command":"L","x":402.16668701171875,"y":949.3333435058594},{"command":"L","x":403.5,"y":950.6667175292969},{"command":"L","x":404.8333740234375,"y":953.3333435058594},{"command":"L","x":406.16668701171875,"y":954.0000305175781},{"command":"L","x":407.5,"y":954.0000305175781},{"command":"L","x":410.16668701171875,"y":952.0000305175781},{"command":"L","x":412.16668701171875,"y":949.3333435058594},{"command":"L","x":414.16668701171875,"y":944.6667175292969},{"command":"L","x":414.16668701171875,"y":942.0000305175781},{"command":"L","x":414.16668701171875,"y":940.6667175292969},{"command":"L","x":414.16668701171875,"y":938.6667175292969},{"command":"L","x":414.16668701171875,"y":938.0000305175781},{"command":"L","x":415.5,"y":939.3333435058594},{"command":"L","x":418.8333740234375,"y":942.6667175292969},{"command":"L","x":420.16668701171875,"y":945.3333435058594},{"command":"L","x":421.5,"y":946.6667175292969},{"command":"L","x":422.8333740234375,"y":950.0000305175781},{"command":"L","x":423.5,"y":950.6667175292969},{"command":"L","x":423.5,"y":953.3333435058594},{"command":"L","x":422.8333740234375,"y":954.0000305175781},{"command":"L","x":421.5,"y":955.3333435058594},{"command":"L","x":421.5,"y":956.0000305175781},{"command":"L","x":422.16668701171875,"y":954.6667175292969},{"command":"L","x":422.8333740234375,"y":954.0000305175781},{"command":"L","x":424.8333740234375,"y":950.6667175292969},{"command":"L","x":425.5,"y":948.6667175292969},{"command":"L","x":428.16668701171875,"y":945.3333435058594},{"command":"L","x":428.8333740234375,"y":943.3333435058594},{"command":"L","x":428.8333740234375,"y":942.6667175292969},{"command":"L","x":428.8333740234375,"y":943.3333435058594},{"command":"L","x":428.8333740234375,"y":945.3333435058594},{"command":"L","x":428.8333740234375,"y":948.0000305175781},{"command":"L","x":428.8333740234375,"y":950.0000305175781},{"command":"L","x":429.5,"y":953.3333435058594},{"command":"L","x":430.16668701171875,"y":953.3333435058594},{"command":"L","x":432.8333740234375,"y":952.6667175292969},{"command":"L","x":434.8333740234375,"y":950.6667175292969},{"command":"L","x":437.5,"y":948.6667175292969},{"command":"L","x":440.16668701171875,"y":944.6667175292969},{"command":"L","x":441.5,"y":942.6667175292969},{"command":"L","x":442.16668701171875,"y":942.0000305175781},{"command":"L","x":442.8333740234375,"y":941.3333435058594},{"command":"L","x":442.8333740234375,"y":942.0000305175781},{"command":"L","x":442.8333740234375,"y":943.3333435058594},{"command":"L","x":442.8333740234375,"y":944.6667175292969},{"command":"L","x":442.8333740234375,"y":946.0000305175781},{"command":"L","x":443.5,"y":949.3333435058594},{"command":"L","x":444.16668701171875,"y":950.6667175292969},{"command":"L","x":445.5,"y":950.6667175292969},{"command":"L","x":447.5,"y":950.6667175292969},{"command":"L","x":450.16668701171875,"y":948.6667175292969},{"command":"L","x":452.16668701171875,"y":945.3333435058594},{"command":"L","x":453.5,"y":942.6667175292969},{"command":"L","x":452.8333740234375,"y":938.6667175292969},{"command":"L","x":452.16668701171875,"y":937.3333435058594},{"command":"L","x":450.8333740234375,"y":936.6667175292969},{"command":"L","x":448.8333740234375,"y":936.0000305175781},{"command":"L","x":447.5,"y":936.6667175292969},{"command":"L","x":446.16668701171875,"y":937.3333435058594},{"command":"L","x":445.5,"y":938.6667175292969},{"command":"L","x":445.5,"y":939.3333435058594},{"command":"L","x":446.16668701171875,"y":939.3333435058594},{"command":"L","x":446.8333740234375,"y":939.3333435058594},{"command":"L","x":452.16668701171875,"y":937.3333435058594},{"command":"L","x":454.8333740234375,"y":936.6667175292969},{"command":"L","x":456.8333740234375,"y":936.0000305175781},{"command":"L","x":459.5,"y":936.6667175292969},{"command":"L","x":460.8333740234375,"y":937.3333435058594},{"command":"L","x":461.5,"y":938.6667175292969},{"command":"L","x":462.16668701171875,"y":942.0000305175781},{"command":"L","x":462.16668701171875,"y":942.6667175292969},{"command":"L","x":462.16668701171875,"y":944.0000305175781},{"command":"L","x":462.16668701171875,"y":943.3333435058594},{"command":"L","x":462.16668701171875,"y":942.6667175292969},{"command":"L","x":462.16668701171875,"y":941.3333435058594},{"command":"L","x":462.8333740234375,"y":938.6667175292969},{"command":"L","x":464.16668701171875,"y":935.3333435058594},{"command":"L","x":465.5,"y":933.3333435058594},{"command":"L","x":466.16668701171875,"y":932.6667175292969},{"command":"L","x":467.5,"y":933.3333435058594},{"command":"L","x":469.5,"y":935.3333435058594},{"command":"L","x":470.16668701171875,"y":938.6667175292969},{"command":"L","x":472.8333740234375,"y":943.3333435058594},{"command":"L","x":472.8333740234375,"y":944.6667175292969},{"command":"L","x":474.16668701171875,"y":944.6667175292969},{"command":"L","x":475.5,"y":944.0000305175781},{"command":"L","x":478.16668701171875,"y":941.3333435058594},{"command":"L","x":481.5,"y":937.3333435058594},{"command":"L","x":484.8333740234375,"y":934.0000305175781},{"command":"L","x":488.8333740234375,"y":929.3333435058594},{"command":"L","x":489.5,"y":928.0000305175781}]'
});
}
}
}
</script><template>
<div id="app">
<button v-on:click="addAnnotation">Add Annotation programatically</button>
<ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :serviceUrl="serviceUrl"
:addAnnotation="addAnnotation">
</ejs-pdfviewer>
</div>
</template>
<script setup>
import {
PdfViewerComponent as EjsPdfviewer, Toolbar, Magnification, Navigation, LinkAnnotation,
BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
import { provide, ref } from 'vue';
const pdfviewer = ref(null);
const documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
const serviceUrl = "https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer";
provide('PdfViewer', [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer])
const addAnnotation = function () {
const viewer = this.$refs.pdfviewer.ej2Instances;
viewer.annotation.addAnnotation("Ink", {
offset: { x: 150, y: 100 },
pageNumber: 1,
width: 200,
height: 60,
path: '[{\"command\":\"M\",\"x\":244.83334350585938,\"y\":982.0000305175781},{\"command\":\"L\",\"x\":244.83334350585938,\"y\":982.0000305175781},{\"command\":\"L\",\"x\":250.83334350585938,\"y\":953.3333435058594},{\"command\":\"L\",\"x\":252.83334350585938,\"y\":946.0000305175781},{\"command\":\"L\",\"x\":254.16668701171875,\"y\":940.6667175292969},{\"command\":\"L\",\"x\":256.8333435058594,\"y\":931.3333435058594},{\"command\":\"L\",\"x\":257.5,\"y\":929.3333435058594},{\"command\":\"L\",\"x\":258.8333435058594,\"y\":926.6667175292969},{\"command\":\"L\",\"x\":259.5,\"y\":924.0000305175781},{\"command\":\"L\",\"x\":259.5,\"y\":922.6667175292969},{\"command\":\"L\",\"x\":258.8333435058594,\"y\":922.0000305175781},{\"command\":\"L\",\"x\":258.16668701171875,\"y\":922.0000305175781},{\"command\":\"L\",\"x\":256.8333435058594,\"y\":922.0000305175781},{\"command\":\"L\",\"x\":256.16668701171875,\"y\":922.6667175292969},{\"command\":\"L\",\"x\":254.83334350585938,\"y\":923.3333435058594},{\"command\":\"L\",\"x\":254.16668701171875,\"y\":923.3333435058594},{\"command\":\"L\",\"x\":253.5,\"y\":923.3333435058594},{\"command\":\"L\",\"x\":252.83334350585938,\"y\":925.3333435058594},{\"command\":\"L\",\"x\":252.83334350585938,\"y\":927.3333435058594},{\"command\":\"L\",\"x\":252.83334350585938,\"y\":936.0000305175781},{\"command\":\"L\",\"x\":253.5,\"y\":940.6667175292969},{\"command\":\"L\",\"x\":254.83334350585938,\"y\":944.6667175292969},{\"command\":\"L\",\"x\":260.16668701171875,\"y\":952.0000305175781},{\"command\":\"L\",\"x\":264.16668701171875,\"y\":954.0000305175781},{\"command\":\"L\",\"x\":274.16668701171875,\"y\":958.6667175292969},{\"command\":\"L\",\"x\":278.16668701171875,\"y\":960.0000305175781},{\"command\":\"L\",\"x\":281.5,\"y\":961.3333435058594},{\"command\":\"L\",\"x\":285.5,\"y\":964.6667175292969},{\"command\":\"L\",\"x\":286.8333740234375,\"y\":967.3333435058594},{\"command\":\"L\",\"x\":286.8333740234375,\"y\":970.0000305175781},{\"command\":\"L\",\"x\":282.8333740234375,\"y\":978.6667175292969},{\"command\":\"L\",\"x\":278.16668701171875,\"y\":983.3333435058594},{\"command\":\"L\",\"x\":266.16668701171875,\"y\":991.3333435058594},{\"command\":\"L\",\"x\":259.5,\"y\":993.3333435058594},{\"command\":\"L\",\"x\":252.16668701171875,\"y\":994.0000305175781},{\"command\":\"L\",\"x\":240.83334350585938,\"y\":991.3333435058594},{\"command\":\"L\",\"x\":236.16668701171875,\"y\":988.6667175292969},{\"command\":\"L\",\"x\":230.16668701171875,\"y\":982.6667175292969},{\"command\":\"L\",\"x\":228.83334350585938,\"y\":980.6667175292969},{\"command\":\"L\",\"x\":228.16668701171875,\"y\":978.6667175292969},{\"command\":\"L\",\"x\":228.83334350585938,\"y\":974.6667175292969},{\"command\":\"L\",\"x\":230.16668701171875,\"y\":973.3333435058594},{\"command\":\"L\",\"x\":236.16668701171875,\"y\":971.3333435058594},{\"command\":\"L\",\"x\":240.83334350585938,\"y\":971.3333435058594},{\"command\":\"L\",\"x\":246.16668701171875,\"y\":972.0000305175781},{\"command\":\"L\",\"x\":257.5,\"y\":974.6667175292969},{\"command\":\"L\",\"x\":262.8333435058594,\"y\":976.0000305175781},{\"command\":\"L\",\"x\":269.5,\"y\":977.3333435058594},{\"command\":\"L\",\"x\":276.16668701171875,\"y\":978.6667175292969},{\"command\":\"L\",\"x\":279.5,\"y\":978.0000305175781},{\"command\":\"L\",\"x\":285.5,\"y\":976.6667175292969},{\"command\":\"L\",\"x\":288.16668701171875,\"y\":974.6667175292969},{\"command\":\"L\",\"x\":292.8333740234375,\"y\":969.3333435058594},{\"command\":\"L\",\"x\":293.5,\"y\":966.6667175292969},{\"command\":\"L\",\"x\":294.16668701171875,\"y\":964.0000305175781},{\"command\":\"L\",\"x\":293.5,\"y\":960.0000305175781},{\"command\":\"L\",\"x\":293.5,\"y\":958.0000305175781},{\"command\":\"L\",\"x\":292.8333740234375,\"y\":956.6667175292969},{\"command\":\"L\",\"x\":291.5,\"y\":954.6667175292969},{\"command\":\"L\",\"x\":291.5,\"y\":954.0000305175781},{\"command\":\"L\",\"x\":291.5,\"y\":953.3333435058594},{\"command\":\"L\",\"x\":291.5,\"y\":954.0000305175781},{\"command\":\"L\",\"x\":292.16668701171875,\"y\":954.6667175292969},{\"command\":\"L\",\"x\":292.8333740234375,\"y\":956.0000305175781},{\"command\":\"L\",\"x\":294.16668701171875,\"y\":961.3333435058594},{\"command\":\"L\",\"x\":295.5,\"y\":964.6667175292969},{\"command\":\"L\",\"x\":297.5,\"y\":969.3333435058594},{\"command\":\"L\",\"x\":298.8333740234375,\"y\":970.6667175292969},{\"command\":\"L\",\"x\":301.5,\"y\":970.0000305175781},{\"command\":\"L\",\"x\":304.16668701171875,\"y\":968.6667175292969},{\"command\":\"L\",\"x\":305.5,\"y\":966.0000305175781},{\"command\":\"L\",\"x\":308.8333740234375,\"y\":960.0000305175781},{\"command\":\"L\",\"x\":310.16668701171875,\"y\":957.3333435058594},{\"command\":\"L\",\"x\":310.8333740234375,\"y\":956.0000305175781},{\"command\":\"L\",\"x\":310.8333740234375,\"y\":954.6667175292969},{\"command\":\"L\",\"x\":310.8333740234375,\"y\":954.0000305175781},{\"command\":\"L\",\"x\":311.5,\"y\":956.0000305175781},{\"command\":\"L\",\"x\":312.8333740234375,\"y\":959.3333435058594},{\"command\":\"L\",\"x\":316.16668701171875,\"y\":968.0000305175781},{\"command\":\"L\",\"x\":317.5,\"y\":972.6667175292969},{\"command\":\"L\",\"x\":318.16668701171875,\"y\":977.3333435058594},{\"command\":\"L\",\"x\":319.5,\"y\":983.3333435058594},{\"command\":\"L\",\"x\":319.5,\"y\":986.0000305175781},{\"command\":\"L\",\"x\":319.5,\"y\":988.0000305175781},{\"command\":\"L\",\"x\":318.8333740234375,\"y\":988.0000305175781},{\"command\":\"L\",\"x\":318.16668701171875,\"y\":988.6667175292969},{\"command\":\"L\",\"x\":316.16668701171875,\"y\":987.3333435058594},{\"command\":\"L\",\"x\":314.8333740234375,\"y\":985.3333435058594},{\"command\":\"L\",\"x\":314.16668701171875,\"y\":980.6667175292969},{\"command\":\"L\",\"x\":314.8333740234375,\"y\":974.6667175292969},{\"command\":\"L\",\"x\":316.16668701171875,\"y\":969.3333435058594},{\"command\":\"L\",\"x\":319.5,\"y\":960.6667175292969},{\"command\":\"L\",\"x\":320.16668701171875,\"y\":957.3333435058594},{\"command\":\"L\",\"x\":321.5,\"y\":955.3333435058594},{\"command\":\"L\",\"x\":322.16668701171875,\"y\":953.3333435058594},{\"command\":\"L\",\"x\":322.8333740234375,\"y\":952.6667175292969},{\"command\":\"L\",\"x\":324.16668701171875,\"y\":952.6667175292969},{\"command\":\"L\",\"x\":324.8333740234375,\"y\":953.3333435058594},{\"command\":\"L\",\"x\":326.8333740234375,\"y\":956.0000305175781},{\"command\":\"L\",\"x\":328.16668701171875,\"y\":958.0000305175781},{\"command\":\"L\",\"x\":328.8333740234375,\"y\":960.0000305175781},{\"command\":\"L\",\"x\":329.5,\"y\":962.0000305175781},{\"command\":\"L\",\"x\":330.16668701171875,\"y\":962.0000305175781},{\"command\":\"L\",\"x\":330.16668701171875,\"y\":962.6667175292969},{\"command\":\"L\",\"x\":330.16668701171875,\"y\":962.0000305175781},{\"command\":\"L\",\"x\":330.8333740234375,\"y\":960.0000305175781},{\"command\":\"L\",\"x\":331.5,\"y\":956.0000305175781},{\"command\":\"L\",\"x\":332.8333740234375,\"y\":952.0000305175781},{\"command\":\"L\",\"x\":333.5,\"y\":950.0000305175781},{\"command\":\"L\",\"x\":334.8333740234375,\"y\":948.6667175292969},{\"command\":\"L\",\"x\":335.5,\"y\":948.6667175292969},{\"command\":\"L\",\"x\":336.16668701171875,\"y\":948.6667175292969},{\"command\":\"L\",\"x\":337.5,\"y\":950.6667175292969},{\"command\":\"L\",\"x\":338.8333740234375,\"y\":952.0000305175781},{\"command\":\"L\",\"x\":340.8333740234375,\"y\":954.0000305175781},{\"command\":\"L\",\"x\":341.5,\"y\":954.0000305175781},{\"command\":\"L\",\"x\":342.8333740234375,\"y\":954.6667175292969},{\"command\":\"L\",\"x\":344.8333740234375,\"y\":954.0000305175781},{\"command\":\"L\",\"x\":346.8333740234375,\"y\":952.6667175292969},{\"command\":\"L\",\"x\":349.5,\"y\":949.3333435058594},{\"command\":\"L\",\"x\":350.8333740234375,\"y\":948.0000305175781},{\"command\":\"L\",\"x\":351.5,\"y\":946.6667175292969},{\"command\":\"L\",\"x\":352.8333740234375,\"y\":944.0000305175781},{\"command\":\"L\",\"x\":352.8333740234375,\"y\":943.3333435058594},{\"command\":\"L\",\"x\":354.16668701171875,\"y\":942.0000305175781},{\"command\":\"L\",\"x\":354.8333740234375,\"y\":942.0000305175781},{\"command\":\"L\",\"x\":354.8333740234375,\"y\":942.6667175292969},{\"command\":\"L\",\"x\":354.16668701171875,\"y\":943.3333435058594},{\"command\":\"L\",\"x\":354.16668701171875,\"y\":946.6667175292969},{\"command\":\"L\",\"x\":354.16668701171875,\"y\":950.0000305175781},{\"command\":\"L\",\"x\":355.5,\"y\":956.0000305175781},{\"command\":\"L\",\"x\":356.16668701171875,\"y\":957.3333435058594},{\"command\":\"L\",\"x\":358.16668701171875,\"y\":959.3333435058594},{\"command\":\"L\",\"x\":360.16668701171875,\"y\":958.0000305175781},{\"command\":\"L\",\"x\":364.16668701171875,\"y\":956.0000305175781},{\"command\":\"L\",\"x\":370.8333740234375,\"y\":948.6667175292969},{\"command\":\"L\",\"x\":373.5,\"y\":943.3333435058594},{\"command\":\"L\",\"x\":375.5,\"y\":937.3333435058594},{\"command\":\"L\",\"x\":376.16668701171875,\"y\":933.3333435058594},{\"command\":\"L\",\"x\":376.8333740234375,\"y\":931.3333435058594},{\"command\":\"L\",\"x\":376.8333740234375,\"y\":930.0000305175781},{\"command\":\"L\",\"x\":376.8333740234375,\"y\":929.3333435058594},{\"command\":\"L\",\"x\":376.16668701171875,\"y\":930.0000305175781},{\"command\":\"L\",\"x\":375.5,\"y\":932.0000305175781},{\"command\":\"L\",\"x\":375.5,\"y\":937.3333435058594},{\"command\":\"L\",\"x\":374.8333740234375,\"y\":953.3333435058594},{\"command\":\"L\",\"x\":374.8333740234375,\"y\":960.6667175292969},{\"command\":\"L\",\"x\":375.5,\"y\":966.0000305175781},{\"command\":\"L\",\"x\":377.5,\"y\":974.6667175292969},{\"command\":\"L\",\"x\":378.16668701171875,\"y\":977.3333435058594},{\"command\":\"L\",\"x\":380.8333740234375,\"y\":981.3333435058594},{\"command\":\"L\",\"x\":382.16668701171875,\"y\":982.6667175292969},{\"command\":\"L\",\"x\":383.5,\"y\":982.6667175292969},{\"command\":\"L\",\"x\":387.5,\"y\":982.6667175292969},{\"command\":\"L\",\"x\":389.5,\"y\":980.6667175292969},{\"command\":\"L\",\"x\":392.16668701171875,\"y\":976.6667175292969},{\"command\":\"L\",\"x\":392.8333740234375,\"y\":973.3333435058594},{\"command\":\"L\",\"x\":392.16668701171875,\"y\":970.0000305175781},{\"command\":\"L\",\"x\":388.8333740234375,\"y\":965.3333435058594},{\"command\":\"L\",\"x\":385.5,\"y\":964.0000305175781},{\"command\":\"L\",\"x\":382.8333740234375,\"y\":964.0000305175781},{\"command\":\"L\",\"x\":377.5,\"y\":964.0000305175781},{\"command\":\"L\",\"x\":375.5,\"y\":964.6667175292969},{\"command\":\"L\",\"x\":373.5,\"y\":965.3333435058594},{\"command\":\"L\",\"x\":374.8333740234375,\"y\":963.3333435058594},{\"command\":\"L\",\"x\":376.8333740234375,\"y\":961.3333435058594},{\"command\":\"L\",\"x\":382.16668701171875,\"y\":956.0000305175781},{\"command\":\"L\",\"x\":384.16668701171875,\"y\":953.3333435058594},{\"command\":\"L\",\"x\":387.5,\"y\":950.6667175292969},{\"command\":\"L\",\"x\":388.16668701171875,\"y\":952.0000305175781},{\"command\":\"L\",\"x\":388.16668701171875,\"y\":952.6667175292969},{\"command\":\"L\",\"x\":388.8333740234375,\"y\":954.0000305175781},{\"command\":\"L\",\"x\":388.8333740234375,\"y\":954.6667175292969},{\"command\":\"L\",\"x\":389.5,\"y\":959.3333435058594},{\"command\":\"L\",\"x\":389.5,\"y\":960.6667175292969},{\"command\":\"L\",\"x\":390.16668701171875,\"y\":961.3333435058594},{\"command\":\"L\",\"x\":390.8333740234375,\"y\":960.6667175292969},{\"command\":\"L\",\"x\":393.5,\"y\":958.0000305175781},{\"command\":\"L\",\"x\":396.8333740234375,\"y\":954.0000305175781},{\"command\":\"L\",\"x\":398.16668701171875,\"y\":952.0000305175781},{\"command\":\"L\",\"x\":400.16668701171875,\"y\":949.3333435058594},{\"command\":\"L\",\"x\":400.16668701171875,\"y\":948.6667175292969},{\"command\":\"L\",\"x\":400.8333740234375,\"y\":948.0000305175781},{\"command\":\"L\",\"x\":400.8333740234375,\"y\":947.3333435058594},{\"command\":\"L\",\"x\":401.5,\"y\":948.0000305175781},{\"command\":\"L\",\"x\":402.16668701171875,\"y\":949.3333435058594},{\"command\":\"L\",\"x\":403.5,\"y\":950.6667175292969},{\"command\":\"L\",\"x\":404.8333740234375,\"y\":953.3333435058594},{\"command\":\"L\",\"x\":406.16668701171875,\"y\":954.0000305175781},{\"command\":\"L\",\"x\":407.5,\"y\":954.0000305175781},{\"command\":\"L\",\"x\":410.16668701171875,\"y\":952.0000305175781},{\"command\":\"L\",\"x\":412.16668701171875,\"y\":949.3333435058594},{\"command\":\"L\",\"x\":414.16668701171875,\"y\":944.6667175292969},{\"command\":\"L\",\"x\":414.16668701171875,\"y\":942.0000305175781},{\"command\":\"L\",\"x\":414.16668701171875,\"y\":940.6667175292969},{\"command\":\"L\",\"x\":414.16668701171875,\"y\":938.6667175292969},{\"command\":\"L\",\"x\":414.16668701171875,\"y\":938.0000305175781},{\"command\":\"L\",\"x\":415.5,\"y\":939.3333435058594},{\"command\":\"L\",\"x\":418.8333740234375,\"y\":942.6667175292969},{\"command\":\"L\",\"x\":420.16668701171875,\"y\":945.3333435058594},{\"command\":\"L\",\"x\":421.5,\"y\":946.6667175292969},{\"command\":\"L\",\"x\":422.8333740234375,\"y\":950.0000305175781},{\"command\":\"L\",\"x\":423.5,\"y\":950.6667175292969},{\"command\":\"L\",\"x\":423.5,\"y\":953.3333435058594},{\"command\":\"L\",\"x\":422.8333740234375,\"y\":954.0000305175781},{\"command\":\"L\",\"x\":421.5,\"y\":955.3333435058594},{\"command\":\"L\",\"x\":421.5,\"y\":956.0000305175781},{\"command\":\"L\",\"x\":422.16668701171875,\"y\":954.6667175292969},{\"command\":\"L\",\"x\":422.8333740234375,\"y\":954.0000305175781},{\"command\":\"L\",\"x\":424.8333740234375,\"y\":950.6667175292969},{\"command\":\"L\",\"x\":425.5,\"y\":948.6667175292969},{\"command\":\"L\",\"x\":428.16668701171875,\"y\":945.3333435058594},{\"command\":\"L\",\"x\":428.8333740234375,\"y\":943.3333435058594},{\"command\":\"L\",\"x\":428.8333740234375,\"y\":942.6667175292969},{\"command\":\"L\",\"x\":428.8333740234375,\"y\":943.3333435058594},{\"command\":\"L\",\"x\":428.8333740234375,\"y\":945.3333435058594},{\"command\":\"L\",\"x\":428.8333740234375,\"y\":948.0000305175781},{\"command\":\"L\",\"x\":428.8333740234375,\"y\":950.0000305175781},{\"command\":\"L\",\"x\":429.5,\"y\":953.3333435058594},{\"command\":\"L\",\"x\":430.16668701171875,\"y\":953.3333435058594},{\"command\":\"L\",\"x\":432.8333740234375,\"y\":952.6667175292969},{\"command\":\"L\",\"x\":434.8333740234375,\"y\":950.6667175292969},{\"command\":\"L\",\"x\":437.5,\"y\":948.6667175292969},{\"command\":\"L\",\"x\":440.16668701171875,\"y\":944.6667175292969},{\"command\":\"L\",\"x\":441.5,\"y\":942.6667175292969},{\"command\":\"L\",\"x\":442.16668701171875,\"y\":942.0000305175781},{\"command\":\"L\",\"x\":442.8333740234375,\"y\":941.3333435058594},{\"command\":\"L\",\"x\":442.8333740234375,\"y\":942.0000305175781},{\"command\":\"L\",\"x\":442.8333740234375,\"y\":943.3333435058594},{\"command\":\"L\",\"x\":442.8333740234375,\"y\":944.6667175292969},{\"command\":\"L\",\"x\":442.8333740234375,\"y\":946.0000305175781},{\"command\":\"L\",\"x\":443.5,\"y\":949.3333435058594},{\"command\":\"L\",\"x\":444.16668701171875,\"y\":950.6667175292969},{\"command\":\"L\",\"x\":445.5,\"y\":950.6667175292969},{\"command\":\"L\",\"x\":447.5,\"y\":950.6667175292969},{\"command\":\"L\",\"x\":450.16668701171875,\"y\":948.6667175292969},{\"command\":\"L\",\"x\":452.16668701171875,\"y\":945.3333435058594},{\"command\":\"L\",\"x\":453.5,\"y\":942.6667175292969},{\"command\":\"L\",\"x\":452.8333740234375,\"y\":938.6667175292969},{\"command\":\"L\",\"x\":452.16668701171875,\"y\":937.3333435058594},{\"command\":\"L\",\"x\":450.8333740234375,\"y\":936.6667175292969},{\"command\":\"L\",\"x\":448.8333740234375,\"y\":936.0000305175781},{\"command\":\"L\",\"x\":447.5,\"y\":936.6667175292969},{\"command\":\"L\",\"x\":446.16668701171875,\"y\":937.3333435058594},{\"command\":\"L\",\"x\":445.5,\"y\":938.6667175292969},{\"command\":\"L\",\"x\":445.5,\"y\":939.3333435058594},{\"command\":\"L\",\"x\":446.16668701171875,\"y\":939.3333435058594},{\"command\":\"L\",\"x\":446.8333740234375,\"y\":939.3333435058594},{\"command\":\"L\",\"x\":452.16668701171875,\"y\":937.3333435058594},{\"command\":\"L\",\"x\":454.8333740234375,\"y\":936.6667175292969},{\"command\":\"L\",\"x\":456.8333740234375,\"y\":936.0000305175781},{\"command\":\"L\",\"x\":459.5,\"y\":936.6667175292969},{\"command\":\"L\",\"x\":460.8333740234375,\"y\":937.3333435058594},{\"command\":\"L\",\"x\":461.5,\"y\":938.6667175292969},{\"command\":\"L\",\"x\":462.16668701171875,\"y\":942.0000305175781},{\"command\":\"L\",\"x\":462.16668701171875,\"y\":942.6667175292969},{\"command\":\"L\",\"x\":462.16668701171875,\"y\":944.0000305175781},{\"command\":\"L\",\"x\":462.16668701171875,\"y\":943.3333435058594},{\"command\":\"L\",\"x\":462.16668701171875,\"y\":942.6667175292969},{\"command\":\"L\",\"x\":462.16668701171875,\"y\":941.3333435058594},{\"command\":\"L\",\"x\":462.8333740234375,\"y\":938.6667175292969},{\"command\":\"L\",\"x\":464.16668701171875,\"y\":935.3333435058594},{\"command\":\"L\",\"x\":465.5,\"y\":933.3333435058594},{\"command\":\"L\",\"x\":466.16668701171875,\"y\":932.6667175292969},{\"command\":\"L\",\"x\":467.5,\"y\":933.3333435058594},{\"command\":\"L\",\"x\":469.5,\"y\":935.3333435058594},{\"command\":\"L\",\"x\":470.16668701171875,\"y\":938.6667175292969},{\"command\":\"L\",\"x\":472.8333740234375,\"y\":943.3333435058594},{\"command\":\"L\",\"x\":472.8333740234375,\"y\":944.6667175292969},{\"command\":\"L\",\"x\":474.16668701171875,\"y\":944.6667175292969},{\"command\":\"L\",\"x\":475.5,\"y\":944.0000305175781},{\"command\":\"L\",\"x\":478.16668701171875,\"y\":941.3333435058594},{\"command\":\"L\",\"x\":481.5,\"y\":937.3333435058594},{\"command\":\"L\",\"x\":484.8333740234375,\"y\":934.0000305175781},{\"command\":\"L\",\"x\":488.8333740234375,\"y\":929.3333435058594},{\"command\":\"L\",\"x\":489.5,\"y\":928.0000305175781}]'
});
}
</script><template>
<div id="app">
<button v-on:click="addAnnotation">Add Annotation programatically</button>
<ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :serviceUrl="serviceUrl"
:addAnnotation="addAnnotation">
</ejs-pdfviewer>
</div>
</template>
<script>
import {
PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
export default {
name: "App",
components: {
"ejs-pdfviewer": PdfViewerComponent
},
data() {
return {
documentPath: "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf",
serviceUrl: "https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer",
};
},
provide: {
PdfViewer: [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer]
},
methods: {
addAnnotation: function () {
const viewer = this.$refs.pdfviewer.ej2Instances;
viewer.annotation.addAnnotation("Ink", {
offset: { x: 150, y: 100 },
pageNumber: 1,
width: 200,
height: 60,
path: '[{"command":"M","x":244.83334350585938,"y":982.0000305175781},{"command":"L","x":244.83334350585938,"y":982.0000305175781},{"command":"L","x":250.83334350585938,"y":953.3333435058594},{"command":"L","x":252.83334350585938,"y":946.0000305175781},{"command":"L","x":254.16668701171875,"y":940.6667175292969},{"command":"L","x":256.8333435058594,"y":931.3333435058594},{"command":"L","x":257.5,"y":929.3333435058594},{"command":"L","x":258.8333435058594,"y":926.6667175292969},{"command":"L","x":259.5,"y":924.0000305175781},{"command":"L","x":259.5,"y":922.6667175292969},{"command":"L","x":258.8333435058594,"y":922.0000305175781},{"command":"L","x":258.16668701171875,"y":922.0000305175781},{"command":"L","x":256.8333435058594,"y":922.0000305175781},{"command":"L","x":256.16668701171875,"y":922.6667175292969},{"command":"L","x":254.83334350585938,"y":923.3333435058594},{"command":"L","x":254.16668701171875,"y":923.3333435058594},{"command":"L","x":253.5,"y":923.3333435058594},{"command":"L","x":252.83334350585938,"y":925.3333435058594},{"command":"L","x":252.83334350585938,"y":927.3333435058594},{"command":"L","x":252.83334350585938,"y":936.0000305175781},{"command":"L","x":253.5,"y":940.6667175292969},{"command":"L","x":254.83334350585938,"y":944.6667175292969},{"command":"L","x":260.16668701171875,"y":952.0000305175781},{"command":"L","x":264.16668701171875,"y":954.0000305175781},{"command":"L","x":274.16668701171875,"y":958.6667175292969},{"command":"L","x":278.16668701171875,"y":960.0000305175781},{"command":"L","x":281.5,"y":961.3333435058594},{"command":"L","x":285.5,"y":964.6667175292969},{"command":"L","x":286.8333740234375,"y":967.3333435058594},{"command":"L","x":286.8333740234375,"y":970.0000305175781},{"command":"L","x":282.8333740234375,"y":978.6667175292969},{"command":"L","x":278.16668701171875,"y":983.3333435058594},{"command":"L","x":266.16668701171875,"y":991.3333435058594},{"command":"L","x":259.5,"y":993.3333435058594},{"command":"L","x":252.16668701171875,"y":994.0000305175781},{"command":"L","x":240.83334350585938,"y":991.3333435058594},{"command":"L","x":236.16668701171875,"y":988.6667175292969},{"command":"L","x":230.16668701171875,"y":982.6667175292969},{"command":"L","x":228.83334350585938,"y":980.6667175292969},{"command":"L","x":228.16668701171875,"y":978.6667175292969},{"command":"L","x":228.83334350585938,"y":974.6667175292969},{"command":"L","x":230.16668701171875,"y":973.3333435058594},{"command":"L","x":236.16668701171875,"y":971.3333435058594},{"command":"L","x":240.83334350585938,"y":971.3333435058594},{"command":"L","x":246.16668701171875,"y":972.0000305175781},{"command":"L","x":257.5,"y":974.6667175292969},{"command":"L","x":262.8333435058594,"y":976.0000305175781},{"command":"L","x":269.5,"y":977.3333435058594},{"command":"L","x":276.16668701171875,"y":978.6667175292969},{"command":"L","x":279.5,"y":978.0000305175781},{"command":"L","x":285.5,"y":976.6667175292969},{"command":"L","x":288.16668701171875,"y":974.6667175292969},{"command":"L","x":292.8333740234375,"y":969.3333435058594},{"command":"L","x":293.5,"y":966.6667175292969},{"command":"L","x":294.16668701171875,"y":964.0000305175781},{"command":"L","x":293.5,"y":960.0000305175781},{"command":"L","x":293.5,"y":958.0000305175781},{"command":"L","x":292.8333740234375,"y":956.6667175292969},{"command":"L","x":291.5,"y":954.6667175292969},{"command":"L","x":291.5,"y":954.0000305175781},{"command":"L","x":291.5,"y":953.3333435058594},{"command":"L","x":291.5,"y":954.0000305175781},{"command":"L","x":292.16668701171875,"y":954.6667175292969},{"command":"L","x":292.8333740234375,"y":956.0000305175781},{"command":"L","x":294.16668701171875,"y":961.3333435058594},{"command":"L","x":295.5,"y":964.6667175292969},{"command":"L","x":297.5,"y":969.3333435058594},{"command":"L","x":298.8333740234375,"y":970.6667175292969},{"command":"L","x":301.5,"y":970.0000305175781},{"command":"L","x":304.16668701171875,"y":968.6667175292969},{"command":"L","x":305.5,"y":966.0000305175781},{"command":"L","x":308.8333740234375,"y":960.0000305175781},{"command":"L","x":310.16668701171875,"y":957.3333435058594},{"command":"L","x":310.8333740234375,"y":956.0000305175781},{"command":"L","x":310.8333740234375,"y":954.6667175292969},{"command":"L","x":310.8333740234375,"y":954.0000305175781},{"command":"L","x":311.5,"y":956.0000305175781},{"command":"L","x":312.8333740234375,"y":959.3333435058594},{"command":"L","x":316.16668701171875,"y":968.0000305175781},{"command":"L","x":317.5,"y":972.6667175292969},{"command":"L","x":318.16668701171875,"y":977.3333435058594},{"command":"L","x":319.5,"y":983.3333435058594},{"command":"L","x":319.5,"y":986.0000305175781},{"command":"L","x":319.5,"y":988.0000305175781},{"command":"L","x":318.8333740234375,"y":988.0000305175781},{"command":"L","x":318.16668701171875,"y":988.6667175292969},{"command":"L","x":316.16668701171875,"y":987.3333435058594},{"command":"L","x":314.8333740234375,"y":985.3333435058594},{"command":"L","x":314.16668701171875,"y":980.6667175292969},{"command":"L","x":314.8333740234375,"y":974.6667175292969},{"command":"L","x":316.16668701171875,"y":969.3333435058594},{"command":"L","x":319.5,"y":960.6667175292969},{"command":"L","x":320.16668701171875,"y":957.3333435058594},{"command":"L","x":321.5,"y":955.3333435058594},{"command":"L","x":322.16668701171875,"y":953.3333435058594},{"command":"L","x":322.8333740234375,"y":952.6667175292969},{"command":"L","x":324.16668701171875,"y":952.6667175292969},{"command":"L","x":324.8333740234375,"y":953.3333435058594},{"command":"L","x":326.8333740234375,"y":956.0000305175781},{"command":"L","x":328.16668701171875,"y":958.0000305175781},{"command":"L","x":328.8333740234375,"y":960.0000305175781},{"command":"L","x":329.5,"y":962.0000305175781},{"command":"L","x":330.16668701171875,"y":962.0000305175781},{"command":"L","x":330.16668701171875,"y":962.6667175292969},{"command":"L","x":330.16668701171875,"y":962.0000305175781},{"command":"L","x":330.8333740234375,"y":960.0000305175781},{"command":"L","x":331.5,"y":956.0000305175781},{"command":"L","x":332.8333740234375,"y":952.0000305175781},{"command":"L","x":333.5,"y":950.0000305175781},{"command":"L","x":334.8333740234375,"y":948.6667175292969},{"command":"L","x":335.5,"y":948.6667175292969},{"command":"L","x":336.16668701171875,"y":948.6667175292969},{"command":"L","x":337.5,"y":950.6667175292969},{"command":"L","x":338.8333740234375,"y":952.0000305175781},{"command":"L","x":340.8333740234375,"y":954.0000305175781},{"command":"L","x":341.5,"y":954.0000305175781},{"command":"L","x":342.8333740234375,"y":954.6667175292969},{"command":"L","x":344.8333740234375,"y":954.0000305175781},{"command":"L","x":346.8333740234375,"y":952.6667175292969},{"command":"L","x":349.5,"y":949.3333435058594},{"command":"L","x":350.8333740234375,"y":948.0000305175781},{"command":"L","x":351.5,"y":946.6667175292969},{"command":"L","x":352.8333740234375,"y":944.0000305175781},{"command":"L","x":352.8333740234375,"y":943.3333435058594},{"command":"L","x":354.16668701171875,"y":942.0000305175781},{"command":"L","x":354.8333740234375,"y":942.0000305175781},{"command":"L","x":354.8333740234375,"y":942.6667175292969},{"command":"L","x":354.16668701171875,"y":943.3333435058594},{"command":"L","x":354.16668701171875,"y":946.6667175292969},{"command":"L","x":354.16668701171875,"y":950.0000305175781},{"command":"L","x":355.5,"y":956.0000305175781},{"command":"L","x":356.16668701171875,"y":957.3333435058594},{"command":"L","x":358.16668701171875,"y":959.3333435058594},{"command":"L","x":360.16668701171875,"y":958.0000305175781},{"command":"L","x":364.16668701171875,"y":956.0000305175781},{"command":"L","x":370.8333740234375,"y":948.6667175292969},{"command":"L","x":373.5,"y":943.3333435058594},{"command":"L","x":375.5,"y":937.3333435058594},{"command":"L","x":376.16668701171875,"y":933.3333435058594},{"command":"L","x":376.8333740234375,"y":931.3333435058594},{"command":"L","x":376.8333740234375,"y":930.0000305175781},{"command":"L","x":376.8333740234375,"y":929.3333435058594},{"command":"L","x":376.16668701171875,"y":930.0000305175781},{"command":"L","x":375.5,"y":932.0000305175781},{"command":"L","x":375.5,"y":937.3333435058594},{"command":"L","x":374.8333740234375,"y":953.3333435058594},{"command":"L","x":374.8333740234375,"y":960.6667175292969},{"command":"L","x":375.5,"y":966.0000305175781},{"command":"L","x":377.5,"y":974.6667175292969},{"command":"L","x":378.16668701171875,"y":977.3333435058594},{"command":"L","x":380.8333740234375,"y":981.3333435058594},{"command":"L","x":382.16668701171875,"y":982.6667175292969},{"command":"L","x":383.5,"y":982.6667175292969},{"command":"L","x":387.5,"y":982.6667175292969},{"command":"L","x":389.5,"y":980.6667175292969},{"command":"L","x":392.16668701171875,"y":976.6667175292969},{"command":"L","x":392.8333740234375,"y":973.3333435058594},{"command":"L","x":392.16668701171875,"y":970.0000305175781},{"command":"L","x":388.8333740234375,"y":965.3333435058594},{"command":"L","x":385.5,"y":964.0000305175781},{"command":"L","x":382.8333740234375,"y":964.0000305175781},{"command":"L","x":377.5,"y":964.0000305175781},{"command":"L","x":375.5,"y":964.6667175292969},{"command":"L","x":373.5,"y":965.3333435058594},{"command":"L","x":374.8333740234375,"y":963.3333435058594},{"command":"L","x":376.8333740234375,"y":961.3333435058594},{"command":"L","x":382.16668701171875,"y":956.0000305175781},{"command":"L","x":384.16668701171875,"y":953.3333435058594},{"command":"L","x":387.5,"y":950.6667175292969},{"command":"L","x":388.16668701171875,"y":952.0000305175781},{"command":"L","x":388.16668701171875,"y":952.6667175292969},{"command":"L","x":388.8333740234375,"y":954.0000305175781},{"command":"L","x":388.8333740234375,"y":954.6667175292969},{"command":"L","x":389.5,"y":959.3333435058594},{"command":"L","x":389.5,"y":960.6667175292969},{"command":"L","x":390.16668701171875,"y":961.3333435058594},{"command":"L","x":390.8333740234375,"y":960.6667175292969},{"command":"L","x":393.5,"y":958.0000305175781},{"command":"L","x":396.8333740234375,"y":954.0000305175781},{"command":"L","x":398.16668701171875,"y":952.0000305175781},{"command":"L","x":400.16668701171875,"y":949.3333435058594},{"command":"L","x":400.16668701171875,"y":948.6667175292969},{"command":"L","x":400.8333740234375,"y":948.0000305175781},{"command":"L","x":400.8333740234375,"y":947.3333435058594},{"command":"L","x":401.5,"y":948.0000305175781},{"command":"L","x":402.16668701171875,"y":949.3333435058594},{"command":"L","x":403.5,"y":950.6667175292969},{"command":"L","x":404.8333740234375,"y":953.3333435058594},{"command":"L","x":406.16668701171875,"y":954.0000305175781},{"command":"L","x":407.5,"y":954.0000305175781},{"command":"L","x":410.16668701171875,"y":952.0000305175781},{"command":"L","x":412.16668701171875,"y":949.3333435058594},{"command":"L","x":414.16668701171875,"y":944.6667175292969},{"command":"L","x":414.16668701171875,"y":942.0000305175781},{"command":"L","x":414.16668701171875,"y":940.6667175292969},{"command":"L","x":414.16668701171875,"y":938.6667175292969},{"command":"L","x":414.16668701171875,"y":938.0000305175781},{"command":"L","x":415.5,"y":939.3333435058594},{"command":"L","x":418.8333740234375,"y":942.6667175292969},{"command":"L","x":420.16668701171875,"y":945.3333435058594},{"command":"L","x":421.5,"y":946.6667175292969},{"command":"L","x":422.8333740234375,"y":950.0000305175781},{"command":"L","x":423.5,"y":950.6667175292969},{"command":"L","x":423.5,"y":953.3333435058594},{"command":"L","x":422.8333740234375,"y":954.0000305175781},{"command":"L","x":421.5,"y":955.3333435058594},{"command":"L","x":421.5,"y":956.0000305175781},{"command":"L","x":422.16668701171875,"y":954.6667175292969},{"command":"L","x":422.8333740234375,"y":954.0000305175781},{"command":"L","x":424.8333740234375,"y":950.6667175292969},{"command":"L","x":425.5,"y":948.6667175292969},{"command":"L","x":428.16668701171875,"y":945.3333435058594},{"command":"L","x":428.8333740234375,"y":943.3333435058594},{"command":"L","x":428.8333740234375,"y":942.6667175292969},{"command":"L","x":428.8333740234375,"y":943.3333435058594},{"command":"L","x":428.8333740234375,"y":945.3333435058594},{"command":"L","x":428.8333740234375,"y":948.0000305175781},{"command":"L","x":428.8333740234375,"y":950.0000305175781},{"command":"L","x":429.5,"y":953.3333435058594},{"command":"L","x":430.16668701171875,"y":953.3333435058594},{"command":"L","x":432.8333740234375,"y":952.6667175292969},{"command":"L","x":434.8333740234375,"y":950.6667175292969},{"command":"L","x":437.5,"y":948.6667175292969},{"command":"L","x":440.16668701171875,"y":944.6667175292969},{"command":"L","x":441.5,"y":942.6667175292969},{"command":"L","x":442.16668701171875,"y":942.0000305175781},{"command":"L","x":442.8333740234375,"y":941.3333435058594},{"command":"L","x":442.8333740234375,"y":942.0000305175781},{"command":"L","x":442.8333740234375,"y":943.3333435058594},{"command":"L","x":442.8333740234375,"y":944.6667175292969},{"command":"L","x":442.8333740234375,"y":946.0000305175781},{"command":"L","x":443.5,"y":949.3333435058594},{"command":"L","x":444.16668701171875,"y":950.6667175292969},{"command":"L","x":445.5,"y":950.6667175292969},{"command":"L","x":447.5,"y":950.6667175292969},{"command":"L","x":450.16668701171875,"y":948.6667175292969},{"command":"L","x":452.16668701171875,"y":945.3333435058594},{"command":"L","x":453.5,"y":942.6667175292969},{"command":"L","x":452.8333740234375,"y":938.6667175292969},{"command":"L","x":452.16668701171875,"y":937.3333435058594},{"command":"L","x":450.8333740234375,"y":936.6667175292969},{"command":"L","x":448.8333740234375,"y":936.0000305175781},{"command":"L","x":447.5,"y":936.6667175292969},{"command":"L","x":446.16668701171875,"y":937.3333435058594},{"command":"L","x":445.5,"y":938.6667175292969},{"command":"L","x":445.5,"y":939.3333435058594},{"command":"L","x":446.16668701171875,"y":939.3333435058594},{"command":"L","x":446.8333740234375,"y":939.3333435058594},{"command":"L","x":452.16668701171875,"y":937.3333435058594},{"command":"L","x":454.8333740234375,"y":936.6667175292969},{"command":"L","x":456.8333740234375,"y":936.0000305175781},{"command":"L","x":459.5,"y":936.6667175292969},{"command":"L","x":460.8333740234375,"y":937.3333435058594},{"command":"L","x":461.5,"y":938.6667175292969},{"command":"L","x":462.16668701171875,"y":942.0000305175781},{"command":"L","x":462.16668701171875,"y":942.6667175292969},{"command":"L","x":462.16668701171875,"y":944.0000305175781},{"command":"L","x":462.16668701171875,"y":943.3333435058594},{"command":"L","x":462.16668701171875,"y":942.6667175292969},{"command":"L","x":462.16668701171875,"y":941.3333435058594},{"command":"L","x":462.8333740234375,"y":938.6667175292969},{"command":"L","x":464.16668701171875,"y":935.3333435058594},{"command":"L","x":465.5,"y":933.3333435058594},{"command":"L","x":466.16668701171875,"y":932.6667175292969},{"command":"L","x":467.5,"y":933.3333435058594},{"command":"L","x":469.5,"y":935.3333435058594},{"command":"L","x":470.16668701171875,"y":938.6667175292969},{"command":"L","x":472.8333740234375,"y":943.3333435058594},{"command":"L","x":472.8333740234375,"y":944.6667175292969},{"command":"L","x":474.16668701171875,"y":944.6667175292969},{"command":"L","x":475.5,"y":944.0000305175781},{"command":"L","x":478.16668701171875,"y":941.3333435058594},{"command":"L","x":481.5,"y":937.3333435058594},{"command":"L","x":484.8333740234375,"y":934.0000305175781},{"command":"L","x":488.8333740234375,"y":929.3333435058594},{"command":"L","x":489.5,"y":928.0000305175781}]'
});
}
}
}
</script>Edit an existing ink annotation programmatically
To modify an existing ink annotation programmatically, use the editAnnotation() method.
Here is an example of using editAnnotation():
<template>
<div id="app">
<button v-on:click="editAnnotation">Edit Annotation programatically</button>
<ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :resourceUrl="resourceUrl"
:editAnnotation="editAnnotation">
</ejs-pdfviewer>
</div>
</template>
<script setup>
import {
PdfViewerComponent as EjsPdfviewer, Toolbar, Magnification, Navigation, LinkAnnotation,
BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
import { provide, ref } from 'vue';
const pdfviewer = ref(null);
const documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
const resourceUrl = 'https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib';
provide('PdfViewer', [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer])
const editAnnotation = function () {
const viewer = pdfviewer.value.ej2Instances;
for (let i = 0; i < viewer.annotationCollection.length; i++) {
if (viewer.annotationCollection[i].shapeAnnotationType === "Ink") {
var width = viewer.annotationCollection[i].bounds.width;
var height = viewer.annotationCollection[i].bounds.height;
viewer.annotationCollection[i].bounds = { x: 100, y: 100, width: width, height: height };
viewer.annotationCollection[i].strokeColor = "#0000FF";
viewer.annotationCollection[i].thickness = 2;
viewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
viewer.annotation.editAnnotation(viewer.annotationCollection[i]);
}
}
}
</script><template>
<div id="app">
<button v-on:click="editAnnotation">Edit Annotation programatically</button>
<ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :resourceUrl="resourceUrl"
:editAnnotation="editAnnotation">
</ejs-pdfviewer>
</div>
</template>
<script>
import {
PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
export default {
name: "App",
components: {
"ejs-pdfviewer": PdfViewerComponent
},
data() {
return {
documentPath: "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf",
resourceUrl: 'https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib',
};
},
provide: {
PdfViewer: [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer]
},
methods: {
editAnnotation: function () {
const viewer = this.$refs.pdfviewer.ej2Instances;
for (let i = 0; i < viewer.annotationCollection.length; i++) {
if (viewer.annotationCollection[i].shapeAnnotationType === "Ink") {
var width = viewer.annotationCollection[i].bounds.width;
var height = viewer.annotationCollection[i].bounds.height;
viewer.annotationCollection[i].bounds = { x: 100, y: 100, width: width, height: height };
viewer.annotationCollection[i].strokeColor = "#0000FF";
viewer.annotationCollection[i].thickness = 2;
viewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
viewer.annotation.editAnnotation(viewer.annotationCollection[i]);
}
}
}
}
}
</script><template>
<div id="app">
<button v-on:click="editAnnotation">Edit Annotation programatically</button>
<ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :serviceUrl="serviceUrl"
:editAnnotation="editAnnotation">
</ejs-pdfviewer>
</div>
</template>
<script setup>
import {
PdfViewerComponent as EjsPdfviewer, Toolbar, Magnification, Navigation, LinkAnnotation,
BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
import { provide, ref } from 'vue';
const pdfviewer = ref(null);
const documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
const serviceUrl = "https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer";
provide('PdfViewer', [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer])
const editAnnotation = function () {
const viewer = pdfviewer.value.ej2Instances;
for (let i = 0; i < viewer.annotationCollection.length; i++) {
if (viewer.annotationCollection[i].shapeAnnotationType === "Ink") {
const width = viewer.annotationCollection[i].bounds.width;
const height = viewer.annotationCollection[i].bounds.height;
viewer.annotationCollection[i].bounds = { x: 100, y: 100, width: width, height: height };
viewer.annotationCollection[i].strokeColor = "#0000FF";
viewer.annotationCollection[i].thickness = 2;
viewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
viewer.annotation.editAnnotation(viewer.annotationCollection[i]);
}
}
}
</script><template>
<div id="app">
<button v-on:click="editAnnotation">Edit Annotation programatically</button>
<ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :serviceUrl="serviceUrl"
:editAnnotation="editAnnotation">
</ejs-pdfviewer>
</div>
</template>
<script>
import {
PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
export default {
name: "App",
components: {
"ejs-pdfviewer": PdfviewerComponent
},
data() {
return {
documentPath: "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf",
serviceUrl: "https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer",
};
},
provide: {
PdfViewer: [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer]
},
methods: {
editAnnotation: function () {
const viewer = this.$refs.pdfviewer.ej2Instances;
for (let i = 0; i < viewer.annotationCollection.length; i++) {
if (viewer.annotationCollection[i].shapeAnnotationType === "Ink") {
const width = viewer.annotationCollection[i].bounds.width;
const height = viewer.annotationCollection[i].bounds.height;
viewer.annotationCollection[i].bounds = { x: 100, y: 100, width: width, height: height };
viewer.annotationCollection[i].strokeColor = "#0000FF";
viewer.annotationCollection[i].thickness = 2;
viewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
viewer.annotation.editAnnotation(viewer.annotationCollection[i]);
}
}
}
}
}
</script>Edit the properties of ink annotations
Stroke color, thickness, and opacity can be edited using the Edit Stroke Color, Edit Thickness, and Edit Opacity tools in the annotation toolbar.

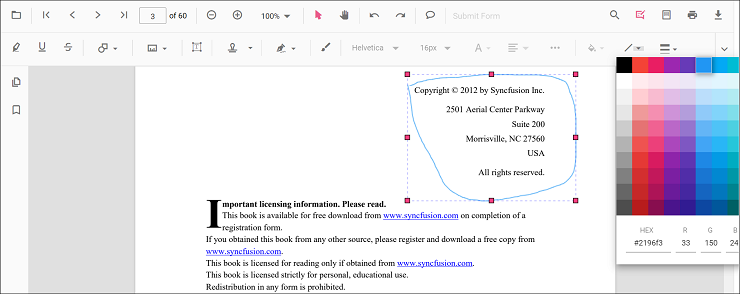

Edit stroke color
Edit the stroke color using the color palette in the Edit Stroke Color tool.

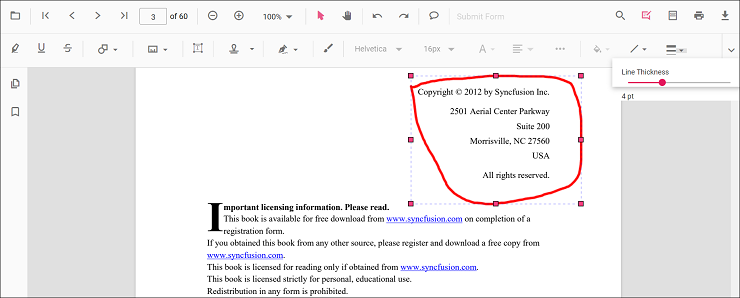

Edit thickness
Edit thickness using the range slider in the Edit Thickness tool.

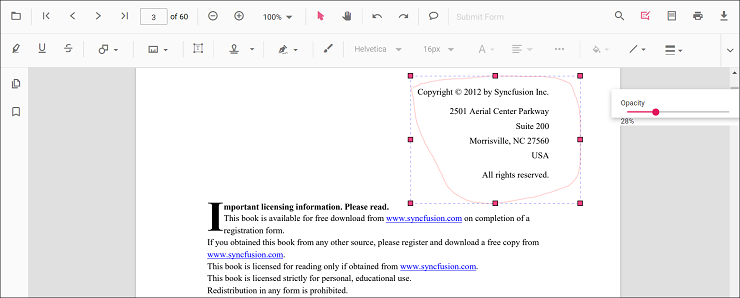

Edit opacity
Edit opacity using the range slider in the Edit Opacity tool.
Set default properties during control initialization
Default properties for ink annotations can be set before creating the control using InkAnnotationSettings.
After changing default values, the new defaults are applied to subsequently created ink annotations.. Refer to the following code sample to set the default ink annotation settings.
<template>
<div id="app">
<ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :resourceUrl="resourceUrl"
:inkAnnotationSettings="inkAnnotationSettings">
</ejs-pdfviewer>
</div>
</template>
<script setup>
import {
PdfViewerComponent as EjsPdfviewer, Toolbar, Magnification, Navigation, LinkAnnotation,
BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
import { provide } from 'vue';
const documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
const resourceUrl = 'https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib';
const inkAnnotationSettings = { author: 'Syncfusion', strokeColor: 'green', thickness: 3, opacity: 0.6 };
provide('PdfViewer', [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer])
</script><template>
<div id="app">
<ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :resourceUrl="resourceUrl"
:inkAnnotationSettings="inkAnnotationSettings">
</ejs-pdfviewer>
</div>
</template>
<script>
import {
PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
export default {
name: "App",
components: {
"ejs-pdfviewer": PdfViewerComponent
},
data() {
return {
documentPath: "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf",
resourceUrl: 'https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib',
inkAnnotationSettings: { author: 'Syncfusion', strokeColor: 'green', thickness: 3, opacity: 0.6 }
};
},
provide: {
PdfViewer: [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer]
}
}
</script><template>
<div id="app">
<ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :serviceUrl="serviceUrl"
:inkAnnotationSettings="inkAnnotationSettings">
</ejs-pdfviewer>
</div>
</template>
<script setup>
import {
PdfViewerComponent as EjsPdfviewer, Toolbar, Magnification, Navigation, LinkAnnotation,
BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
import { provide } from 'vue';
const serviceUrl = "https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer";
const documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
const inkAnnotationSettings = { author: 'Syncfusion', strokeColor: 'green', thickness: 3, opacity: 0.6 };
provide('PdfViewer', [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer])
</script><template>
<div id="app">
<ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :serviceUrl="serviceUrl"
:inkAnnotationSettings="inkAnnotationSettings">
</ejs-pdfviewer>
</div>
</template>
<script>
import {
PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
export default {
name: "App",
components: {
"ejs-pdfviewer": PdfViewerComponent
},
data() {
return {
serviceUrl: "https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer",
documentPath: "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf",
inkAnnotationSettings: { author: 'Syncfusion', strokeColor: 'green', thickness: 3, opacity: 0.6 }
};
},
provide: {
PdfViewer: [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer]
}
}
</script>
