Link Annotation in React PDF Viewer

25 Sep 20269 minutes to read

This guide explains how to enable, add, customize, and manage link annotations in the Syncfusion React PDF Viewer. You can use link annotations to navigate to another page in the same PDF or open an external URL in the browser. Add links from the annotation toolbar, insert them programmatically, adjust the rectangle bounds, and edit or delete them through the UI or API.

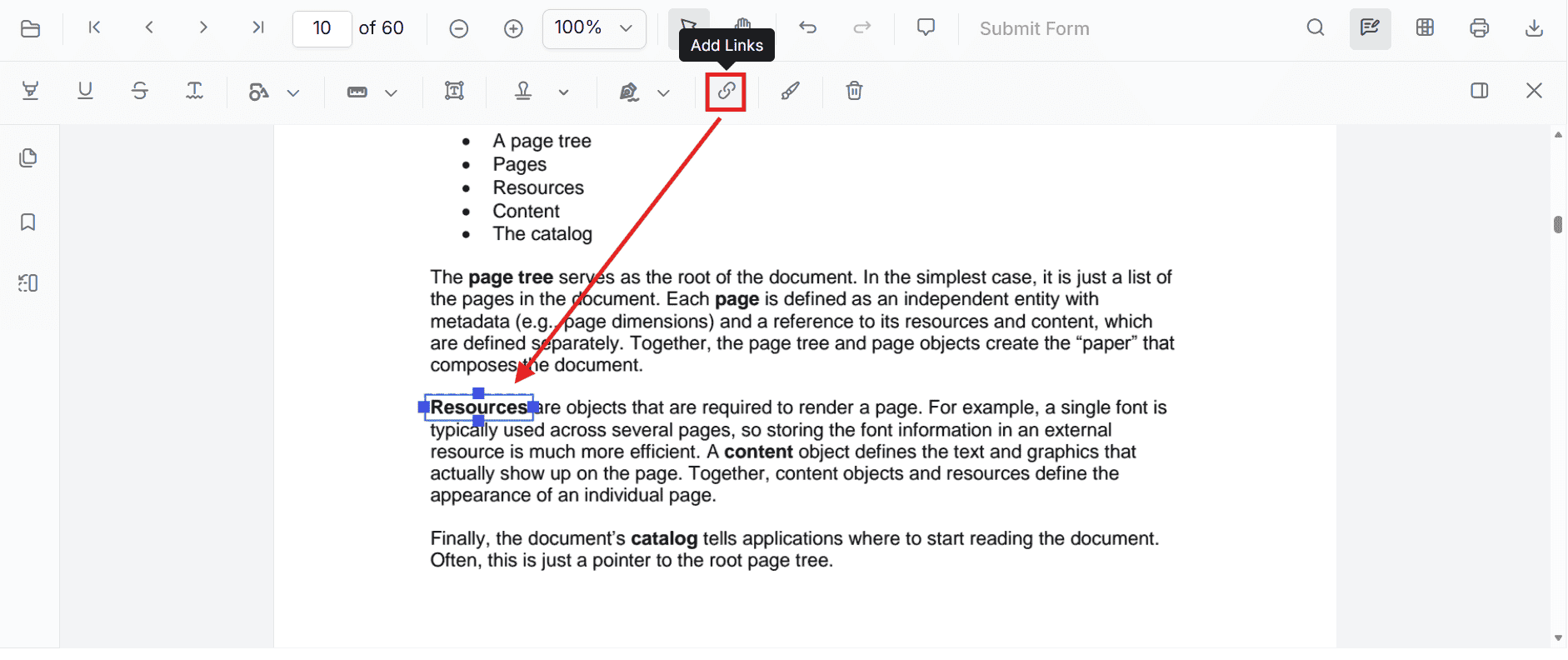

Link annotation overview

To enable Link annotations, inject the following modules into the React PDF Viewer:

This setup enables the annotation toolbar and link annotation behavior.

import {
  PdfViewerComponent,
  Toolbar,
  Magnification,
  Navigation,
  LinkAnnotation,
  BookmarkView,
  ThumbnailView,
  Print,
  TextSelection,
  Annotation,
  TextSearch,
  FormFields,
  FormDesigner,
  PageOrganizer,
  Inject
} from '@syncfusion/ej2-react-pdfviewer';

export default function App() {
  return (
    <PdfViewerComponent
      id="container"
      documentPath="https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf"
      resourceUrl="https://cdn.syncfusion.com/ej2/34.1.29/dist/ej2-pdfviewer-lib"
    >
      <Inject services={[
        Toolbar,
        Magnification,
        Navigation,
        Annotation,
        LinkAnnotation,
        BookmarkView,
        ThumbnailView,
        Print,
        TextSelection,
        TextSearch,
        FormFields,
        FormDesigner,
        PageOrganizer
      ]} />
    </PdfViewerComponent>
  );
}

The hyperlinkOpenState property controls how external URLs open when the user clicks a link. Supported values include NewTab and NewWindow. Use NewTab to open the URL in a new browser tab, or NewWindow to open it in a separate browser window.

  1. Click the Add Link button from the annotation toolbar.
  2. Choose whether the link points to a URL or a Page.
  3. Enter the target URL or page number.
  4. Set the properties such as stroke color and stroke thickness.
  5. Click Insert to create the link annotation.

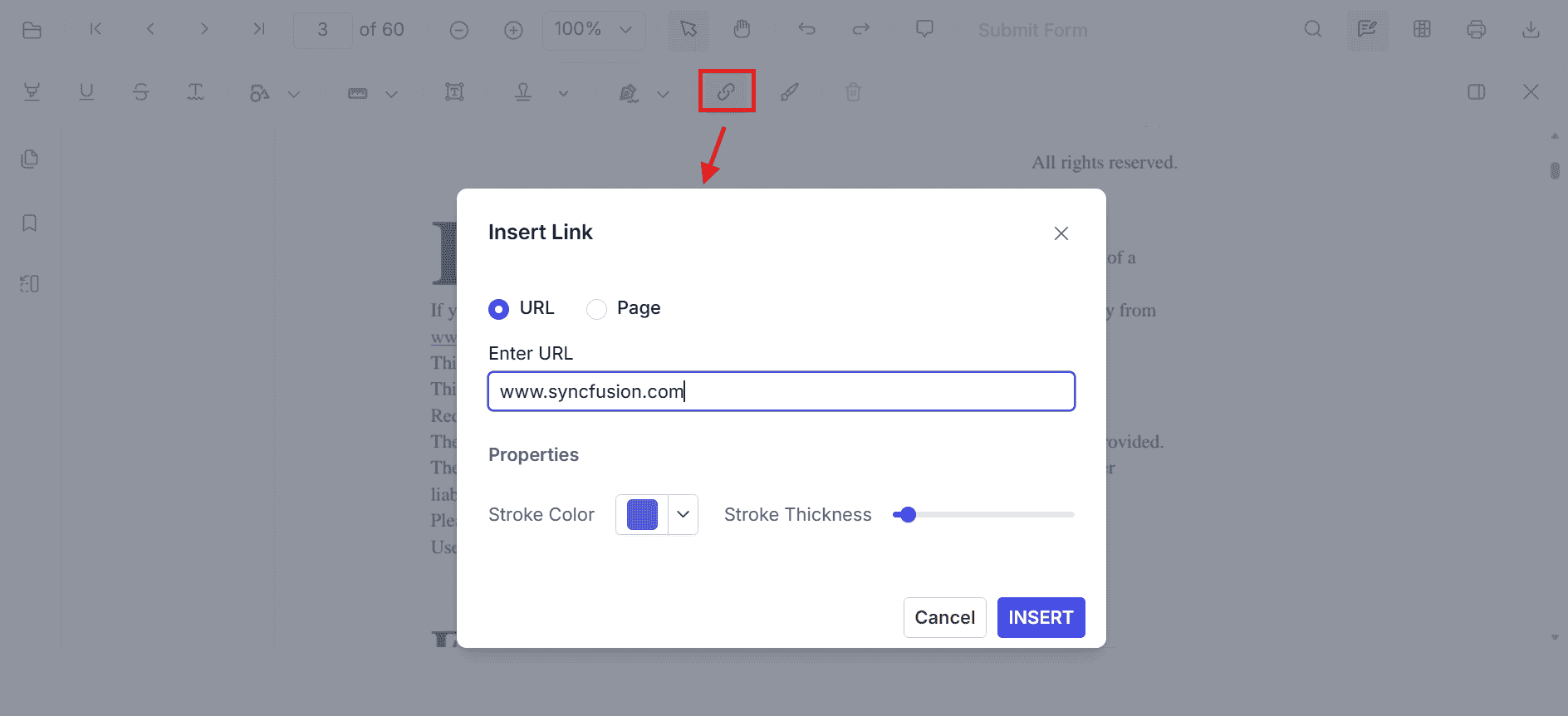

Add Link dialog URL

Add Link dialog Page

The inserted link is displayed as a rectangular annotation region. Users can drag and resize it to position it over the desired target text or area in the PDF.

When clicked, the viewer navigates to the configured page or opens the specified external URL. You can also reposition or resize the annotation after insertion.

Use addAnnotation() to create a link annotation at a specific location.

Add Internal Page Link

function addInternalLink() {
  const viewer = document.getElementById('container').ej2_instances[0];

  viewer.annotation.addAnnotation('Link', {
    offset: { x: 200, y: 480 },
    pageNumber: 1,
    width: 150,
    height: 75,
    destinationPageIndex: 4,
    destinationLocation: { x: 100, y: 200 },
    zoomValue: 4,
    strokeColor: '#1433e3'
  });
}

This adds a link rectangle that navigates to page index 4 and zooms to the specified location when clicked.

function addExternalLink() {
  const viewer = document.getElementById('container').ej2_instances[0];

  viewer.annotation.addAnnotation('Link', {
    offset: { x: 450, y: 480 },
    pageNumber: 1,
    width: 150,
    height: 75,
    url: 'https://www.syncfusion.com',
    strokeColor: '#FF0000'
  });
}

This adds a link rectangle that opens the specified external URL in the browser when clicked.

Link annotations can be customized with optional visual and navigation properties, such as stroke color, thickness, size, destination page, or URL, depending on the type of link you are creating. The hyperlinkOpenState property controls how external URLs open: NewTab opens the page in a new tab, and NewWindow opens it in a separate browser window.

The following example configures the viewer to open external links in a separate browser window.

<PdfViewerComponent
  id="container"
  documentPath="https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf"
  resourceUrl="https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib"
  style={{ height: '650px' }}
  hyperlinkOpenState="NewWindow"
>
  <Inject services={[Toolbar, Annotation, LinkAnnotation]} />
</PdfViewerComponent>

After a link annotation is inserted, the user can:

  • Right-click the selected link annotation to open the context menu
  • Choose Select option from the context menu
  • Drag the rectangle to a new position
  • Resize the rectangle using resize handles

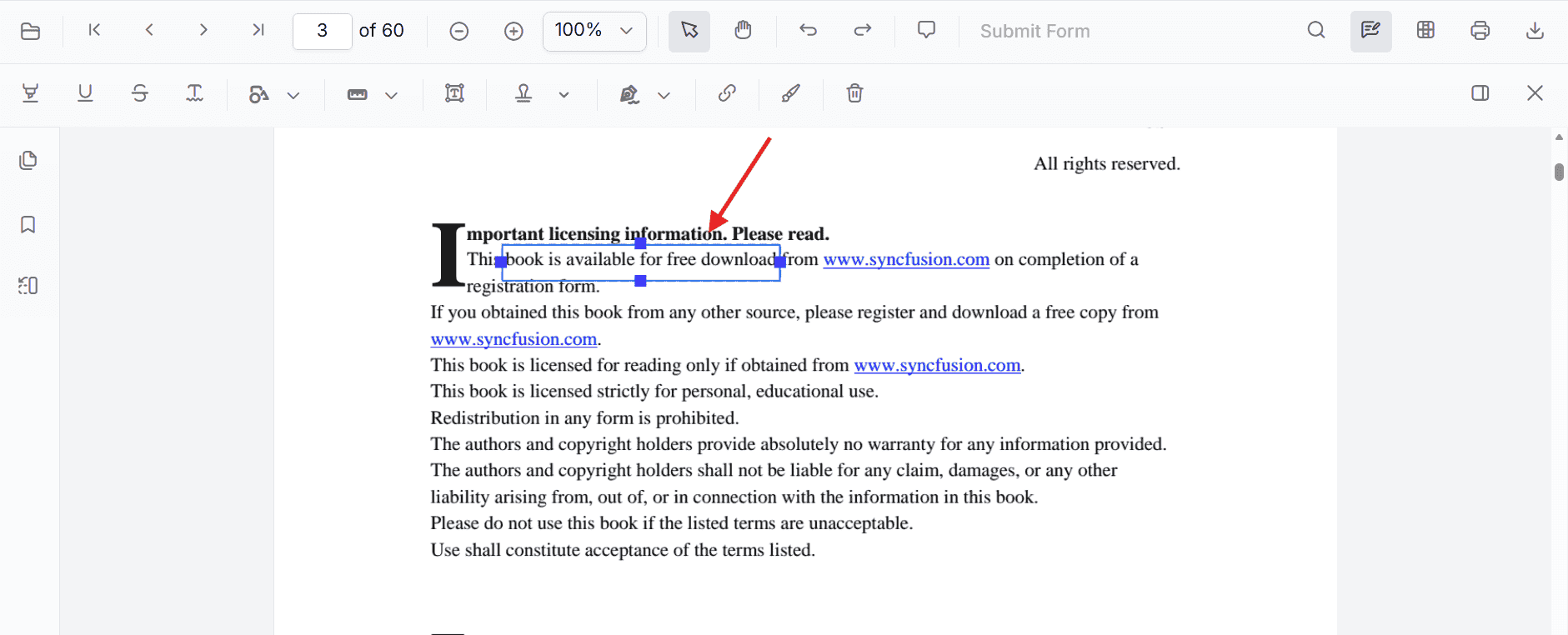

Resize link annotation

  • Right-click the selected link annotation to open the context menu
  • Choose Edit option from the context menu
  • Modify the stroke color and thickness in the property panel
  • Edit the target page or URL from the dialog box

Edit Link Annotation Context Menu

This allows the link to be visually aligned with the PDF content without changing the document itself.

Use editAnnotation() to update an existing link annotation. The following example updates the selected link annotation by changing its color, size, and navigation target.

function editLinkAnnotation() {
  const viewer = document.getElementById('container').ej2_instances[0];

  for (const linkAnnotation of viewer.annotationCollection) {
    if (linkAnnotation.subject === 'Link') {
      linkAnnotation.strokeColor = '#1fcbd4';
      linkAnnotation.thickness = 2;
      linkAnnotation.bounds = { left: 100, top: 100, width: 100, height: 100 };
      linkAnnotation.url = 'https://www.google.com';
      linkAnnotation.destinationPageIndex = 3;
      linkAnnotation.destinationLocation = { x: 300, y: 300 };
      linkAnnotation.zoomValue = 1;
      viewer.annotation.editAnnotation(linkAnnotation);
      break;
    }
  }
}

The PDF Viewer supports deleting link annotations through both the UI and API.

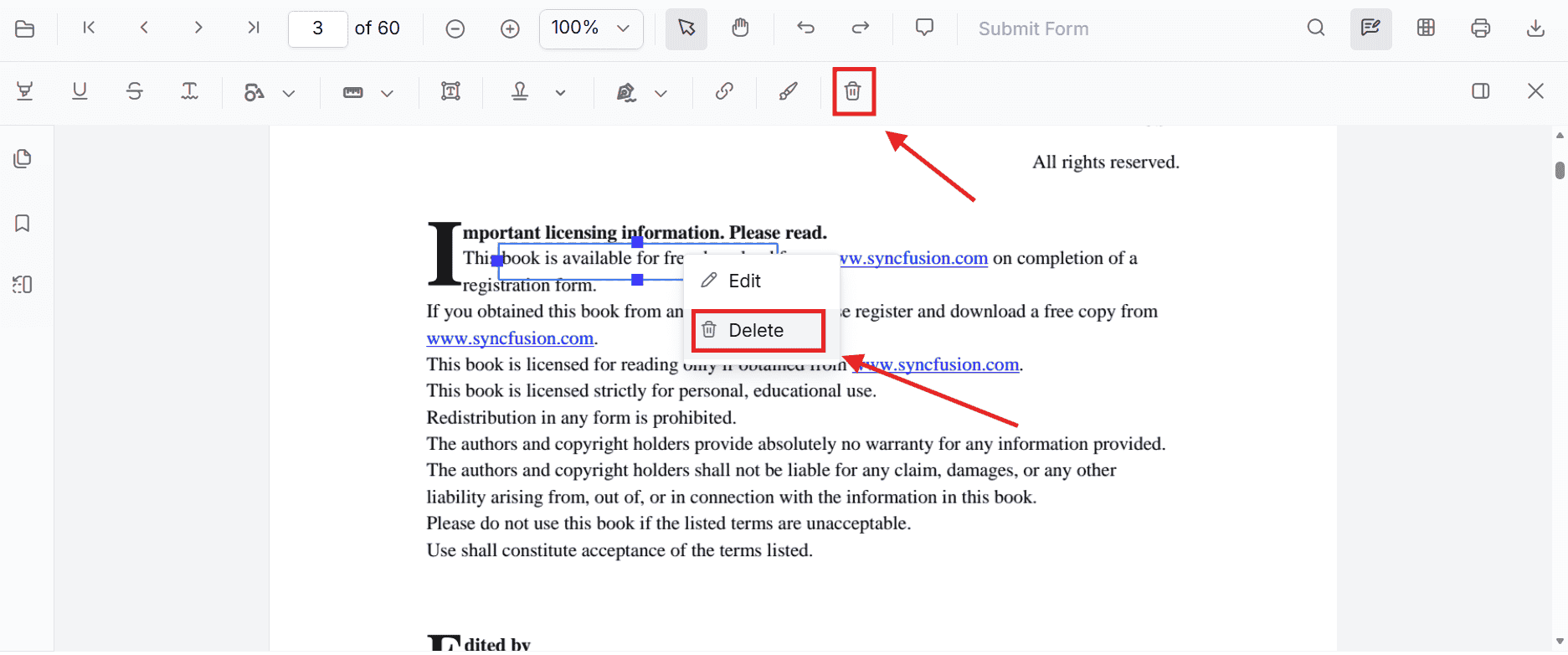

Delete link annotation

The following example deletes only the first link annotation found in the collection and keeps all other annotations unchanged.

function deleteLinkById() {
  const viewer = document.getElementById('container').ej2_instances[0];
  const linkAnnotation = viewer.annotationCollection.find((item) => item.subject === 'Link');

  if (linkAnnotation) {
    viewer.annotation.deleteAnnotationById(linkAnnotation.annotationId);
  }
}

You can set link properties when creating the annotation directly by passing the required fields in the addAnnotation('Link', ...) call. The following example creates two different link annotations: one to an external URL and one to a destination page.

function addMultipleLinks() {
  const viewer = document.getElementById('container').ej2_instances[0];

  viewer.annotation.addAnnotation('Link', {
    offset: { x: 100, y: 150 },
    pageNumber: 1,
    width: 180,
    height: 60,
    url: 'https://www.syncfusion.com',
    strokeColor: '#ff0000'
  });

  viewer.annotation.addAnnotation('Link', {
    offset: { x: 320, y: 180 },
    pageNumber: 1,
    width: 150,
    height: 60,
    destinationPageIndex: 2,
    destinationLocation: { x: 100, y: 200 },
    zoomValue: 2,
    strokeColor: '#1433e3'
  });
}

The PDF viewer raises annotation life cycle events that can be used to monitor when link annotations are added, modified, selected, or removed. For the complete event list and event details, see Annotation Events.

View Sample in GitHub.
