Free text annotation in ASP.NET MVC PDF Viewer control

23 Oct 202511 minutes to read

The PDF Viewer control provides options to add, edit, and delete free text annotations.

Add a free text annotation to the PDF document

Free text annotations can be added to the PDF document using the annotation toolbar.

Click the Edit Annotation button in the PDF Viewer toolbar. The annotation toolbar appears below it.
Select the Free Text Annotation button to enable free text annotation mode.
Add text anywhere on the pages of the PDF document.

When in pan mode, selecting free text annotation switches the PDF Viewer to text select mode.

Free text tool in the annotation toolbar

The following example switches to free text annotation mode using a button click.

Standalone
Server-Backed
<!--Element to set free text annotation mode-->
<button id="set" onclick="addAnnot()">FreeText</button>
<div style="width:100%;height:600px">
    @Html.EJS().PdfViewer("pdfviewer").DocumentPath("https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf").Render()
</div>
<script>
    function addAnnot() {
        var pdfViewer = document.getElementById('pdfviewer').ej2_instances[0];
        pdfViewer.annotation.setAnnotationMode('FreeText');
    }
</script>
<!--Element to set free text annotation mode-->
<button id="set" onclick="addAnnot()">FreeText</button>
<div style="width:100%;height:600px">
    @Html.EJS().PdfViewer("pdfviewer").ServiceUrl(VirtualPathUtility.ToAbsolute("~/PdfViewer/")).DocumentPath("https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf").Render()
</div>
<script>
    function addAnnot() {
        var pdfViewer = document.getElementById('pdfviewer').ej2_instances[0];
        pdfViewer.annotation.setAnnotationMode('FreeText');
       }
</script>

Add a free text annotation programmatically to the PDF document

The PDF Viewer library allows adding a free text annotation programmatically using the addAnnotation() method.

Here is an example of adding a free text annotation programmatically using addAnnotation():

Standalone
Server-Backed
<button id="set" onclick="addAnnotation()">Add annotation programmatically</button>

<div style="width:100%;height:600px">
    @Html.EJS().PdfViewer("pdfviewer").DocumentPath("https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf").Render()
</div>

<script>
    function addAnnotation() {
        var pdfViewer = document.getElementById('pdfviewer').ej2_instances[0];
        pdfViewer.annotation.addAnnotation("FreeText", {
            offset: { x: 100, y: 150 },
            fontSize: 16,
            fontFamily: "Helvetica",
            pageNumber: 1,
            width: 200,
            height: 40,
            isLock: false,
            textAlignment: 'Center',
            borderStyle: 'solid',
            borderWidth: 2,
            borderColor: 'red',
            fillColor: 'blue',
            fontColor: 'white',
            defaultText: "Syncfusion"
        });
    }
</script>
<button id="set" onclick="addAnnotation()">Add annotation programmatically</button>

<div style="width:100%;height:600px">
    @Html.EJS().PdfViewer("pdfviewer").ServiceUrl(VirtualPathUtility.ToAbsolute("~/PdfViewer/")).DocumentPath("https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf").Render()
</div>

<script>
    function addAnnotation() {
        var pdfViewer = document.getElementById('pdfviewer').ej2_instances[0];
        pdfViewer.annotation.addAnnotation("FreeText", {
            offset: { x: 100, y: 150 },
            fontSize: 16,
            fontFamily: "Helvetica",
            pageNumber: 1,
            width: 200,
            height: 40,
            isLock: false,
            textAlignment: 'Center',
            borderStyle: 'solid',
            borderWidth: 2,
            borderColor: 'red',
            fillColor: 'blue',
            fontColor: 'white',
            defaultText: "Syncfusion"
        });
    }
</script>

Change the content of an existing free text annotation programmatically

To change the content of an existing free text annotation programmatically, use the editAnnotation() method.

Here is an example of changing the content of a free text annotation using editAnnotation():

Standalone
Server-Backed
<button id="set" onclick="editAnnotation()">Edit annotation programmatically</button>

<div style="width:100%;height:600px">
    @Html.EJS().PdfViewer("pdfviewer").DocumentPath("https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf").Render()
</div>

<script>
    function editAnnotation() {
        var viewer = document.getElementById('pdfviewer').ej2_instances[0];
        for (let i = 0; i < viewer.annotationCollection.length; i++) {
            if (viewer.annotationCollection[i].subject === "Text Box") {
                var width = viewer.annotationCollection[i].bounds.width;
                var height = viewer.annotationCollection[i].bounds.height;
                viewer.annotationCollection[i].bounds = { x: 100, y: 100, width: width, height: height };
                viewer.annotationCollection[i].dynamicText = 'syncfusion';
                viewer.annotation.editAnnotation(viewer.annotationCollection[i]);
            }
        }
    }
</script>
<button id="set" onclick="editAnnotation()">Edit annotation programmatically</button>

<div style="width:100%;height:600px">
    @Html.EJS().PdfViewer("pdfviewer").ServiceUrl(VirtualPathUtility.ToAbsolute("~/PdfViewer/")).DocumentPath("https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf").Render()
</div>

<script>
    function editAnnotation() {
        var viewer = document.getElementById('pdfviewer').ej2_instances[0];
        for (let i = 0; i < viewer.annotationCollection.length; i++) {
            if (viewer.annotationCollection[i].subject === "Text Box") {
                var width = viewer.annotationCollection[i].bounds.width;
                var height = viewer.annotationCollection[i].bounds.height;
                viewer.annotationCollection[i].bounds = { x: 100, y: 100, width: width, height: height };
                viewer.annotationCollection[i].dynamicText = 'syncfusion';
                viewer.annotation.editAnnotation(viewer.annotationCollection[i]);
            }
        }
    }
</script>

NOTE

The current version of the PDF Viewer does not edit existing document text. New free text annotations can be added and modified within the document.

Edit the properties of free text annotations

Font family, font size, styles, font color, text alignment, fill color, stroke color, border thickness, and opacity can be edited using the Font Family, Font Size, Font Color, Text Align, Font Style, Edit Color, Edit Stroke Color, Edit Thickness, and Edit Opacity tools in the annotation toolbar.

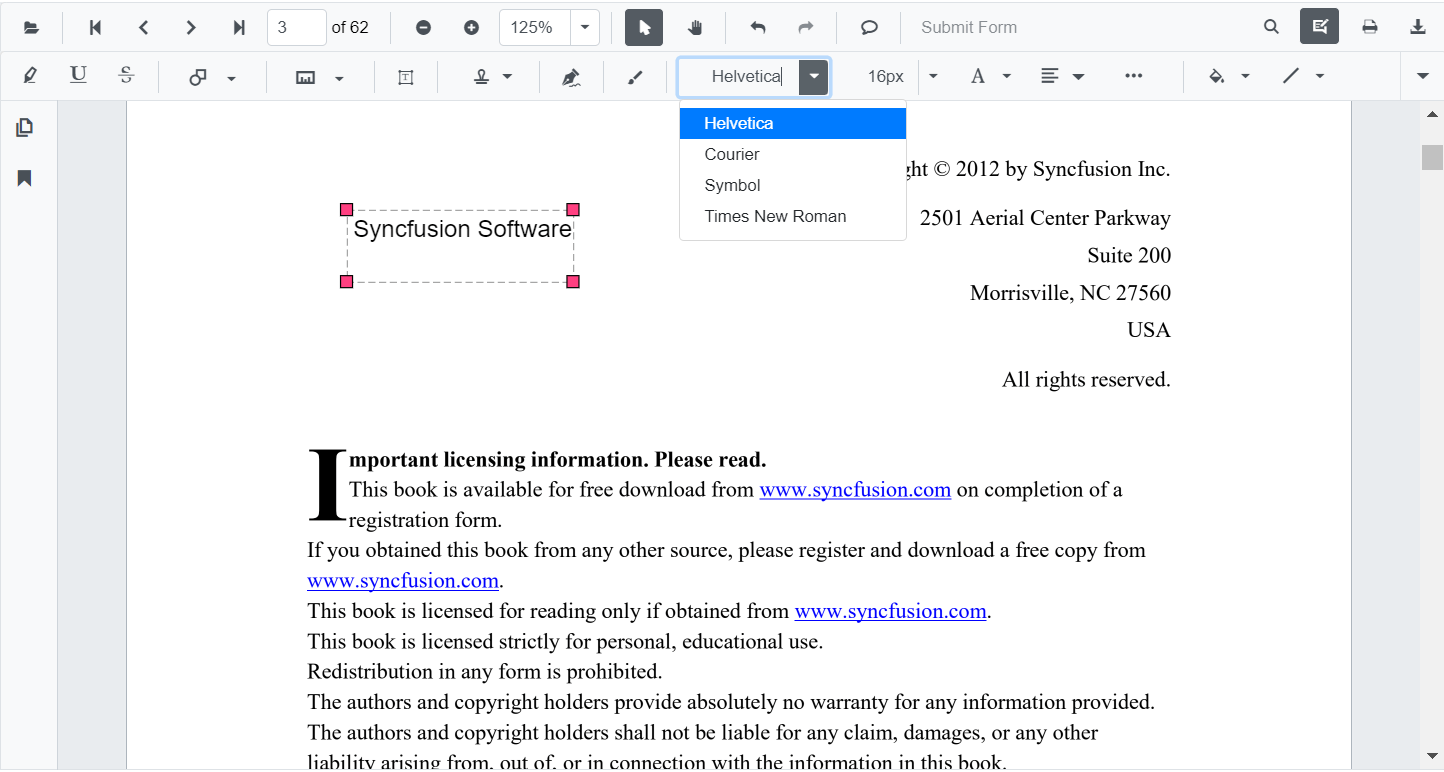

Edit font family

Edit the font family by selecting a font in the Font Family tool.

Change font family

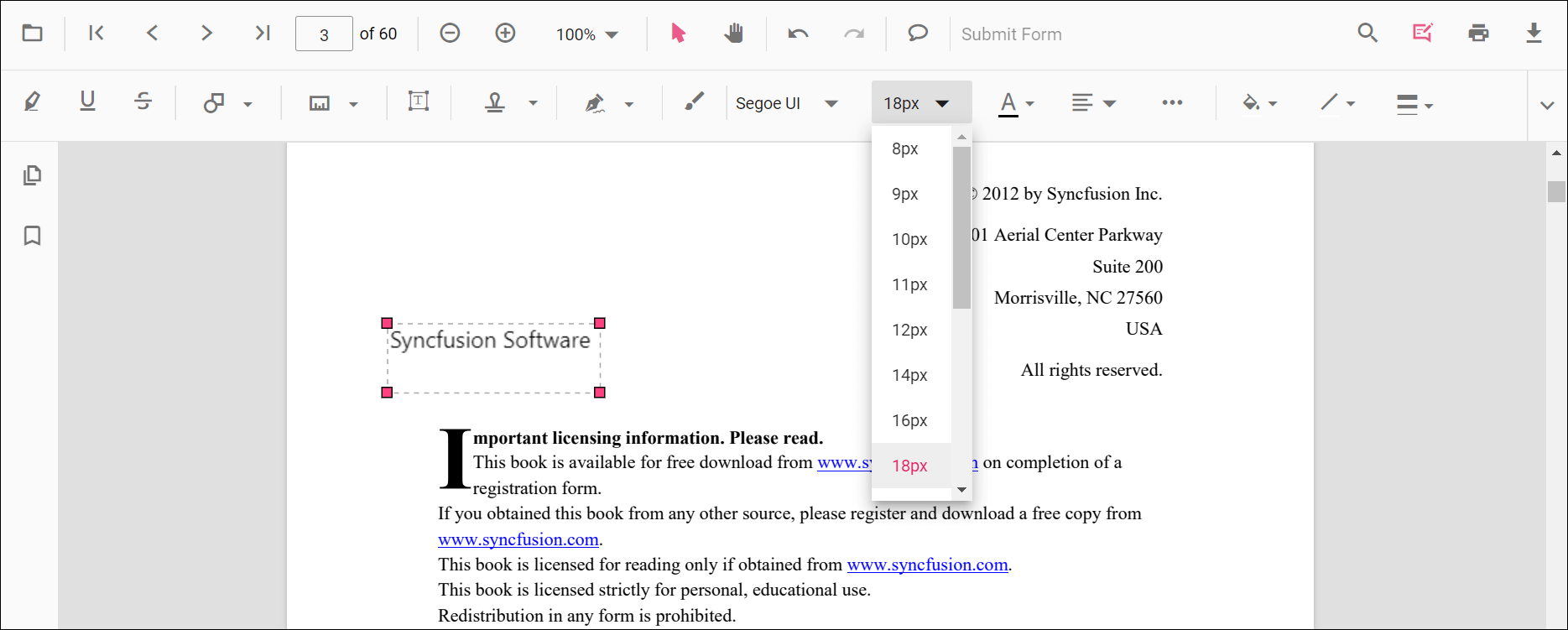

Edit font size

Edit the font size by selecting a size in the Font Size tool.

Change font size

Edit font color

Edit the font color using the color palette in the Font Color tool.

Change font color

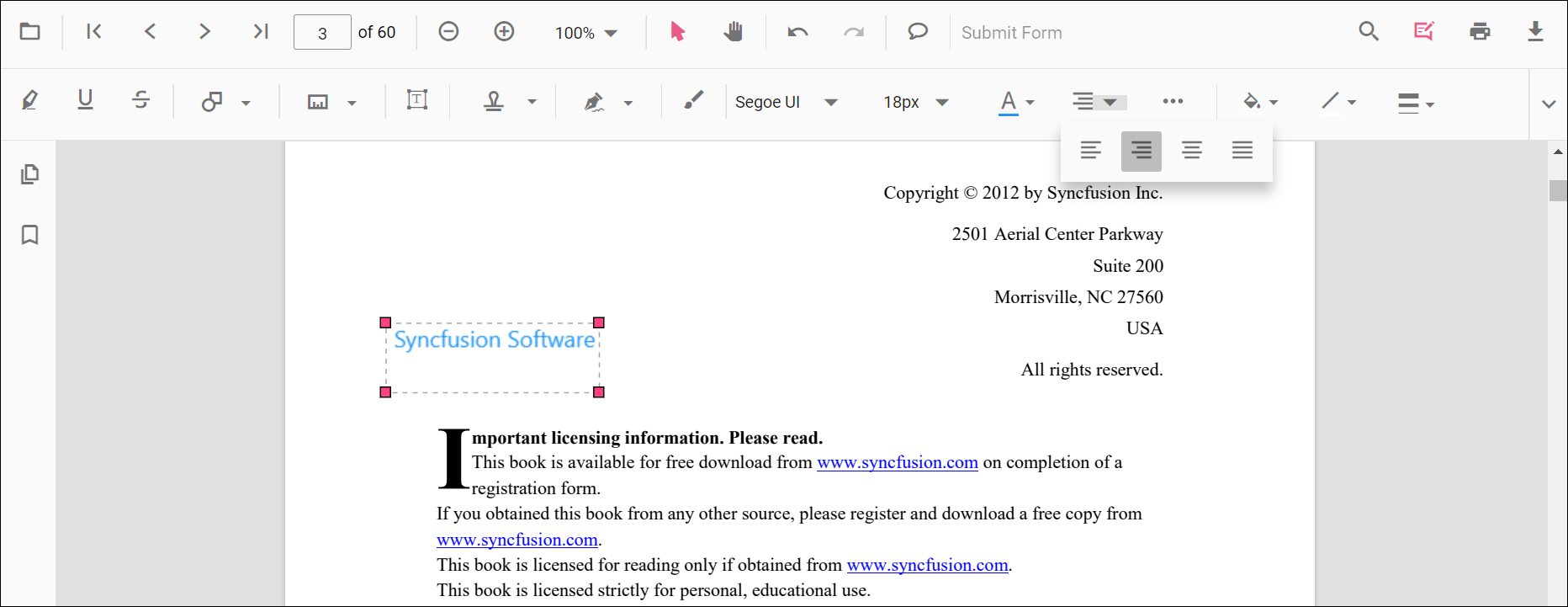

Edit text alignment

Align text by selecting an option from the Text Align tool.

Set text alignment

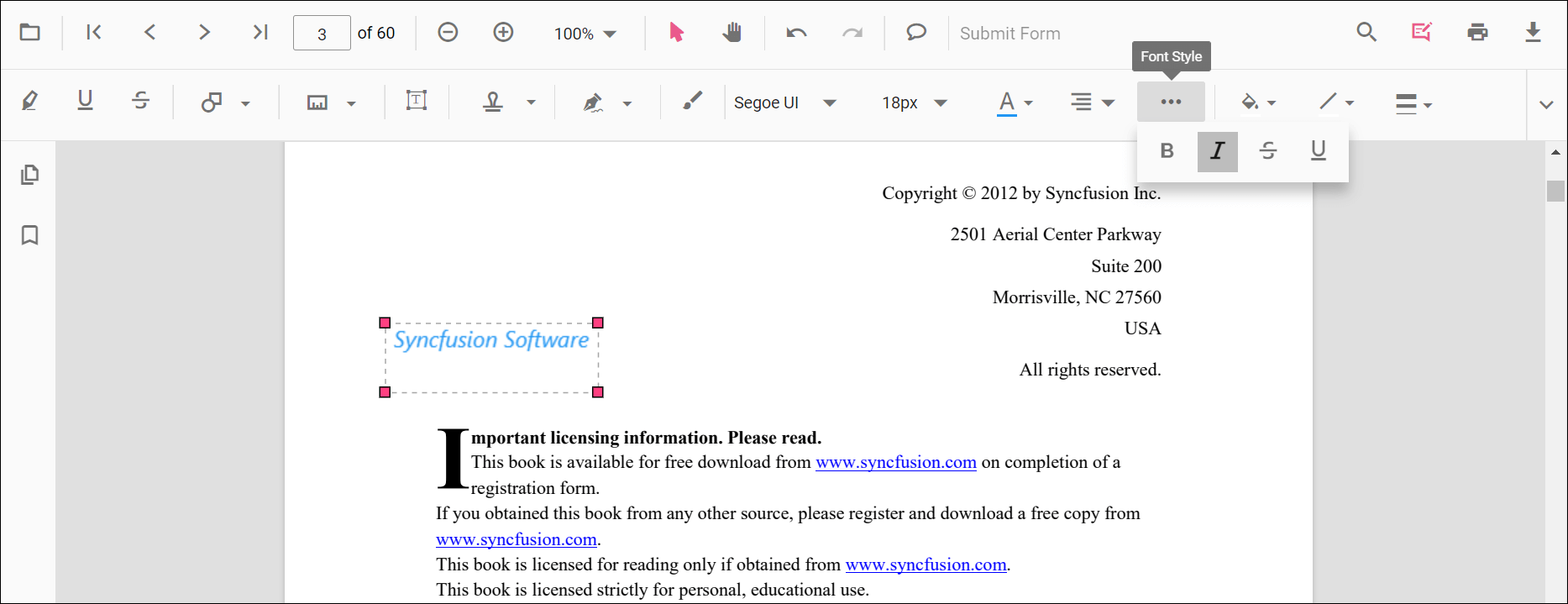

Edit text styles

Edit text styles by selecting options in the Font Style tool.

Change text styles

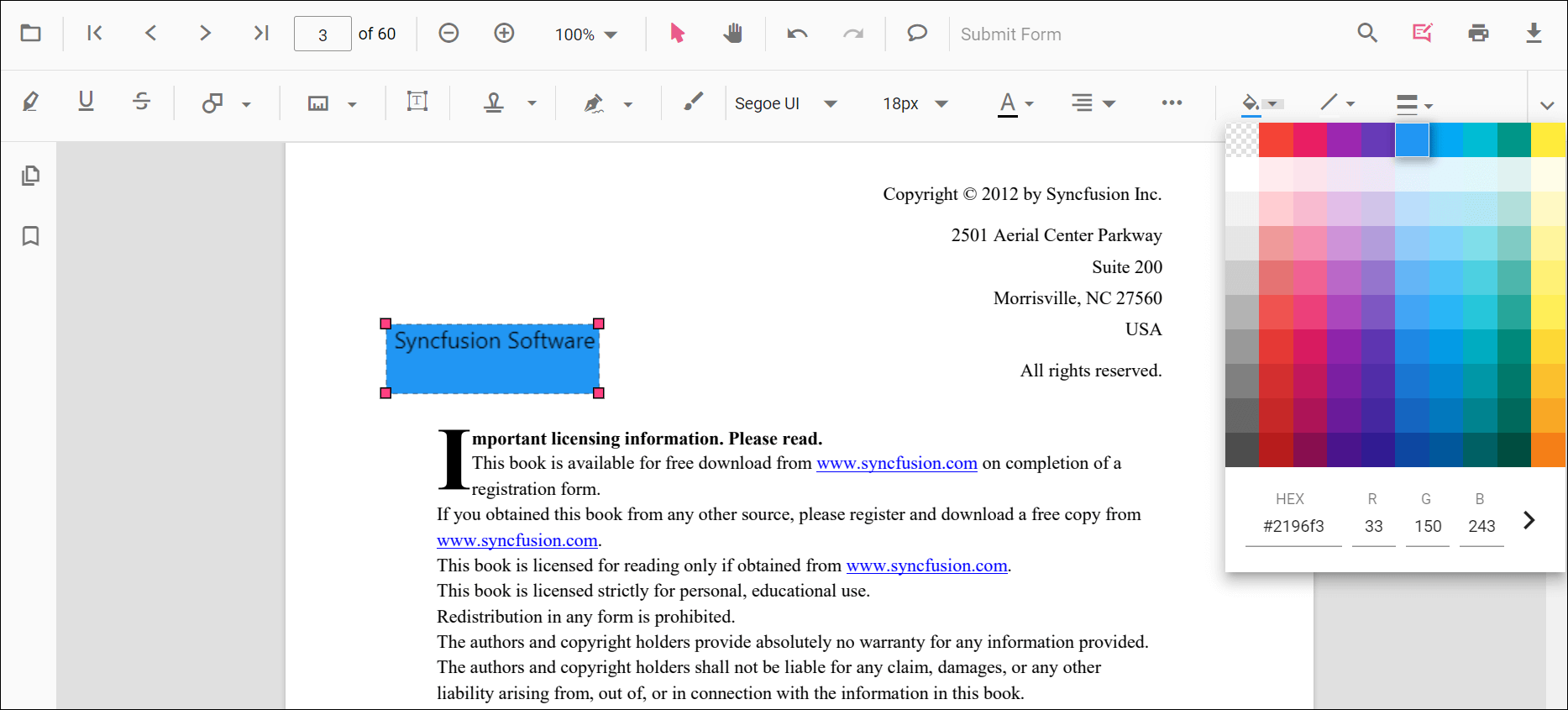

Edit fill color

Edit the fill color using the color palette in the Edit Color tool.

Change fill color

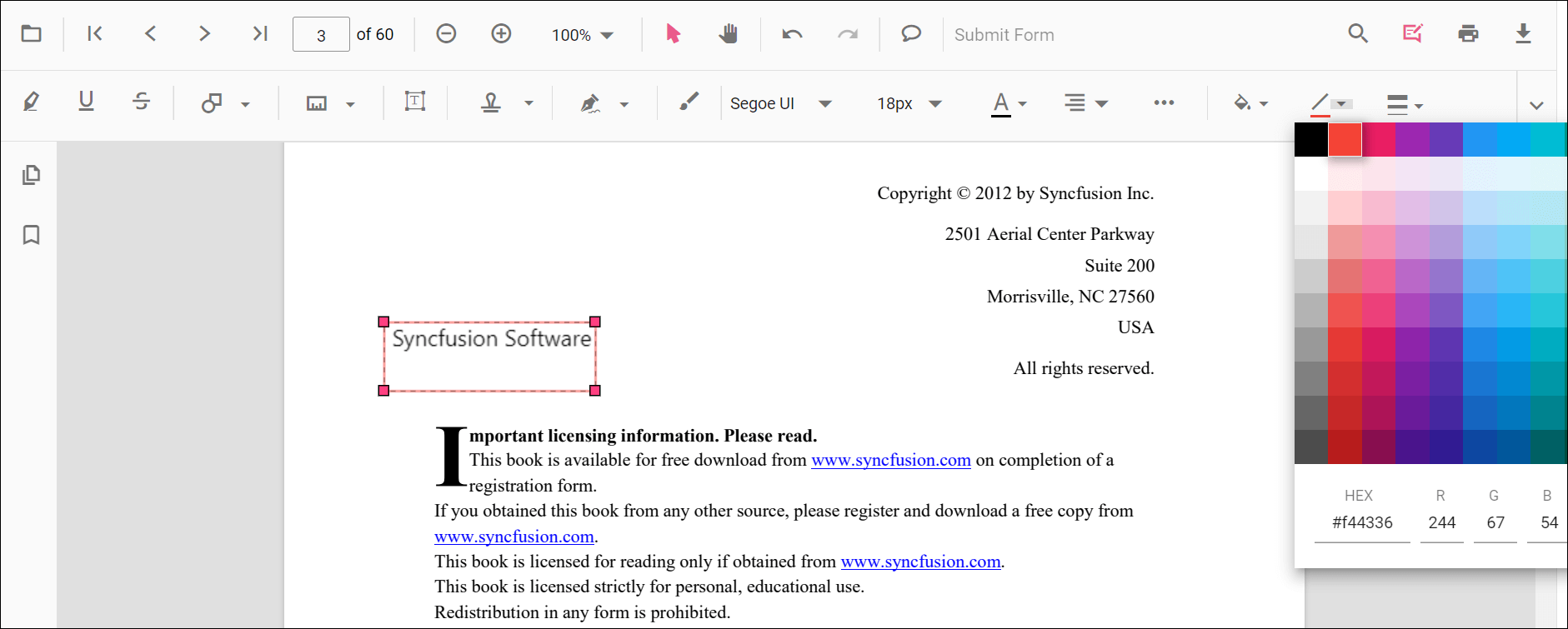

Edit stroke color

Edit the stroke color using the color palette in the Edit Stroke Color tool.

Change stroke color

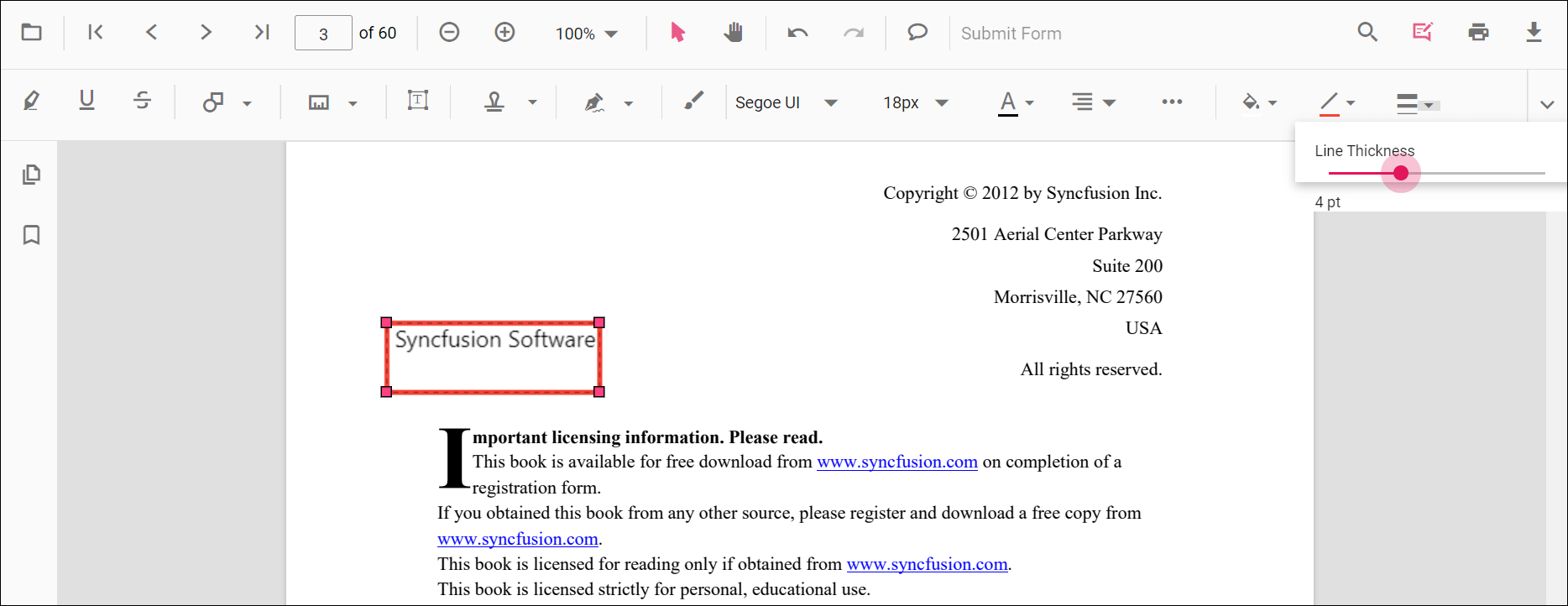

Edit thickness

Edit border thickness using the range slider in the Edit Thickness tool.

Change border thickness

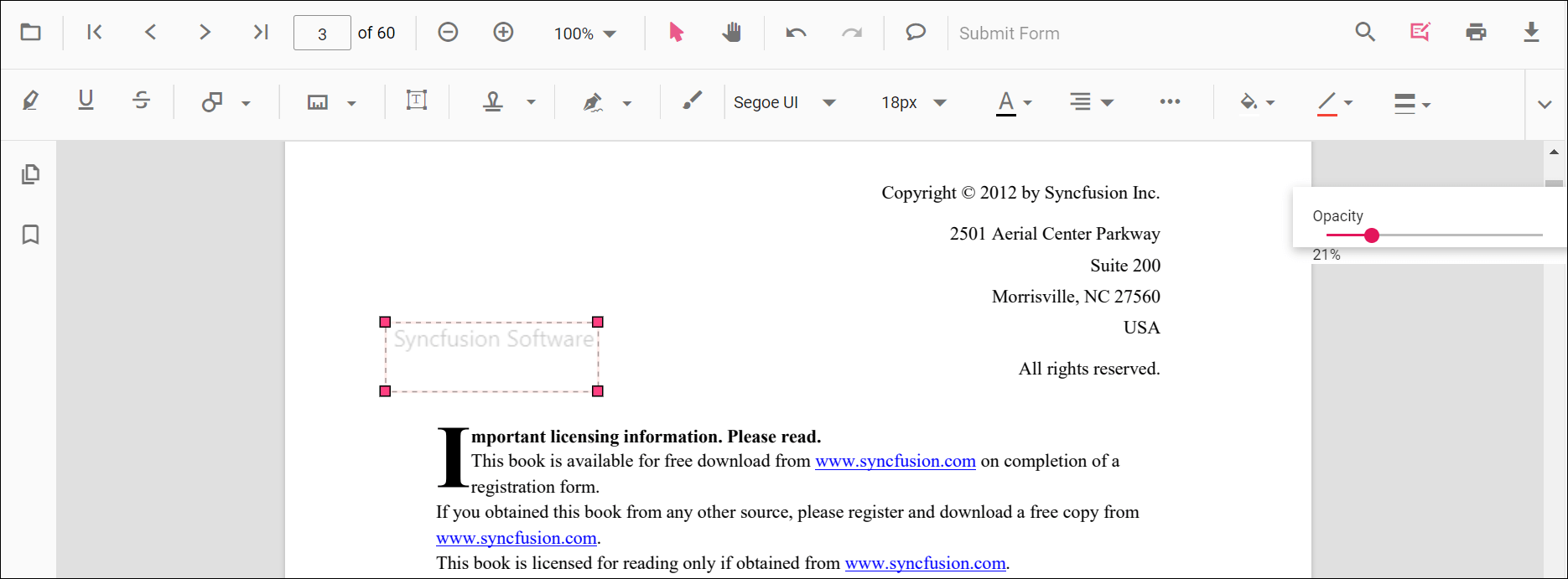

Edit opacity

Edit opacity using the range slider in the Edit Opacity tool.

Change opacity

Set default properties during control initialization

Default properties for free text annotations can be set before creating the control using FreeTextSettings.

After changing default values, the selected values are applied. The following example sets default free text annotation settings.

Standalone
Server-Backed
<div style="width:100%;height:600px">
    @Html.EJS().PdfViewer("pdfviewer").DocumentPath("https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf").FreeTextSettings(new Syncfusion.EJ2.PdfViewer.PdfViewerFreeTextSettings { FillColor = "green", BorderColor = "blue", FontColor = "yellow" }).Render()
</div>
<div style="width:100%;height:600px">
    @Html.EJS().PdfViewer("pdfviewer").ServiceUrl(VirtualPathUtility.ToAbsolute("~/PdfViewer/")).DocumentPath("https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf").FreeTextSettings(new Syncfusion.EJ2.PdfViewer.PdfViewerFreeTextSettings { FillColor = "green", BorderColor = "blue", FontColor = "yellow" }).Render()
</div>

You can also enable the autofit support for free text annotation by using the EnableAutoFit boolean property in FreeTextSettings as below. The width of the free text rectangle box will be increased based on the text added to it.

Standalone
Server-Backed
<div style="width:100%;height:600px">
    @Html.EJS().PdfViewer("pdfviewer").DocumentPath("https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf").FreeTextSettings(new Syncfusion.EJ2.PdfViewer.PdfViewerFreeTextSettings { EnableAutoFit = true }).Render()
</div>
<div style="width:100%;height:600px">
    @Html.EJS().PdfViewer("pdfviewer").ServiceUrl(VirtualPathUtility.ToAbsolute("~/PdfViewer/")).DocumentPath("https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf").FreeTextSettings(new Syncfusion.EJ2.PdfViewer.PdfViewerFreeTextSettings { EnableAutoFit = true }).Render()
</div>
