Extract pages in ASP.NET Core PDF Viewer

28 Feb 20264 minutes to read

The PDF Viewer component lets you extract pages from a document using the Extract Pages option in the Organize Pages UI.
The Extract Pages tool is available by default in Organize Pages.

Extract Pages in Organize Pages

  • Open the Organize Pages panel in the PDF Viewer toolbar.
  • Locate and click the Extract Pages option.

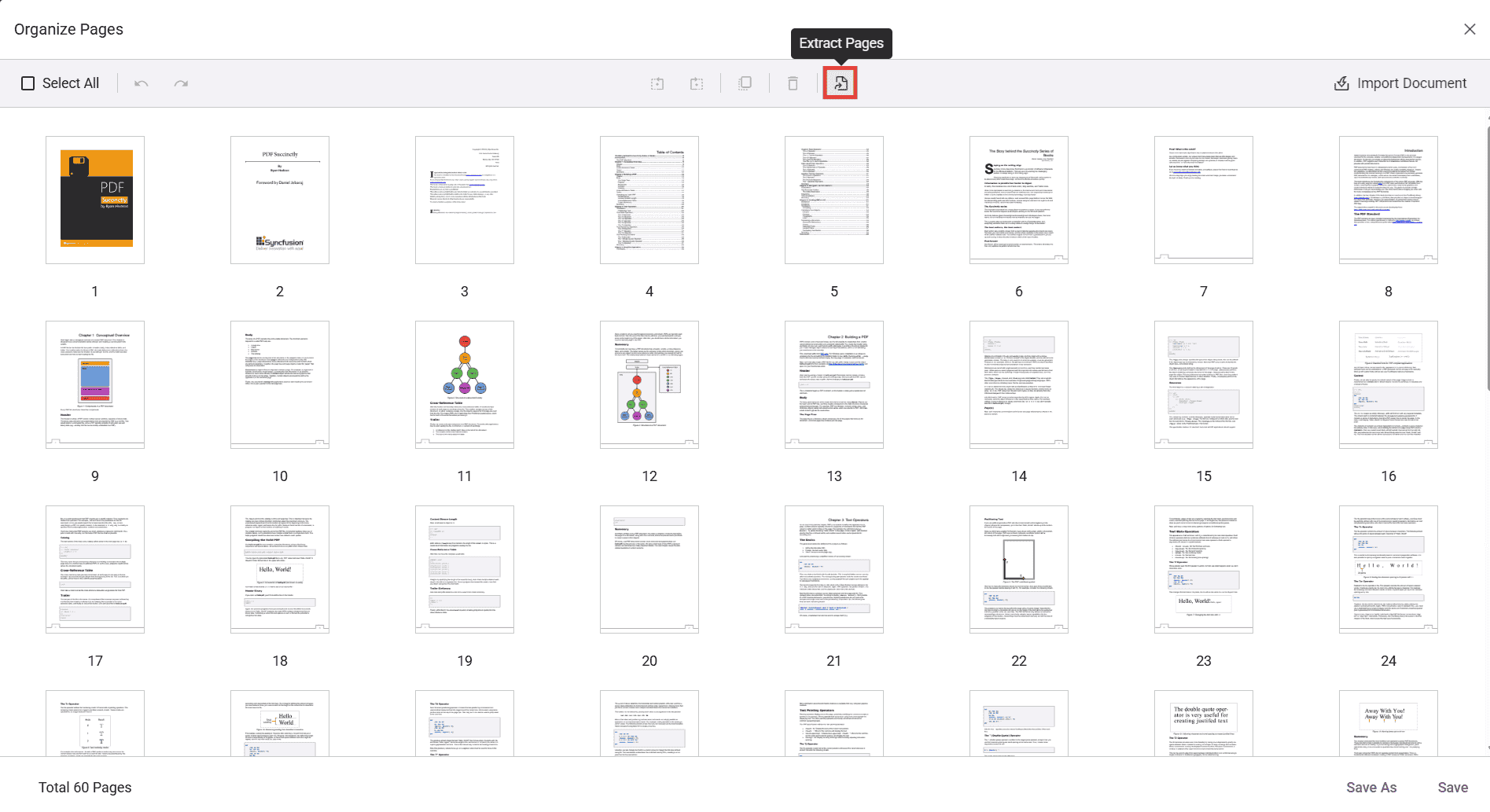

Extract Pages

When selected, a secondary toolbar dedicated to extraction is displayed.

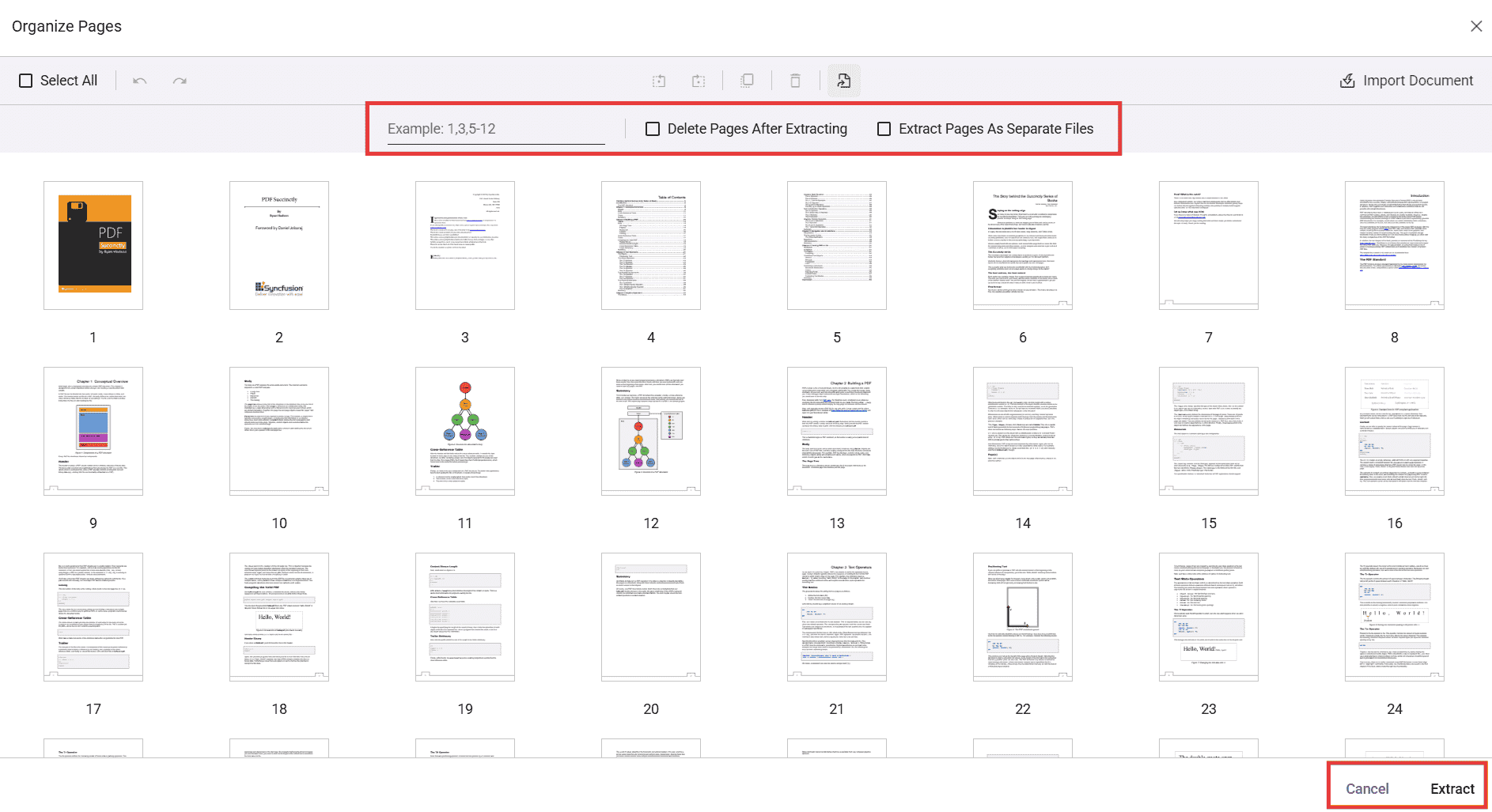

Extract Pages secondary toolbar

Extracting pages using the UI

You can extract by typing page numbers/ranges or by selecting thumbnails.

  1. Click Extract Pages in the Organize Pages panel.
  2. In the input box, enter the pages to extract. Supported formats include:
    • Single pages: 1,3,5
    • Ranges: 2-6
    • Combinations: 1,4,7-9
  3. Alternatively, select the page thumbnails you want instead of typing values.
  4. Click Extract to download the extracted pages as a new PDF. Click Cancel to close the tool.

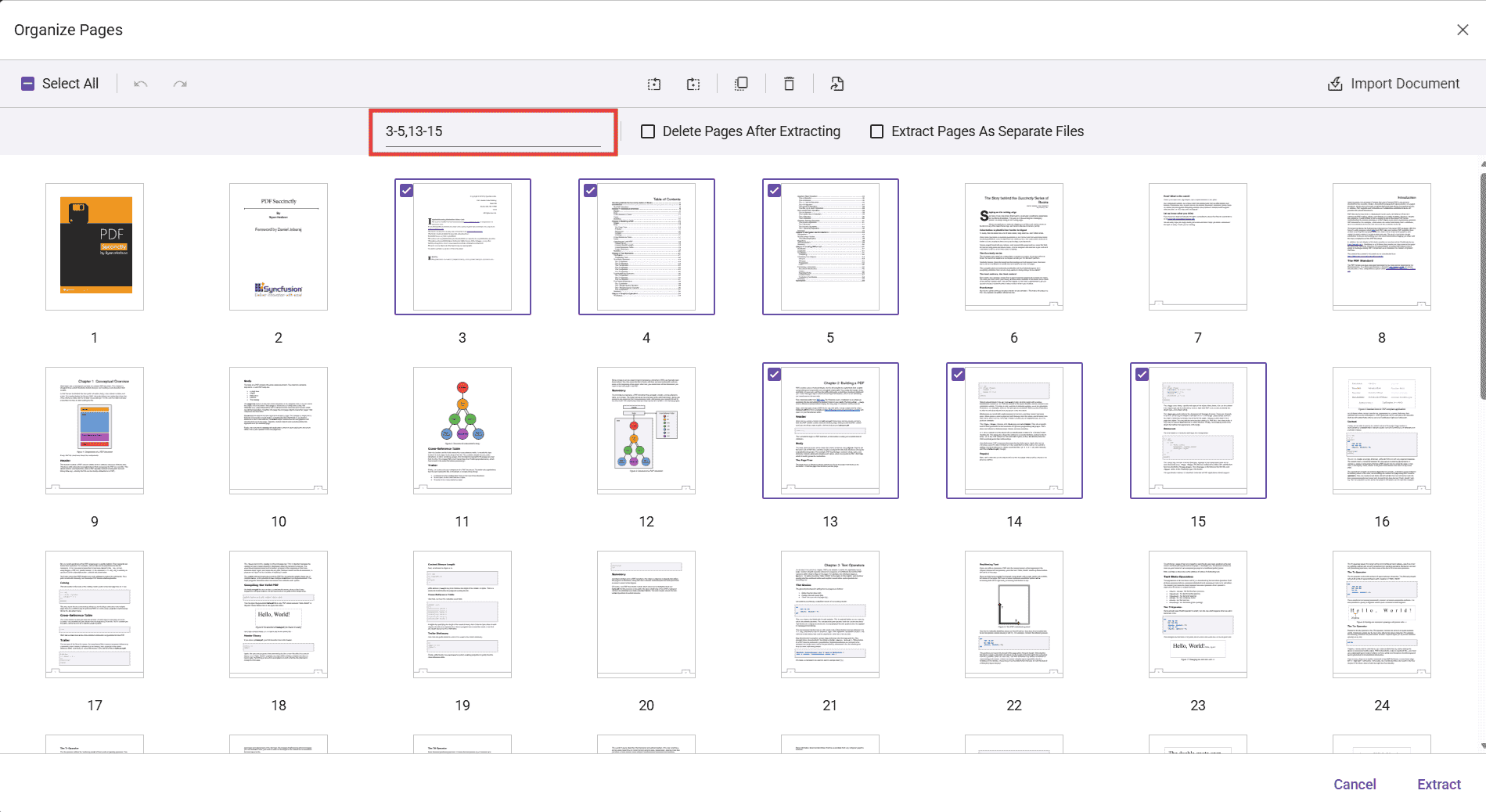

Extract Pages with selected thumbnails

NOTE

Page numbers are 1-based (first page is 1). Invalid or out-of-range entries are ignored.

Extraction options (checkboxes)

Two options appear in the secondary toolbar:

  • Delete Pages After Extracting:
    • When enabled, the selected/entered pages are removed from the document opened in the viewer after the extraction completes. The extracted pages are still downloaded as a new file.
  • Extract Pages As Separate Files:
    • When enabled, every selected page is exported as an individual PDF file. Ranges such as 2-4 export pages 2, 3, and 4 as separate PDFs.

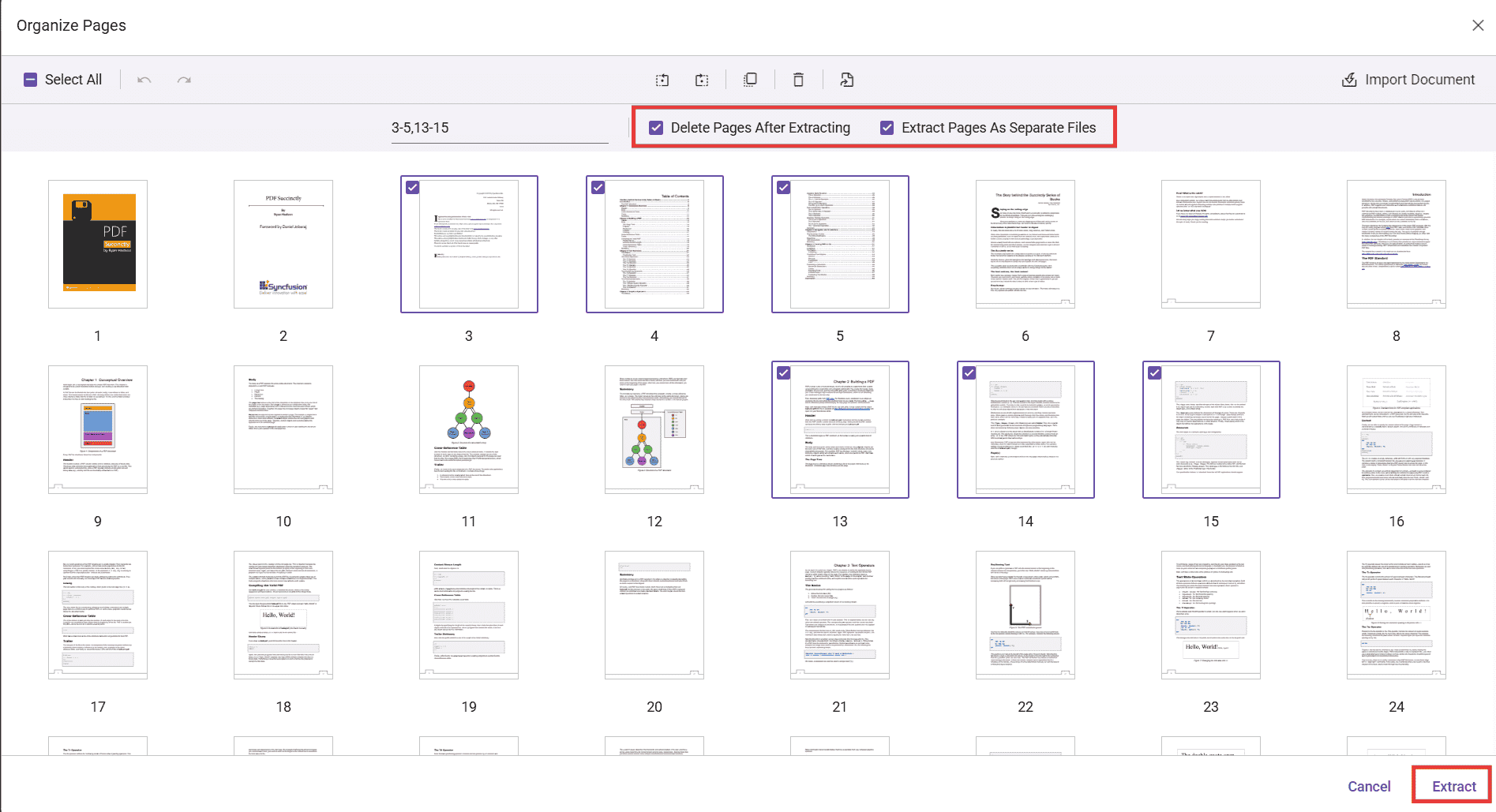

Checkboxes for extract options

Programmatic options and APIs

You can control the Extract Pages experience via settings and invoke extraction through code.

Enable/disable Extract Pages

Use the canExtractPages API to enable or disable the Extract Pages option. When set to false, the Extract Pages tool is disabled in the toolbar. The default value is true.

Use the following code snippet to enable or disable the Extract Pages option:

<div class="text-center">
    <ejs-pdfviewer  id="pdfviewer"
                    style="height:600px"
                    pageOrganizerSettings="@(new {CanExtractPages = true})"
                    resourceUrl="https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib"
                    documentPath="https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf">
    </ejs-pdfviewer>
</div>

Set showExtractPagesOption to false to hide the Extract Pages tool from the toolbar. The default is true.

To hide Extract Pages:

<div class="text-center">
    <ejs-pdfviewer  id="pdfviewer"
                    style="height:600px"
                    pageOrganizerSettings="@(new {showExtractPagesOption = false})"
                    resourceUrl="https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib"
                    documentPath="https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf">
    </ejs-pdfviewer>
</div>

Extracting pages and loading results programmatically

The extractPages method enables programmatic extraction. This example extracts pages 1 and 2, loading them into the viewer. The method returns a byte array (Uint8Array) representing PDF contents.

<div class="text-center">
    <button id="extractPage" onclick="extractPage()">Extract Page</button>
    <ejs-pdfviewer  id="pdfviewer"
                    style="height:600px"
                    pageOrganizerSettings="@(new {CanExtractPages = true})"
                    resourceUrl="https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib"
                    documentPath="https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf">
    </ejs-pdfviewer>
</div>

<script>
  function extractPage() {
    var viewer = document.getElementById('pdfviewer')?.ej2_instances[0];

    //Extract Pages 1,2
    var array = viewer.extractPages('1,2');

    //Load the Extracted Pages
    viewer.load(array,'');
    //Print the Base64 for reference
    console.log(array);
  }
</script>

View sample in GitHub
