Create Markdown document in .NET MAUI

14 Aug 20268 minutes to read

Syncfusion^® Essential^® Markdown is a .NET Markdown library used to create, read, and edit Markdown documents programmatically without external dependencies. Using this library, you can create a Markdown document in .NET MAUI.

Steps to create Markdown document programmatically in .NET MAUI

Prerequisites:

• Visual Studio 2022.
• Install .NET 8 SDK or later.
• For more details about installation, refer here.

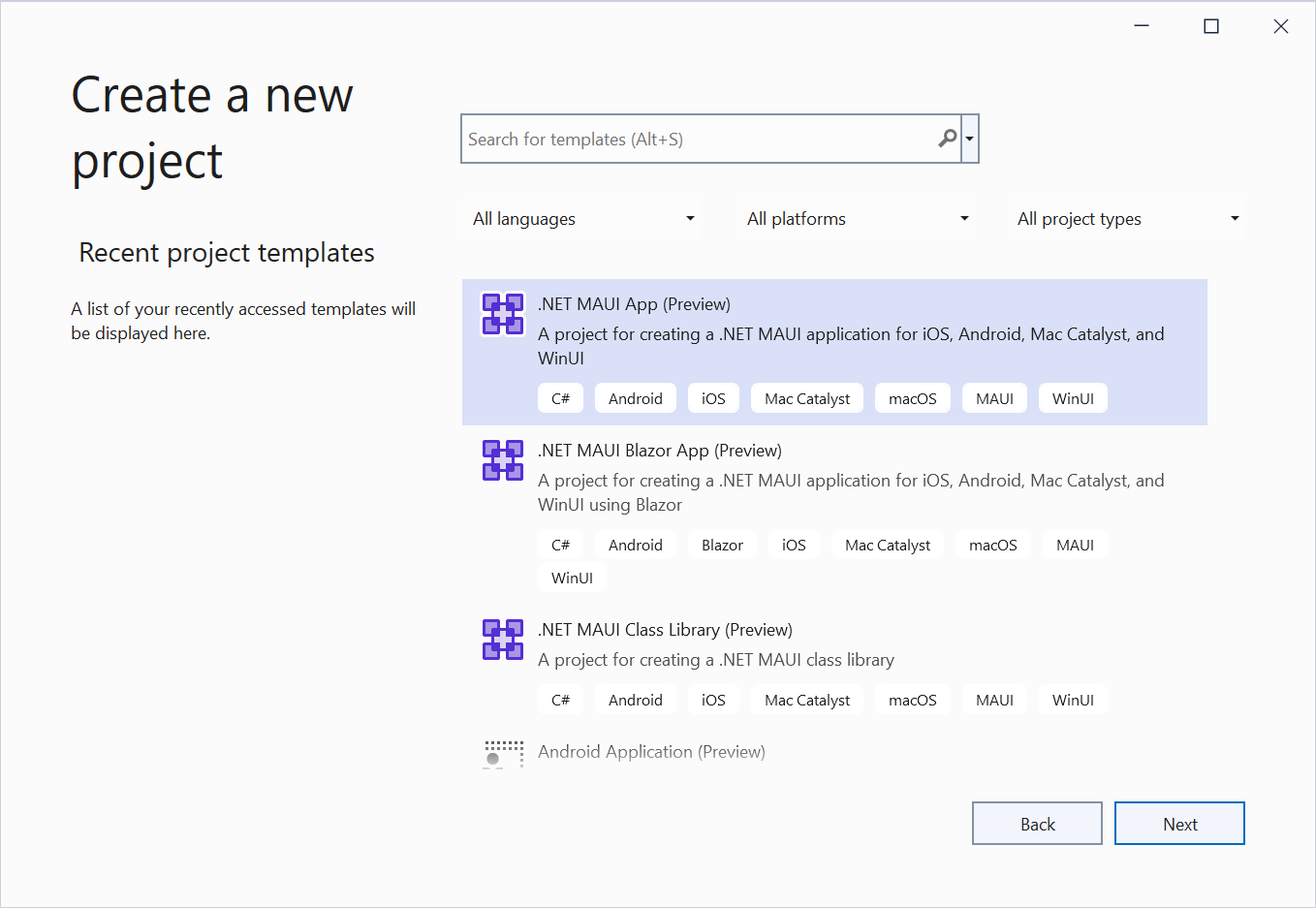

Step 1: Create a new C# .NET MAUI app. Select .NET MAUI App from the template and click the Next button.

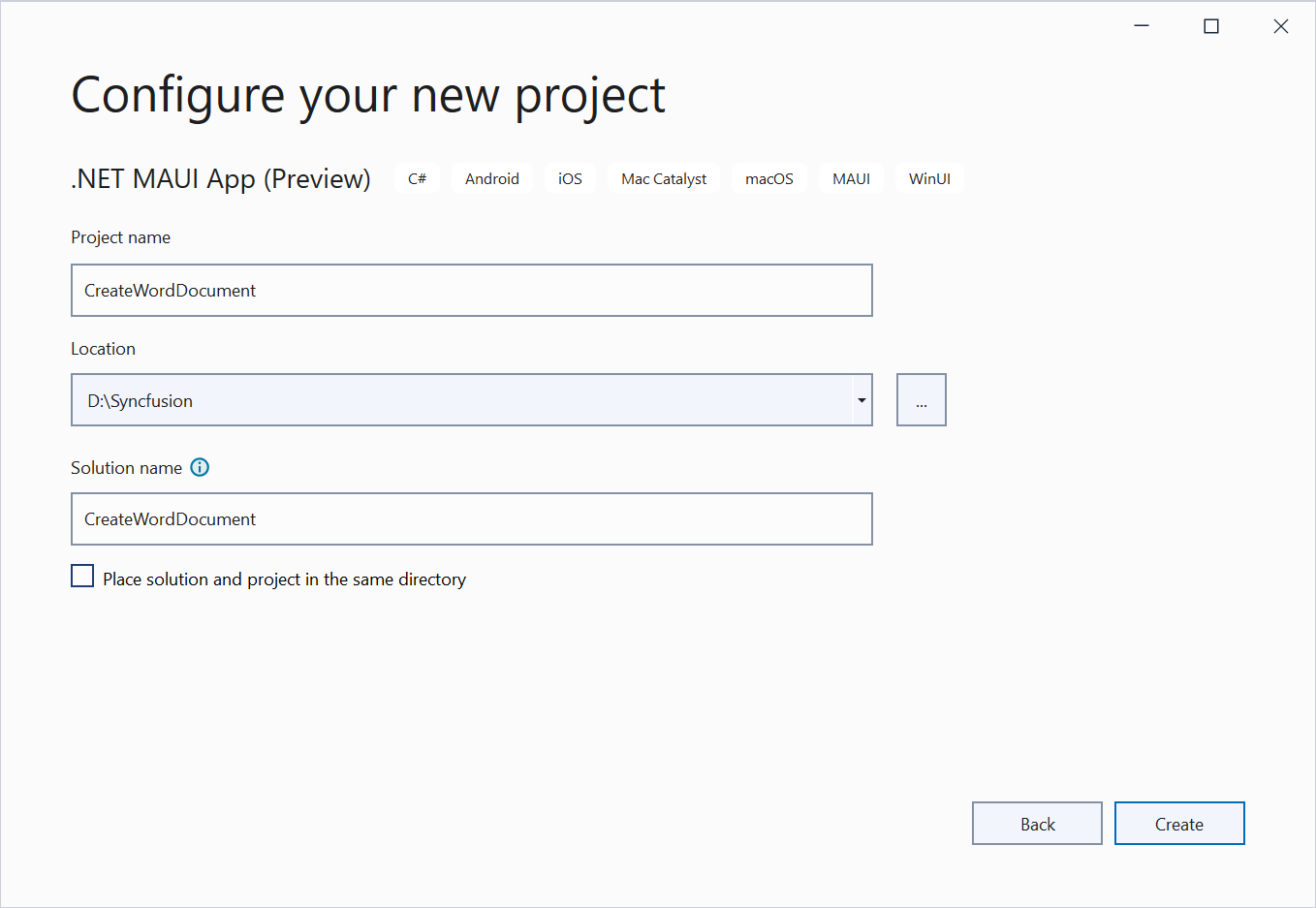

Step 2: Enter the project name, select the target framework (e.g., .NET 8.0 and later), and click Create.

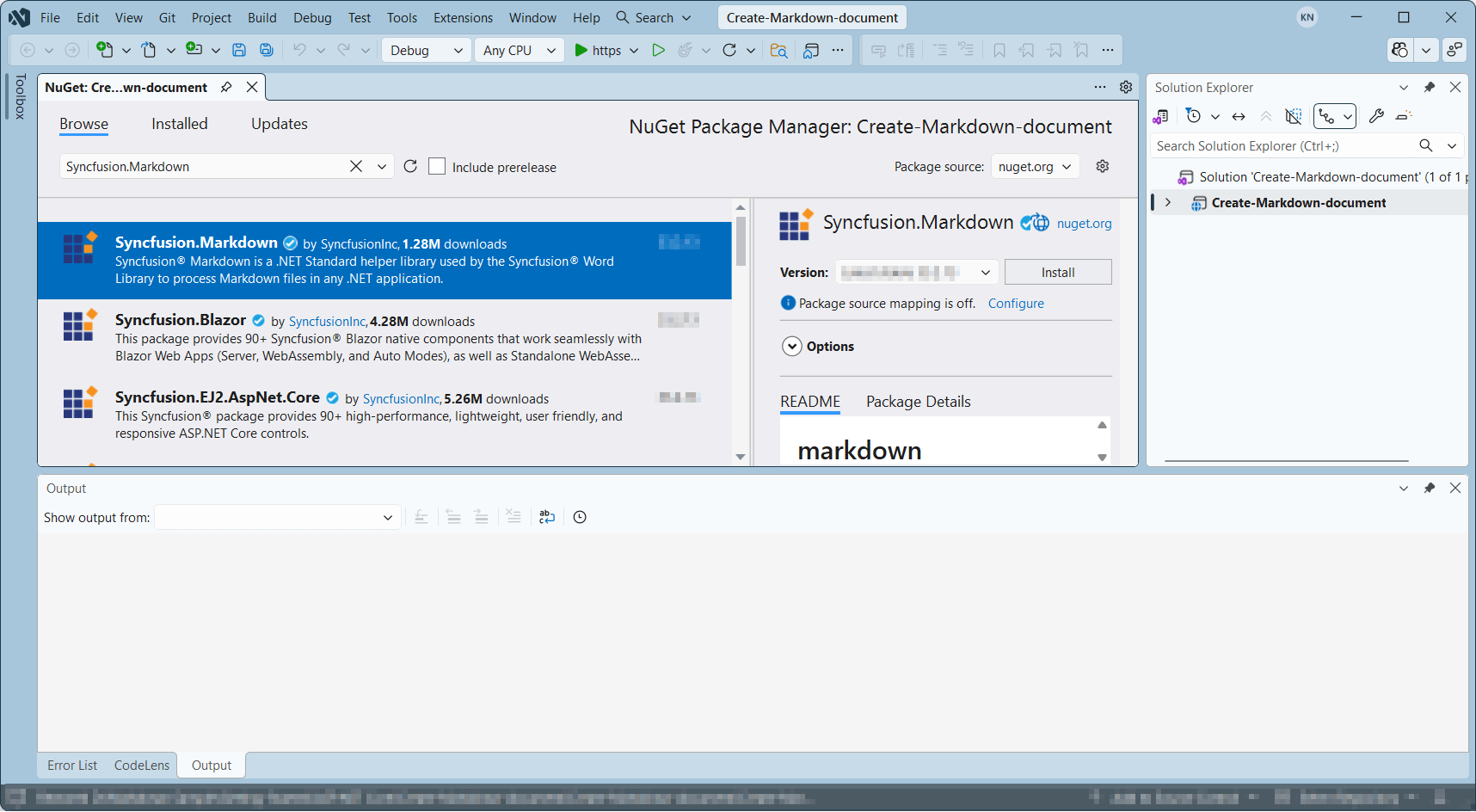

Step 3: Install the Syncfusion.Markdown NuGet package as a reference to your project from NuGet.org.

NOTE

Starting with v34.x.x, if you reference Syncfusion^® assemblies from the trial setup or from the NuGet feed, you must add a reference to the Syncfusion.Licensing assembly and include a valid license key in your application.

Install the Syncfusion.Licensing NuGet package and register the license key during application startup.

Syncfusion.Licensing.SyncfusionLicenseProvider.RegisterLicense("YOUR_LICENSE_KEY");

For more information about generating and registering a license key, refer to the Syncfusion^® licensing documentation.

Step 4: Add a new button to the MainPage.xaml as shown below.

C#

<ContentPage xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             x:Class="Create_Markdown_document.MainPage"
             BackgroundColor="{DynamicResource SecondaryColor}">

    <ScrollView>
        <Grid RowSpacing="25" RowDefinitions="Auto,Auto,Auto,Auto,*"
              Padding="{OnPlatform iOS='30,60,30,30', Default='30'}">
            <Button
                Text="Create Document"
                FontAttributes="Bold"
                Grid.Row="0"
                SemanticProperties.Hint="Creates Markdown document when clicked"
                Clicked="CreateDocument"
                HorizontalOptions="Center" />
        </Grid>
    </ScrollView>
</ContentPage>

Step 5: Include the following namespaces in the MainPage.xaml.cs file.

C#

using Syncfusion.Office.Markdown;
using System.IO;
using System.Reflection;

Step 6: Add a new action method CreateDocument in the MainPage.xaml.cs file and include the following code snippet to create a Markdown document.

C#

// Creates a new instance of MarkdownDocument.
MarkdownDocument markdownDocument = new MarkdownDocument();
// Adds a heading to the Markdown document.
MdParagraph mdHeadingParagraph = markdownDocument.AddParagraph();
// Applies the Heading 1 style to the paragraph.
mdHeadingParagraph.ApplyParagraphStyle("Heading 1");
MdTextRange mdHeadingTextRange = mdHeadingParagraph.AddTextRange();
mdHeadingTextRange.Text = "Adventure Works Cycles";
// Adds a paragraph to the Markdown document.
MdParagraph mdParagraph = markdownDocument.AddParagraph();
MdTextRange mdTextRange = mdParagraph.AddTextRange();
mdTextRange.Text = "Adventure Works Cycles, the fictitious company on which the AdventureWorks sample databases are based, is a large, multinational manufacturing company. The company manufactures and sells metal and composite bicycles to North American, European and Asian commercial markets. While its base operation is in Bothell, Washington with 290 employees, several regional sales teams are located throughout their market base.";
// Adds the first list item.
MdParagraph item1 = markdownDocument.AddParagraph();
item1.ListFormat = new MdListFormat();
item1.ListFormat.IsNumbered = false;
item1.ListFormat.ListLevel = 0;
item1.ListFormat.ListValue = "- ";
item1.AddTextRange().Text = "First item";
// Adds the second list item.
MdParagraph item2 = markdownDocument.AddParagraph();
item2.ListFormat = new MdListFormat();
item2.ListFormat.IsNumbered = false;
item2.ListFormat.ListLevel = 0;
item2.ListFormat.ListValue = "- ";
item2.AddTextRange().Text = "Second item";
// Adds the third list item.
MdParagraph item3 = markdownDocument.AddParagraph();
item3.ListFormat = new MdListFormat();
item3.ListFormat.IsNumbered = false;
item3.ListFormat.ListLevel = 0;
item3.ListFormat.ListValue = "- ";
item3.AddTextRange().Text = "Third item";
// Adds a table to the Markdown document.
MdTable table = markdownDocument.AddTable();
table.ColumnAlignments.Add(MdColumnAlignment.Left);
table.ColumnAlignments.Add(MdColumnAlignment.Left);
// Adds the header row.
MdTableRow headerRow = table.AddTableRow();
MdTableCell header1 = headerRow.AddTableCell();
header1.Items.Add(new MdTextRange { Text = "Profile picture" });
MdTableCell header2 = headerRow.AddTableCell();
header2.Items.Add(new MdTextRange { Text = "Description" });

// Adds a data row.
MdTableRow dataRow = table.AddTableRow();
MdTableCell cell1 = dataRow.AddTableCell();
MdPicture picture = new MdPicture();
picture.Url = "Resources\\Markdown\\photo.jpg";
picture.AltText = "Profile picture";
cell1.Items.Add(picture);
MdTableCell cell2 = dataRow.AddTableCell();
cell2.Items.Add(new MdTextRange { Text = "AdventureWorks Cycles, the fictitious company on which the AdventureWorks sample databases are based, is a large, multinational manufacturing company." });

using MemoryStream ms = new();
//Saves the Markdown document to the memory stream.
markdownDocument.Save(ms);
ms.Position = 0;
// Saves the memory stream as file.
SaveService saveService = new();
saveService.SaveAndView("Sample.md", "text/markdown", ms);

Step 7: Add the platform-specific helper files listed in the Helper files for .NET MAUI section to your project. These files are required for the SaveService.SaveAndView method used in the code to compile and run.

Step 8: Run the application.

1. Select the target framework, device or emulator.
2. Press F5 to run the application.

Helper files for .NET MAUI

Refer to the helper files that should be added to your project. These helper files allow you to save the stream as a physical file and open the file for viewing.

Folder Name	File Name	Summary
.NET MAUI Project	SaveService.cs	Represent the base class for save operation.
Windows	SaveWindows.cs	Save implementation for Windows.
Android	SaveAndroid.cs	Save implementation for Android device.
Mac Catalyst	SaveMac.cs	Save implementation for Mac Catalyst device.
iOS	SaveIOS.cs	Save implementation for iOS device.
	PreviewControllerDS.cs QLPreviewItemFileSystem.cs	Helper classes for viewing the Markdown document in iOS device

You can download a complete working sample from GitHub.

NOTE

The code sample references an image file (photo.jpg). Download this asset from the GitHub sample folder and place it in the application’s Resources/Markdown folder so the MdPicture.Url value ("Resources/Markdown/photo.jpg") resolves correctly at runtime.

By executing the program, you will get the Markdown document as follows.

Looking for the full .NET Markdown Library overview, features, pricing, and documentation? Visit the .NET Markdown Library page.

An online sample link to create a Markdown document in ASP.NET Core.
