About Syncfusion .NET Document Chunking Library

22 Sep 20262 minutes to read

The Syncfusion® .NET Document Chunking Library divides Excel, Word, PDF, PowerPoint, and Markdown documents into meaningful chunks for Retrieval-Augmented Generation (RAG) workflows. The generated chunks are suitable for embedding generation, semantic search, vector indexing, hybrid search, document Q&A, grounded AI responses, citation-based retrieval, and enterprise RAG ingestion pipelines.

The library processes documents based on their native structure to retain relevant elements such as worksheets, paragraphs, tables, pages, slides, sections, and headings. Using the unified ChunkingService API, you can select an appropriate chunking mode, configure the chunk size and overlap, and optionally include metadata and citation details in the generated chunks.

Document Chunking Workflow

The Document Chunking Library processes a source document and generates structured chunks that can be used in search, retrieval, and AI workflows.

The document chunking workflow consists of the following stages:

  1. Provide the source document
    Provide an Excel, Word, PDF, PowerPoint, or Markdown document as a file path or stream.

  2. Configure the chunking options
    Configure the maximum token count, token overlap, metadata, citations, and document-specific chunking mode by using the ChunkingOptions class.

  3. Process the document
    The ChunkingService processes the document based on its native structure and the selected chunking mode.

  4. Generate structured chunks
    The service divides the document content into chunks. Each generated chunk contains the extracted content and can optionally include metadata and citation information.

  5. Use the generated chunks
    Use the generated chunks for embedding generation, semantic search, vector indexing, hybrid search, document Q&A, grounded AI responses, citation-based retrieval, and RAG applications.

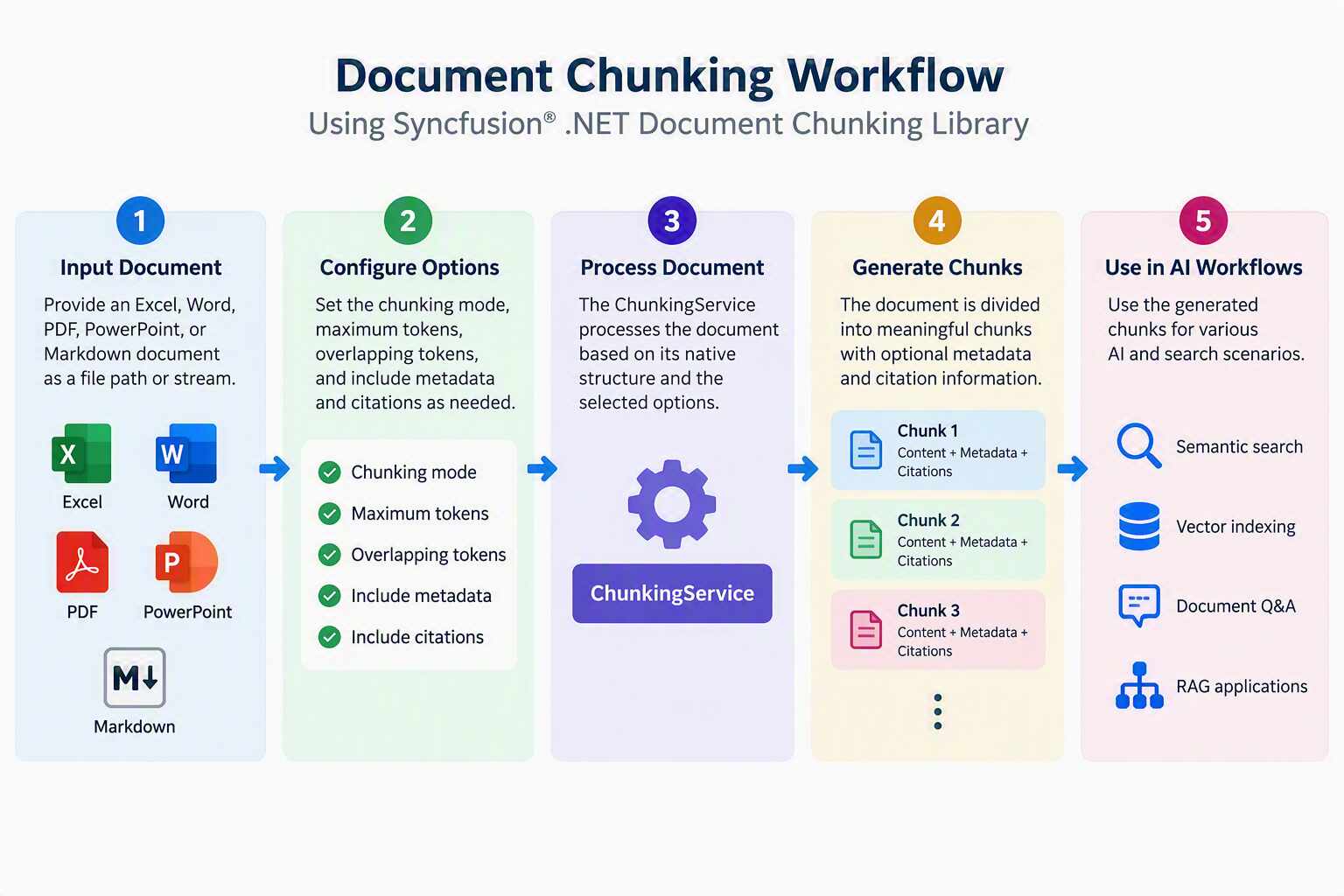

The following diagram illustrates the Document Chunking Library workflow:
Workflow

Chunking Result

The ChunkingService returns an IChunkingResult containing the generated chunks. Each IChunk can provide the following information:

  • A unique chunk identifier
  • The position of the chunk in the result
  • The content extracted from the source document
  • The source document and chunk metadata
  • Citation text and source-location details

The metadata and citation information can vary depending on the source document format, selected chunking mode, and source content type.

Key Features

  • Supports structural chunking of Excel, Word, PDF, PowerPoint, and Markdown documents.
  • Provides Auto, Table, Paragraph, Worksheet, Section, Page, Slide, Notes, and Heading modes based on the selected document format.
  • Supports configuring chunk size and overlap using MaxTokens and OverlapTokens.
  • Supports including metadata and source citations in the generated chunks.
  • Preserves relevant document structures and location details during chunking.

Supported File Formats

Format Extensions
Excel .xlsx, .xls, .xlsm, .xlsb
Word .docx, .doc
PDF .pdf
PowerPoint .ppt,.pptx, .pptm, .potx
Markdown .md
