Getting Started with Windows Forms OCR Processor

14 Aug 20265 minutes to read

The .NET OCR library is used to extract text from scanned PDFs and images in Windows Forms applications with the help of Google’s Tesseract Optical Character Recognition engine.

Prerequisites

Version Compatibility

  • Syncfusion.Pdf.OCR.WinForms supports .NET Framework 4.6.2 and later, as well as .NET 8.0 for Windows and later

Supported Inputs

The OCR processor supports the following input formats:

  • Single-page and multi-page PDF documents
  • Scanned images in common formats (JPEG, PNG, TIFF)
  • Recommended DPI: 200 DPI or higher for optimal OCR accuracy

Register the License Key

NOTE

Starting with v16.2.0.x, if you reference Syncfusion® assemblies from trial setup or from the NuGet feed, you must add the “Syncfusion.Licensing” assembly reference and register a license key in your application. Please refer to this link for details on registering a Syncfusion® license key.

To register the license key, add the following code to your Form1.cs file at the beginning of the form’s constructor or the Main method:

using Syncfusion.Licensing;

public Form1()
{
    InitializeComponent();
    SyncfusionLicenseProvider.RegisterLicense("YOUR_LICENSE_KEY");
}

NOTE

  1. Beginning from version 21.1.x, the TesseractBinaries and Tesseract language data folders are now included by default; you no longer have to set these paths explicitly.
  2. The current NuGet package includes Tesseract 5.0, which provides support for 100+ languages.

Steps to perform OCR on an entire PDF document in Windows Forms

Step 1: Create a new Windows Forms application project.

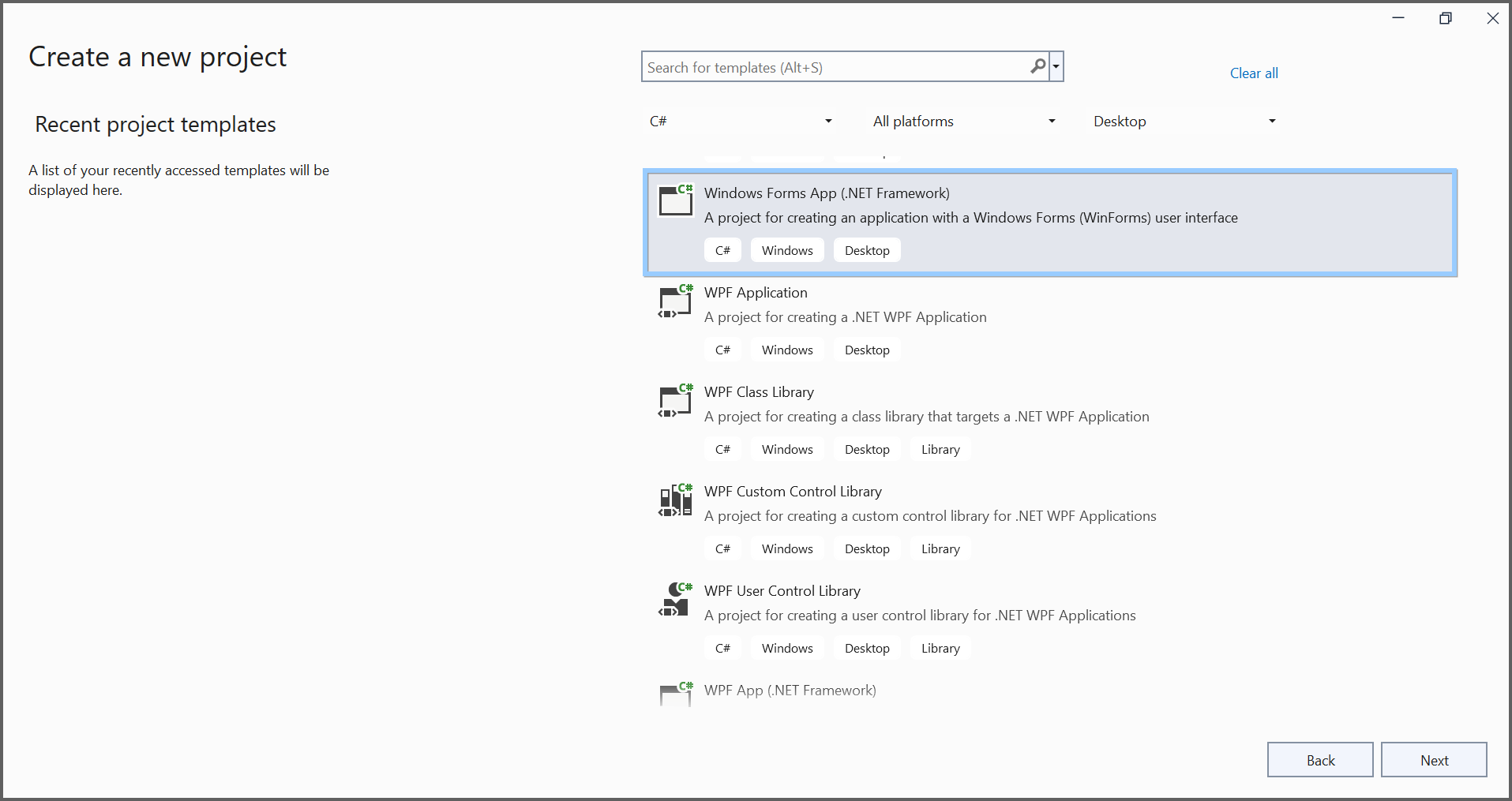

Create WF project

In the project configuration window, select your target framework (.NET Framework 4.6.2 or later), name your project, and select Create.

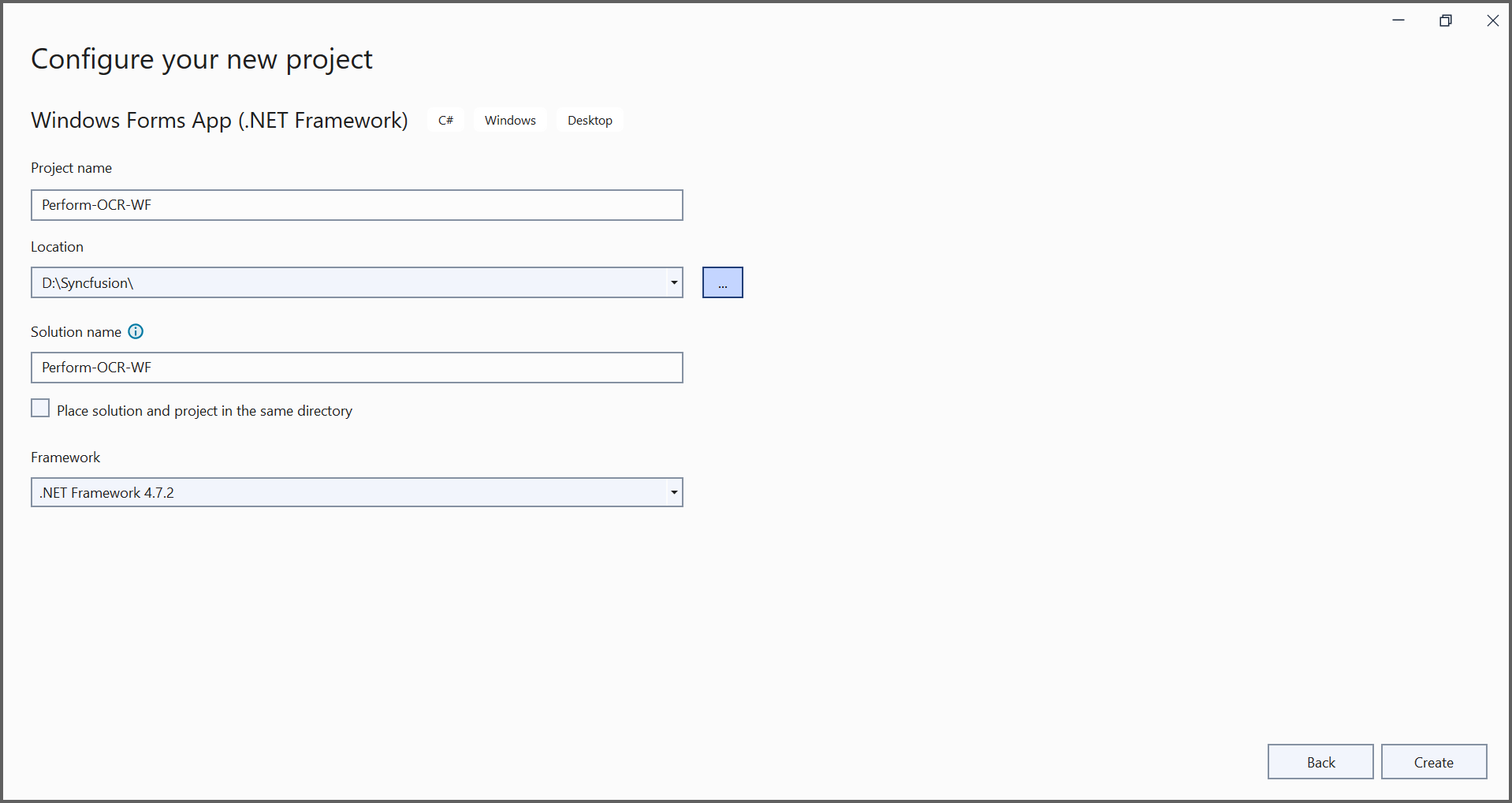

Project configuration window

Step 2: Install the Syncfusion.Pdf.OCR.WinForms NuGet package into your WinForms application from nuget.org.

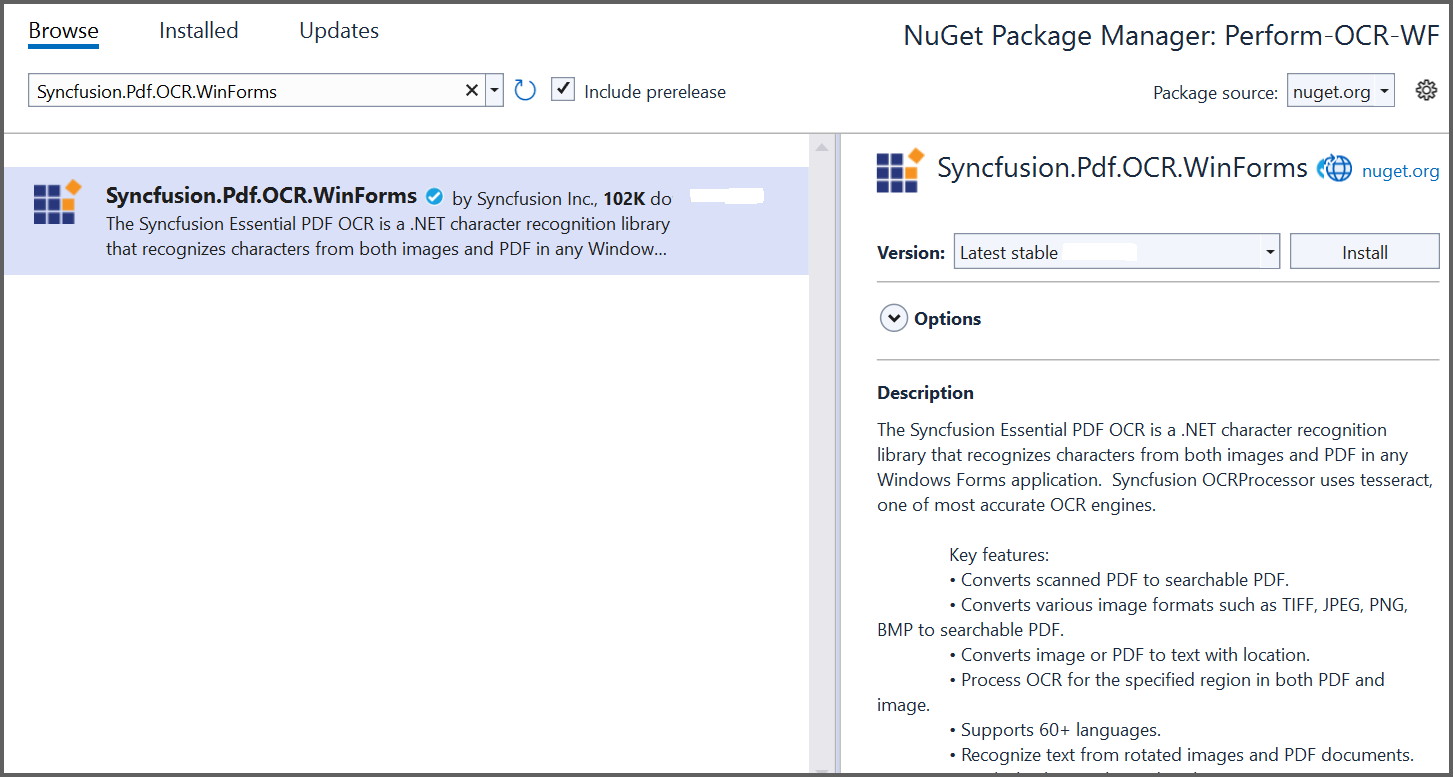

OCR NuGet package installation

Step 3: Add a new button in Form1.Designer.cs file.

private System.Windows.Forms.Button button1;

private void InitializeComponent()
{
    this.button1 = new System.Windows.Forms.Button();
    this.SuspendLayout();
    // button1
    this.button1.Location = new System.Drawing.Point(284, 162);
    this.button1.Name = "button1";
    this.button1.Size = new System.Drawing.Size(190, 65);
    this.button1.TabIndex = 0;
    this.button1.Text = "Perform OCR on entire PDF document";
    this.button1.UseVisualStyleBackColor = true;
    this.button1.Click += new System.EventHandler(this.btnCreate_Click);
    // Form1
    this.AutoScaleDimensions = new System.Drawing.SizeF(9F, 20F);
    this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
    this.ClientSize = new System.Drawing.Size(800, 450);
    this.Controls.Add(this.button1);
    this.Name = "Form1";
    this.Text = "Form1";
    this.ResumeLayout(false);
}

Step 4: Include the following namespaces in the Form1.cs file.

using Syncfusion.OCRProcessor;
using Syncfusion.Pdf.Parsing;

Step 5: Create the btnCreate_Click event and add the following code to perform OCR on the entire PDF document using PerformOCR method of the OCRProcessor class.

private void btnCreate_Click(object sender, EventArgs e)
{
    //Initialize the OCR processor.
    using (OCRProcessor processor = new OCRProcessor())
    {
        //Load an existing PDF document.
        PdfLoadedDocument loadedDocument = new PdfLoadedDocument("Input.pdf");
        //Set the Tesseract version
        processor.Settings.TesseractVersion = TesseractVersion.Version5_0;
        //Set OCR language to process.
        processor.Settings.Language = Languages.English;
        //Process OCR by providing the PDF document.
        processor.PerformOCR(loadedDocument);
        //Save the OCR processed PDF document to disk.
        loadedDocument.Save("OCR.pdf");
        loadedDocument.Close(true);
    }
}

By executing the program, you will get a PDF document as follows.
OCR output

A complete working sample can be downloaded from GitHub.
