Perform OCR in Docker

17 Jul 20265 minutes to read

The .NET OCR library is used to extract text from scanned PDFs and images in Docker applications with the help of Google’s Tesseract Optical Character Recognition engine.

Prerequisites

Version Compatibility

• Syncfusion.PDF.OCR.Net.Core supports .NET 8.0 and later versions.

Supported Inputs

The OCR processor supports the following input formats:

• Single-page and multi-page PDF documents
• Scanned images in common formats (JPEG, PNG, TIFF)
• Recommended DPI: 200 DPI or higher for optimal OCR accuracy

Required Software

• .NET 8 SDK or later
• Docker installed and running
• Linux container image (typically Ubuntu)

Register the License Key

NOTE

Starting with v16.2.0.x, if you reference Syncfusion® assemblies from trial setup or from the NuGet feed, you must add the Syncfusion.Licensing assembly reference and register a license key in your application. For more information, see the licensing documentation.

Include the following code in the Program.cs file to register the license key:

C#

using Syncfusion.Licensing;

// Register Syncfusion license at application startup
SyncfusionLicenseProvider.RegisterLicense("YOUR LICENSE KEY");

NOTE

1. Beginning from version 21.1.x, the TesseractBinaries and Tesseract language data folders are now included by default; you no longer have to set these paths explicitly.
2. The current NuGet package includes Tesseract 5.0, which provides support for 100+ languages.

Steps to perform OCR on entire PDF document in Docker

Step 1: Create a new ASP.NET Core application project targeting .NET 8.0 or later.

Step 2: In the project configuration window, name your project and select Next.

Step 3: Enable Docker support with Linux as the target OS.

Step 4: Install the Syncfusion.PDF.OCR.Net.Core NuGet package into your .NET applications from NuGet.org.

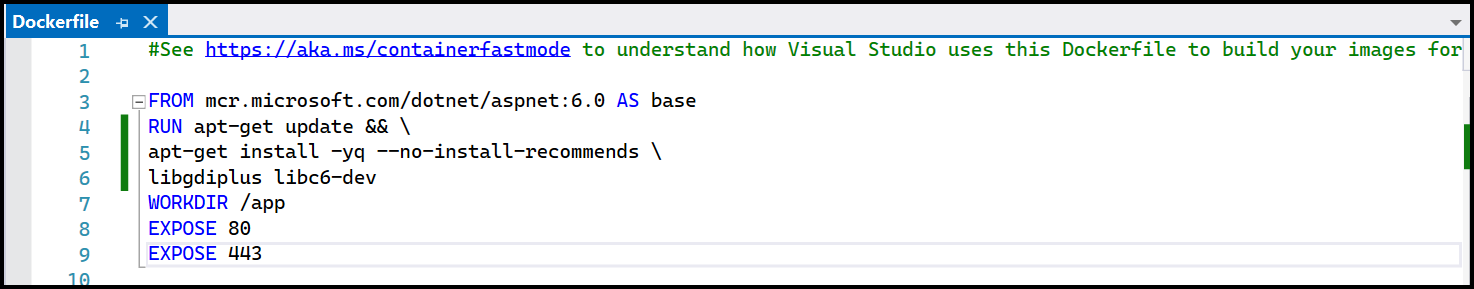

Step 5: Include the following commands in the Dockerfile to install the required system packages:

BASH

RUN apt-get update && \
apt-get install -yq --no-install-recommends \
libgdiplus libc6-dev libleptonica-dev libjpeg62
RUN ln -s /usr/lib/x86_64-linux-gnu/libtiff.so.6 /usr/lib/x86_64-linux-gnu/libtiff.so.5
RUN ln -s /lib/x86_64-linux-gnu/libdl.so.2 /usr/lib/x86_64-linux-gnu/libdl.so

Step 6: A default action method named Index is present in HomeController.cs. Right-click on the Index method and select Go to View to navigate to its associated view page Index.cshtml.

Step 7: Add a new button in Index.cshtml as follows:

CSHTML

@{Html.BeginForm("PerformOCR", "Home", FormMethod.Get);
    {
        <div>
            <input type="submit" value="Perform OCR on entire PDF" style="width:200px;height:27px" />
        </div>
    }
    Html.EndForm();
}

Step 8: A default controller named HomeController.cs is added when you create an ASP.NET Core project. Include the following namespaces in HomeController.cs:

C#

using Syncfusion.OCRProcessor;
using Syncfusion.Pdf.Parsing;

Step 9: Add a new action method PerformOCR in HomeController.cs to perform OCR on the entire PDF document using the PerformOCR method of the OCRProcessor class:

C#

public ActionResult PerformOCR()
{
    string docPath = _hostingEnvironment.WebRootPath + "/Data/Input.pdf";
    // Initialize the OCR processor
    using (OCRProcessor processor = new OCRProcessor())
    {
        FileStream fileStream = new FileStream(docPath, FileMode.Open, FileAccess.Read);
        // Load a PDF document
        PdfLoadedDocument lDoc = new PdfLoadedDocument(fileStream);
        // Set the OCR language
        processor.Settings.Language = Languages.English;
        // Set Tesseract version
        processor.Settings.TesseractVersion = TesseractVersion.Version5_0;
        // Process OCR on the PDF document
        processor.PerformOCR(lDoc);
        // Create memory stream and save the processed document
        MemoryStream stream = new MemoryStream();
        lDoc.Save(stream);
        lDoc.Close();
        // Set the position to 0 and return as file download
        stream.Position = 0;
        FileStreamResult fileStreamResult = new FileStreamResult(stream, "application/pdf");
        fileStreamResult.FileDownloadName = "Output.pdf";
        return fileStreamResult;
    }
}

Step 10: Build and run the application in Docker. It will pull the Linux Docker image and run the project. The webpage will open in your browser. Click the button to perform OCR on the PDF document.

By executing the program, you will get a PDF document with extracted text as shown below:

A complete working sample for performing OCR in a Docker container can be downloaded from GitHub.
