Responsive

The Kanban control has support for responsive behavior based on client browser’s width and height. To enable responsive, e-is-responsive property should be true.There are two modes of responsive layout is available in Kanban based on client width. They are.

  • Mobile(<480px)
  • Desktop(>480px)

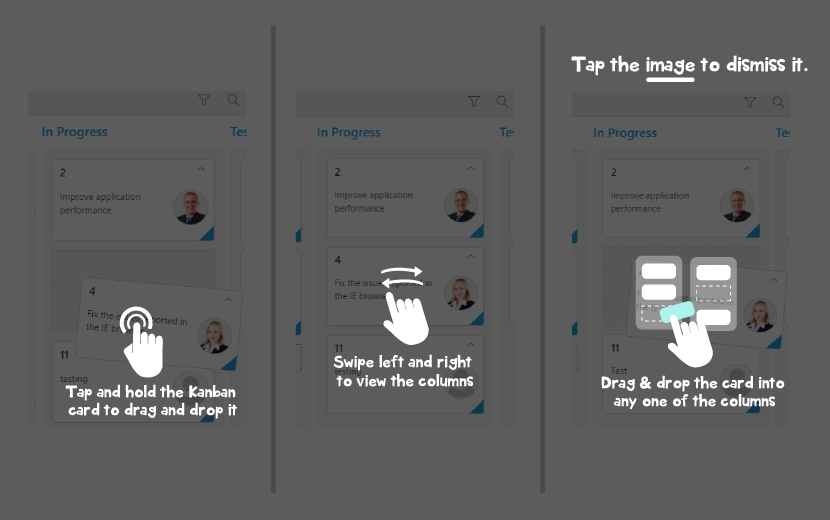

You can check the image representation of touch actions from the below image.

Width

By default, the Kanban is adaptable to its parent container. It can adjust its width of columns based on parent container width. You can also assign width of ej-kanban-column in percentage.

The following code example describes the above behavior.

  • html
  • <template>
        <div>
            <ej-kanban id="Kanban" e-data-source.bind="KanbanData" e-is-responsive="true" e-key-field="Status" e-fields.bind="Field">
                <ej-kanban-column e-header-text="Backlog" e-key="Open" e-width=10%></ej-kanban-column>
                <ej-kanban-column e-header-text="In Progress" e-key="InProgress" e-width=10%></ej-kanban-column>
                <ej-kanban-column e-header-text="Done" e-key="Close" e-width=10%></ej-kanban-column>
            </ej-kanban>
        </div>
    </template>
  • javascript
  • export class Kanban {
        constructor() {
            this.KanbanData = [
               { Id: 1, Status: "Open", Summary: "Analyze the new requirements gathered from the customer.", Type: "Story", Priority: "Low", Tags: "Analyze,Customer", Estimate: 3.5, Assignee: "Nancy Davloio", ImgUrl: "/images/kanban/1.png", RankId: 1 },
               { Id: 2, Status: "InProgress", Summary: "Improve application performance", Type: "Improvement", Priority: "Normal", Tags: "Improvement", Estimate: 6, Assignee: "Andrew Fuller", ImgUrl: "/images/kanban/2.png", RankId: 1 },
               { Id: 3, Status: "Open", Summary: "Arrange a web meeting with the customer to get new requirements.", Type: "Others", Priority: "Critical", Tags: "Meeting", Estimate: 5.5, Assignee: "Janet Leverling", ImgUrl: "/images/kanban/3.png", RankId: 2 },
               { Id: 4, Status: "InProgress", Summary: "Fix the issues reported in the IE browser.", Type: "Bug", Priority: "Release Breaker", Tags: "IE", Estimate: 2.5, Assignee: "Janet Leverling", ImgUrl: "/images/kanban/3.png", RankId: 2 },
               { Id: 5, Status: "Testing", Summary: "Fix the issues reported by the customer.", Type: "Bug", Priority: "Low", Tags: "Customer", Estimate: "3.5", Assignee: "Steven walker", ImgUrl:"/images/kanban/5.png", RankId: 1 },
               { Id: 6, Status: "Close", Summary: "Arrange a web meeting with the customer to get the login page requirements.", Type: "Others", Priority: "Low", Tags: "Meeting", Estimate: 2, Assignee: "Michael Suyama", ImgUrl: "/images/kanban/6.png", RankId: 1 },
               { Id: 7, Status: "Validate", Summary: "Validate new requirements", Type: "Improvement", Priority: "Low", Tags: "Validation", Estimate: 1.5, Assignee: "Robert King", ImgUrl: "/images/kanban/7.png", RankId: 1 },
               { Id: 8, Status: "Close", Summary: "Login page validation", Type: "Story", Priority: "Release Breaker", Tags: "Validation,Fix", Estimate: 2.5, Assignee: "Laura Callahan", ImgUrl: "/images/kanban/8.png", RankId: 2 },
               { Id: 9, Status: "Testing", Summary: "Fix the issues reported in Safari browser.", Type: "Bug", Priority: "Release Breaker", Tags: "Fix,Safari", Estimate: 1.5, Assignee: "Nancy Davloio", ImgUrl: "/images/kanban/1.png", RankId: 2 },
               { Id: 10, Status: "Close", Summary: "Test the application in the IE browser.", Type: "Story", Priority: "Low", Tags: "Testing,IE", Estimate: 5.5, Assignee: "Margaret hamilt", ImgUrl: "/images/kanban/4.png", RankId: 3 },
               { Id: 11, Status: "Validate", Summary: "Validate the issues reported by the customer.", Type: "Story", Priority: "High", Tags: "Validation,Fix", Estimate: 1, Assignee: "Steven walker", ImgUrl: "/images/kanban/5.png", RankId: 1 },
               { Id: 12, Status: "Testing", Summary: "Check Login page validation.", Type: "Story", Priority: "Release Breaker", Tags: "Testing", Estimate: 0.5, Assignee: "Michael Suyama", ImgUrl: "/images/kanban/6.png", RankId: 3 },
               { Id: 13, Status: "Open", Summary: "API improvements.", Type: "Improvement", Priority: "High", Tags: "Grid,API", Estimate: 3.5, Assignee: "Robert King", ImgUrl: "/images/kanban/7.png", RankId: 3 },
               { Id: 14, Status: "InProgress", Summary: "Add responsive support to application", Type: "Epic", Priority: "Critical", Tags: "Responsive", Estimate: 6, Assignee: "Laura Callahan", ImgUrl: "/images/kanban/8.png", RankId: 3 },
               { Id: 15, Status: "Open", Summary: "Show the retrieved data from the server in grid control.", Type: "Story", Priority: "High", Tags: "Database,SQL", Estimate: 5.5, Assignee: "Margaret hamilt", ImgUrl: "/images/kanban/4.png", RankId: 4 },
               { Id: 16, Status: "InProgress", Summary: "Fix cannot open user’s default database SQL error.", Priority: "Critical", Type: "Bug", Tags: "Database,Sql2008", Estimate: 2.5, Assignee: "Janet Leverling", ImgUrl: "/images/kanban/3.png", RankId: 4 },
               { Id: 17, Status: "Testing", Summary: "Fix the issues reported in data binding.", Type: "Story", Priority: "Normal", Tags: "Databinding", Estimate: "3.5", Assignee: "Janet Leverling", ImgUrl: "/images/kanban/3.png", RankId: 4 },
               { Id: 18, Status: "Close", Summary: "Analyze SQL server 2008 connection.", Type: "Story", Priority: "Release Breaker", Tags: "Grid,Sql", Estimate: 2, Assignee: "Andrew Fuller", ImgUrl: "/images/kanban/2.png", RankId: 4 },
               { Id: 19, Status: "Validate", Summary: "Validate databinding issues.", Type: "Story", Priority: "Low", Tags: "Validation", Estimate: 1.5, Assignee: "Margaret hamilt", ImgUrl: "/images/kanban/4.png", RankId: 1 },
               { Id: 20, Status: "Close", Summary: "Analyze grid control.", Type: "Story", Priority: "High", Tags: "Analyze", Estimate: 2.5, Assignee: "Margaret hamilt", ImgUrl: "/images/kanban/4.png", RankId: 5 }];
            this.Field = { primaryKey: 'Id', content: 'Summary', tag: 'Tags'};
        }
    }

    NOTE

    e-allow-scrolling should be false while defining width in percentage.

    Min Width

    Min Width is used to maintain minimum width for the Kanban. If the Kanban width is less than e-min-width then the scrollbar will be displayed to maintain minimum width.

    The following code example describes the above behavior.

  • html
  • <template>
        <div>
            <ej-kanban id="Kanban" e-data-source.bind="KanbanData" e-is-responsive="true" e-min-width=700 e-key-field="Status" e-fields.bind="Field">
                <ej-kanban-column e-header-text="Backlog" e-key="Open" e-width=120></ej-kanban-column>
                <ej-kanban-column e-header-text="In Progress" e-key="InProgress" e-width=110></ej-kanban-column>
                <ej-kanban-column e-header-text="Done" e-key="Close" e-width=></ej-kanban-column>
            </ej-kanban>
        </div>
    </template>
  • javascript
  • export class Kanban {
        constructor() {
            this.KanbanData = [
               { Id: 1, Status: "Open", Summary: "Analyze the new requirements gathered from the customer.", Type: "Story", Priority: "Low", Tags: "Analyze,Customer", Estimate: 3.5, Assignee: "Nancy Davloio", ImgUrl: "/images/kanban/1.png", RankId: 1 },
               { Id: 2, Status: "InProgress", Summary: "Improve application performance", Type: "Improvement", Priority: "Normal", Tags: "Improvement", Estimate: 6, Assignee: "Andrew Fuller", ImgUrl: "/images/kanban/2.png", RankId: 1 },
               { Id: 3, Status: "Open", Summary: "Arrange a web meeting with the customer to get new requirements.", Type: "Others", Priority: "Critical", Tags: "Meeting", Estimate: 5.5, Assignee: "Janet Leverling", ImgUrl: "/images/kanban/3.png", RankId: 2 },
               { Id: 4, Status: "InProgress", Summary: "Fix the issues reported in the IE browser.", Type: "Bug", Priority: "Release Breaker", Tags: "IE", Estimate: 2.5, Assignee: "Janet Leverling", ImgUrl: "/images/kanban/3.png", RankId: 2 },
               { Id: 5, Status: "Testing", Summary: "Fix the issues reported by the customer.", Type: "Bug", Priority: "Low", Tags: "Customer", Estimate: "3.5", Assignee: "Steven walker", ImgUrl:"/images/kanban/5.png", RankId: 1 },
               { Id: 6, Status: "Close", Summary: "Arrange a web meeting with the customer to get the login page requirements.", Type: "Others", Priority: "Low", Tags: "Meeting", Estimate: 2, Assignee: "Michael Suyama", ImgUrl: "/images/kanban/6.png", RankId: 1 },
               { Id: 7, Status: "Validate", Summary: "Validate new requirements", Type: "Improvement", Priority: "Low", Tags: "Validation", Estimate: 1.5, Assignee: "Robert King", ImgUrl: "/images/kanban/7.png", RankId: 1 },
               { Id: 8, Status: "Close", Summary: "Login page validation", Type: "Story", Priority: "Release Breaker", Tags: "Validation,Fix", Estimate: 2.5, Assignee: "Laura Callahan", ImgUrl: "/images/kanban/8.png", RankId: 2 },
               { Id: 9, Status: "Testing", Summary: "Fix the issues reported in Safari browser.", Type: "Bug", Priority: "Release Breaker", Tags: "Fix,Safari", Estimate: 1.5, Assignee: "Nancy Davloio", ImgUrl: "/images/kanban/1.png", RankId: 2 },
               { Id: 10, Status: "Close", Summary: "Test the application in the IE browser.", Type: "Story", Priority: "Low", Tags: "Testing,IE", Estimate: 5.5, Assignee: "Margaret hamilt", ImgUrl: "/images/kanban/4.png", RankId: 3 },
               { Id: 11, Status: "Validate", Summary: "Validate the issues reported by the customer.", Type: "Story", Priority: "High", Tags: "Validation,Fix", Estimate: 1, Assignee: "Steven walker", ImgUrl: "/images/kanban/5.png", RankId: 1 },
               { Id: 12, Status: "Testing", Summary: "Check Login page validation.", Type: "Story", Priority: "Release Breaker", Tags: "Testing", Estimate: 0.5, Assignee: "Michael Suyama", ImgUrl: "/images/kanban/6.png", RankId: 3 },
               { Id: 13, Status: "Open", Summary: "API improvements.", Type: "Improvement", Priority: "High", Tags: "Grid,API", Estimate: 3.5, Assignee: "Robert King", ImgUrl: "/images/kanban/7.png", RankId: 3 },
               { Id: 14, Status: "InProgress", Summary: "Add responsive support to application", Type: "Epic", Priority: "Critical", Tags: "Responsive", Estimate: 6, Assignee: "Laura Callahan", ImgUrl: "/images/kanban/8.png", RankId: 3 },
               { Id: 15, Status: "Open", Summary: "Show the retrieved data from the server in grid control.", Type: "Story", Priority: "High", Tags: "Database,SQL", Estimate: 5.5, Assignee: "Margaret hamilt", ImgUrl: "/images/kanban/4.png", RankId: 4 },
               { Id: 16, Status: "InProgress", Summary: "Fix cannot open user’s default database SQL error.", Priority: "Critical", Type: "Bug", Tags: "Database,Sql2008", Estimate: 2.5, Assignee: "Janet Leverling", ImgUrl: "/images/kanban/3.png", RankId: 4 },
               { Id: 17, Status: "Testing", Summary: "Fix the issues reported in data binding.", Type: "Story", Priority: "Normal", Tags: "Databinding", Estimate: "3.5", Assignee: "Janet Leverling", ImgUrl: "/images/kanban/3.png", RankId: 4 },
               { Id: 18, Status: "Close", Summary: "Analyze SQL server 2008 connection.", Type: "Story", Priority: "Release Breaker", Tags: "Grid,Sql", Estimate: 2, Assignee: "Andrew Fuller", ImgUrl: "/images/kanban/2.png", RankId: 4 },
               { Id: 19, Status: "Validate", Summary: "Validate databinding issues.", Type: "Story", Priority: "Low", Tags: "Validation", Estimate: 1.5, Assignee: "Margaret hamilt", ImgUrl: "/images/kanban/4.png", RankId: 1 },
               { Id: 20, Status: "Close", Summary: "Analyze grid control.", Type: "Story", Priority: "High", Tags: "Analyze", Estimate: 2.5, Assignee: "Margaret hamilt", ImgUrl: "/images/kanban/4.png", RankId: 5 }];
            this.Field = { primaryKey: 'Id', content: 'Summary', tag: 'Tags'};
        }
    }

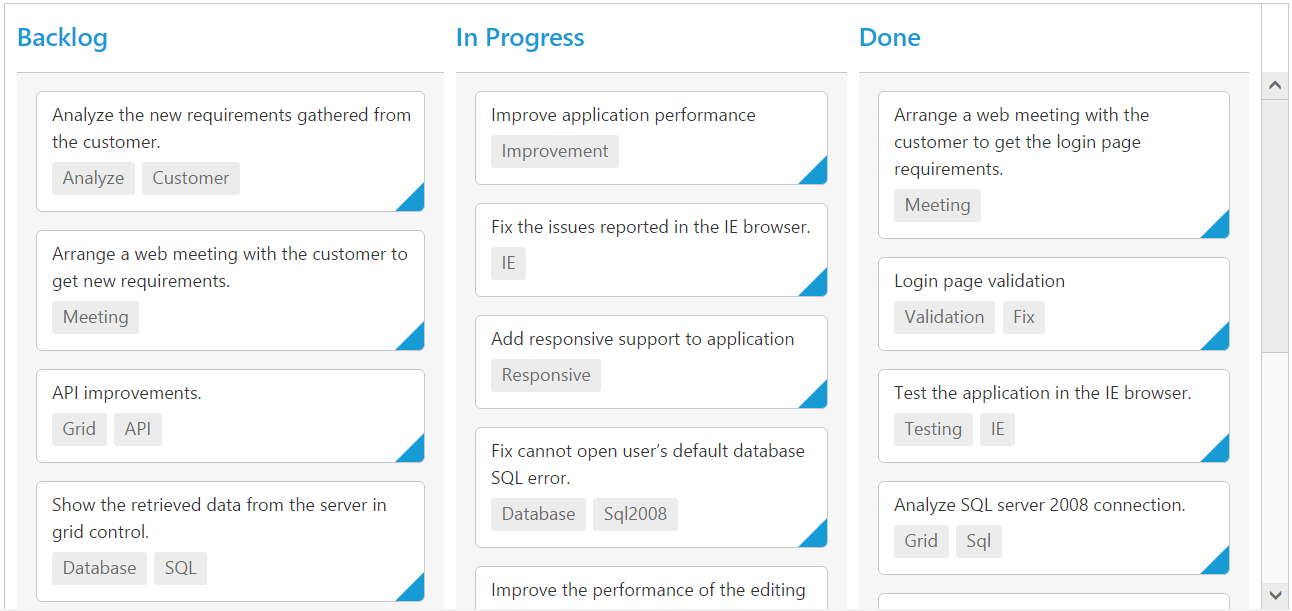

    The following output is displayed as a result of the above code example.
