Cards

Customization

Cards can be customized with appropriate mapping fields from the database. The customizable mapping properties are listed as follows

Mapping Fields Description

content

Map the column name to use as content to cards.

tag

Map the column name to use as tag. Multiple tags can be given with comma separated. E.g. "API","SQL, Database".

color

Map the column name to use as colors to highlight cards left border.

colorMapping

Map the colors to use with column values which is mapped with `fields.color`.

imageUrl

Map the column name to use as image to cards.

primaryKey

Map the column name to use as primary key to cards.

priority

Map the column name to use as priority to cards.

title

Map the column name to use as title to cards. Default title is `primaryKey`.

e-allow-title

Set as true to enable title for card.

The following code example describes the above behavior.

  • html
  • <template>
      <div>
         <ej-kanban id="Kanban" e-data-source.bind="KanbanData" e-key-field="Status" e-fields.bind="Field" e-allow-title="true" e-card-settings.bind="cardSettings">
           <ej-kanban-column  e-header-text="Backlog" e-key="Open"></ej-kanban-column>
    	   <ej-kanban-column  e-header-text="In Progress" e-key="InProgress"></ej-kanban-column>
    	   <ej-kanban-column  e-header-text="Done" e-key="Close"></ej-kanban-column>
         </ej-kanban>
      </div>
    </template>
  • html
  • export class Kanban {
        constructor() {
            this.KanbanData = [
               { Id: 1, Status: "Open", Summary: "Analyze the new requirements gathered from the customer.", Type: "Story", Priority: "Low", Tags: "Analyze,Customer", Estimate: 3.5, Assignee: "Nancy Davloio", ImgUrl: "/images/kanban/1.png", RankId: 1 },
               { Id: 2, Status: "InProgress", Summary: "Improve application performance", Type: "Improvement", Priority: "Normal", Tags: "Improvement", Estimate: 6, Assignee: "Andrew Fuller", ImgUrl: "/images/kanban/2.png", RankId: 1 },
               { Id: 3, Status: "Open", Summary: "Arrange a web meeting with the customer to get new requirements.", Type: "Others", Priority: "Critical", Tags: "Meeting", Estimate: 5.5, Assignee: "Janet Leverling", ImgUrl: "/images/kanban/3.png", RankId: 2 },
               { Id: 4, Status: "InProgress", Summary: "Fix the issues reported in the IE browser.", Type: "Bug", Priority: "Release Breaker", Tags: "IE", Estimate: 2.5, Assignee: "Janet Leverling", ImgUrl: "/images/kanban/3.png", RankId: 2 },
               { Id: 5, Status: "Testing", Summary: "Fix the issues reported by the customer.", Type: "Bug", Priority: "Low", Tags: "Customer", Estimate: "3.5", Assignee: "Steven walker", ImgUrl:"/images/kanban/5.png", RankId: 1 },
               { Id: 6, Status: "Close", Summary: "Arrange a web meeting with the customer to get the login page requirements.", Type: "Others", Priority: "Low", Tags: "Meeting", Estimate: 2, Assignee: "Michael Suyama", ImgUrl: "/images/kanban/6.png", RankId: 1 },
               { Id: 7, Status: "Validate", Summary: "Validate new requirements", Type: "Improvement", Priority: "Low", Tags: "Validation", Estimate: 1.5, Assignee: "Robert King", ImgUrl: "/images/kanban/7.png", RankId: 1 },
               { Id: 8, Status: "Close", Summary: "Login page validation", Type: "Story", Priority: "Release Breaker", Tags: "Validation,Fix", Estimate: 2.5, Assignee: "Laura Callahan", ImgUrl: "/images/kanban/8.png", RankId: 2 },
               { Id: 9, Status: "Testing", Summary: "Fix the issues reported in Safari browser.", Type: "Bug", Priority: "Release Breaker", Tags: "Fix,Safari", Estimate: 1.5, Assignee: "Nancy Davloio", ImgUrl: "/images/kanban/1.png", RankId: 2 },
               { Id: 10, Status: "Close", Summary: "Test the application in the IE browser.", Type: "Story", Priority: "Low", Tags: "Testing,IE", Estimate: 5.5, Assignee: "Margaret hamilt", ImgUrl: "/images/kanban/4.png", RankId: 3 },
               { Id: 11, Status: "Validate", Summary: "Validate the issues reported by the customer.", Type: "Story", Priority: "High", Tags: "Validation,Fix", Estimate: 1, Assignee: "Steven walker", ImgUrl: "/images/kanban/5.png", RankId: 1 },
               { Id: 12, Status: "Testing", Summary: "Check Login page validation.", Type: "Story", Priority: "Release Breaker", Tags: "Testing", Estimate: 0.5, Assignee: "Michael Suyama", ImgUrl: "/images/kanban/6.png", RankId: 3 },
               { Id: 13, Status: "Open", Summary: "API improvements.", Type: "Improvement", Priority: "High", Tags: "Grid,API", Estimate: 3.5, Assignee: "Robert King", ImgUrl: "/images/kanban/7.png", RankId: 3 },
               { Id: 14, Status: "InProgress", Summary: "Add responsive support to application", Type: "Epic", Priority: "Critical", Tags: "Responsive", Estimate: 6, Assignee: "Laura Callahan", ImgUrl: "/images/kanban/8.png", RankId: 3 },
               { Id: 15, Status: "Open", Summary: "Show the retrieved data from the server in grid control.", Type: "Story", Priority: "High", Tags: "Database,SQL", Estimate: 5.5, Assignee: "Margaret hamilt", ImgUrl: "/images/kanban/4.png", RankId: 4 },
               { Id: 16, Status: "InProgress", Summary: "Fix cannot open user’s default database SQL error.", Priority: "Critical", Type: "Bug", Tags: "Database,Sql2008", Estimate: 2.5, Assignee: "Janet Leverling", ImgUrl: "/images/kanban/3.png", RankId: 4 },
               { Id: 17, Status: "Testing", Summary: "Fix the issues reported in data binding.", Type: "Story", Priority: "Normal", Tags: "Databinding", Estimate: "3.5", Assignee: "Janet Leverling", ImgUrl: "/images/kanban/3.png", RankId: 4 },
               { Id: 18, Status: "Close", Summary: "Analyze SQL server 2008 connection.", Type: "Story", Priority: "Release Breaker", Tags: "Grid,Sql", Estimate: 2, Assignee: "Andrew Fuller", ImgUrl: "/images/kanban/2.png", RankId: 4 },
               { Id: 19, Status: "Validate", Summary: "Validate databinding issues.", Type: "Story", Priority: "Low", Tags: "Validation", Estimate: 1.5, Assignee: "Margaret hamilt", ImgUrl: "/images/kanban/4.png", RankId: 1 },
               { Id: 20, Status: "Close", Summary: "Analyze grid control.", Type: "Story", Priority: "High", Tags: "Analyze", Estimate: 2.5, Assignee: "Margaret hamilt", ImgUrl: "/images/kanban/4.png", RankId: 5 }];
            this.Field = { primaryKey: 'Id', content: 'Summary', priority: 'RankId', tag:'Tags', color: 'Type', imageUrl:'ImgUrl'};
            this.cardSettings = {
                colorMapping: {
                    "#cb2027": "Bug,Story",
                    "#67ab47": "Improvement",
                    "#fbae19": "Epic",
                    "#6a5da8": "Others"
                }
            };
        }
    }

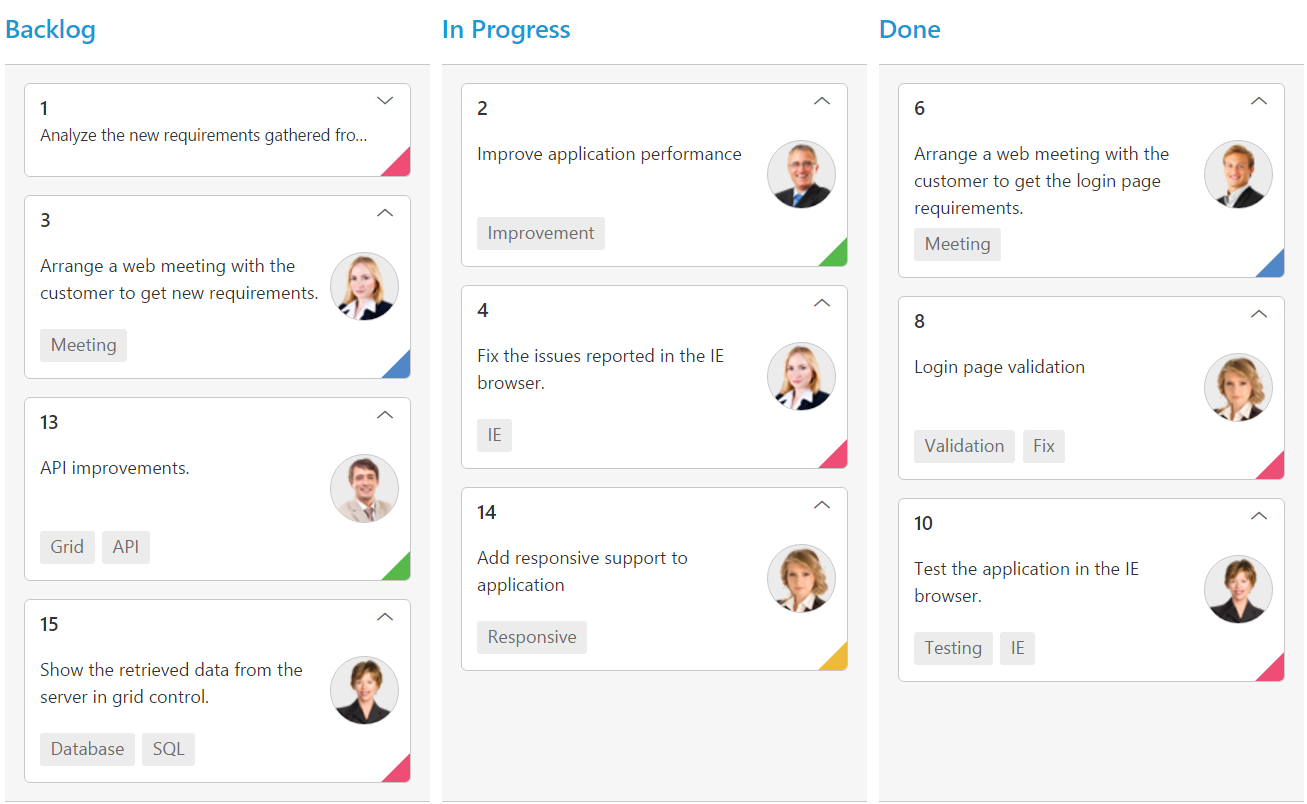

    The following output is displayed as a result of the above code example.

    Template

    Templates are used to create custom card layout as per the user convenient. HTML templates can be specified in the template property of the e-card-settings.bind as an ID of the template’s HTML element.

    You can use JsRender syntax in the template. For more information about JsRender syntax, please refer this link.

    The following code example describes the above behavior.

  • html
  • <template>
      <div>
         <ej-kanban id="Kanban" e-data-source.bind="KanbanData" e-key-field="Status" e-fields.bind="Field" e-allow-title="true" e-card-settings.bind="cardSettings">
           <ej-kanban-column  e-header-text="Backlog" e-key="Open"></ej-kanban-column>
    	   <ej-kanban-column  e-header-text="In Progress" e-key="InProgress"></ej-kanban-column>
    	   <ej-kanban-column  e-header-text="Done" e-key="Close"></ej-kanban-column>
         </ej-kanban>
      </div>
        <script id="cardtemplate" type="text/x-jsrender">
            <table class="e-templatetable">
                <colgroup>
                    <col width="10%">
                    <col width="90%">
                </colgroup>
                <tbody>
                    <tr>
                        <td class="photo">
                            <img src="/images/kanban/.png" />
                        </td>
                        <td class="details">
                            <table>
                                <colgroup>
                                    <col width="10%">
                                    <col width="90%">
                                </colgroup>
                                <tbody>
                                    <tr>
                                        <td class="CardHeader">   Assignee: </td>
                                        <td></td>
                                    </tr>
                                    <tr>
                                        <td class="CardHeader">   Summary: </td>
                                        <td></td>
                                    </tr>
                                    <tr>
                                        <td class="CardHeader">   Type: </td>
                                        <td></td>
                                    </tr>
                                </tbody>
                            </table>
                        </td>
                    </tr>
                </tbody>
            </table>
        </script>
        <style>
            .e-templatetable {
                width: 100%;
            }

            .details > table {
                margin-left: 2px;
                border-collapse: separate;
                border-spacing: 2px;
                width: 100%;
            }

            .details td {
                vertical-align: top;
            }

            .details {
                padding: 8px 8px 10px 0;
            }

            .photo {
                padding: 8px 6px 10px 6px;
                text-align: center;
            }

            .CardHeader {
                font-weight: bolder;
                padding-right: 10px;
            }
        </style>
    </template>
  • html
  • export class Kanban {
        constructor() {
            this.KanbanData = [
               { Id: 1, Status: "Open", Summary: "Analyze the new requirements gathered from the customer.", Type: "Story", Priority: "Low", Tags: "Analyze,Customer", Estimate: 3.5, Assignee: "Nancy Davloio", ImgUrl: "/images/kanban/1.png", RankId: 1 },
               { Id: 2, Status: "InProgress", Summary: "Improve application performance", Type: "Improvement", Priority: "Normal", Tags: "Improvement", Estimate: 6, Assignee: "Andrew Fuller", ImgUrl: "/images/kanban/2.png", RankId: 1 },
               { Id: 3, Status: "Open", Summary: "Arrange a web meeting with the customer to get new requirements.", Type: "Others", Priority: "Critical", Tags: "Meeting", Estimate: 5.5, Assignee: "Janet Leverling", ImgUrl: "/images/kanban/3.png", RankId: 2 },
               { Id: 4, Status: "InProgress", Summary: "Fix the issues reported in the IE browser.", Type: "Bug", Priority: "Release Breaker", Tags: "IE", Estimate: 2.5, Assignee: "Janet Leverling", ImgUrl: "/images/kanban/3.png", RankId: 2 },
               { Id: 5, Status: "Testing", Summary: "Fix the issues reported by the customer.", Type: "Bug", Priority: "Low", Tags: "Customer", Estimate: "3.5", Assignee: "Steven walker", ImgUrl:"/images/kanban/5.png", RankId: 1 },
               { Id: 6, Status: "Close", Summary: "Arrange a web meeting with the customer to get the login page requirements.", Type: "Others", Priority: "Low", Tags: "Meeting", Estimate: 2, Assignee: "Michael Suyama", ImgUrl: "/images/kanban/6.png", RankId: 1 },
               { Id: 7, Status: "Validate", Summary: "Validate new requirements", Type: "Improvement", Priority: "Low", Tags: "Validation", Estimate: 1.5, Assignee: "Robert King", ImgUrl: "/images/kanban/7.png", RankId: 1 },
               { Id: 8, Status: "Close", Summary: "Login page validation", Type: "Story", Priority: "Release Breaker", Tags: "Validation,Fix", Estimate: 2.5, Assignee: "Laura Callahan", ImgUrl: "/images/kanban/8.png", RankId: 2 },
               { Id: 9, Status: "Testing", Summary: "Fix the issues reported in Safari browser.", Type: "Bug", Priority: "Release Breaker", Tags: "Fix,Safari", Estimate: 1.5, Assignee: "Nancy Davloio", ImgUrl: "/images/kanban/1.png", RankId: 2 },
               { Id: 10, Status: "Close", Summary: "Test the application in the IE browser.", Type: "Story", Priority: "Low", Tags: "Testing,IE", Estimate: 5.5, Assignee: "Margaret hamilt", ImgUrl: "/images/kanban/4.png", RankId: 3 },
               { Id: 11, Status: "Validate", Summary: "Validate the issues reported by the customer.", Type: "Story", Priority: "High", Tags: "Validation,Fix", Estimate: 1, Assignee: "Steven walker", ImgUrl: "/images/kanban/5.png", RankId: 1 },
               { Id: 12, Status: "Testing", Summary: "Check Login page validation.", Type: "Story", Priority: "Release Breaker", Tags: "Testing", Estimate: 0.5, Assignee: "Michael Suyama", ImgUrl: "/images/kanban/6.png", RankId: 3 },
               { Id: 13, Status: "Open", Summary: "API improvements.", Type: "Improvement", Priority: "High", Tags: "Grid,API", Estimate: 3.5, Assignee: "Robert King", ImgUrl: "/images/kanban/7.png", RankId: 3 },
               { Id: 14, Status: "InProgress", Summary: "Add responsive support to application", Type: "Epic", Priority: "Critical", Tags: "Responsive", Estimate: 6, Assignee: "Laura Callahan", ImgUrl: "/images/kanban/8.png", RankId: 3 },
               { Id: 15, Status: "Open", Summary: "Show the retrieved data from the server in grid control.", Type: "Story", Priority: "High", Tags: "Database,SQL", Estimate: 5.5, Assignee: "Margaret hamilt", ImgUrl: "/images/kanban/4.png", RankId: 4 },
               { Id: 16, Status: "InProgress", Summary: "Fix cannot open user’s default database SQL error.", Priority: "Critical", Type: "Bug", Tags: "Database,Sql2008", Estimate: 2.5, Assignee: "Janet Leverling", ImgUrl: "/images/kanban/3.png", RankId: 4 },
               { Id: 17, Status: "Testing", Summary: "Fix the issues reported in data binding.", Type: "Story", Priority: "Normal", Tags: "Databinding", Estimate: "3.5", Assignee: "Janet Leverling", ImgUrl: "/images/kanban/3.png", RankId: 4 },
               { Id: 18, Status: "Close", Summary: "Analyze SQL server 2008 connection.", Type: "Story", Priority: "Release Breaker", Tags: "Grid,Sql", Estimate: 2, Assignee: "Andrew Fuller", ImgUrl: "/images/kanban/2.png", RankId: 4 },
               { Id: 19, Status: "Validate", Summary: "Validate databinding issues.", Type: "Story", Priority: "Low", Tags: "Validation", Estimate: 1.5, Assignee: "Margaret hamilt", ImgUrl: "/images/kanban/4.png", RankId: 1 },
               { Id: 20, Status: "Close", Summary: "Analyze grid control.", Type: "Story", Priority: "High", Tags: "Analyze", Estimate: 2.5, Assignee: "Margaret hamilt", ImgUrl: "/images/kanban/4.png", RankId: 5 }];
            this.Field = { primaryKey: 'Id', color: 'Type'};
            this.cardSettings = {
                template: "#cardtemplate",
                colorMapping: {
                    "#cb2027": "Bug,Story",
                    "#67ab47": "Improvement",
                    "#fbae19": "Epic",
                    "#6a5da8": "Others"
                }
            };
        }

    }

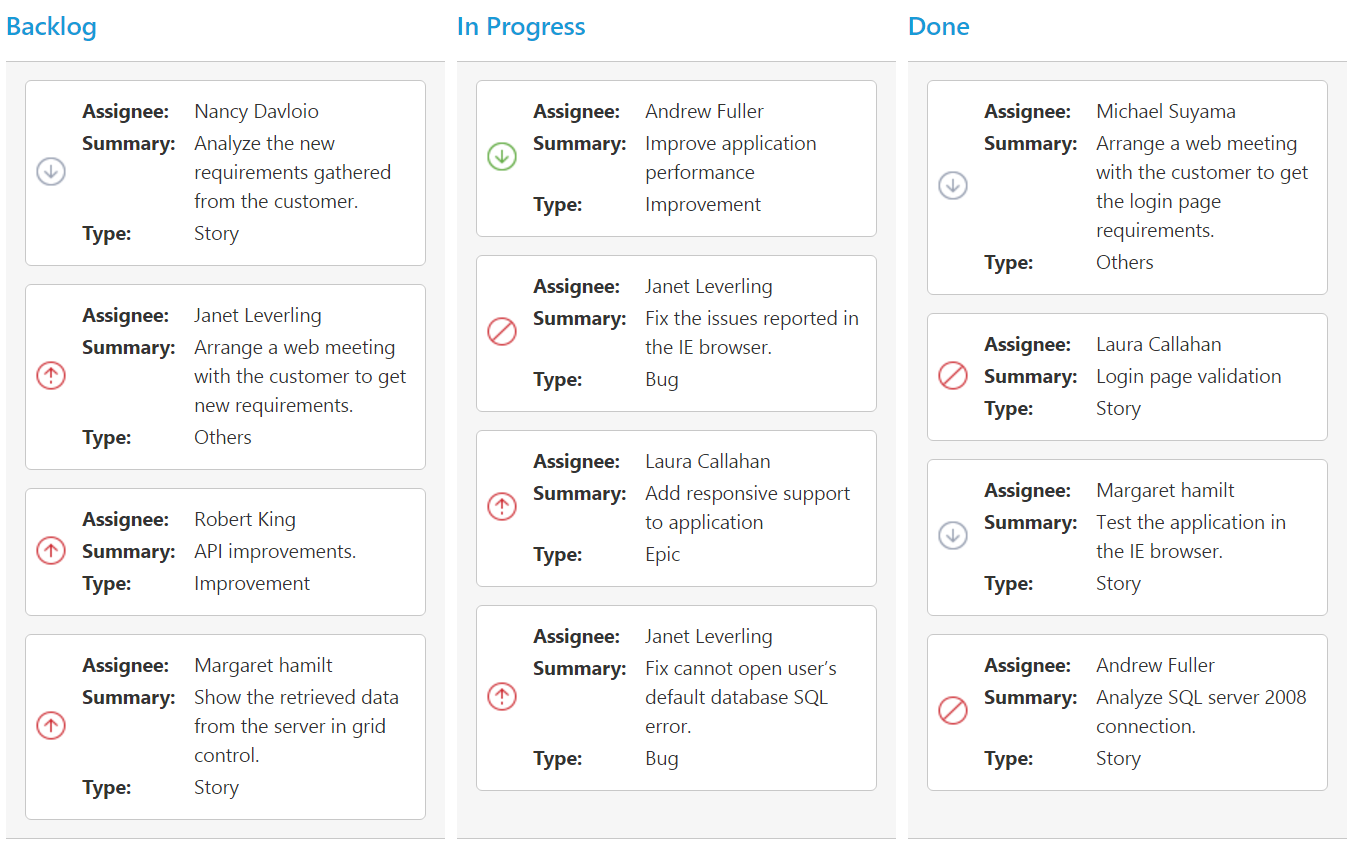

    The following output is displayed as a result of the above code example.

    Tooltip

    You can enable HTML tooltip for Kanban card elements by setting enable property as true in e-tooltip-settings.bind.

    The following code example describes the above behavior.

  • html
  • <template>
      <div>
         <ej-kanban id="Kanban" e-data-source.bind="KanbanData" e-key-field="Status" e-fields.bind="Field" e-tooltip-settings.bind="tooltipSettings">
           <ej-kanban-column  e-header-text="Backlog" e-key="Open"></ej-kanban-column>
    	   <ej-kanban-column  e-header-text="In Progress" e-key="InProgress"></ej-kanban-column>
    	   <ej-kanban-column  e-header-text="Done" e-key="Close"></ej-kanban-column>
         </ej-kanban>
      </div>
    </template>
  • html
  • export class Kanban {
        constructor() {
            this.KanbanData = [
               { Id: 1, Status: "Open", Summary: "Analyze the new requirements gathered from the customer.", Type: "Story", Priority: "Low", Tags: "Analyze,Customer", Estimate: 3.5, Assignee: "Nancy Davloio", ImgUrl: "/images/kanban/1.png", RankId: 1 },
               { Id: 2, Status: "InProgress", Summary: "Improve application performance", Type: "Improvement", Priority: "Normal", Tags: "Improvement", Estimate: 6, Assignee: "Andrew Fuller", ImgUrl: "/images/kanban/2.png", RankId: 1 },
               { Id: 3, Status: "Open", Summary: "Arrange a web meeting with the customer to get new requirements.", Type: "Others", Priority: "Critical", Tags: "Meeting", Estimate: 5.5, Assignee: "Janet Leverling", ImgUrl: "/images/kanban/3.png", RankId: 2 },
               { Id: 4, Status: "InProgress", Summary: "Fix the issues reported in the IE browser.", Type: "Bug", Priority: "Release Breaker", Tags: "IE", Estimate: 2.5, Assignee: "Janet Leverling", ImgUrl: "/images/kanban/3.png", RankId: 2 },
               { Id: 5, Status: "Testing", Summary: "Fix the issues reported by the customer.", Type: "Bug", Priority: "Low", Tags: "Customer", Estimate: "3.5", Assignee: "Steven walker", ImgUrl:"/images/kanban/5.png", RankId: 1 },
               { Id: 6, Status: "Close", Summary: "Arrange a web meeting with the customer to get the login page requirements.", Type: "Others", Priority: "Low", Tags: "Meeting", Estimate: 2, Assignee: "Michael Suyama", ImgUrl: "/images/kanban/6.png", RankId: 1 },
               { Id: 7, Status: "Validate", Summary: "Validate new requirements", Type: "Improvement", Priority: "Low", Tags: "Validation", Estimate: 1.5, Assignee: "Robert King", ImgUrl: "/images/kanban/7.png", RankId: 1 },
               { Id: 8, Status: "Close", Summary: "Login page validation", Type: "Story", Priority: "Release Breaker", Tags: "Validation,Fix", Estimate: 2.5, Assignee: "Laura Callahan", ImgUrl: "/images/kanban/8.png", RankId: 2 },
               { Id: 9, Status: "Testing", Summary: "Fix the issues reported in Safari browser.", Type: "Bug", Priority: "Release Breaker", Tags: "Fix,Safari", Estimate: 1.5, Assignee: "Nancy Davloio", ImgUrl: "/images/kanban/1.png", RankId: 2 },
               { Id: 10, Status: "Close", Summary: "Test the application in the IE browser.", Type: "Story", Priority: "Low", Tags: "Testing,IE", Estimate: 5.5, Assignee: "Margaret hamilt", ImgUrl: "/images/kanban/4.png", RankId: 3 },
               { Id: 11, Status: "Validate", Summary: "Validate the issues reported by the customer.", Type: "Story", Priority: "High", Tags: "Validation,Fix", Estimate: 1, Assignee: "Steven walker", ImgUrl: "/images/kanban/5.png", RankId: 1 },
               { Id: 12, Status: "Testing", Summary: "Check Login page validation.", Type: "Story", Priority: "Release Breaker", Tags: "Testing", Estimate: 0.5, Assignee: "Michael Suyama", ImgUrl: "/images/kanban/6.png", RankId: 3 },
               { Id: 13, Status: "Open", Summary: "API improvements.", Type: "Improvement", Priority: "High", Tags: "Grid,API", Estimate: 3.5, Assignee: "Robert King", ImgUrl: "/images/kanban/7.png", RankId: 3 },
               { Id: 14, Status: "InProgress", Summary: "Add responsive support to application", Type: "Epic", Priority: "Critical", Tags: "Responsive", Estimate: 6, Assignee: "Laura Callahan", ImgUrl: "/images/kanban/8.png", RankId: 3 },
               { Id: 15, Status: "Open", Summary: "Show the retrieved data from the server in grid control.", Type: "Story", Priority: "High", Tags: "Database,SQL", Estimate: 5.5, Assignee: "Margaret hamilt", ImgUrl: "/images/kanban/4.png", RankId: 4 },
               { Id: 16, Status: "InProgress", Summary: "Fix cannot open user’s default database SQL error.", Priority: "Critical", Type: "Bug", Tags: "Database,Sql2008", Estimate: 2.5, Assignee: "Janet Leverling", ImgUrl: "/images/kanban/3.png", RankId: 4 },
               { Id: 17, Status: "Testing", Summary: "Fix the issues reported in data binding.", Type: "Story", Priority: "Normal", Tags: "Databinding", Estimate: "3.5", Assignee: "Janet Leverling", ImgUrl: "/images/kanban/3.png", RankId: 4 },
               { Id: 18, Status: "Close", Summary: "Analyze SQL server 2008 connection.", Type: "Story", Priority: "Release Breaker", Tags: "Grid,Sql", Estimate: 2, Assignee: "Andrew Fuller", ImgUrl: "/images/kanban/2.png", RankId: 4 },
               { Id: 19, Status: "Validate", Summary: "Validate databinding issues.", Type: "Story", Priority: "Low", Tags: "Validation", Estimate: 1.5, Assignee: "Margaret hamilt", ImgUrl: "/images/kanban/4.png", RankId: 1 },
               { Id: 20, Status: "Close", Summary: "Analyze grid control.", Type: "Story", Priority: "High", Tags: "Analyze", Estimate: 2.5, Assignee: "Margaret hamilt", ImgUrl: "/images/kanban/4.png", RankId: 5 }];
            this.Field = { primaryKey: 'Id', content: 'Summary', tag: 'Tags' };
            this.tooltipSettings ={ enable: "true"};
        }
    }

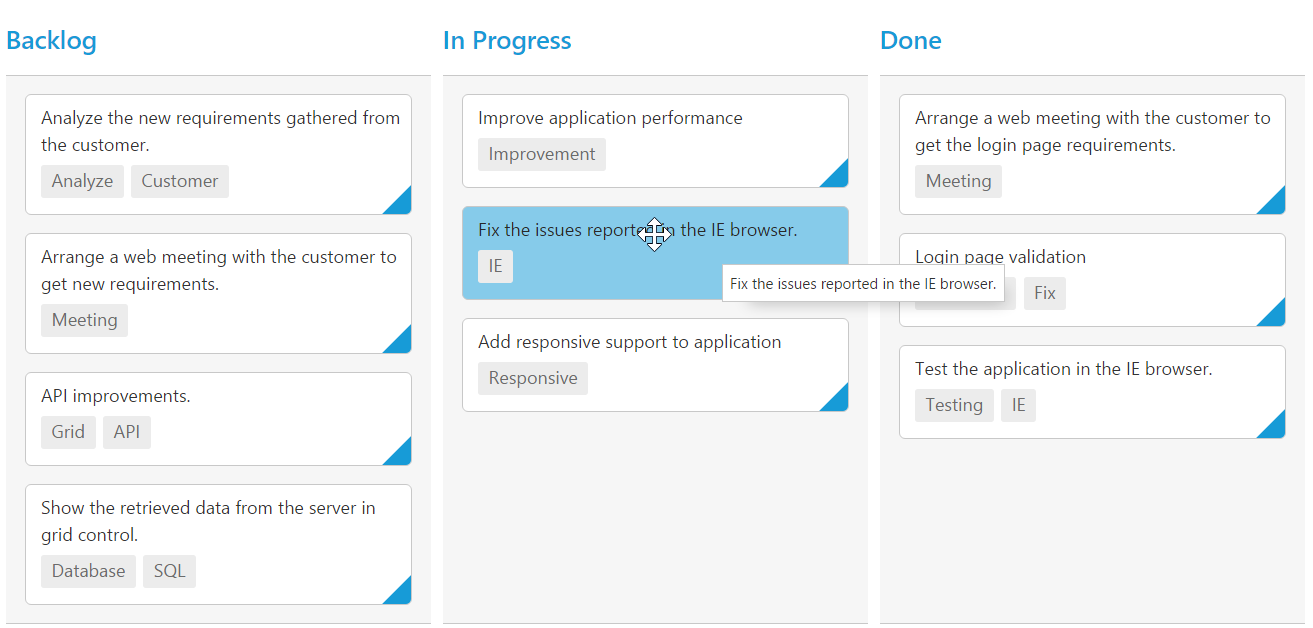

    The following output is displayed as a result of the above code example.

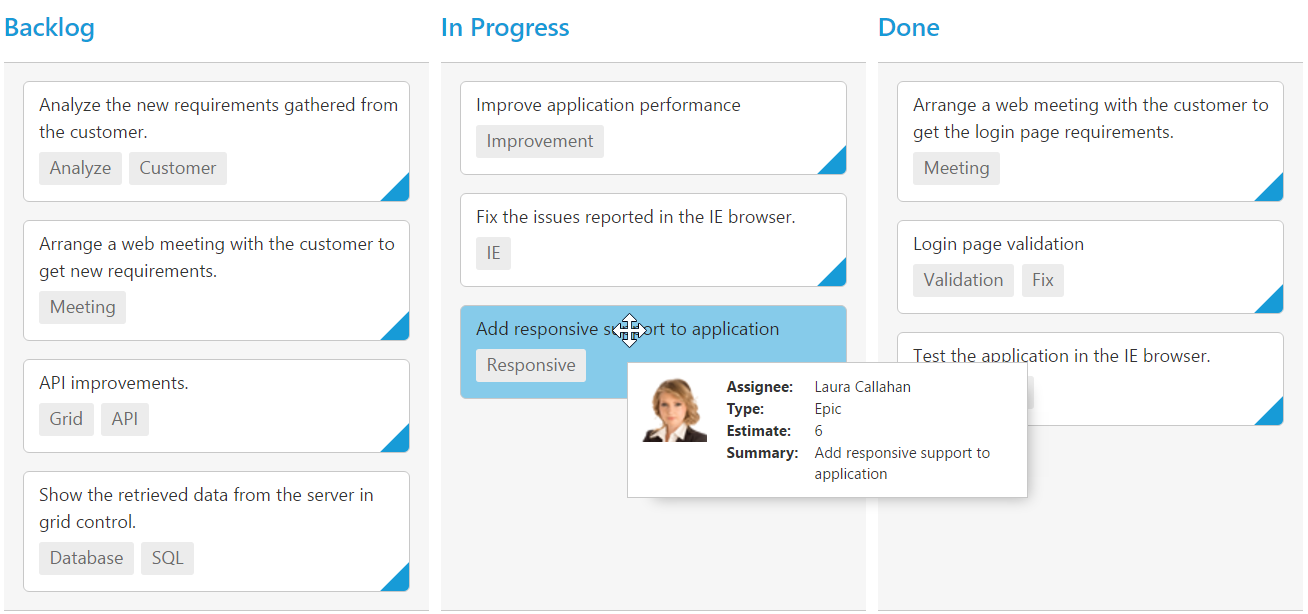

    Template

    By making use of template feature with tooltip, all the field names that are mapped from the dataSource can be accessed to define the template tooltip for card. The enable must be enabled first.

    The following code example describes the tooltip template.

  • html
  • <template>
      <div>
         <ej-kanban id="Kanban" e-data-source.bind="KanbanData" e-key-field="Status" e-fields.bind="Field" e-tooltip-settings.bind="tooltipSettings">
           <ej-kanban-column  e-header-text="Backlog" e-key="Open"></ej-kanban-column>
    	   <ej-kanban-column  e-header-text="In Progress" e-key="InProgress"></ej-kanban-column>
    	   <ej-kanban-column  e-header-text="Done" e-key="Close"></ej-kanban-column>
         </ej-kanban>
      </div>
        <script id="tooltipTemp" type="text/x-jsrender">
            <div class='e-kanbantooltiptemplate'>
                <table>
                    <tr>
                        <td class="photo">
                            <img src="">
                        </td>
                        <td class="details">
                            <table>
                                <colgroup>
                                    <col width="30%">
                                    <col width="70%">
                                </colgroup>
                                <tbody>
                                    <tr>
                                        <td class="CardHeader">Assignee:</td>
                                        <td></td>
                                    </tr>
                                    <tr>
                                        <td class="CardHeader">Type:</td>
                                        <td></td>
                                    </tr>
                                    <tr>
                                        <td class="CardHeader">Estimate:</td>
                                        <td></td>
                                    </tr>
                                    <tr>
                                        <td class="CardHeader">Summary:</td>
                                        <td></td>
                                    </tr>
                                </tbody>
                            </table>
                        </td>
                    </tr>
                </table>
            </div>
        </script>
        <style>
            .details > table {
                width: 100%;
                margin-left: 2px;
                border-collapse: separate;
                border-spacing: 1px;
            }

            .e-kanbantooltiptemplate {
                width: 250px;
                padding: 3px;
            }

                .e-kanbantooltiptemplate > table {
                    width: 100%;
                }

                .e-kanbantooltiptemplate td {
                    vertical-align: top;
                }

            td.details {
                padding-left: 10px;
            }

            .CardHeader {
                font-weight: bolder;
            }
        </style>
    </template>
  • html
  • export class Kanban {
        constructor() {
            this.KanbanData = [
               { Id: 1, Status: "Open", Summary: "Analyze the new requirements gathered from the customer.", Type: "Story", Priority: "Low", Tags: "Analyze,Customer", Estimate: 3.5, Assignee: "Nancy Davloio", ImgUrl: "/images/kanban/1.png", RankId: 1 },
               { Id: 2, Status: "InProgress", Summary: "Improve application performance", Type: "Improvement", Priority: "Normal", Tags: "Improvement", Estimate: 6, Assignee: "Andrew Fuller", ImgUrl: "/images/kanban/2.png", RankId: 1 },
               { Id: 3, Status: "Open", Summary: "Arrange a web meeting with the customer to get new requirements.", Type: "Others", Priority: "Critical", Tags: "Meeting", Estimate: 5.5, Assignee: "Janet Leverling", ImgUrl: "/images/kanban/3.png", RankId: 2 },
               { Id: 4, Status: "InProgress", Summary: "Fix the issues reported in the IE browser.", Type: "Bug", Priority: "Release Breaker", Tags: "IE", Estimate: 2.5, Assignee: "Janet Leverling", ImgUrl: "/images/kanban/3.png", RankId: 2 },
               { Id: 5, Status: "Testing", Summary: "Fix the issues reported by the customer.", Type: "Bug", Priority: "Low", Tags: "Customer", Estimate: "3.5", Assignee: "Steven walker", ImgUrl:"/images/kanban/5.png", RankId: 1 },
               { Id: 6, Status: "Close", Summary: "Arrange a web meeting with the customer to get the login page requirements.", Type: "Others", Priority: "Low", Tags: "Meeting", Estimate: 2, Assignee: "Michael Suyama", ImgUrl: "/images/kanban/6.png", RankId: 1 },
               { Id: 7, Status: "Validate", Summary: "Validate new requirements", Type: "Improvement", Priority: "Low", Tags: "Validation", Estimate: 1.5, Assignee: "Robert King", ImgUrl: "/images/kanban/7.png", RankId: 1 },
               { Id: 8, Status: "Close", Summary: "Login page validation", Type: "Story", Priority: "Release Breaker", Tags: "Validation,Fix", Estimate: 2.5, Assignee: "Laura Callahan", ImgUrl: "/images/kanban/8.png", RankId: 2 },
               { Id: 9, Status: "Testing", Summary: "Fix the issues reported in Safari browser.", Type: "Bug", Priority: "Release Breaker", Tags: "Fix,Safari", Estimate: 1.5, Assignee: "Nancy Davloio", ImgUrl: "/images/kanban/1.png", RankId: 2 },
               { Id: 10, Status: "Close", Summary: "Test the application in the IE browser.", Type: "Story", Priority: "Low", Tags: "Testing,IE", Estimate: 5.5, Assignee: "Margaret hamilt", ImgUrl: "/images/kanban/4.png", RankId: 3 },
               { Id: 11, Status: "Validate", Summary: "Validate the issues reported by the customer.", Type: "Story", Priority: "High", Tags: "Validation,Fix", Estimate: 1, Assignee: "Steven walker", ImgUrl: "/images/kanban/5.png", RankId: 1 },
               { Id: 12, Status: "Testing", Summary: "Check Login page validation.", Type: "Story", Priority: "Release Breaker", Tags: "Testing", Estimate: 0.5, Assignee: "Michael Suyama", ImgUrl: "/images/kanban/6.png", RankId: 3 },
               { Id: 13, Status: "Open", Summary: "API improvements.", Type: "Improvement", Priority: "High", Tags: "Grid,API", Estimate: 3.5, Assignee: "Robert King", ImgUrl: "/images/kanban/7.png", RankId: 3 },
               { Id: 14, Status: "InProgress", Summary: "Add responsive support to application", Type: "Epic", Priority: "Critical", Tags: "Responsive", Estimate: 6, Assignee: "Laura Callahan", ImgUrl: "/images/kanban/8.png", RankId: 3 },
               { Id: 15, Status: "Open", Summary: "Show the retrieved data from the server in grid control.", Type: "Story", Priority: "High", Tags: "Database,SQL", Estimate: 5.5, Assignee: "Margaret hamilt", ImgUrl: "/images/kanban/4.png", RankId: 4 },
               { Id: 16, Status: "InProgress", Summary: "Fix cannot open user’s default database SQL error.", Priority: "Critical", Type: "Bug", Tags: "Database,Sql2008", Estimate: 2.5, Assignee: "Janet Leverling", ImgUrl: "/images/kanban/3.png", RankId: 4 },
               { Id: 17, Status: "Testing", Summary: "Fix the issues reported in data binding.", Type: "Story", Priority: "Normal", Tags: "Databinding", Estimate: "3.5", Assignee: "Janet Leverling", ImgUrl: "/images/kanban/3.png", RankId: 4 },
               { Id: 18, Status: "Close", Summary: "Analyze SQL server 2008 connection.", Type: "Story", Priority: "Release Breaker", Tags: "Grid,Sql", Estimate: 2, Assignee: "Andrew Fuller", ImgUrl: "/images/kanban/2.png", RankId: 4 },
               { Id: 19, Status: "Validate", Summary: "Validate databinding issues.", Type: "Story", Priority: "Low", Tags: "Validation", Estimate: 1.5, Assignee: "Margaret hamilt", ImgUrl: "/images/kanban/4.png", RankId: 1 },
               { Id: 20, Status: "Close", Summary: "Analyze grid control.", Type: "Story", Priority: "High", Tags: "Analyze", Estimate: 2.5, Assignee: "Margaret hamilt", ImgUrl: "/images/kanban/4.png", RankId: 5 }];
            this.Field = { primaryKey: 'Id', content: 'Summary', tag: 'Tags' };
            this.tooltipSettings = {
                enable: true,
                template: "#tooltipTemp"
            };
        }
    }

    The following output is displayed as a result of the above code example.
